Southwire 7538SW Temporary Light String User Manual

1. Einleitung

This manual provides essential information for the safe and effective installation, operation, and maintenance of your Southwire 7538SW Temporary Light String. This product is designed for temporary indoor and outdoor illumination in environments such as construction sites, jobsites, attics, and garages. Please read all instructions carefully before use and retain this manual for future reference.

2. Sicherheitshinweise

WARNING: Risk of Electric Shock. Read and follow all safety instructions.

• Always ensure the power source is disconnected before installing, servicing, or replacing bulbs.
• This product is designed for temporary use. Do not use as a permanent lighting solution.
• Ensure the light string is properly grounded.
• Überschreiten Sie nicht die maximale Wassermengetage of 150 watts per bulb or 1875 watts for the entire string.
• Use only bulbs of type A23 or larger that fit within the metal guards.
• Inspect the cord and lamp holders for damage before each use. Do not use if insulation is cut, frayed, or cracked.
• Keep connections dry and away from standing water.
• Verändern Sie das Produkt in keiner Weise. Nicht autorisierte Änderungen können zu Gefahren führen und die Garantie erlöschen lassen.
• This product meets OSHA and NEC requirements and is UL Listed.

3. Produktüberschreitungview

The Southwire 7538SW Temporary Light String is a robust lighting solution featuring a heavy-duty 12-gauge, three-conductor SJTW power cord in OSHA yellow, designed to withstand moisture, abrasion, chemicals, and UV exposure. It includes five lamp holders with quick-open plated metal guards for bulb protection.

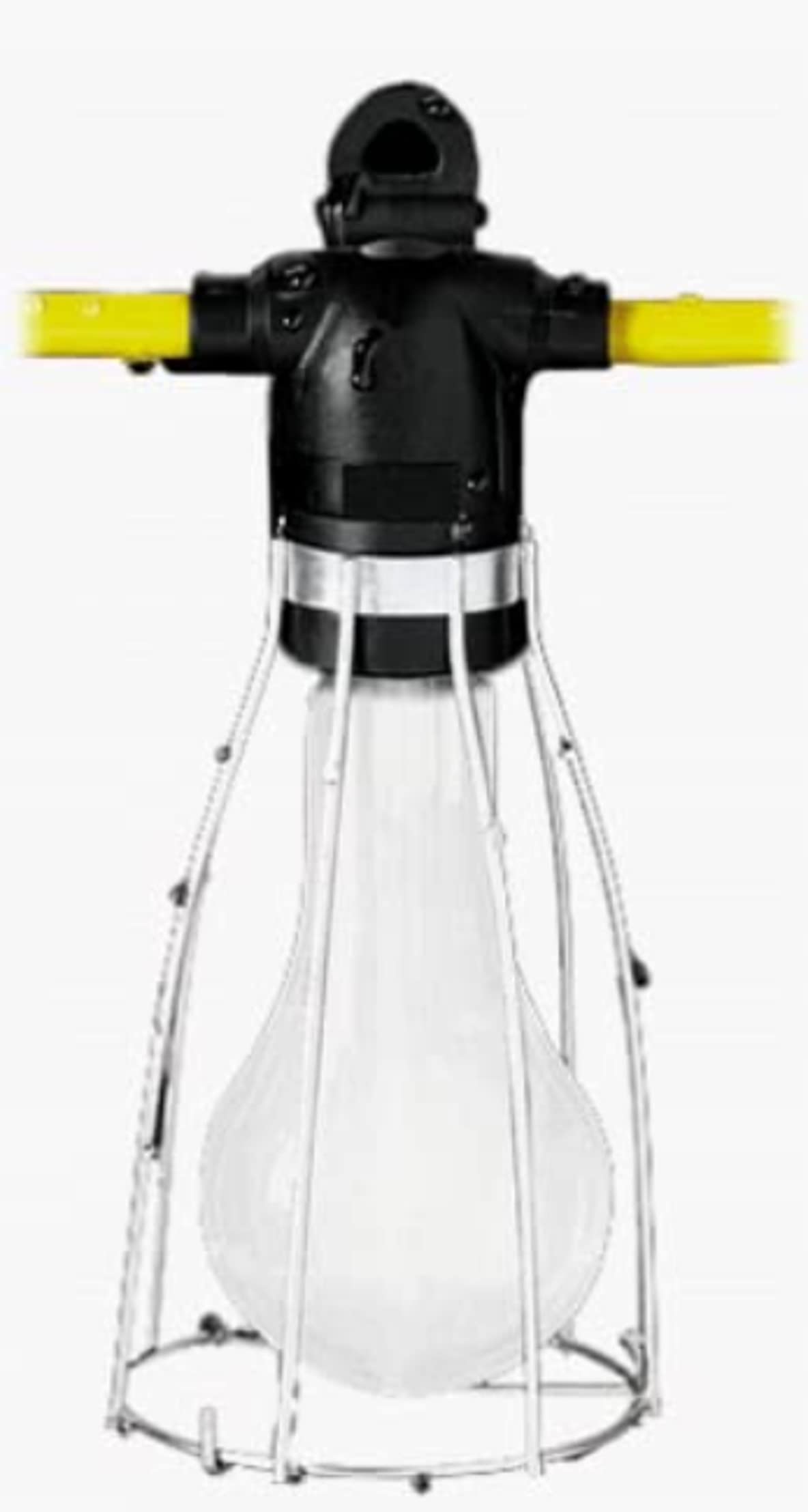

Bild: Eine Nahaufnahme view of a single lamp holder on the Southwire 7538SW Temporary Light String. It shows the black molded PVC lamp holder connected to the yellow 12/3 SJTW cord, surrounded by a silver-colored metal cage guard. The design emphasizes durability and protection for the bulb (not included).

Hauptmerkmale:

• Länge: 50 Fuß
• Kabeltyp: 12/3 SJTW (Service Junior Thermoplastic Weather-resistant)
• Anzahl der Lichter: 5 lamp Inhaber
• Sockelabstand: Evenly spaced every 10 feet, starting 9 feet from the plug.
• Kompatibilität der Glühbirnen: Accepts bulbs up to 150 watts each (A23 or larger). Bulbs are not included.
• Maximum String Wattage: 1875 Watt
• Wachen: Coated metal cage guards for bulb protection.
• Haltbarkeit: Weather-proof, resistant to moisture, abrasion, chemicals, and UV rays.

4. Einrichtung

4.1 Auspacken

1. Carefully remove the light string from its packaging.
2. Uncoil the cord completely to prevent kinks or damage.
3. Inspect the entire light string for any signs of damage from shipping. If damage is found, do not use the product and contact customer support.

4.2 Glühbirneninstallation

Bulbs are not included with this product. Ensure you use incandescent bulbs of type A23 or larger, with a maximum wattage von 150 Watt pro Birne.

1. Ensure the light string is unplugged from any power source.
2. Carefully open the metal cage guard on each lamp holder. The guards are designed for quick opening.
3. Screw in the appropriate bulb (up to 150W, A23 or larger) into each socket until snug. Do not overtighten.
4. Close and secure the metal cage guard around each bulb.

4.3 Placement and Hanging

The light string is suitable for both indoor and outdoor temporary use. Ensure the chosen location is free from excessive heat sources or flammable materials.

• Hang the light string using appropriate supports (e.g., hooks, zip ties) to prevent strain on the cord and lamp Inhaber.
• Ensure the cord is not pinched, cut, or subjected to sharp edges.
• Maintain adequate clearance around each bulb for heat dissipation.
• For outdoor use, ensure all connections are protected from direct exposure to rain or standing water.

4.4 Stromanschluss

1. Once all bulbs are installed and the string is securely placed, connect the attachment plug cap to a compatible 120V AC grounded outlet.
2. Ensure the outlet is protected by a Ground Fault Circuit Interrupter (GFCI) for added safety, especially in damp oder Outdoor-Umgebungen.

5. Bedienungsanleitung

To operate the Southwire 7538SW Temporary Light String, simply plug it into a suitable grounded power outlet. The lights will illuminate immediately. To turn off, unplug the string from the power source.

• This light string is intended for temporary illumination only.
• Do not leave the light string unattended for extended periods.
• Always unplug the unit when not in use or before performing any maintenance.

6. Wartung

6.1 Regelmäßige Inspektion

Perform regular inspections to ensure the longevity and safe operation of your light string.

• Before each use, check the entire length of the cord for cuts, abrasions, or signs of wear.
• Inspizieren lamp holders and metal guards for damage or corrosion.
• Ensure all bulb guards are securely closed.
• Check the plug and cord connector for any damage.

6.2 Reinigung

Always unplug the light string before cleaning.

• Wipe down the cord and lamp holders with a dry or slightly damp Tuch.
• Verwenden Sie keine aggressiven Chemikalien oder Scheuermittel.
• Ensure all components are completely dry before plugging the unit back in.

6.3 Glühbirnenwechsel

Refer to Section 4.2 for detailed bulb installation steps.

• Always unplug the light string before replacing a bulb.
• Allow hot bulbs to cool completely before handling.
• Replace with bulbs of the correct type and wattage (up to 150W, A23 or larger).

6.4 Speicherung

• When not in use, unplug the light string and allow it to cool.
• Coil the cord neatly to prevent tangling and damage.
• An einem kühlen, trockenen Ort ohne direkte Sonneneinstrahlung und extreme Temperaturen lagern.

7. Fehlerbehebung

Lichter leuchten nicht:

• Überprüfen Sie die Stromquelle: Ensure the outlet is functional by plugging in another device.
• Steckverbindung prüfen: Verify the light string is securely plugged into the outlet.
• Glühbirnen prüfen: Check each bulb for proper installation and ensure none are burnt out. Replace any faulty bulbs.
• FI-Schutzschalter ausgelöst: If connected to a GFCI outlet, check if it has tripped. Reset if necessary.
• Kabelschaden: Inspect the entire cord for visible damage. If damaged, discontinue use.

Flackernde Lichter:

• Loose Bulbs: Tighten all bulbs in their sockets.
• Defekte Glühbirnen: Replace any flickering bulbs.
• Instabile Stromversorgung: Stellen Sie sicher, dass die Stromquelle stabil und nicht überlastet ist.

Sicherheitsbedenken:

• If you notice any burning smell, sparks, or unusual heat, immediately unplug the light string and discontinue use.
• Do not attempt to repair electrical components yourself. Contact a qualified electrician or customer support.

8. Spezifikationen

9. Garantie und Support

Garantieinformationen:

Specific warranty details for the Southwire 7538SW Temporary Light String may vary. Please refer to the warranty documentation included with your purchase or contact Southwire customer service directly for the most accurate and up-to-date warranty information.

Kundendienst:

For technical assistance, troubleshooting beyond this manual, or warranty claims, please contact Southwire customer support. You can typically find contact information on the manufacturer's official webauf der Website oder auf der Produktverpackung.
