Einführung
The Mackie HD1221 is a 12-inch 2-way compact high-definition powered loudspeaker designed for professional audio applications. It features 1200W of Class-D Fast Recovery amplification, high-definition audio processing, and custom-designed transducers by EAW. This manual provides essential information for the safe and effective use of your HD1221 loudspeaker, including setup, operation, maintenance, and troubleshooting.
Sicherheitshinweise
Before operating the Mackie HD1221 loudspeaker, please read and understand all safety instructions. Failure to do so may result in electric shock, fire, or other injuries. Keep these instructions for future reference.
- Energiequelle: Connect the unit only to a power supply of the type described in the operating instructions or as marked on the appliance.
- Erdung: Ensure the loudspeaker is properly grounded to prevent electric shock.
- Belüftung: Die Lüftungsöffnungen dürfen nicht blockiert werden. Die Installation muss gemäß den Anweisungen des Herstellers erfolgen.
- Wasser und Feuchtigkeit: Verwenden Sie dieses Gerät nicht in der Nähe von Wasser und setzen Sie es keinem Tropf- oder Spritzwasser aus.
- Reinigung: Nur mit trockenem Tuch reinigen.
- Wartung: Überlassen Sie alle Wartungsarbeiten qualifiziertem Servicepersonal. Eine Wartung ist erforderlich, wenn das Gerät auf irgendeine Weise beschädigt wurde, z. B. wenn das Netzkabel oder der Stecker beschädigt sind, Flüssigkeit in das Gerät verschüttet wurde oder Gegenstände hineingefallen sind, das Gerät Regen oder Feuchtigkeit ausgesetzt war, nicht normal funktioniert oder fallengelassen wurde.
- Montage: Verwenden Sie das Gerät nur mit dem vom Hersteller angegebenen oder mit dem Gerät verkauften Wagen, Ständer, Stativ, Halter oder Tisch. Wenn Sie einen Wagen verwenden, seien Sie beim Bewegen der Wagen-/Gerät-Kombination vorsichtig, um Verletzungen durch Umkippen zu vermeiden.
Packungsinhalt
Verify that the following items are included in your Mackie HD1221 package:
- Mackie HD1221 Powered Loudspeaker
- Stromkabel
- Kurzanleitung (falls zutreffend)
- Garantieinformationen
Sollten Teile fehlen oder beschädigt sein, wenden Sie sich bitte umgehend an Ihren Händler.
Produkt überview
The Mackie HD1221 is a versatile loudspeaker designed for various applications, including main PA, stage monitor, and flown installations. It features a robust construction and advanced audio processing.
Vorne und seitlich Views
Abbildung 1: Vorder- und Seitenansicht view of the HD1221 loudspeaker, highlighting the durable grille and integrated handles for portability.
Abbildung 2: Linke Seite view of the HD1221 loudspeaker.
Bedienelemente und Anschlüsse auf der Rückseite

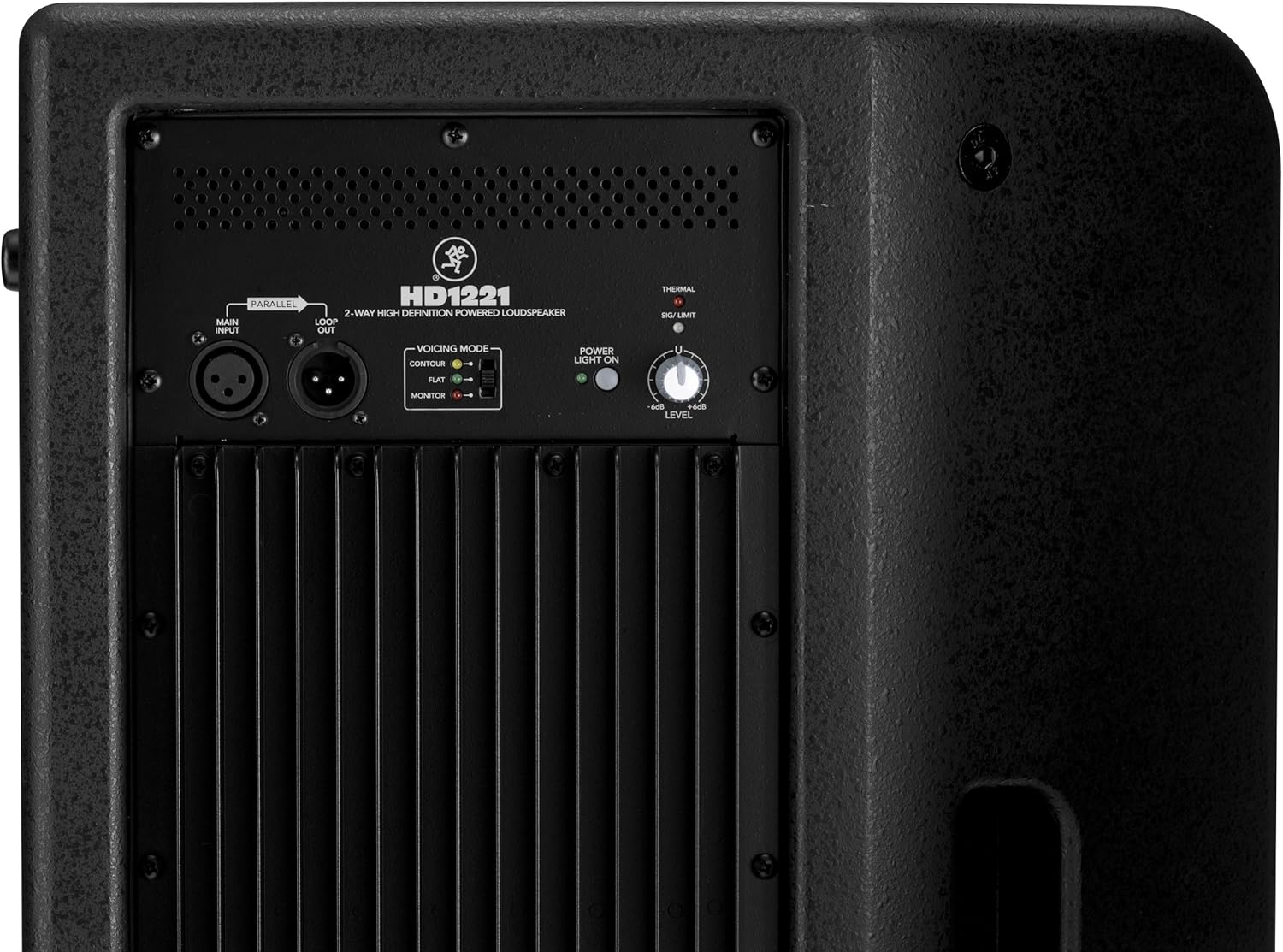

Figure 3: Rear panel of the HD1221, detailing the input/output section, voicing mode switch, power indicator, and level control knob.
- Main Input (XLR): Connect your audio source here.
- Loop Out (XLR): Provides a parallel output of the main input signal for connecting to additional loudspeakers or other audio equipment.
- Voicing Mode Switch: Selects between Contour, Flat, and Monitor modes to optimize the loudspeaker's frequency response for different applications.
- Betriebsanzeige leuchtet: Zeigt den Energiestatus des Geräts an.
- Thermal/Sig/Limit Indicators: Provide visual feedback on the loudspeaker's operational status, including thermal protection, signal presence, and limiting.
- Niveauregulierung: Regelt die Gesamtlautstärke des Lautsprechers.
- Wechselstromeingang: Connects the power cable to the mains supply.
Interne Komponenten
Abbildung 4: Intern view of the HD1221, showcasing the 12-inch neodymium woofer and 1.75-inch titanium compression driver, designed by EAW.
Aufstellen
Proper setup ensures optimal performance and safety. Follow these steps for initial setup:
Stromanschluss
- Ensure the Level control on the rear panel is set to its minimum position.
- Connect the supplied AC power cable to the AC Power Input on the rear panel of the HD1221.
- Stecken Sie das andere Ende des Stromkabels in eine geerdete Steckdose.
Audioanschlüsse
- Connect your audio source (e.g., mixer, instrument) to the Main Input (XLR) on the rear panel.
- If connecting multiple loudspeakers, use the Loop Out (XLR) to send the signal to the next loudspeaker.
Montageoptionen
The HD1221 offers several mounting options for flexibility:
Mastmontage

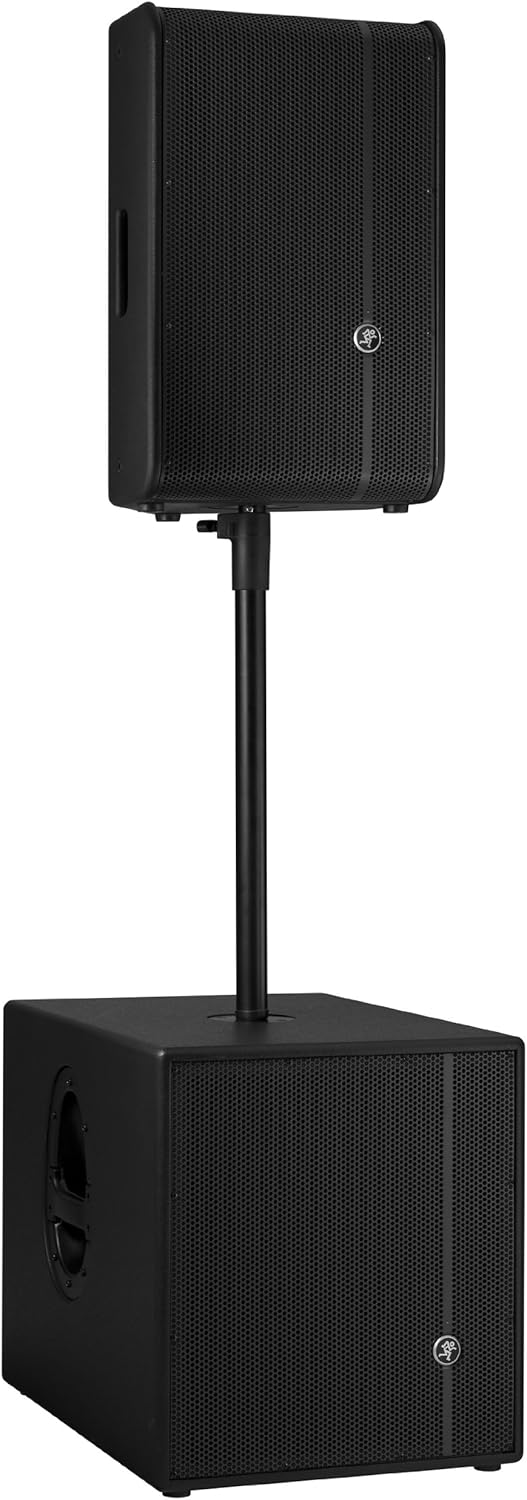

Figure 5: The HD1221 mounted on a pole, typically above a subwoofer like the HD1501 for a full-range PA system.
The HD1221 can be mounted on a standard speaker pole stand. Ensure the stand is stable and rated for the weight of the loudspeaker (approximately 58 lbs).
Stage Monitor Placement

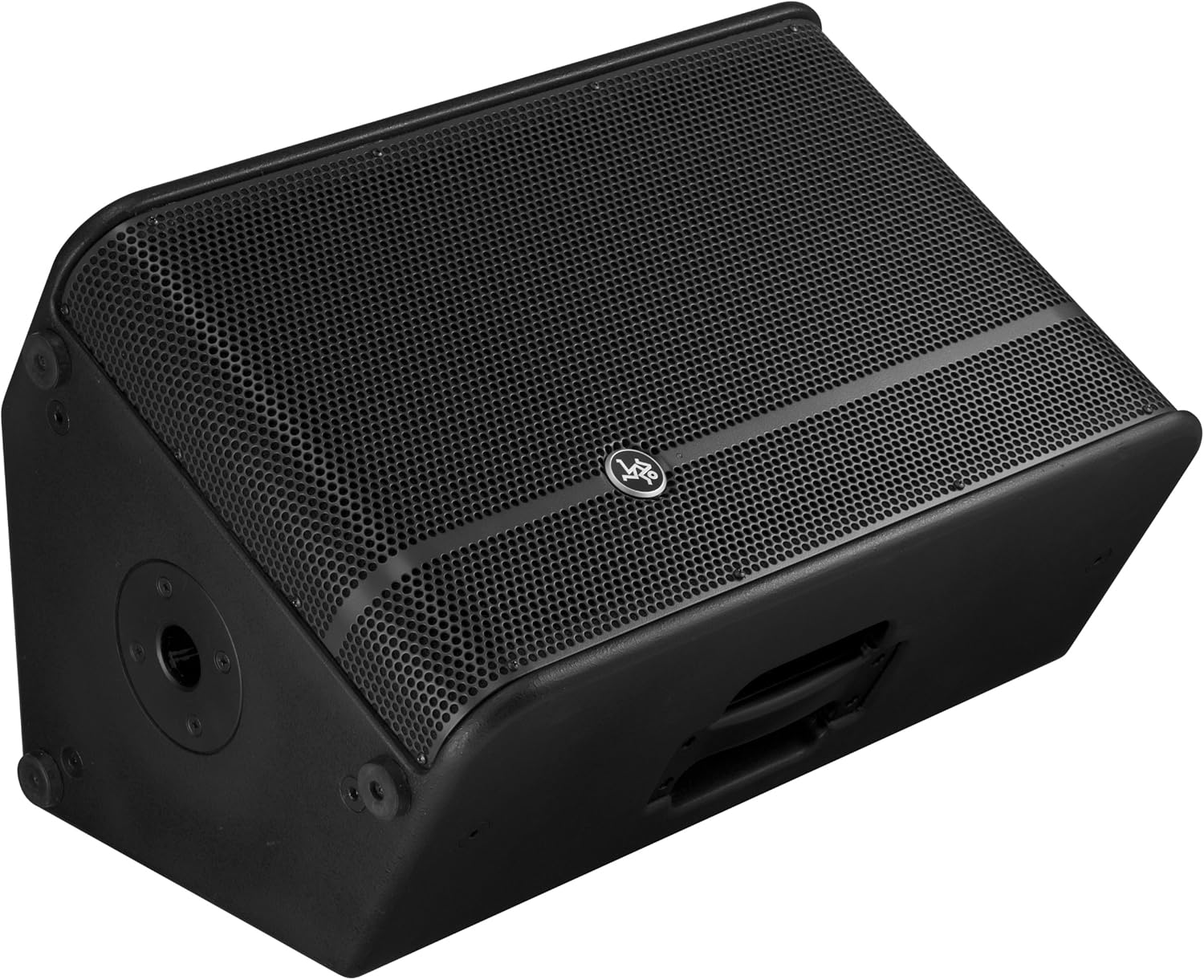

Figure 6: The HD1221 configured as a stage monitor, utilizing its 60-degree angle for optimal sound projection towards the performer.
Die Schrankkonstruktion ermöglicht die Verwendung alstage monitor with a 60-degree angle. Place the loudspeaker directly on the stage floor, angled towards the performer.
Flying/Suspension
Figure 7: The HD1221 suspended vertically using appropriate rigging hardware.
Figure 8: The HD1221 suspended horizontally using appropriate rigging hardware.
The HD1221 can be flown both vertically and horizontally. Always use certified rigging hardware and consult with a qualified professional for safe installation. The user-rotatable horn allows for precise sound placement in either orientation.
Bedienungsanleitung
Once the loudspeaker is set up, follow these steps for operation:
- Einschalten: Turn on your audio source (mixer, etc.) first, then turn on the HD1221 loudspeaker. The 'Power Light On' indicator should illuminate.
- Set Voicing Mode: Use the Voicing Mode switch on the rear panel to select the appropriate setting for your application:
- Kontur: Provides a sculpted frequency response, often suitable for music playback.
- Eben: Offers a neutral frequency response, ideal for critical listening or when external EQ is used.
- Monitor: Optimizes the frequency response for use as a stage monitor, reducing low-end rumble and enhancing clarity.
- Pegel anpassen: Slowly increase the Level control on the rear panel to achieve the desired volume. Monitor the 'Sig/Limit' indicator; if it flashes frequently or stays lit, reduce the input level from your source or the HD1221's level to prevent distortion and potential damage.
- Ausschalten: When finished, turn off the HD1221 loudspeaker first, then turn off your audio source.
Offizielles Produktvideo
Video 1: Ein überview of the Mackie HD1221 12-inch 2-Way High-Definition Powered Loudspeaker, demonstrating its features and applications.
Wartung
Regular maintenance helps prolong the life and performance of your HD1221 loudspeaker.
- Reinigung: Use a dry, lint-free cloth to clean the exterior of the loudspeaker. Do not use liquid cleaners or solvents.
- Gitter: Periodically check the steel grille for any damage or debris. Clean gently if necessary.
- Verbindungen: Stellen Sie sicher, dass alle Kabel fest angeschlossen und unbeschädigt sind.
- Lagerung: When not in use, store the loudspeaker in a dry, temperate environment, protected from dust and extreme temperatures.
Fehlerbehebung
If you encounter issues with your HD1221, refer to the following common problems and solutions:
| Problem | Mögliche Ursache | Lösung |
|---|---|---|
| Keine Tonausgabe | No power; incorrect connections; low level setting; faulty cable. | Check power cable and outlet. Verify audio cable connections. Increase Level control. Test with a different cable. |
| Verzerrter Ton | Input level too high; faulty cable; damaged speaker component. | Reduce input level from source or HD1221. Check 'Sig/Limit' indicator. Test with a different cable. If distortion persists, contact support. |
| Kein Stromlicht | No power; power switch off; internal fuse blown. | Ensure power cable is connected and outlet is active. Check power switch. If still no light, contact support. |
| Overheating (Thermal indicator lit) | Insufficient ventilation; prolonged high-volume operation. | Ensure adequate airflow around the unit. Reduce volume. Allow unit to cool down. |
Technische Daten
Detailed technical specifications for the Mackie HD1221 powered loudspeaker:
- Leistungsabgabe: 1200 W Spitzenleistung
- Lautsprechertyp: 2-Way High-Definition Powered Loudspeaker
- Woofer: 12-inch Neodymium Woofer
- Kompressionstreiber: 1.75-inch Titanium Compression Driver
- Horn: Vom Benutzer drehbares 90° x 50° Horn
- Gehäusematerial: 15 mm Birkensperrholz
- Gitter: Kaltgewalzter Stahl
- Monitorwinkel: 60 Grad
- Voicing Modes: Contour, Flat, Monitor
- Amplifikation: Class-D Fast Recovery
- Impedanz: 8 Ohm
- Artikelgewicht: 58 Pfund
- Konnektivitätsprotokoll: Wi-Fi (Note: This specification might refer to internal processing or future features, as direct Wi-Fi audio input is not typical for this type of speaker.)
- Modellnummer: HD1221
- UPC: 663961030495
Garantie
The Mackie HD1221 loudspeaker comes with a comprehensive warranty:
- Elektronik: 3 Jahr Garantie
- Treiber: 2 Jahr Garantie
Please retain your proof of purchase for warranty claims. For full terms and conditions, refer to the warranty card included with your product or visit the official Mackie webWebsite.
Unterstützung
For additional assistance, technical support, or service inquiries, please contact Mackie Customer Support. You can find contact information and frequently asked questions on the official Mackie webWebsite.
Online-Ressourcen: Besuchen Sie die Mackie Store on Amazon für Produktinformationen und Aktualisierungen.
