Hama FIX TV Wall Bracket (Model 96099) Instruction Manual

1. Einleitung

Thank you for choosing the Hama FIX TV Wall Bracket, Model 96099. This fixed wall mount is designed to securely hold your television, providing a clean and space-saving installation. Please read this instruction manual thoroughly before installation and keep it for future reference. Proper installation is crucial for the safety and stability of your television.

2. Sicherheitshinweise

• Lies alle Anweisungen: Before installation, carefully read and understand all assembly instructions. Incorrect installation can lead to serious injury or damage to property.
• Qualifiziertes Personal: Installation should only be performed by qualified personnel or with the assistance of a professional.
• Wandmaterial: Ensure the wall material is suitable for the weight of the TV and the wall mount. Use appropriate mounting hardware for your specific wall type (e.g., solid concrete, brick, wood studs, drywall). The included Fischer plugs are suitable for solid walls.
• Gewichtskapazität: Do not exceed the maximum load capacity of 60 kg (132 lbs). This mount is designed for screens from 19 to 48 inches.
• VESA-Kompatibilität: Ensure your TV's VESA mounting pattern is compatible with the bracket (up to 200x200 mm).
• Kabelmanagement: Route all cables carefully to avoid pinching or damage.
• Regelmäßige Kontrollen: Periodically check that the mount is securely fastened and that all screws are tight.
• Kinder: Halten Sie Kinder vom Installationsbereich fern.

3. Packungsinhalt

Bitte prüfen Sie vor Beginn der Installation, ob alle Komponenten vorhanden sind:

• 1x Hama FIX TV Wall Bracket (main assembly)
• 1x Screw set (various screws for TV and wall mounting)
• Fischer plugs (for solid wall installation)
• Mounting instructions (this document)

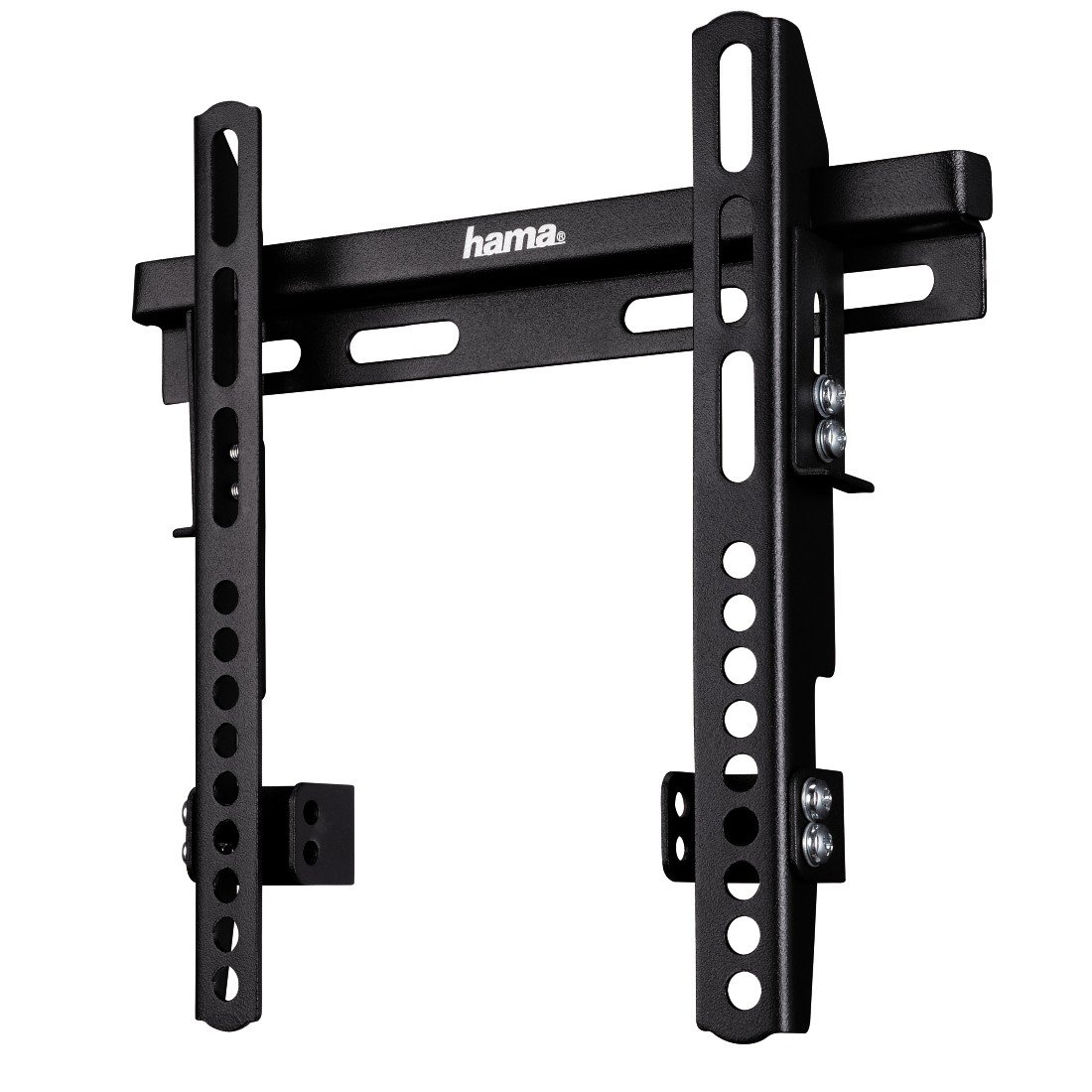

Bild 1: Überview of the Hama FIX TV Wall Bracket components. The image shows the main bracket assembly, including the wall plate and the two vertical TV attachment arms.

4. Einrichtung und Installation

Follow these steps carefully to ensure a secure installation of your TV wall bracket.

4.1. Bereiten Sie den Fernseher vor.

1. Legen Sie Ihren Fernseher mit dem Bildschirm nach unten auf eine weiche, saubere Oberfläche, um Kratzer zu vermeiden.
2. Identifizieren Sie die VESA-Montagelöcher auf der Rückseite Ihres Fernsehers.
3. Attach the two vertical TV attachment arms to the back of your TV using the appropriate screws from the provided screw set. Ensure the arms are oriented correctly and securely fastened. The bracket supports VESA standards up to 200x200 mm.

Bild 2: Front view of the Hama FIX TV Wall Bracket, showing the mounting holes and the overall structure. This view helps in understanding how the TV attachment arms connect to the wall plate.

4.2. Mark Drilling Positions

4. Hold the wall plate of the bracket against the wall at the desired height and position. Use a spirit level to ensure it is perfectly horizontal.
5. Mark the drilling positions through the holes on the wall plate.
6. Before drilling, verify there are no electrical cables, water pipes, or gas lines behind the wall at the marked positions.

4.3. Drill Holes and Mount Wall Plate

7. Drill holes at the marked positions using an appropriate drill bit for your wall type. For solid walls, use the provided Fischer plugs.
8. Insert the wall plugs (if required) into the drilled holes.
9. Position the wall plate over the holes and secure it to the wall using the provided screws. Tighten all screws firmly, but do not overtighten.

4.4. Hängen Sie den Fernseher auf

10. Carefully lift the TV (with the attached arms) and hook the arms onto the wall plate.
11. Ensure the TV is securely seated on the wall plate. The fixed design means the TV will sit close to the wall, with an extremely flat profile of approximately 3.1 cm (1.2 inches).
12. Engage any safety locking mechanisms on the TV attachment arms to prevent accidental dislodging.

Bild 3: Seitenprofifile view of the Hama FIX TV Wall Bracket, illustrating its slim design and the minimal distance it creates between the TV and the wall (3.1 cm).

Bild 4: Dimensional drawing of the Hama FIX TV Wall Bracket. Key dimensions are A=242 mm (width), B=235 mm (height), and C=30 mm (depth from wall).

5. Bedienung

The Hama FIX TV Wall Bracket is a fixed mount, meaning once installed, your television will remain in a static position. There are no adjustable movements (tilt, swivel, or extension) with this model. Ensure the TV is securely locked onto the wall plate after installation.

6. Wartung

• Reinigung: Clean the bracket with a dry, soft cloth. Do not use abrasive cleaners or solvents.
• Regelmäßige Kontrollen: Regularly inspect the wall mount and all fastening points to ensure they remain secure. Tighten any loose screws if necessary.
• Schaden: If any part of the bracket appears damaged, do not use it. Contact Hama customer support for assistance.

7. Fehlerbehebung

8. Spezifikationen

• Modell: Hama FIX TV Wall Bracket (96099)
• Montageart: Wandhalterung
• Bewegungsart: Behoben
• Material: Legierter Stahl
• Farbe: Schwarz
• Kompatible Geräte: Fernsehen
• Minimum Supported Screen Size: 19 Zoll
• Maximum Supported Screen Size: 48 Zoll (122 cm)
• Maximale Tragfähigkeit: 60 kg
• VESA-Kompatibilität: Bis zu 200 x 200 mm
• Wall Distance (Depth): Ungefähr 3.1 cm (1.2 Zoll)
• Artikelgewicht: 1.6 Pfund (ca. 0.73 kg)
• Hersteller: Hama

9. Garantie und Support

For warranty information, technical support, or if you encounter any issues not covered in this manual, please contact Hama customer service. You can find contact details on the official Hama webWebsite oder über Ihren Händler.

WebWebsite: www.hama.com
