Arlington TVBS507 3-Gang Steel Recessed TV Box Installation Manual

1. Produktüberschreitungview

The Arlington TVBS507 is a 3-gang steel recessed TV box designed to provide a clean, flush-mount installation for flat-screen televisions. This kit allows for the concealment of power and low-voltage wiring behind the wall, ensuring a tidy appearance. It features a steel box with a non-metallic, paintable trim plate and is adjustable to fit various wall thicknesses.

Hauptmerkmale:

• Steel box construction with a paintable non-metallic trim plate.
• Recessed design for flush mounting of flat-screen TVs.
• Conceals power and low-voltage wiring within the wall.
• Adjustable to accommodate wall board, paneling, or drywall from 1/4-inch to 1-1/2-inch thick.

2. Packungsinhalt

Vergewissern Sie sich vor Beginn der Installation, dass alle Komponenten vorhanden sind:

• Steel Recessed Box
• Non-Metallic Paintable Trim Plate (White)
• Befestigungsschrauben
• Installationsanleitung

3. Sicherheitshinweise

WARNUNG: Always disconnect power at the circuit breaker before installing or servicing electrical components. Improper installation can result in electrical shock, fire, or personal injury. If you are unsure about any part of the installation process, consult a qualified electrician.

• Stellen Sie sicher, dass alle lokalen und nationalen Elektrovorschriften eingehalten werden.
• Verwenden Sie geeignete persönliche Schutzausrüstung (PSA) wie z. B. Schutzbrille und Handschuhe.
• Do not exceed the electrical ratings of the product or connected devices.

4. Installation (Einrichtung)

This recessed box can be installed in new construction (pre-drywall) or existing walls (post-drywall). It is designed to mount to a wall stud and is compatible with standard 2x4 framed walls with 1/2-inch drywall. Ensure the wall cavity is deep enough for the box, as it is significantly deep.

Erforderliche Werkzeuge:

• Balkenfinder
• Ebene
• Maßband
• Drywall saw or utility knife
• Schraubendreher (Kreuzschlitz)
• Abisolierzangen/-schneider

Installationsschritte:

1. Locate Stud: Use a stud finder to locate a suitable wall stud where you intend to install the box. Mark the edges of the stud.
2. Mark Cutout: Position the recessed box against the wall at the desired height and trace its outline. Ensure the cutout will align with the stud for secure mounting.
3. Schnittöffnung: Carefully cut out the marked section of drywall using a drywall saw or utility knife.
4. Verkabelung vorbereiten: Run power and low-voltage wiring into the wall cavity to the cutout location. Ensure sufficient wire length for connections.
5. Mount Box: Insert the steel recessed box into the wall opening. Secure it to the wall stud using the provided mounting screws. The box is designed to fit snugly between the drywall and the stud. For post-drywall installation, the sliding brackets will engage behind the drywall for a secure fit.
6. Geräte installieren: Install desired electrical outlets, data jacks, or other devices into the 3-gang openings within the steel box. Connect wiring according to device instructions and local electrical codes.
7. Attach Trim Plate: Once all devices are installed and wired, attach the non-metallic trim plate over the recessed box. The trim plate can be painted to match your wall color if desired.

Abbildung 1: Installation in progress, showing a hand inserting a component into the recessed box. This image illustrates the process of populating the box with electrical or low-voltage-Geräte.

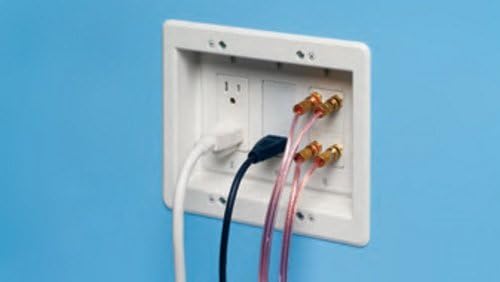

Abbildung 2: Completed installation of the recessed box, featuring a power outlet and low-voltage connections (e.g., speaker wires) for a clean, flush finish.

5. Nutzung (Betrieb)

The Arlington TVBS507 recessed TV box serves as a permanent fixture for managing power and low-voltage cables behind your flat-screen TV. Once installed, it provides a flush surface for your TV mount, allowing the television to sit closer to the wall. The installed outlets and connections function as standard electrical and data points, providing power and signal access without visible wires.

6. Wartung

The Arlington TVBS507 requires minimal maintenance. The non-metallic trim plate can be cleaned with a soft, damp cloth and mild soap if necessary. Avoid abrasive cleaners or solvents that could damage the finish. Periodically inspect the connections and devices within the box to ensure they remain secure and free from damage.

7. Fehlerbehebung

Most issues related to this product are installation-dependent or related to the connected electrical devices. If you encounter problems:

• Probleme mit der Stromversorgung: If an outlet in the box is not working, check the circuit breaker. Ensure all wiring connections to the outlet are secure.
• Beschädigte Komponenten: If any part of the kit, such as the trim plate, arrives damaged or breaks during installation, contact the retailer or manufacturer for replacement parts.
• Passformprobleme: If the box does not fit correctly into the wall, verify wall thickness and stud alignment. This box is designed for standard 2x4 walls with 1/2-inch drywall, but older or non-standard walls may have different dimensions.

8. Spezifikationen

9. Garantieinformationen

For specific warranty details regarding the Arlington TVBS507, please refer to the documentation provided with your purchase or visit the official Arlington Industries website. Warranty terms typically cover manufacturing defects and vary by product and region.

10. Unterstützung

If you require technical assistance, have questions about installation, or need to report a damaged product, please contact Arlington Industries customer support directly. Contact information can typically be found on the product packaging or their official webWebsite.

Hersteller: Arlington Industries, Inc.
