Rockford Fosgate PM262 Punch Marine 6-inch Full Range Speakers User Manual

Einführung

This manual provides detailed instructions for the installation, operation, and maintenance of your Rockford Fosgate PM262 Punch Marine 6-inch Full Range Speakers. These speakers are designed for marine and vehicle applications, offering durability and performance in challenging environments. Please read this manual thoroughly before installation and use to ensure proper function and longevity of your product.

Sicherheitshinweise

Beachten Sie bei der Installation und dem Betrieb stets die folgenden Sicherheitsvorkehrungen:

• Disconnect the vehicle's or vessel's battery negative terminal before beginning any installation to prevent electrical shorts.
• Stellen Sie sicher, dass alle Kabel ordnungsgemäß isoliert und befestigt sind, um Beschädigungen durch Vibrationen oder Abrieb zu vermeiden.
• Use appropriate gauge wiring for power and speaker connections as recommended by your amphersteller.
• Avoid installing speakers in locations that obstruct safety equipment or vehicle/vessel operation.
• Do not expose speakers to extreme temperatures or direct sunlight for prolonged periods without proper ventilation.
• Ziehen Sie einen professionellen Installateur zu Rate, wenn Sie sich bei irgendeinem Teil des Installationsprozesses unsicher sind.

Packungsinhalt

Überprüfen Sie, ob alle Artikel im Paket vorhanden sind:

• PM262 6-inch Full Range Marine Speakers (Pair)
• White Grilles (Pair)
• Mounting Hardware (Screws, Speed Clips)
• Installationsvorlage

Image: Contents of the PM262 speaker package, showing two speakers, two white grilles, and a set of mounting screws and speed clips.

Setup und Installation

Proper installation is crucial for optimal performance and durability. Follow these steps carefully.

1. Auswahl des Montageorts

Choose a mounting location that provides adequate clearance behind the speaker for the magnet and wiring. Ensure the surface is flat and sturdy enough to support the speaker's weight and withstand vibrations. For marine applications, select a location that minimizes direct exposure to harsh elements while still providing good sound dispersion.

Image: A PM262 speaker mounted flush into the side panel of a boat, demonstrating a typical marine installation.

2. Cutting the Mounting Hole

Use the provided template to mark the cut-out area. Carefully cut the hole using an appropriate tool (e.g., jigsaw). Ensure the hole is clean and free of debris. The recommended cut-out diameter is approximately 5.25 inches (133 mm).

3. Kabelverbindungen

Verbinden Sie die Lautsprecherkabel von Ihrem amplifier to the terminals on the back of the speaker. Observe correct polarity: connect the positive (+) terminal of the speaker to the positive (+) output of the amplifier, and the negative (-) terminal of the speaker to the negative (-) output of the ampVerstärker. Falsche Polarität führt zu schlechter Klangqualität und reduzierter Basswiedergabe.

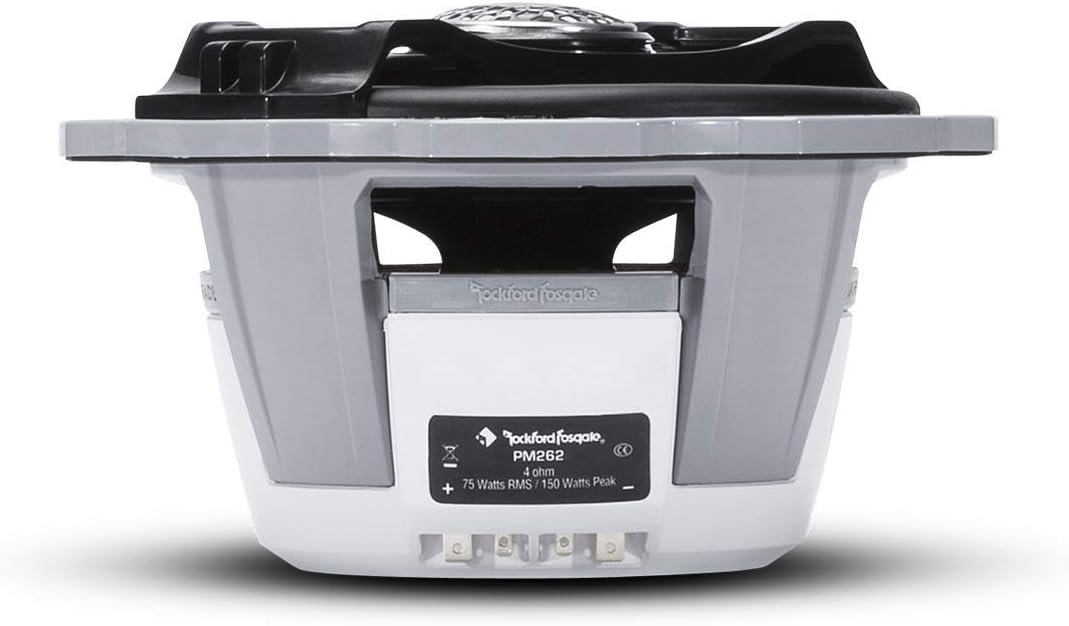

Bild: Rückseite view of the PM262 speaker, highlighting the positive and negative wiring terminals and the model information label.

The PM262 speakers have an impedance of 4 Ohms. Ensure your amplifier is stable at a 4 Ohm load. If connecting multiple speakers, consult your amplifier's manual for proper wiring configurations to maintain a safe impedance load.

4. Montage des Lautsprechers

Once wired, carefully place the speaker into the mounting hole. Align the mounting holes on the speaker frame with the marked screw locations. Secure the speaker using the provided stainless steel screws and speed clips. Do not overtighten the screws, as this can damage the speaker frame or mounting surface.

Bild: Vorderseite view of the PM262 speaker with its white grille, showcasing the hexagonal pattern and central tweeter.

Bedienungsanleitung

Nach erfolgreicher Installation befolgen Sie diese Schritte, um Ihre Lautsprecher in Betrieb zu nehmen:

1. Ensure all connections are secure and the battery is reconnected.
2. Turn on your audio source unit and ampschwerer.
3. Beginnen Sie mit dem amplifier gain and volume levels at their minimum settings.
4. Gradually increase the volume to a comfortable listening level. Avoid excessive volume that causes distortion, as this can damage the speakers.
5. Anpassen amplifier settings (gain, crossover, bass boost) according to your preference and the amplifier's manual to achieve optimal sound quality.

These speakers are designed for full-range audio reproduction. For best results, consider using a high-pass filter on your amplifier to protect the speakers from extremely low frequencies, especially at high volumes.

Wartung

Regular maintenance will help preserve the performance and appearance of your marine speakers.

• Reinigung: Reinigen Sie die Lautsprechergitter und -einfassungen mit einem weichen, fusselfreien Tuch.amp cloth. For stubborn dirt, use a mild soap solution. Avoid harsh chemicals, abrasive cleaners, or high-pressure washers, as these can damage the speaker components or finish.
• Inspektion: Periodically inspect the speaker cones, surrounds, and grilles for any signs of damage, such as cracks, tears, or corrosion. Check all mounting hardware for tightness.
• Verdrahtung: Ensure all wiring connections remain secure and free from corrosion, especially in marine environments.
• Winterization (Marine): If the vessel is stored in freezing temperatures, it is recommended to remove the speakers or ensure they are protected from extreme cold and moisture.

Fehlerbehebung

In diesem Abschnitt finden Sie häufig auftretende Probleme und deren Lösungen.

Technische Daten

Technical specifications for the Rockford Fosgate PM262 speakers:

Garantieinformationen

Rockford Fosgate provides a 2 Jahr eingeschränkte Garantie for the PM262 Punch Marine Speakers. This warranty covers defects in materials and workmanship under normal use. It does not cover damage caused by improper installation, accident, misuse, abuse, neglect, unauthorized repair, or modification. Please retain your proof of purchase for warranty claims. For full warranty terms and conditions, please refer to the official Rockford Fosgate webWebsite oder wenden Sie sich an den Kundendienst.

Unterstützung

If you encounter any issues not covered in the troubleshooting section or require further assistance, please contact Rockford Fosgate customer support. You can typically find contact information, including phone numbers and email addresses, on the official Rockford Fosgate webSeite? ˅ (www.rockfordfosgate.com).

When contacting support, please have your product model number (PM262) and proof of purchase readily available.
