Welch Allyn Harvey Elite Stethoscope 5079-122 User Manual

1. Einleitung

This manual provides essential instructions for the proper use, maintenance, and care of your Welch Allyn Harvey Elite Stethoscope, Model 5079-122. Designed for professional medical use, this stethoscope offers superior acoustic performance for cardiac, pulmonary, and vascular auscultation.

Please read this manual thoroughly before using the device to ensure safe and effective operation. Keep this manual for future reference.

2. Produktüberschreitungview und Komponenten

The Welch Allyn Harvey Elite Stethoscope is engineered for clear sound transmission, featuring a dual-bore tubing system and a robust stainless steel chest piece. Understanding its components is crucial for optimal performance.

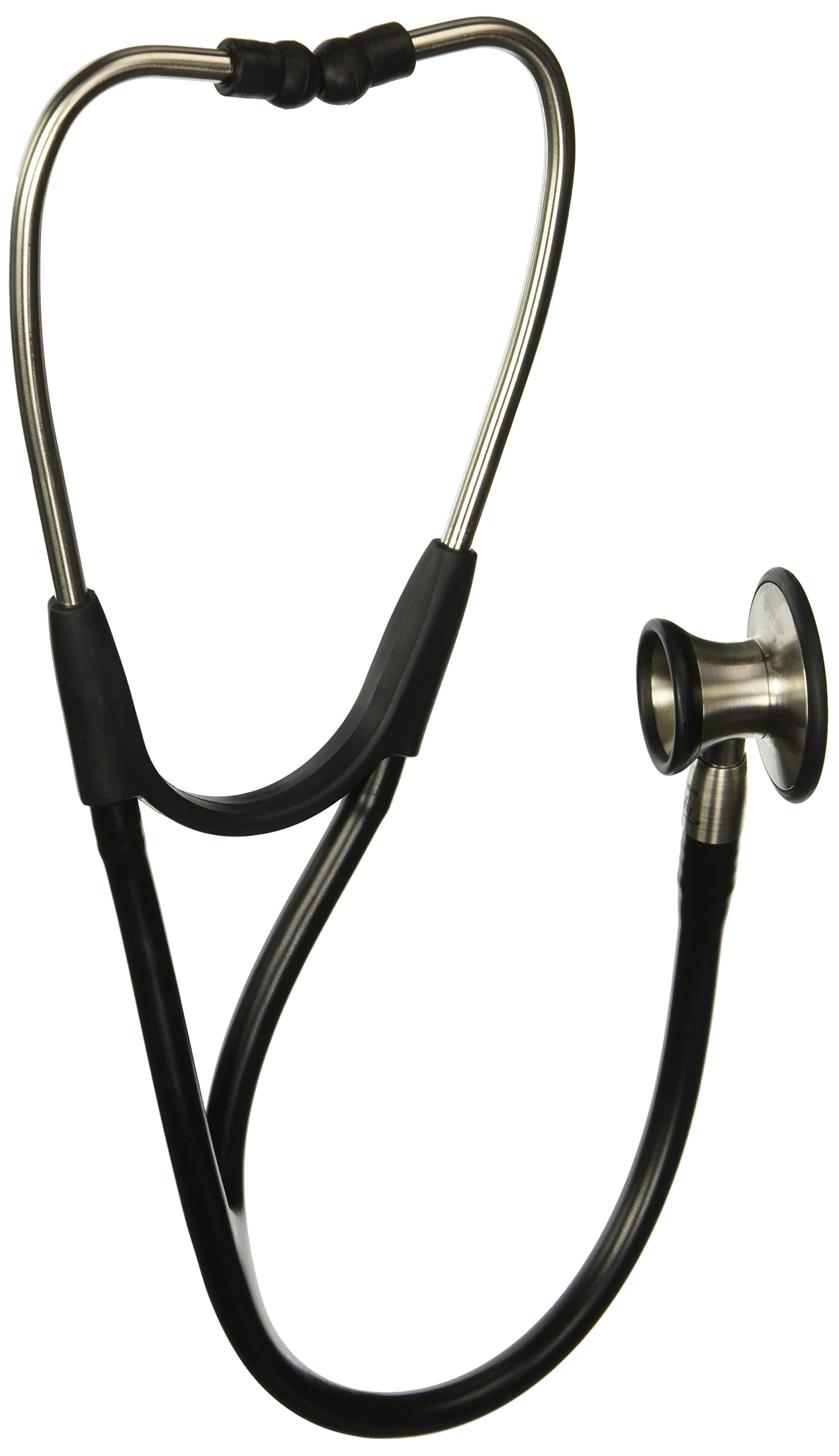

Abbildung 1: Welch Allyn Harvey Elite Stethoscope. This image displays the complete stethoscope assembly, including the chest piece, dual-lumen tubing, and binaurals with ear tips.

Hauptmerkmale:

• Dual Lumen Tubing: Creates two uninterrupted sound channels for superior acoustic clarity.
• Double-Head Chest Piece: Features both a bell and a flat diaphragm, constructed from stainless steel with a non-chill rim for patient comfort.
• Full-Range Cardiology/Pulmonology: Designed to accentuate important sounds across cardiac, pulmonary, and vascular systems.
• Latexfrei: Ensures safety for users and patients with latex sensitivities.
• Optional Pediatric Chest Pieces: Available for specialized examinations.

3. Einrichtung

The Welch Allyn Harvey Elite Stethoscope typically comes pre-assembled. However, minor adjustments and checks are recommended before first use.

Erste Vorbereitung:

1. Komponenten prüfen: Carefully examine all parts of the stethoscope for any signs of damage or loose connections. Ensure the ear tips are securely attached to the binaurals.
2. Adjust Binaurals: The binaurals (ear tubes) are designed to be angled forward to align with the ear canals. Gently adjust the tension by pulling the ear tubes apart or pushing them together until a comfortable, yet snug, fit is achieved.
3. Check Chest Piece: Rotate the chest piece to ensure the diaphragm or bell is active. A slight click indicates the active side. For optimal sound, ensure the active side is fully engaged.
4. Saubere Ohrstöpsel: Before first use, and regularly thereafter, clean the ear tips with an alcohol wipe to maintain hygiene.

4. Bedienungsanleitung

Proper technique is essential for effective auscultation. The Harvey Elite Stethoscope is designed to capture a wide range of body sounds.

Verwendung des Brustpanzers:

• Diaphragm Side: The larger, flat side of the chest piece is the diaphragm. Apply firm pressure to the patient's skin to hear high-frequency sounds, such as lung sounds and normal heart sounds.
• Bell Side: The smaller, cup-shaped side is the bell. Apply light pressure to the patient's skin to hear low-frequency sounds, such as certain heart murmurs and bowel sounds. Excessive pressure on the bell can stretch the skin, turning it into a diaphragm and filtering out low frequencies.

Auscultation Environment:

Perform auscultation in a quiet environment to minimize external noise interference. Ensure the patient is comfortable and adequately exposed in the area to be examined.

5. Wartung und Pflege

Proper maintenance extends the life of your stethoscope and ensures consistent acoustic performance.

Reinigungshinweise:

• Allgemeine Reinigung: Wipe the entire stethoscope with a 70% isopropyl alcohol solution or a mild soap and water solution. Do not immerse the stethoscope in any liquid.
• Ohrtipps: Remove the ear tips from the binaurals for thorough cleaning. Wash them with soap and water or wipe with alcohol. Ensure they are completely dry before reattaching.
• Brustpanzer: Clean the diaphragm and bell surfaces with an alcohol wipe. Ensure no residue remains.
• Schlauch: The tubing is made of durable material and can be wiped clean. Avoid using harsh chemicals or solvents that may damage the material.

Lagerung:

Store your stethoscope in a clean, dry place, away from extreme temperatures, direct sunlight, and sharp objects. Avoid tightly coiling the tubing, as this can lead to permanent kinks.

6. Fehlerbehebung

If you experience issues with your stethoscope, refer to the following common troubleshooting steps:

7. Spezifikationen

Technical specifications for the Welch Allyn Harvey Elite Stethoscope, Model 5079-122:

8. Garantie und Support

Garantieinformationen:

Welch Allyn products are manufactured to high-quality standards. For specific warranty details regarding your Harvey Elite Stethoscope, please refer to the warranty card included with your product packaging or visit the official Welch Allyn webDie Garantie deckt in der Regel Material- und Verarbeitungsfehler bei normalem Gebrauch ab.

Kundendienst:

For technical assistance, replacement parts, or further inquiries, please contact Welch Allyn Customer Service:

• Telefon: 1-800-535-6663
• WebWebsite: Visit the official Welch Allyn webWebsite für Produktinformationen und Supportressourcen.
