ASUS RT-AC58U AC1300 Dual Band Gigabit Wireless Router User Manual

Einführung

This manual provides detailed instructions for setting up, operating, and maintaining your ASUS RT-AC58U AC1300 Dual Band Gigabit Wireless Router. Please read this guide thoroughly to ensure proper installation and optimal performance of your device.

The ASUS RT-AC58U is designed to deliver high-speed Wi-Fi connectivity with advanced features such as MU-MIMO technology, parental controls, and a versatile USB 3.0 port for enhanced network performance and management.

Lieferumfang

Prüfen Sie, ob alle Artikel in Ihrer Produktverpackung enthalten sind:

• ASUS RT-AC58U AC1300 Dual Band Gigabit Wireless Router
• Netzteil
• Ethernet-Kabel
• Kurzanleitung
• Garantiekarte
• Benutzerhandbuch (dieses Dokument)
• Software Drivers CD (if applicable)

Produkt überview

The ASUS RT-AC58U router features a sleek design with four external antennas for improved Wi-Fi range and stability. It supports dual-band Wi-Fi (2.4 GHz and 5 GHz) and includes multiple ports for wired connections and USB devices.

Abbildung 1: Vorderseite view of the ASUS RT-AC58U Router, showcasing its four external antennas and patterned top surface.

Hauptmerkmale:

• AC1300 Dualband-WLAN: Simultaneous 2.4 GHz and 5 GHz bands for combined speeds up to 1300 Mbps.
• MU-MIMO-Technologie: Enables multiple devices to connect at full Wi-Fi speed simultaneously.
• Leistungsstarker Prozessor: Equipped with a Qualcomm IPQ4018 (717 MHz, 4 cores) SOC and 128MB memory for efficient multi-device performance.
• Improved Wi-Fi Range: Four external antennas with AiRadar beamforming technology enhance signal coverage.
• Multi-purpose USB 3.0 Port: Offers 10x faster data transfers than USB 2.0 for file sharing and printer connections.
• Kindersicherung: Monitor and filter internet activities for family and children.
• Gigabit-Ethernet-Ports: Ensures fast wired connections for devices like PCs and gaming consoles.

Figure 2: Illustration highlighting the powerful processor of the ASUS RT-AC58U, contributing to higher network speeds.

Anschlüsse und Anzeigen:

Familiarize yourself with the ports and LED indicators on your router for easy setup and monitoring.

• Stromanschluss: Wird mit dem Netzteil verbunden.
• WAN-Port: Verbindet sich mit Ihrem Modem für den Internetzugang.
• LAN-Anschlüsse (x4): Connects to wired devices like computers, gaming consoles, or smart TVs.
• USB 3.0-Anschluss: Zum Anschluss externer Speichergeräte oder Drucker.
• WPS-Taste: Für eine schnelle und sichere Verbindung zu WLAN-Geräten.
• Reset-Taste: Um die Werkseinstellungen wiederherzustellen.
• LED-Anzeigen: Provide status updates for power, internet, Wi-Fi bands, LAN ports, and USB activity.

Aufstellen

Follow these steps to set up your ASUS RT-AC58U router:

1. Router auspacken: Remove the router and all accessories from the box.
2. Positionieren Sie den Router: Place the router in a central location to maximize Wi-Fi coverage. Avoid placing it near obstructions or other electronic devices that may cause interference.
3. Schließen Sie die Antennen an: Ensure the four external antennas are securely attached and oriented vertically for optimal signal.
4. An die Stromversorgung anschließen: Plug the power adapter into the router's power port and then into an electrical outlet. Wait for the power LED to light up.
5. Verbindung zum Modem herstellen: Connect one end of the provided Ethernet cable to the WAN port (usually blue) on your router and the other end to your modem's Ethernet port. Ensure your modem is powered on and connected to the internet.
6. Gerät anschließen (optional): For initial configuration, you can connect a computer to one of the router's LAN ports (yellow) using another Ethernet cable. Alternatively, you can connect wirelessly using the default Wi-Fi network name (SSID) and password found on the router's label.
7. Zugriff auf die Web Schnittstelle: Öffnen Sie ein web browser on your connected device and navigate to router.asus.com or 192.168.1.1. Follow the on-screen instructions of the ASUS Web GUI to complete the internet setup wizard, set up your Wi-Fi network name and password, and configure an administrator password for the router.

Bedienung des Routers

Once set up, your ASUS RT-AC58U router provides a robust network for your home or office. Here's how to utilize its key features:

Dual Band Wi-Fi (2.4 GHz and 5 GHz):

The router broadcasts two separate Wi-Fi networks. The 2.4 GHz band offers wider coverage and better penetration through walls, suitable for general browsing and devices further away. The 5 GHz band provides faster speeds and less interference, ideal for bandwidth-intensive tasks like 4K video streaming and online gaming, especially for devices closer to the router.

Figure 3: Demonstrates multiple users enjoying full Wi-Fi speeds simultaneously, thanks to the router's multi-device performance capabilities.

MU-MIMO-Technologie:

Multi-User, Multiple-Input, Multiple-Output (MU-MIMO) technology allows the router to communicate with multiple compatible devices simultaneously, rather than sequentially. This significantly improves network efficiency and speed, especially in environments with many connected devices.

Kindersicherung:

Greifen Sie auf den Router zu web interface to configure parental control settings. You can set schedules for internet access, block specific websites or applications, and monitor internet usage for connected devices. This helps create a safer online environment for your family.

USB 3.0 Port Functionality:

The USB 3.0 port allows you to connect various devices:

• Netzwerkspeicher (NAS): Connect an external hard drive or USB flash drive to create network-attached storage, allowing all connected devices to access files.
• Druckerfreigabe: Schließen Sie einen USB-Drucker an den Router an, um ihn für alle Geräte in Ihrem Netzwerk zugänglich zu machen.
• 3G/4G USB Dongle Support: Use a compatible 3G/4G USB dongle as a primary or backup internet connection.

Figure 4: The ASUS RT-AC58U router connected to a Reliance Jio 4G dongle, demonstrating its capability to share mobile broadband internet across the network.

Wartung

Regular maintenance ensures the longevity and optimal performance of your router:

• Firmware-Updates: Prüfen Sie regelmäßig, ob die neuesten Firmware-Updates vom ASUS-Support verfügbar sind, und installieren Sie diese. webWebsite oder über den Router web Schnittstelle. Firmware-Updates beinhalten oft Leistungsverbesserungen, Sicherheitspatches und neue Funktionen.
• Neustart des Routers: Sollten Netzwerkprobleme auftreten, versuchen Sie, den Router neu zu starten, indem Sie das Netzteil für 10 Sekunden vom Stromnetz trennen und es dann wieder anschließen.
• Werkseinstellungen zurückgesetzt: In case of persistent issues or if you forget your administrator password, you can perform a factory reset. Locate the Reset button (often a small pinhole) on the router, press and hold it for about 5-10 seconds until the power LED blinks, then release. This will restore all settings to their factory defaults, requiring you to reconfigure the router.
• Physische Reinigung: Keep the router free from dust by gently wiping it with a soft, dry cloth. Ensure ventilation openings are not blocked.

Fehlerbehebung

This section addresses common issues you might encounter with your ASUS RT-AC58U router.

Keine Internetverbindung:

• Prüfen Sie, ob die WAN-LED am Router leuchtet. Falls nicht, vergewissern Sie sich, dass das Ethernet-Kabel Ihres Modems fest mit dem WAN-Anschluss des Routers verbunden ist.
• Vergewissern Sie sich, dass Ihr Modem ordnungsgemäß funktioniert und über eine aktive Internetverbindung verfügt.
• Starten Sie sowohl Ihr Modem als auch Ihren Router neu.
• Greifen Sie auf den Router zu web interface and check the internet connection status. Run the setup wizard again if necessary.

Poor Wi-Fi Signal or Range:

• Ensure the router is placed centrally and away from large metal objects, concrete walls, or other electronic devices that can cause interference.
• Adjust the orientation of the external antennas.
• Note that the 5 GHz band offers higher speeds but has a shorter range and less penetration than the 2.4 GHz band. Consider connecting devices further away to the 2.4 GHz network.
• Aktualisieren Sie die Firmware des Routers auf die neueste Version.

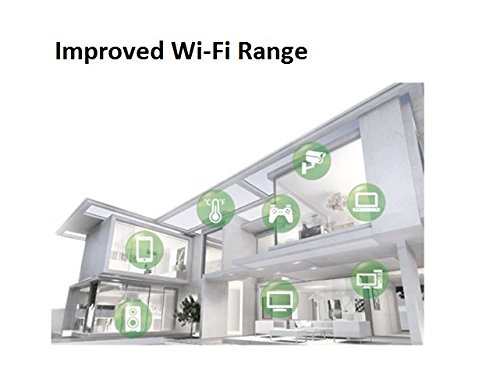

Figure 5: An architectural diagram illustrating how the router's improved Wi-Fi range covers various rooms and floors within a home.

Slow Data Transfer Rates (Wired or Wireless):

• Ensure you are using Gigabit Ethernet cables (Cat5e or Cat6) for wired connections to fully utilize the router's Gigabit ports.
• For wireless connections, ensure your devices support 802.11ac and are connected to the 5 GHz band for optimal speed.
• Check for background applications or devices consuming significant bandwidth.
• Führen Sie einen Geschwindigkeitstest durch, um die Geschwindigkeit Ihres Internetanbieters zu überprüfen.

USB-Gerät nicht erkannt:

• Ensure the USB device is properly formatted (e.g., NTFS, FAT32) and compatible with the router.
• Try connecting the USB device to a different port or restarting the router.
• Überprüfen Sie den Router web interface for USB application settings and ensure the USB device is enabled.

Technische Daten

Garantie und Support

Your ASUS RT-AC58U router comes with a manufacturer's warranty. Please refer to the included Warranty Card for specific terms and conditions, including warranty period and coverage details.

For technical support, driver downloads, firmware updates, and additional resources, please visit the official ASUS support webAuf dieser Website finden Sie auch häufig gestellte Fragen und Anleitungen zur Fehlerbehebung.

ASUS-Kundendienst WebWebsite: https://www.asus.com/support/
