Gikfun Mini DC R385 Water Pump Instruction Manual

Einführung

This manual provides essential information for the safe and efficient use of your Gikfun Mini DC R385 Water Pump. Please read these instructions carefully before operating the pump and retain this manual for future reference.

Sicherheitshinweise

• Do not run continuously: This diaphragm pump is designed for experimental and intermittent use, not for continuous industrial operation. Prolonged continuous use may lead to overheating and damage.
• Bandtage Reichweite: Operate the pump within the specified DC 6-12V voltage range. Exceeding this range can cause damage to the motor.
• Flüssigkeitskompatibilität: Ensure the liquid being pumped is compatible with the pump's materials (silicone). Avoid corrosive or highly viscous liquids unless specifically designed for them.
• Elektrische Anschlüsse: Ensure all electrical connections are secure and correctly polarized (red wire for positive, white/gray for negative). Incorrect wiring can damage the pump or power source.
• Montage: Use the provided mounting brackets to secure the pump, reducing vibration and noise.
• Aufsicht: Always supervise the pump during operation, especially during initial setup or when used in experimental models.

Produkt überview

The Gikfun Mini DC R385 Water Pump is a compact diaphragm pump suitable for various small-scale liquid transfer applications. Its design incorporates a black silicone case for shock absorption and noise reduction.

Bild: Überview of the Gikfun Mini DC R385 Water Pump, showing its compact design and mounting points.

Hauptmerkmale:

• DC 6-12V operation.
• Maximum flow rate of 1.5-1.8 L/Min.
• Compact size: 95mm(L) x 47mm(W) x 36mm(H).
• Inlet pipe diameter: 5mm.
• Black silicone case for shockproof and silent operation.
• Suitable for experimental models, car washing, watering, and mineral water filling.

Image: The Gikfun Mini DC R385 Water Pump shown with its detachable black mounting brackets, which help secure the pump and reduce vibration.

Bild: Nahaufnahme view of the motor end of the Gikfun Mini DC R385 Water Pump, highlighting the heat dissipation holes for optimal performance.

Technische Daten

Image: Detailed dimensions of the Gikfun Mini DC R385 Water Pump, showing length, width, height, and inlet/outlet diameters.

Aufstellen

1. Auspacken: Carefully remove the pump and any accessories from the packaging.
2. Schläuche anbringen: Connect appropriate tubing (with an inner diameter of 5mm) to the inlet and outlet nozzles of the pump. Ensure a snug fit to prevent leaks.
3. Position Pumpe: Place the pump in a stable location. The black silicone case provides shock absorption, but securing it with the mounting brackets is recommended for long-term use.
4. Strom anschließen: Connect the red wire to the positive (+) terminal of your DC power supply (6-12V) and the white/gray wire to the negative (-) terminal. Ensure the power supply is off before connecting.
5. Submerge Inlet: Place the inlet tube into the liquid source.
6. Prepare Outlet: Direct the outlet tube to the desired destination for the liquid.

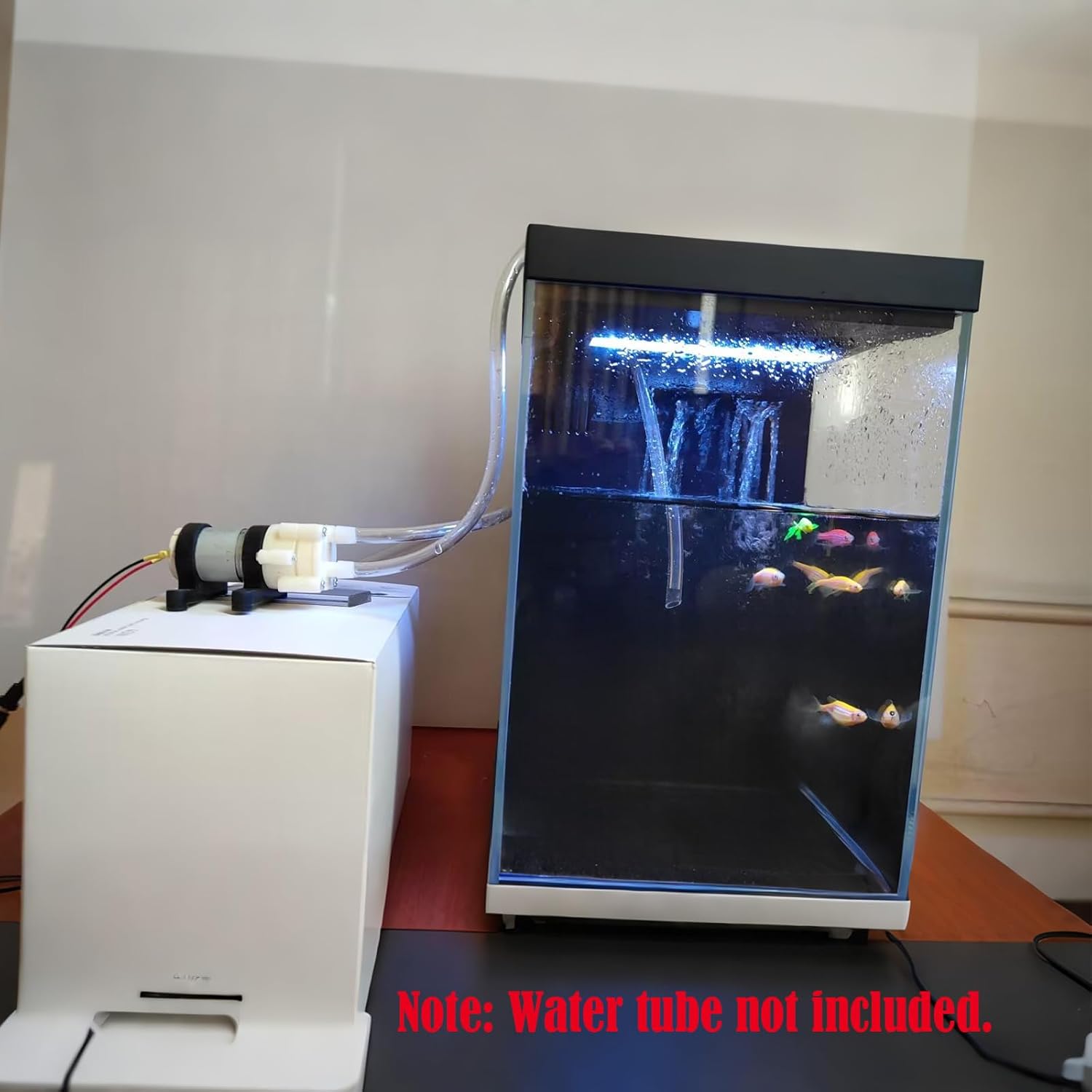

Image: The Gikfun Mini DC R385 Water Pump connected with clear tubing, demonstrating a typical setup for liquid transfer between containers.

Video zur Einrichtungsdemonstration:

Bedienungsanleitung

1. Einschalten: Once all connections are secure and tubing is in place, turn on the DC power supply. The pump should begin to operate.
2. Grundierung: This pump is generally self-priming. If it does not start pumping immediately, ensure the inlet tube is fully submerged and there are no significant air pockets in the tubing. A slight tilt or gentle shaking of the pump may help dislodge air.
3. Fluss überwachen: Observe the liquid flow. The pump is designed for a maximum flow of 1.5-1.8 L/Min.
4. Ausschalten: When liquid transfer is complete or if you need to stop the pump, turn off the DC power supply.

Funktionsdemonstrationsvideo:

Wartung

• Reinigung: After use, especially with non-water liquids, flush the pump with clean water to prevent residue buildup.
• Inspektion: Periodically inspect the tubing for kinks, cracks, or blockages. Check electrical connections for corrosion or looseness.
• Lagerung: Lagern Sie die Pumpe an einem trockenen, kühlen Ort, geschützt vor direkter Sonneneinstrahlung und extremen Temperaturen.
• Dauerbetrieb vermeiden: As noted in safety, avoid running the pump continuously for extended periods to prolong its lifespan.

Fehlerbehebung

Garantie und Support

For warranty information or technical support, please contact Gikfun customer service through the retailer where the product was purchased or visit the official Gikfun website. Please have your model number (EK1856) and purchase details ready when contacting support.
