Garmin ECHOMAP Plus 44cv Fishfinder/Chartplotter User Manual

1. Einleitung

The Garmin ECHOMAP Plus 44cv is a compact, easy-to-use fishfinder and chartplotter combo designed for marine navigation and fishing. This device features a bright, sunlight-readable 4.3-inch display and includes a CV20-TM transducer for comprehensive sonar capabilities. It comes preloaded with BlueChart g2 charts for coastal U.S. waters and offers Quickdraw Contours mapping software for creating personalized fishing maps.

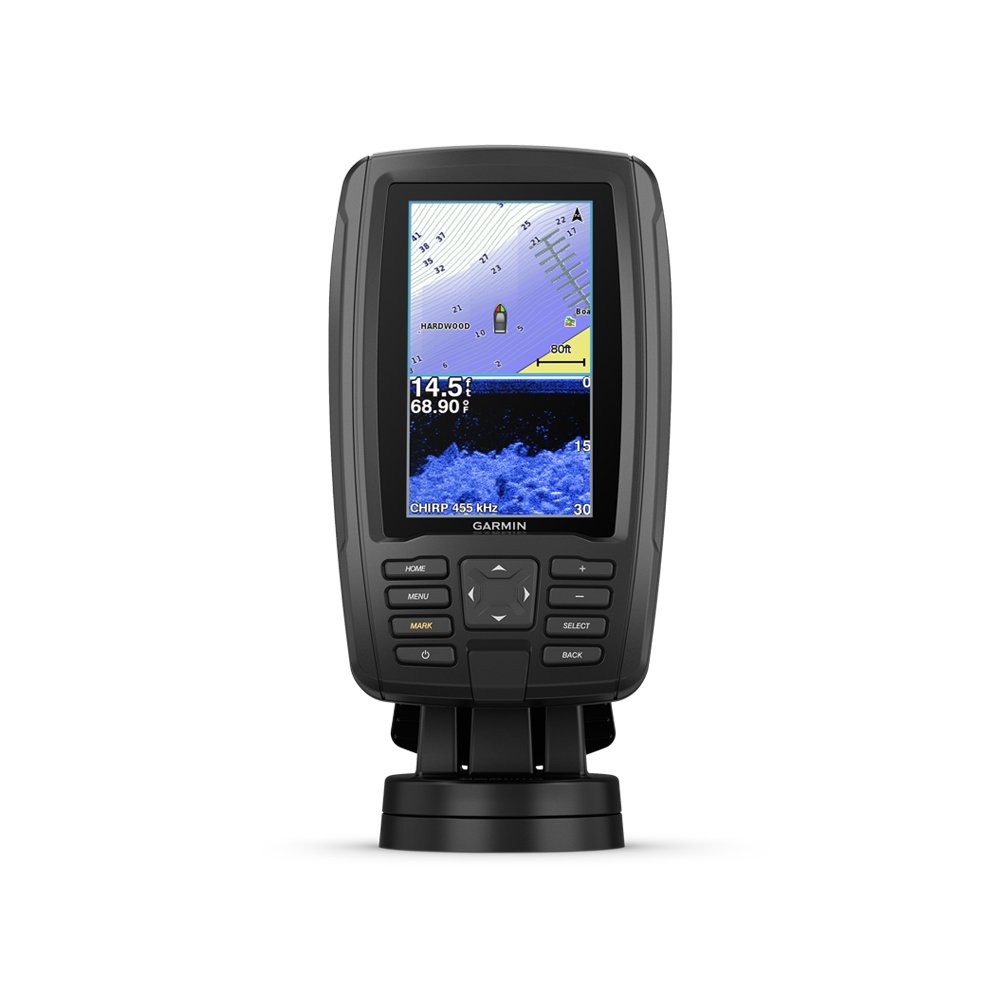

Figure 1.1: Garmin ECHOMAP Plus 44cv Device Overview

2. Lieferumfang

Packen Sie alle Komponenten sorgfältig aus und überprüfen Sie, ob die folgenden Teile enthalten sind:

• ECHOMAP Plus 44cv unit with U.S. BlueChart® g2
• Strom- / Datenkabel
• Tilt/swivel mount with quick release cradle
• CV20™-Wandler
• Unterputz-Montagesatz
• Schutzhülle
• Hardware für die Installation
• Dokumentation (dieses Handbuch und weitere Anleitungen)

3. Einrichtung

3.1 Gerät montieren

The ECHOMAP Plus 44cv can be mounted using the included tilt/swivel mount or flush mount kit. The quick-release cradle allows for easy removal of the device from its power and mount.

• Neige-/Schwenkhalterung: Secure the base to a flat surface using the provided hardware. Attach the quick-release cradle to the base, then slide the ECHOMAP unit into the cradle until it clicks into place.
• Unterputzmontage: Use the flush mount template to cut an opening in the mounting surface. Secure the unit from behind using the provided hardware.

3.2 Installation des Wandlers

The CV20-TM transducer supports both Garmin CHIRP traditional sonar and CHIRP ClearVü scanning sonar. It includes mounts for transom and trolling motor installations.

• Heckspiegelhalterung: Attach the transducer to the boat's transom, ensuring it is submerged and free from obstructions for optimal sonar performance.
• Halterung für Elektromotor: Secure the transducer to the shaft of your trolling motor.

Refer to the separate transducer installation instructions for detailed guidance on placement and wiring.

3.3 Strom- und Datenanschluss

Connect the power/data cable to the corresponding port on the back of the ECHOMAP unit. Connect the power wires to a 12V DC power source on your boat. Ensure all connections are secure and waterproof.

4. Bedienung des Geräts

4.1 Ein-/Ausschalten

Halten Sie die LEISTUNG button to turn the device on or off. A short press of the LEISTUNG button will bring up the backlight and brightness settings.

4.2 Anzeigefunktionen

The 4.3-inch WQVGA display is designed for clear visibility even in direct sunlight.

Figure 4.1: Bright, Sunlight-Readable 4.3" Display

4.3 Sonar Functions

The included CV20-TM transducer provides two primary sonar technologies:

• Garmin CHIRP Traditionelles Sonar: Delivers clear target separation and definition.
• CHIRP ClearVü Scanning Sonar: Bietet eine nahezu fotografische view of what is below your boat, showing structure and fish in clear detail.

Zugriff auf Sonar views from the Home screen. Adjust gain, range, and frequency settings as needed for optimal performance in different water conditions.

Figure 4.2: Transducer for CHIRP Traditional and ClearVü Sonar

4.4 Kartenplotter und Kartierung

The device comes preloaded with BlueChart g2 charts for coastal U.S. waters, offering detailed navigation data.

Figure 4.3: Preloaded BlueChart g2 Charts

Utilize the built-in Quickdraw Contours mapping software to create personalized fishing maps with 1-foot contours in real-time as you fish. These maps are stored on your device and can be kept private or shared with the Quickdraw Community via Garmin Connect.

Figure 4.4: Quickdraw Contours Mapping Software in Action

4.5 Waypoints and Routes

You can mark waypoints for specific locations and create routes for navigation. The ECHOMAP Plus 44cv allows sharing of waypoints and routes with other compatible ECHOMAP or STRIKER units.

5. Wartung

5.1 Gerät reinigen

Reinigen Sie das Gerät casing and screen with a soft, clean, lint-free cloth. If necessary, use a mild soap solution and rinse thoroughly with fresh water. Avoid chemical cleaners and solvents that can damage plastic components and finishes.

5.2 Pflege des Wandlers

Regularly inspect the transducer for marine growth or damage. Clean the transducer face with a soft cloth and mild soap. Avoid scratching the transducer surface, as this can affect performance.

5.3 Softwareaktualisierungen

Überprüfen Sie regelmäßig das Garmin-Gerät. website for software updates. Keeping your device's software up to date ensures optimal performance and access to new features.

6. Fehlerbehebung

6.1 Gerät lässt sich nicht einschalten

• Ensure the power cable is securely connected to both the device and the power source.
• Check the boat's fuse panel for a blown fuse.
• Verify that the boat's battery has sufficient charge.

6.2 No Sonar Data or Incorrect Depth Readings

• Check that the transducer cable is securely connected to the ECHOMAP unit.
• Inspect the transducer for marine growth or damage. Clean if necessary.
• Ensure the transducer is properly mounted and submerged in the water, free from air bubbles or obstructions.
• Sonarverstärkung und Reichweite einstellen.

6.3 GPS-Signalverlust

• Stellen Sie sicher, dass das Gerät frei ist view des Himmels.
• Move away from tall structures or other electronic devices that may interfere with the GPS signal.

7. Spezifikationen

8. Garantie und Support

8.1 Herstellergarantie

This Garmin ECHOMAP Plus 44cv device is covered by a manufacturer's warranty. Please refer to the warranty documentation included with your product for specific terms and conditions, including warranty period and coverage details.

8.2 Kundendienst

For technical assistance, troubleshooting beyond this manual, or warranty claims, please contact Garmin Customer Support. Visit the official Garmin webWebsite mit Kontaktinformationen, FAQs und weiteren Ressourcen.

Garmin WebWebsite: www.garmin.com
