VEVOR 24-inch Professional Wire Rope Crimping Tool

Einführung

This manual provides essential information for the safe and effective operation and maintenance of your VEVOR 24-inch Professional Wire Rope Crimping Tool. This robust 2-in-1 tool is designed for crimping aluminum ferrules and loop sleeves, as well as cutting steel cables. Its compact design and ergonomic features make it suitable for various applications in electrical construction, mechanical industries, and general maintenance tasks.

Sicherheitshinweise

Beachten Sie stets diese Sicherheitsrichtlinien, um Verletzungen zu vermeiden und die ordnungsgemäße Funktion des Werkzeugs zu gewährleisten:

• Augenschutz tragen: Always wear safety glasses or goggles to protect your eyes from flying debris during crimping or cutting operations.
• Werkzeug vor Gebrauch prüfen: Before each use, check the tool for any signs of damage, wear, or loose parts. Do not use a damaged tool.
• Use Correct Size: Ensure you are using the correct crimping cavity for the sleeve size to achieve a secure crimp and prevent tool damage.
• Halten Sie die Hände frei: Keep hands and fingers away from the crimping jaws and cutting blades during operation.
• Werkstück sichern: Ensure the cable and sleeve are properly positioned and stable before applying pressure.
• Richtiger Griff: Use a firm, two-handed grip on the handles to maintain control and apply even pressure.
• Sicher aufbewahren: Store the tool in a dry, secure place, out of reach of children and unauthorized users.
• Nicht ändern: Never attempt to modify the tool or use it for purposes other than its intended design.

Produkt überview

Komponenten

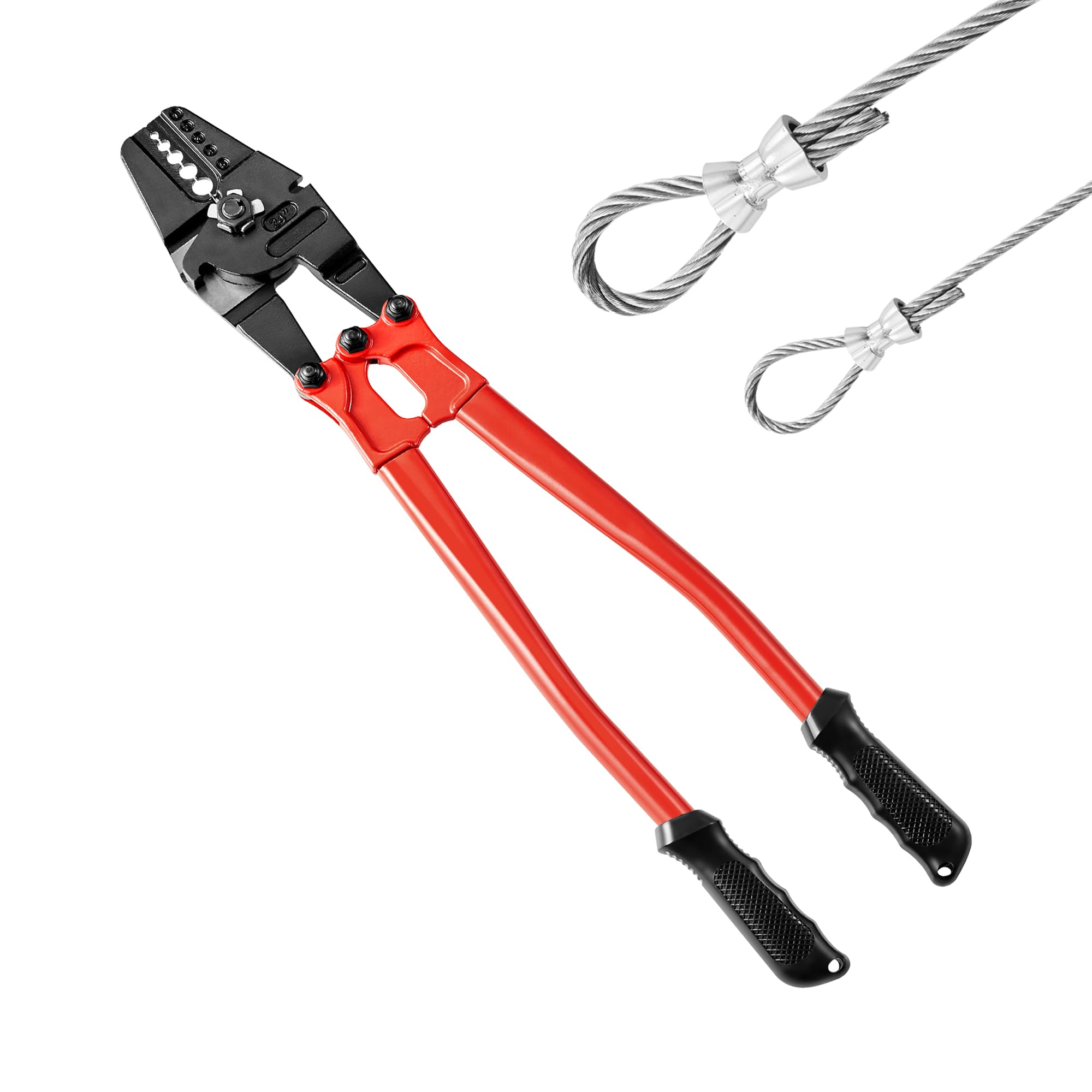

• 1 x VEVOR 24-inch Manual Crimping Tool

Hauptmerkmale

• Langlebige Konstruktion: The jaws are crafted from forged alloy steel with heat treatment, ensuring excellent crimping performance and long-lasting durability.
• 2-in-1-Funktionalität: This tool serves as both a crimper and a cable cutter, enhancing versatility.
• Ergonomische Griffe: Thickened, non-slip, and insulated rubber handles provide a comfortable and secure grip, reducing fatigue during extended use. The long handle design contributes to labor-saving operation.
• Hohe Portabilität: With a total length of 24 inches, the tool is lightweight and compact, making it easy to transport and use in confined spaces.
• Breite Anwendung: Ideal for crimping oval and stop sleeves made of copper and aluminum, commonly used in cable construction, mechanical industries, and various maintenance tasks.

Technische Daten

Aufstellen

The VEVOR 24-inch Professional Wire Rope Crimping Tool comes pre-assembled and ready for use. No complex setup is required. Before first use, and periodically thereafter, inspect the tool for any shipping damage or manufacturing defects. Ensure all pivot points move freely and the jaws align correctly. A light application of lubricant to moving parts can improve operation.

Bedienungsanleitung

Crimping Wire Rope Sleeves

Follow these steps for effective crimping:

1. Select Sleeve and Cable: Choose the appropriate wire rope and crimping sleeve (ferrule) for your application. Ensure the sleeve material is compatible with the tool (e.g., aluminum, copper).
2. Cut Cable to Length: If necessary, use the integrated cable cutter to cut the wire rope to the desired length. Refer to the 'Cable Cutting' section below.
3. Insert Cable into Sleeve: Thread the wire rope through the sleeve, forming a loop if required. Adjust the length to achieve the desired loop size.
4. Select Crimping Cavity: Identify the correct crimping cavity on the tool that matches the size of your sleeve. The tool features 5 cavities for sleeves of 1/16", 3/32", 1/8", 5/32", and 3/16".
5. Position Sleeve: Place the sleeve fully into the selected crimping cavity. Ensure the sleeve is centered and flush within the cavity.
6. Crimpen: Firmly close the handles of the tool with steady, even pressure until the crimp is complete. The tool's long handles are designed to minimize effort.
7. Crimpprüfung: After crimping, visually inspect the sleeve to ensure it is securely formed and the cable is firmly held. A properly crimped sleeve should be uniform and tight.

Kabelschneiden

The VEVOR crimping tool includes an integrated cable cutter capable of cutting steel cables up to 5/32" in diameter.

1. Positionskabel: Place the cable to be cut between the sharp cutting blades located near the pivot point of the tool.
2. Druck ausüben: Firmly close the handles with steady pressure until the cable is cleanly cut.
3. Inspect Cut: Ensure the cut is clean and free of frayed strands.

Wartung

Regelmäßige Wartung gewährleistet die Langlebigkeit und optimale Leistung Ihres Werkzeugs:

• Reinigung: After each use, wipe down the tool with a clean, dry cloth to remove any dirt, debris, or moisture.
• Schmierung: Periodically apply a light machine oil to all pivot points and moving parts to ensure smooth operation and prevent rust.
• Inspektion: Regularly inspect the crimping jaws and cutting blades for wear, damage, or dullness. If significant wear is observed, consider replacement if parts are available, or replace the tool.
• Lagerung: Store the tool in a dry environment to prevent corrosion. Keep the jaws closed when not in use to protect them.

Fehlerbehebung

If you encounter issues with your crimping tool, refer to the following common problems and solutions:

Garantie und Support

For information regarding warranty coverage, technical support, or replacement parts, please contact VEVOR customer service through their official website or the retailer from whom you purchased the product. Please have your model number (24 inch crimper) and purchase details available when contacting support.
