1. Produktüberschreitungview
This manual provides instructions for the installation, operation, and maintenance of the Generic 36 Tooth Jack Shaft Sprocket, model 41B36. This sprocket is designed for use with #41 roller chains and features a 1-inch bore, making it suitable for various garage door jack shaft applications.

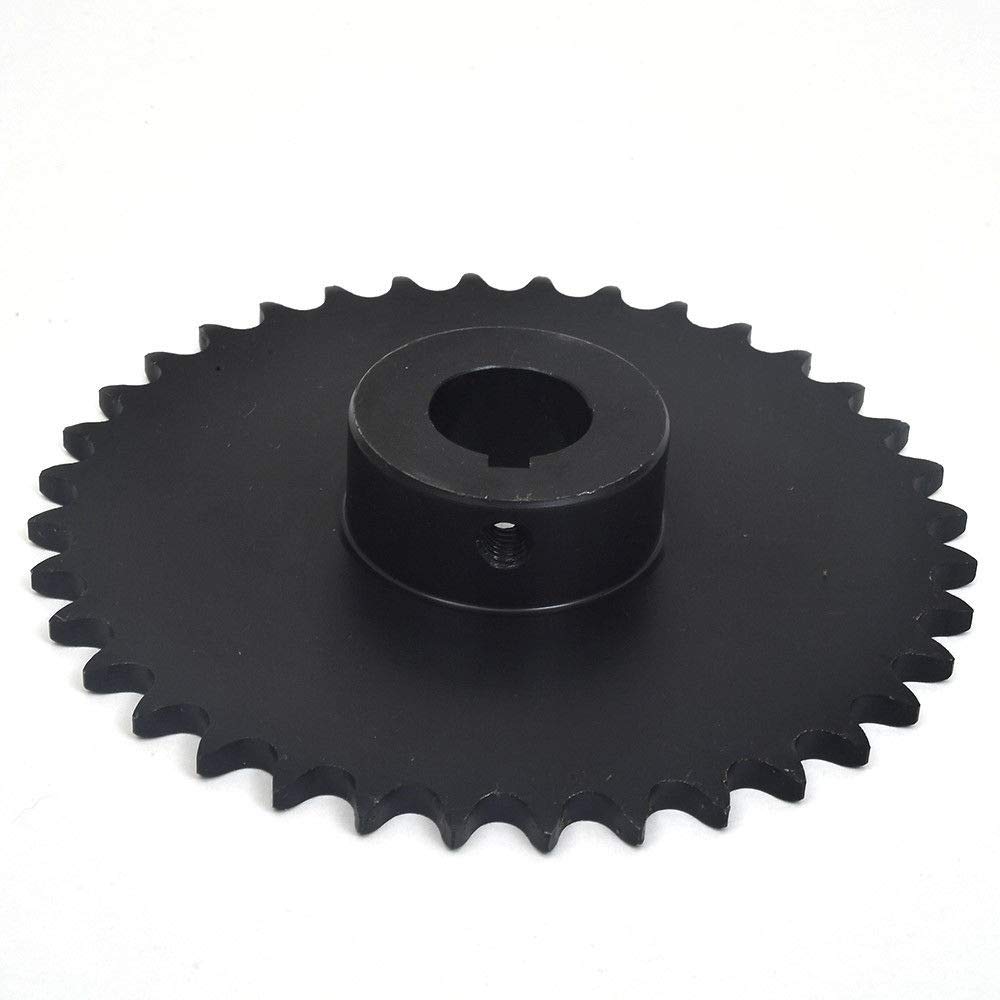

Image 1.1: The 36 Tooth Jack Shaft Sprocket. This image displays the sprocket's overall design, including its 36 teeth and central bore.
Hauptmerkmale:
- Anzahl der Zähne: 36 teeth for efficient power transmission.
- Chain Compatibility: Designed for #41 roller chain.
- Bohrung Größe: 1-inch bore for standard jack shafts.
- Material: Robuste Konstruktion für lang anhaltende Leistung.
2. Sicherheitshinweise
Always prioritize safety during installation and maintenance. Failure to follow these safety guidelines may result in injury or damage to equipment.
- Stromversorgung trennen: Before beginning any work, ensure that the power supply to the garage door opener system is completely disconnected.
- Tragen Sie Sicherheitsausrüstung: Tragen Sie stets geeignete persönliche Schutzausrüstung (PSA), einschließlich Schutzbrille und Handschuhe.
- Professionelle Installation: Wenn Sie sich bei einem der Schritte unsicher sind, konsultieren Sie einen qualifizierten Garagentortechniker.
- Komponenten prüfen: Before installation, inspect all components for damage or defects. Do not install damaged parts.
- Sichere Befestigungselemente: Ensure all fasteners are tightened securely to prevent loosening during operation.
3. Einrichtung und Installation
Erforderliche Werkzeuge:
- Wrench set (for shaft collars and set screws)
- Hex key set (if applicable for set screws)
- Maßband
- Ebene
- Schutzbrille und Handschuhe
Installationsschritte:
- Prepare the Jack Shaft: Ensure the jack shaft is clean and free of debris. If replacing an old sprocket, remove it carefully.
- Position the Sprocket: Slide the 36 Tooth Jack Shaft Sprocket onto the jack shaft. Ensure the keyway on the sprocket aligns with the key on the shaft, if present.
- Secure the Sprocket: Once positioned correctly, tighten the set screws on the sprocket hub to secure it firmly to the jack shaft. Ensure the sprocket is level and aligned with the chain path.
- Install the #41 Chain: Route the #41 roller chain around the newly installed sprocket and the corresponding sprocket on the garage door opener. Ensure the chain has proper tension, neither too tight nor too loose.
- Ausrichtung prüfen: Verify that the sprocket and chain are correctly aligned and move freely without binding. Misalignment can lead to premature wear.
- Testbetrieb: Reconnect power and perform a manual test of the garage door operation to ensure smooth movement and proper function.
Image 3.1: Close-up of the sprocket showing the keyway. Ensure proper alignment with the shaft key.
Image 3.2: The sprocket's hub with visible set screw holes. Tighten these screws to secure the sprocket.
4. Bedienungsanleitung
Once installed, the 36 Tooth Jack Shaft Sprocket operates as an integral part of your garage door opener system. Its function is to transmit power from the opener to the garage door mechanism via the #41 roller chain.
- Normalbetrieb: The sprocket will rotate with the jack shaft, driving the chain to open or close the garage door as commanded by the opener.
- Reibungslose Bewegung: Ensure the chain moves smoothly over the sprocket teeth without jumping or excessive noise.
5. Wartung
Regular maintenance helps ensure the longevity and reliable operation of your sprocket and garage door system.
- Schmierung: Periodically apply a light coat of garage door lubricant to the chain and sprocket teeth to reduce friction and wear. Avoid excessive lubrication that could attract dirt.
- Inspektion: Annually inspect the sprocket for signs of wear, such as chipped or excessively worn teeth. Check the set screws for tightness.
- Kettenspannung: Verify that the #41 chain maintains proper tension. Adjust if it appears too loose or too tight.
- Reinigung: Keep the sprocket and surrounding area free from dirt, dust, and debris.
6. Fehlerbehebung
In der folgenden Tabelle finden Sie häufig auftretende Probleme und deren mögliche Lösungen.
| Problem | Mögliche Ursache | Lösung |
|---|---|---|
| Sprocket is loose on shaft | Set screws not tightened sufficiently. | Disconnect power, then tighten set screws firmly. |
| Chain jumping off sprocket | Misalignment of sprocket or incorrect chain tension. | Disconnect power, check sprocket alignment, adjust chain tension. |
| Übermäßiger Lärm während des Betriebs | Lack of lubrication, worn sprocket teeth, or chain issues. | Lubricate chain and sprocket. Inspect for wear. Check chain for damage. |
| Sprocket appears worn | Normale Abnutzung im Laufe der Zeit. | Consider replacing the sprocket if wear is significant and affecting performance. |
7. Spezifikationen
- Modell: 41B36
- Anzahl der Zähne: 36
- Kettentyp: #41 Rollenkette
- Bohrungsdurchmesser: 1 Zoll
- Hersteller: Generisch
- ASIN: B07KWDMB15
8. Garantieinformationen
This product is covered by a standard manufacturer's warranty against defects in materials and workmanship. For specific warranty terms and conditions, please refer to the product packaging or contact the seller directly. Keep your proof of purchase for warranty claims.
9. Kundendienst
If you have any questions, require technical assistance, or need to report an issue with your Generic 36 Tooth Jack Shaft Sprocket, please contact your retailer or the manufacturer's customer service department. Provide your product model number (41B36) and ASIN (B07KWDMB15) when seeking support.
