Redragon K503 Gaming Keyboard Instruction Manual

1. Einleitung

This manual provides detailed instructions for the Redragon K503 Gaming Keyboard. Please read this guide thoroughly to ensure proper setup, operation, and maintenance of your device. The Redragon K503 is a multimedia gaming keyboard featuring RGB LED backlighting and a comfortable wrist rest, designed for use with Windows and MacOS PC systems.

2. Einrichtung

2.1 Packungsinhalt

• Redragon K503 Gaming Keyboard
• USB-Kabel (integriert)

2.2 Anschließen der Tastatur

1. Suchen Sie einen verfügbaren USB-Anschluss an Ihrem Computer.
2. Stecken Sie den USB-Stecker der Redragon K503-Tastatur in den USB-Anschluss.
3. Your operating system (Windows or MacOS) should automatically detect and install the necessary drivers. No additional software installation is typically required for basic functionality.
4. The keyboard's RGB backlighting will illuminate upon successful connection.

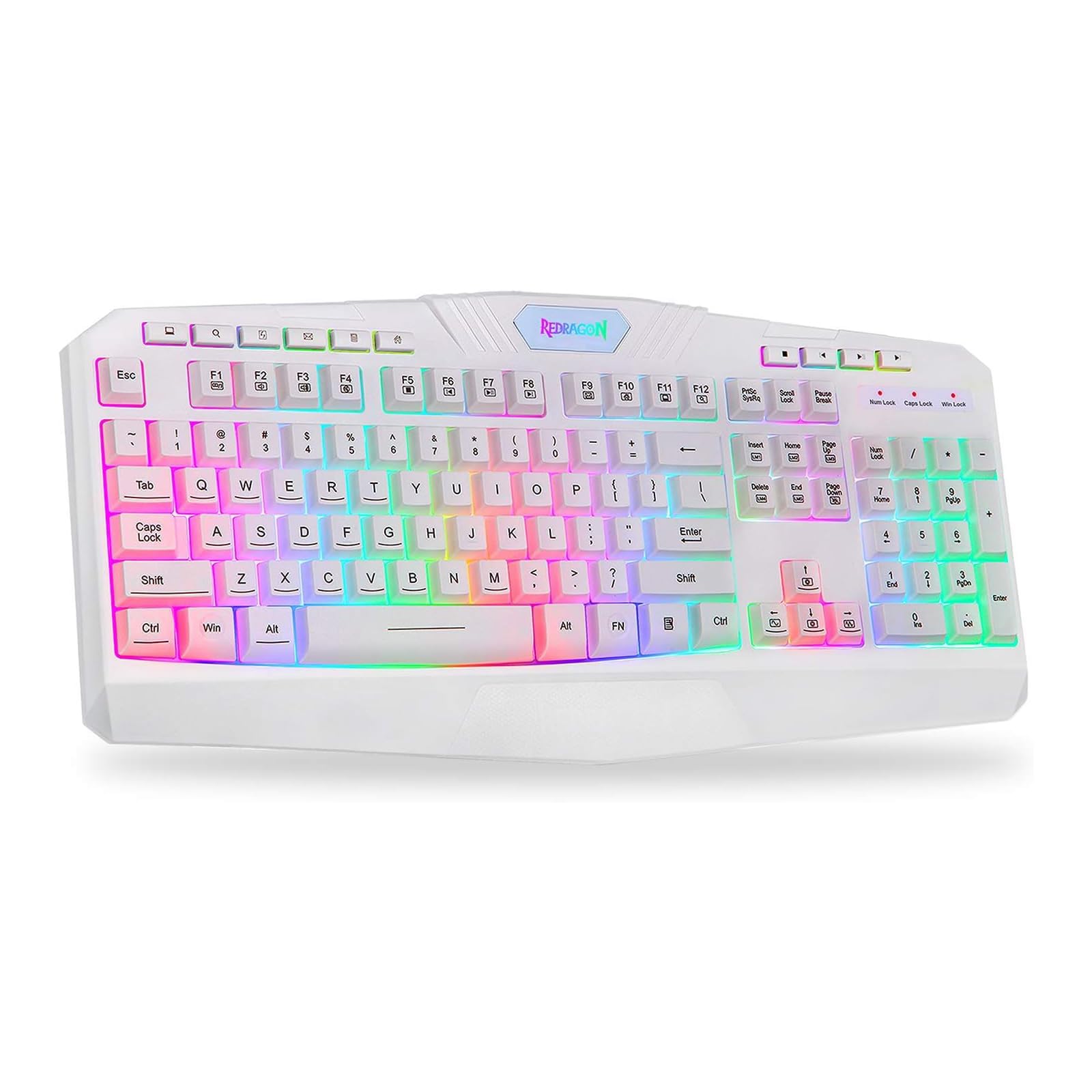

This image shows the Redragon K503 Gaming Keyboard, highlighting its full layout and white finish. The keys feature RGB backlighting, visible around the keycaps.

3. Bedienungsanleitung

3.1 Grundfunktionen

The Redragon K503 functions as a standard QWERTY keyboard for typing and input. All standard keys operate as labeled.

3.2 Multimedia-Tasten

The keyboard includes dedicated multimedia keys for convenient control of media playback and system functions. These keys are typically located above the function keys (F1-F12) or integrated with them via the 'Fn' key. Common functions include:

• Lautstärkeregelung: Lautstärke erhöhen, verringern oder stummschalten.
• Medienwiedergabe: Wiedergabe/Pause, Stopp, vorheriger Titel, nächster Titel.
• Web Browser: Standard starten web Browser.
• E-Mail: Starten Sie den Standard-E-Mail-Client.

3.3 RGB-LED-Hintergrundbeleuchtung

The K503 features customizable RGB LED backlighting. The lighting modes and brightness can be adjusted directly on the keyboard using specific key combinations. Refer to the keycap legends for specific lighting control keys, often involving the 'Fn' key combined with other function keys (e.g., Fn + Scroll Lock, Fn + Home/End, or dedicated lighting keys).

• Beleuchtungsmodi ändern: Press the designated key combination to cycle through various lighting effects (e.g., static, breathing, wave).
• Anpassen der Helligkeit: Use the specified key combination to increase or decrease the backlight intensity.
• Farbwechsel: Some modes allow for color customization using specific key presses.

4. Wartung

4.1 Reinigung der Tastatur

Um optimale Leistung und ein ansprechendes Aussehen zu erhalten, reinigen Sie Ihre Tastatur regelmäßig:

• Trennen Sie die Tastatur vor der Reinigung vom Computer.
• Mit einem weichen, fusselfreien Tuch leichtampAnschließend mit Wasser oder einer milden Reinigungslösung abwischen, um die Tastenkappen und die Oberfläche zu reinigen.
• Für Staub und Schmutz zwischen den Tasten verwenden Sie Druckluft.
• Verwenden Sie keine scharfen Chemikalien oder scheuernden Reinigungsmittel und tauchen Sie die Tastatur nicht in Flüssigkeiten ein.

5. Fehlerbehebung

5.1 Tastatur reagiert nicht

• Stellen Sie sicher, dass das USB-Kabel sowohl an die Tastatur als auch an den Computer fest angeschlossen ist.
• Versuchen Sie, die Tastatur an einen anderen USB-Anschluss Ihres Computers anzuschließen.
• Testen Sie die Tastatur an einem anderen Computer, um festzustellen, ob das Problem an der Tastatur oder am USB-Anschluss/den Treibern des Computers liegt.
• Starten Sie Ihren Computer neu.

5.2 Backlighting Not Working or Incorrect

• Check if the backlighting has been turned off or set to the lowest brightness level using the keyboard's lighting control keys.
• Stellen Sie sicher, dass die Tastatur ordnungsgemäß an den Computer angeschlossen ist.
• If a specific key's backlight is not working, it may indicate a hardware issue.

5.3 Specific Keys Not Functioning

• Clean around and under the affected keycap to remove any debris that might be obstructing its movement.
• Wenn das Problem weiterhin besteht, könnte dies auf eine Hardwarestörung hindeuten.

6. Spezifikationen

7. Garantieinformationen

Redragon products are typically covered by a limited manufacturer's warranty. The specific terms and duration of the warranty may vary by region and retailer. Please retain your proof of purchase for warranty claims. For detailed warranty information, refer to the warranty card included with your product or visit the official Redragon webWebsite.

8. Kundendienst

If you encounter any issues not covered in this manual or require further assistance, please contact Redragon customer support. Contact information can usually be found on the official Redragon website or on the product packaging. When contacting support, please have your product model number (K503) and proof of purchase ready.
