BAYBEE Electric Baby Swing Cradle B07PFX2V5F

Baybee Electric Baby Swing Cradle Instruction Manual

Model: B07PFX2V5F

1. Wichtige Sicherheitshinweise

Read all instructions before assembly and use of the Baybee Electric Baby Swing Cradle. Keep this manual for future reference.

2. Produktkomponenten und -struktur

The Baybee Electric Baby Swing Cradle is designed with durable and comfortable materials for your baby's safety and comfort.

Image showing the cradle's cotton fabric and ABS plastic components.
Cotton Fabric and ABS Plastic: The cradle features skin-friendly, breathable, and soft cotton fabric for comfort, combined with stable and strong environmental protection ABS plastic for safety.
Image showing the thick steel pipe frame and sturdy base of the cradle.
Thick Steel Pipe and Sturdy Base: Constructed with thick steel pipes for enhanced durability and safety. The cradle's four corners are designed to be sturdy and stable, providing a secure grip.

3. Aufbau und Montage

Follow these steps to assemble your Baybee Electric Baby Swing Cradle.

  1. Unpack all components from the packaging. Verify all parts are present according to the packing list (not provided in this manual).
  2. Assemble the main frame using the thick steel pipes, ensuring all connections are secure.
  3. Attach the cradle basket to the assembled frame, making sure it is firmly connected and balanced.
  4. Install the mosquito net over the cradle basket.
  5. The cradle features a folding bracket for easy transport and storage. Ensure it is fully extended and locked into place for use.

For a visual guide, an assembly video is available online: https://www.youtube.com/watch?v=nhtNjmcNWpw

4. Bedienungsanleitung

4.1 Powering the Cradle

The cradle can be powered via a low voltage power adapter or batteries (not included). Connect the power adapter to the designated port or insert the required batteries according to the polarity markings.

4.2 Bedienfeld- und Fernbedienungsfunktionen

Close-up image of the electric cradle's control panel with labeled buttons.
Cradle Control Panel: Features an ON/OFF button, swing gear indication, timing button, lullaby selection, timing indicator, and volume/next controls.
Image of the remote control for the electric cradle with various function buttons.
Fernbedienung: Provides convenient access to functions including ON/OFF, volume up/down, music/TF button, fast forward, next, music button, timer button, speed control (1-6), and stop button.

4.3 Swing Speed Adjustment

The cradle offers six adjustable swing speeds, corresponding to swing angles from 10 to 30 degrees. Use the swing speed selector buttons on the control panel or remote to choose the desired speed. Six LED lights indicate the current speed setting (1-6).

Image illustrating the six speed adjustment levels of the baby swing.
Six Speed Adjustment: Adjust the swing speed from Level 1 to Level 6 for gentle motion.

4.4 Music and Nature Sounds

The cradle includes built-in nature sounds and music. Press the TOGGLE button on the control panel or the Music button on the remote to cycle through three nature sounds and seven musical tunes. These will play automatically for two cycles.

Extra Music (TF Card): To play additional music, insert a TF card with music files before powering on the device. Only music files on the TF card will play. Press the TOGGLE button to advance to the next track.

4.5 Zeitschaltfunktion

Press the TIMING button on the control panel or the Timer button on the remote to set the operating time to 15, 30, or 45 minutes. After the selected time, all functions will stop automatically. If no timing is set, the module will automatically stop after one hour of continuous operation.

5. Wartung

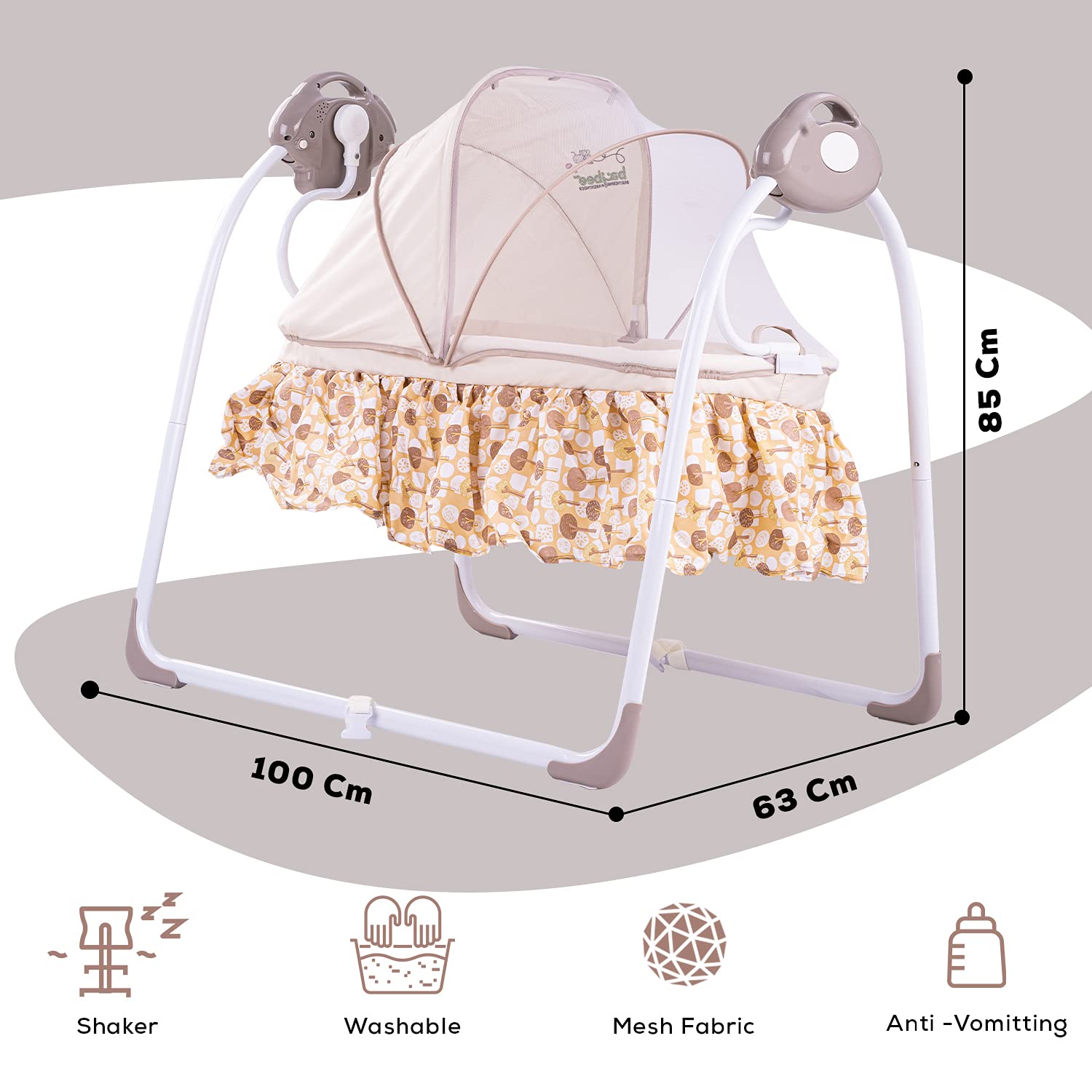

Image highlighting features including dimensions, shaker, washable fabric, mesh fabric, and anti-vomiting design.
Waschbarer Stoff: The cradle features washable fabric for easy cleaning and hygiene.

6. Fehlerbehebung

If you encounter issues with your Baybee Electric Baby Swing Cradle, consider the following:

Sollten die Probleme weiterhin bestehen, wenden Sie sich bitte an den Kundendienst.

7. Spezifikationen

MarkeBAYBEE
ModellnummerB07PFX2V5F
FarbeBraun
MaterialABS, Cotton
Maximalgewichtsempfehlung15 Kilogramm
MindestalterempfehlungAb 0 Monaten
Artikelgewicht8 kg 200 g
Verpackungsabmessungen93 x 46.6 x 12.8 cm
Produktabmessungen (ca.)100 cm (Länge) x 63 cm (Breite) x 85 cm (Höhe)
Batterien erforderlichNo (for main unit, remote may require batteries)
FormfaktorFalten
MöbelfinishMattes Finish

8. Garantie und Support

Warranty information for this product is not explicitly provided in the available product details. For any warranty claims, technical support, or service inquiries, please contact the manufacturer directly.

Manufacturer: BAYBEE
