ASUS X441BA 14-inch Laptop User Manual

Einführung

This manual provides essential information for the safe and efficient use of your ASUS X441BA 14-inch laptop. It covers initial setup, basic operation, maintenance guidelines, troubleshooting common issues, and detailed product specifications. Please read this manual thoroughly before using your device.

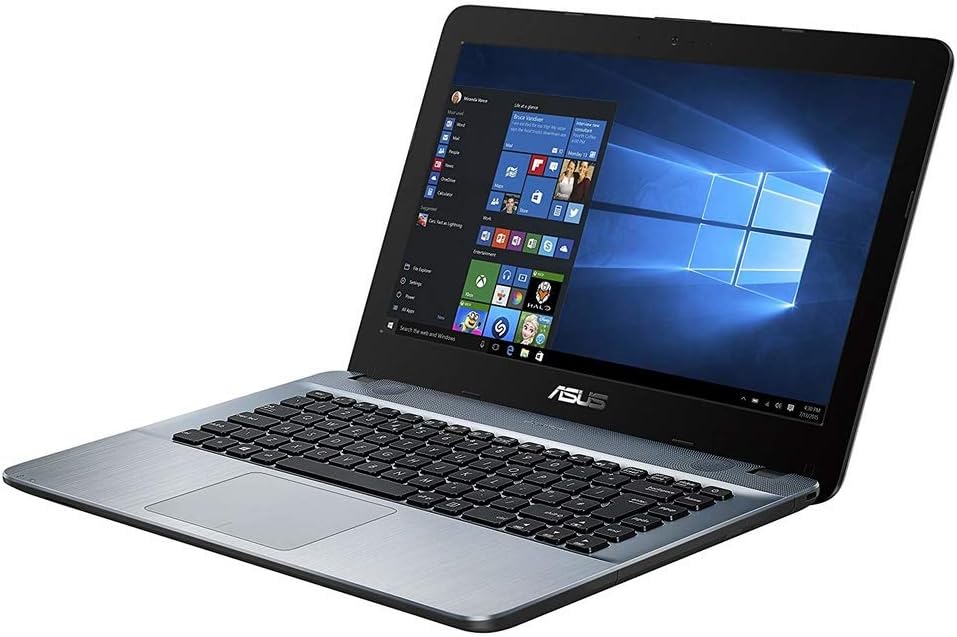

Image: The ASUS X441BA laptop, showcasing sein 14-Zoll-Display und Tastaturlayout.

Aufstellen

1. Auspacken und Erstinspektion

Nehmen Sie den Laptop und sämtliches Zubehör vorsichtig aus der Verpackung. Prüfen Sie ihn auf Beschädigungen. Sollten Teile fehlen oder beschädigt sein, kontaktieren Sie umgehend Ihren Händler.

2. Stromanschluss

Connect the AC adapter to the laptop's power input port, then plug the power cord into a wall outlet. The laptop can be used while charging. It is recommended to fully charge the battery before first use.

3. Erster Start und Windows 10-Einrichtung

Press the power button located on the top-right of the keyboard to turn on the laptop. Follow the on-screen instructions to complete the Windows 10 setup process, which includes selecting your language, region, and creating a user account.

4. Netzwerkverbindung

• W-lan: During Windows setup or afterward, click the network icon in the taskbar, select your desired Wi-Fi network, and enter the password.
• Ethernet: For a wired connection, plug an Ethernet cable into the RJ45 LAN port on the side of the laptop.

Bedienung Ihres Laptops

1. Energieverwaltung

• Einschalten: Drücken Sie die Einschalttaste.
• Abschalten: Klicken Start > Leistung > Abschalten.
• Schlafmodus: Klicken Start > Leistung > Schlafen to put the laptop into a low-power state.
• Neustart: Klicken Start > Leistung > Neustart.

2. Tastatur und Touchpad

The integrated keyboard provides a comfortable typing experience. The touchpad, located below the keyboard, allows for precise cursor control and supports multi-touch gestures for scrolling, zooming, and other functions. Refer to Windows settings for touchpad customization.

3. Externe Displays anschließen

Your laptop features multiple ports for connecting external monitors:

• HDMI-Anschluss: Connects to modern displays, TVs, and projectors for high-definition video and audio.
• VGA-Anschluss: Connects to older monitors and projectors.
• USB 3.1 Typ-C-Anschluss: May support video output with an appropriate adapter (sold separately).

Nach dem Verbinden drücken Windows-Taste + P to select your display mode (e.g., Duplicate, Extend, Second screen only).

Abbildung: Seite view of the ASUS X441BA laptop, highlighting the available connectivity ports.

4. USB Ports and Peripherals

The laptop is equipped with various USB ports for connecting external devices:

• USB 3.0 (Typ A): Für Hochgeschwindigkeits-Datenübertragung mit kompatiblen Geräten.
• USB 3.1 (Typ-C): A reversible connector for newer devices, offering fast data transfer.
• USB 2.0: For standard peripherals like mice, keyboards, or printers.

5. Audiofunktionen

The laptop includes integrated speakers for audio playback. A combo audio jack is available for connecting headphones or an external microphone.

Wartung

1. Reinigungsanweisungen

• Bildschirm: Use a soft, lint-free microfiber cloth. For stubborn smudges, lightly dampen the cloth with water or a screen-specific cleaner. Avoid spraying liquids directly onto the screen.
• Gehäuse und Tastatur: Use a soft, dry cloth. A can of compressed air can be used to remove dust from between keyboard keys and vents.
• Allgemein: Avoid abrasive cleaners, solvents, or harsh chemicals. Ensure the laptop is powered off and unplugged before cleaning.

2. Software-Updates

Regularly check for and install Windows updates to ensure your operating system has the latest security patches, bug fixes, and performance improvements. Go to Start > Einstellungen > Update & Sicherheit > Windows Update.

3. Festplattenverwaltung

Your laptop is equipped with a 500GB HDD. To maintain optimal performance:

• Datenträgerbereinigung: Periodically run the Disk Cleanup utility to remove temporary files and other unnecessary data.
• Defragmentierung: For HDDs, regular defragmentation can improve file access speeds. Suchen nach "Defragment and Optimize Drives" in Windows.
• Speicherverwaltung: Monitor your storage usage and delete large, unneeded files, um Speicherplatz freizugeben.

4. Batteriepflege

To prolong the lifespan of your laptop's integrated Lithium Ion battery:

• Vermeiden Sie es, den Laptop extremen Temperaturen auszusetzen.
• Do not frequently fully discharge the battery.
• Wenn Sie den Laptop über einen längeren Zeitraum lagern, stellen Sie sicher, dass der Akku zu etwa 50-60 % geladen ist.

Fehlerbehebung

This section addresses common issues you might encounter with your ASUS X441BA laptop.

1. Laptop is Slow or Unresponsive

• Check Background Processes: Öffnen Sie den Task-Manager (Strg+Umschalt+Esc), um ressourcenintensive Anwendungen zu identifizieren und zu schließen.
• Free Up Disk Space: Ensure there is sufficient free space on your 500GB HDD. Run Disk Cleanup.
• Neustart: Ein einfacher Neustart kann vorübergehende Leistungsprobleme oft beheben.
• Software-Updates: Stellen Sie sicher, dass Windows und die Treiber auf dem neuesten Stand sind.
• Hardware-Überlegungen: The laptop comes with 4GB DDR4 RAM and a 500GB HDD. While suitable for basic tasks, heavy multitasking or demanding applications may benefit from a professional RAM upgrade (if supported) or replacing the HDD with a Solid State Drive (SSD).

2. Battery Not Charging or Draining Quickly

• AC Adapter Check: Ensure the AC adapter is securely connected to both the laptop and the power outlet. Try a different outlet.
• Energieeinstellungen: Adjust Windows power settings to optimize battery life. Go to Start > Einstellungen > System > Batterie.
• Batteriezustand: Over time, battery capacity naturally degrades. If the issue persists and the laptop is older, the battery may need service.

3. Unusual Noise (Fan or Internal)

• Klare Belüftungsöffnungen: Ensure the laptop's ventilation openings are not blocked by dust or objects, which can cause the fan to work harder and louder.
• Temperatur: High CPU usage or hot environments can increase fan speed. Reduce workload or move to a cooler area.
• Persistent Noise: If the noise is unusual or persistent, it may indicate a hardware issue requiring professional inspection.

4. Connectivity Problems (Wi-Fi, Bluetooth)

• Geräte neu starten: Restart your Wi-Fi router/modem and the laptop.
• Fahrer prüfen: Ensure your wireless and Bluetooth drivers are up to date via Device Manager.
• Bluetooth-Pairing: Bei Bluetooth-Geräten muss sichergestellt werden, dass sie sich im Kopplungsmodus befinden und in Reichweite sind.

Technische Daten

Below are the key technical specifications for the ASUS X441BA laptop:

Garantie

Your ASUS X441BA laptop comes with a 1 Jahr eingeschränkte Garantie. Please refer to the warranty card included with your product for full terms and conditions, including coverage details and limitations. Keep your proof of purchase for warranty claims.

Unterstützung

For technical assistance, driver downloads, FAQs, and further support resources, please visit the official ASUS support website. You can typically find support by searching for your specific model number (X441BA) on the ASUS support portal.

For customer service inquiries, please refer to the contact information provided in your product packaging or on the ASUS official webWebsite.
