Cuchen Electric Mini Rice Cooker CJE-A0305 User Manual

1. Wichtige Sicherheitsvorkehrungen

Please read all instructions carefully before using your Cuchen Electric Mini Rice Cooker. Retain this manual for future reference. Improper use can result in damage to the appliance or personal injury.

• Das Hauptgerät, das Kabel und der Stecker dürfen nicht in Wasser oder andere Flüssigkeiten getaucht werden.
• Stellen Sie sicher, dass die Lautstärketage rating of the appliance matches your local power supply. This appliance operates on 220V.
• Außerhalb der Reichweite von Kindern aufbewahren.
• Den Reiskocher immer vom Stromnetz trennen, wenn er nicht benutzt wird und vor der Reinigung.
• Betreiben Sie kein Gerät mit beschädigtem Kabel oder Stecker.
• Verwenden Sie nur vom Hersteller empfohlenes Zubehör.
• Vermeiden Sie es, heiße Oberflächen zu berühren. Verwenden Sie Griffe oder Knöpfe.

2. Produktüberschreitungview

The Cuchen Electric Mini Rice Cooker CJE-A0305 is designed for efficient and convenient rice cooking for small households. It features a compact design, an intuitive LCD display, and easy-to-clean components.

Figure 2.1: Cuchen Electric Mini Rice Cooker CJE-A0305 shown with a bowl of cooked rice.

Abbildung 2.2: Draufsicht view of the Cuchen Electric Mini Rice Cooker, highlighting its compact design.

Hauptmerkmale:

• Kompakte Größe: Designed to cook up to 3.5 rice bowls, ideal for 3 people.
• Vielseitiges Kochen: Capable of preparing various dishes including steamed foods, multi-grain rice, baby food, and porridge.
• Automatische Dampfreinigung: Ensures hygienic maintenance and prevents nozzle blockage.
• Separable Clean Inner Cover: Allows for easy removal and thorough cleaning.
• LCD Anzeige: Provides clear information for easy checking of cooking status and menu selection.

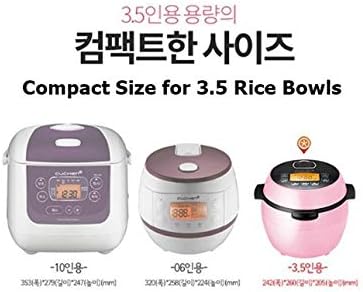

Figure 2.3: The CJE-A0305 is a compact rice cooker, suitable for approximately 3.5 rice bowls.

Figure 2.4: The Cuchen rice cooker supports various cooking modes for different types of meals.

3. Einrichtung und Vorbereitung der ersten Verwendung

3.1 Auspacken

Carefully remove all packaging materials from the rice cooker. Check for any damage during transit. Ensure all components, including the inner pot and power cord, are present.

3.2 Erstreinigung

Before first use, wash the inner pot and the separable inner cover with warm, soapy water. Rinse thoroughly and dry completely. Wipe the exterior of the main unit with a damp Tuch.

3.3 Stromanschluss

Dieses Gerät wird betrieben mit 220 Volt. It is equipped with a Korean plug type C or F (EU) with two round pins. If your region uses 110V (e.g., USA, Canada), a step-up voltage converter is required. A plug adapter may also be needed but does not convert voltage.

Figure 3.1: Important notice regarding the 220V power requirement and the necessity of a step-up voltage converter for 110V regions. Plug adapters do not convert voltage.

Connect the power cord to the rice cooker and then plug it into a suitable 220V wall outlet or a properly rated step-up voltage Konverter.

4. Bedienungsanleitung

4.1 Grundlegende Reiszubereitung

1. Messen Sie die gewünschte Reismenge mit dem beiliegenden Messbecher ab. Spülen Sie den Reis gründlich ab.
2. Den gewaschenen Reis in den Innentopf geben.
3. Add water according to the markings inside the inner pot or your preference. For optimal results, refer to the rice-to-water ratio guidelines for your specific rice type.
4. Setzen Sie den Innentopf in das Hauptgerät ein und verschließen Sie den Deckel fest.
5. Plug in the rice cooker. The LCD display will illuminate.
6. Select the desired cooking mode (e.g., White Rice, Multi-Grain) using the control panel buttons.
7. Press the 'Start' button to begin cooking. The cooker will automatically switch to 'Keep Warm' mode once cooking is complete.

4.2 Verwendung des LCD-Displays

The LCD display provides real-time information about the cooking process, selected menu, and remaining time. Use the navigation buttons around the display to select different cooking functions or adjust settings.

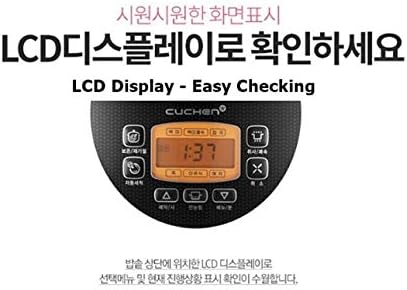

Figure 4.1: The LCD display allows for easy monitoring and selection of cooking functions.

4.3 Specialized Cooking Modes

This rice cooker offers various modes for different food preparations:

• Mehrkorn: Optimized for cooking various mixed grains.
• Babynahrung: Prepares soft and easily digestible food for infants.
• Haferbrei: Ideal for creamy and consistent porridge.
• Steamed Cooked Foods: Use for steaming vegetables or other items.

Refer to the specific recipes or the detailed instructions in the full manual for precise water levels and cooking times for each mode.

5. Pflege und Wartung

Regular cleaning and maintenance will ensure the longevity and optimal performance of your rice cooker.

5.1 Cleaning the Inner Pot and Inner Cover

After each use, unplug the rice cooker and allow it to cool completely. Remove the inner pot and the separable inner cover. Wash them with warm, soapy water and a soft sponge. Rinse thoroughly and dry completely before reassembling.

Figure 5.1: The separable inner cover can be easily detached for thorough cleaning, promoting hygienic use.

5.2 Automatic Steam Cleaning

The rice cooker features an automatic steam cleaning function to prevent blockage of the steam nozzle and maintain hygiene. To use this function, ensure the inner pot is empty or contains only water for cleaning, then select the 'Steam Clean' option on the control panel and start the cycle.

Figure 5.2: The automatic steam cleaning function helps maintain internal hygiene and prevents nozzle blockages.

5.3 Außenreinigung

Wischen Sie die Außenseite des Reiskochers mit einem weichen, fusselfreien Tuch ab.amp cloth. Do not use abrasive cleaners or scourers. Ensure no water enters the electrical components.

6. Fehlerbehebung

Sollten Sie Probleme mit Ihrem Reiskocher haben, beachten Sie bitte die folgenden häufig auftretenden Probleme und Lösungen:

• Der Herd lässt sich nicht einschalten:
  • Check if the power cord is securely plugged into both the cooker and the wall outlet/converter.
  • Stellen Sie sicher, dass die Steckdose funktionsfähig ist.
  • Stellen Sie sicher, dass das richtige Voltage (220V) is being supplied, especially if using a converter.
• Der Reis ist entweder nicht gar oder verkocht:
  • Ensure the correct rice-to-water ratio was used.
  • Check that the lid is properly closed during cooking.
  • Confirm the correct cooking mode was selected for the type of rice.
• Steam leakage from the lid:
  • Check if the inner cover and lid gasket are properly installed and clean.
  • Ensure there is no food debris obstructing the lid's seal.
• Ungewöhnliche Gerüche während des Betriebs:
  • A slight odor may occur during initial uses; this is normal.
  • If odors persist or are strong, ensure the cooker is clean and free of food residue.

Sollte das Problem nach Anwendung dieser Lösungsansätze weiterhin bestehen, wenden Sie sich bitte an den Kundendienst.

7. Spezifikationen

8. Garantie und Kundendienst

For warranty information or customer support inquiries, please refer to the warranty card included with your product or contact the retailer from whom you purchased the appliance. You may also visit the official Cuchen webWebsite für weitere Unterstützung.

Please have your model number (CJE-A0305) and purchase date available when contacting support.
