Beaquicy AJU73213301 Washer Water Inlet Valve Instruction Manual

1. Produktüberschreitungview

The Beaquicy AJU73213301 water inlet valve is designed to control the flow of water into your top-loading washing machine. It includes two water inlet valve screens to filter impurities from the water supply.

This valve assembly features 2 inlets and 5 outlets with 5 coil water valves, managing the hot water, cold water, bleach dispenser, fabric softener dispenser, and jet spray functions.

The valve measures approximately 8.7 inches in length and 2.53 inches in width.

Bild 1: Vorderseite view of the AJU73213301 Water Inlet Valve.

Image 2: Dimensions of the AJU73213301 Water Inlet Valve, showing 8.66 inches in length and 2.53 inches in width.

2. Kompatibilität

This water inlet valve is compatible with various Kenmore and LG top-load washing machine models. It replaces part numbers 5221EA1008F, AJU75152601, 33090048, and TAW35618287.

Compatible Kenmore Models (Elite 796-series):

• 79631512210, 79631512211, 79631513310
• 79631522210, 79631523210, 79631622310
• 79631623310, 79631513210, 79631523211
• 79631552610, 79631553610, 79631522211, 79631513211

Kompatible LG-Modelle:

• WT1101CW, WT1201CW, WT1701CV, WT1801HWA
• WT1201CV, WT5101HW, WT1701CW, WT1501CW
• WT1801HVA, WT1301CW, WT5001CW, WT5101HV
• WT4970CW, WT5170HW, WT5680HVA, WT5170HV
• WT4870CW, WT7700HWA, WT5480CW, WT5270CW
• WT5680HWA, WT6001HV, WT6001HW, WT7600HWA
• WT7600HKA, WT1901CW, WT7200CW, WT7700HVA
• WT1901CK, WT7200CV, WT5070CW, WT7050CV

3. Packungsinhalt

Das Produktpaket umfasst folgende Artikel:

• 1 x AJU73213301 Water Inlet Valve
• 2 x AGM73269501 Water Inlet Valve Screens

Image 3: The AJU73213301 Water Inlet Valve shown with the two included filter screens.

4. Installationsanweisungen

Sicherheit geht vor: Before beginning installation, always disconnect the washing machine from its power supply and turn off the water supply. Wear work gloves to protect your hands.

1. Zugang zum Ventil: Locate and remove the two screws holding the top cover of the washing machine. Carefully remove the top cover to access the water inlet valve assembly.
2. Disconnect Hoses and Wires: Disconnect any hoses attached to the existing water inlet valve assembly. Then, disconnect the electrical wires connected to the valve.
3. Altes Ventil ausbauen: Remove the screws that secure the old water inlet valve assembly to the frame of the washing machine. Carefully detach and remove the old valve.
4. Neues Ventil einbauen: Position the new AJU73213301 water inlet valve in place and secure it with the screws. Reconnect the electrical wires and hoses. Ensure all connections are firm to prevent leaks.
5. Testfunktionalität: Once the new valve is installed and all connections are secure, replace the top cover of the washing machine. Restore the water supply and power to the washer. Run a test cycle to ensure the valve operates correctly and there are no leaks.

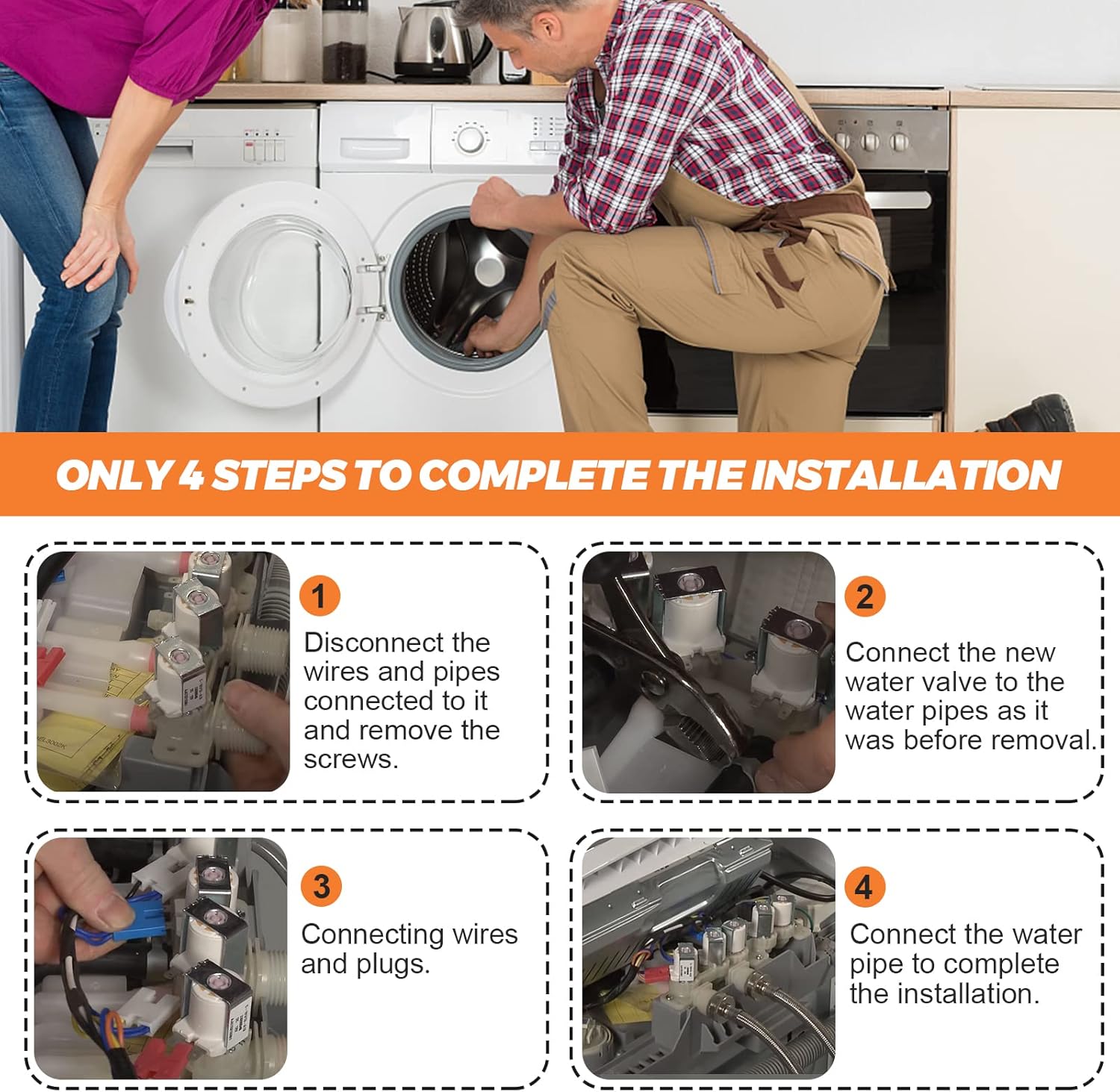

Image 4: Visual guide showing the four main steps for installing the water inlet valve: disconnecting, connecting new valve, wiring, and connecting water pipe.

5. Fehlerbehebung

If your washing machine exhibits any of the following symptoms, the AJU73213301 water inlet valve may require replacement:

• Washer is noisy during water intake.
• Washing machine does not start a cycle.
• Clothes are not washed properly.
• Water valve leaks.
• Washing machine overflows.
• Washer fills slowly.
• Water continues to fill when the cycle is stopped.

Image 5: Visual representation of common issues that may indicate a faulty water inlet valve, such as water leaks and slow water filling.

6. Spezifikationen

7. Garantie und Support

This product is covered by a 10-year guarantee from the date of purchase. For any quality issues or after-sales service inquiries within this period, please contact customer support.
