Beaquicy W11344457 3387747 Dryer Heating Element Instruction Manual

1. Produktüberschreitungview

The Beaquicy W11344457 3387747 Dryer Heating Element is a replacement component designed for electric clothes dryers. This assembly is responsible for generating the heat required to dry laundry. It includes the heating element coil and insulators, housed within a metal frame.

Zu den Hauptmerkmalen gehören:

Heating coil made from a nickel-chromium alloy for effective heat generation and durability.
High-temperature ceramic insulators securely mounted to prevent loosening from vibration.
Designed for compatibility with various dryer models from brands such as Whirlpool, Kenmore, Maytag, Kitchen-Aid, and Amana.

Figure 1: Beaquicy 3387747 Dryer Heating Element Assembly. This image shows the complete heating element assembly, including the coiled heating wires and ceramic insulators within its metal housing.

2. Sicherheitshinweise

Before attempting any repair or installation, always prioritize safety. Failure to follow these safety guidelines may result in electric shock, fire, or personal injury.

Stromversorgung trennen: Always unplug the dryer from its power source before beginning any installation or maintenance.
Schutzausrüstung tragen: Use work gloves to protect your hands during the installation process.
Professionelle Hilfe: Wenn Sie sich bei einem Arbeitsschritt unsicher sind oder sich bei der Durchführung der Reparatur unwohl fühlen, konsultieren Sie einen qualifizierten Haushaltsgerätetechniker.
Richtiges Werkzeug: Ensure you have the correct tools for the job, such as a 1/4" nut driver and needle-nose pliers.
Elektrische Sicherheit: Be aware of electrical components and connections. Do not touch live wires.

3. Installationsanweisungen

This section provides a general guide for installing the 3387747 dryer heating element. Specific steps may vary slightly depending on your dryer model. It is recommended to consult your dryer's service manual or an online repair video for your specific model.

Benötigtes Werkzeug:

1/4" Nut Driver
Spitzzange
Arbeitshandschuhe

Installationsschritte:

Vorbereitung: Disconnect the dryer from its power supply. Move the dryer to an area with sufficient space to work.
Zugang zum Heizelement: Depending on your dryer model, you may need to remove the back panel or front panel to access the heating element housing. Take photos of wire connections before disconnecting them to aid reassembly.
Altes Element entfernen: Carefully disconnect any wires attached to the old heating element. Unscrew and remove the old heating element assembly from its housing.
Neues Element installieren:
- Insert the new electric heating wire into the housing.
- Fix the plug on the outer end.
- Secure the assembly by screw.
Kabel wieder anschließen: Reattach all wires to the new heating element, ensuring they are secure. Refer to your photos if needed.
Trockner wieder zusammenbauen: Bringen Sie alle während des Vorgangs entfernten Paneele wieder an.
Prüfen: Plug the dryer back into the power outlet and test its operation.

Four steps to install the dryer heating element — Figure 2: Installation steps for the heating element. This image illustrates the four key steps: inserting the heating wire, fixing the plug, securing with screws, and completing the installation.

4. Funktionsprinzipien

The 3387747 Dryer Heating Element functions by converting electrical energy into heat. When the dryer is in operation, electricity flows through the nickel-chromium heating coils, causing them to heat up. A blower fan then circulates this hot air through the dryer drum, facilitating the evaporation of moisture from the clothes. The ceramic insulators ensure that the heating coils remain properly positioned and insulated within the metal housing, preventing electrical shorts and maintaining efficient heat transfer.

5. Wartung

The heating element itself typically requires no routine maintenance. However, proper dryer maintenance can extend the life of all components, including the heating element.

Flusenfilter reinigen: Reinigen Sie den Flusenfilter immer vor oder nach jedem Waschgang, um eine optimale Luftzirkulation zu gewährleisten und eine Überhitzung zu vermeiden.
Belüftung prüfen: Periodically check the dryer's exhaust vent for blockages. A clogged vent can cause the dryer to overheat, leading to premature failure of the heating element or other components.
Professionelle Inspektion: Consider having your dryer professionally inspected every few years to ensure all components are functioning correctly.

6. Fehlerbehebung

The 3387747 heating element is designed to address specific dryer malfunctions. If your dryer exhibits any of the following symptoms, replacing the heating element may resolve the issue. To confirm a faulty heating element, unplug the dryer and perform a continuity test with a multimeter.

Dryer No Heat or Not Enough Heat: The most common symptom of a failed heating element.
Takes Too Long to Dry: Insufficient heat production prolongs drying cycles.
Zu heiß: While less common for a heating element failure, other related components (like thermostats) can cause this, but a shorted element could contribute.
Will Not Shut Off: This symptom is typically related to a faulty thermostat or timer, but a continuously heating element could exacerbate the problem.
Will Not Start: While a heating element usually doesn't prevent starting, a severe electrical short within the element could trip a breaker or fuse, preventing the dryer from starting.

Common dryer symptoms fixed by replacing the heating element — Figure 3: Symptoms indicating a potential heating element issue. This image displays visual representations of a dryer not heating, taking too long to dry, and not shutting off.

7. Spezifikationen

Besonderheit	Detail
Teilenummer	3387747, W11344457
Ersetzt Teilenummern	80003, W11045584, WP3387747VP, 525502, AP6008281, PS11741416, EAP11741416
Leistung	5400 Watt
Bandtage	240 Volt
Terminal Ends	5/16 Zoll
Dimensions (Width x Length)	Ungefähr 5.7 Zoll x 13.8 Zoll
Material	Metal housing, Nickel-chromium heating coil, Ceramic insulators

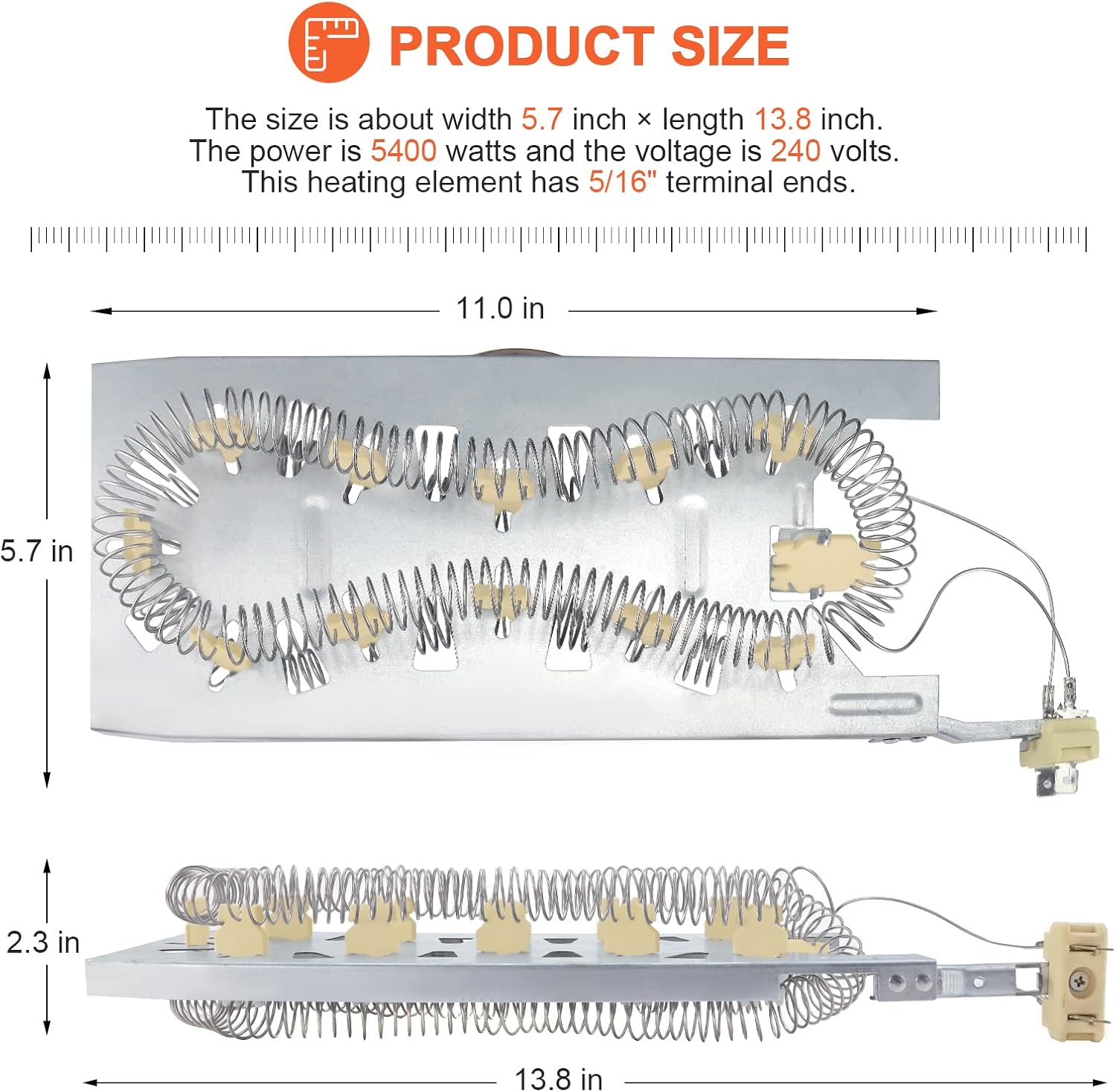

Dimensions of the 3387747 dryer heating element — Figure 4: Product dimensions. This image provides a visual representation of the heating element's width and length measurements.

8. Kompatibilität

The Beaquicy 3387747 Dryer Heating Element is compatible with a wide range of dryer models from the following brands:

Whirlpool
Kenmore
Maitag
Küchenhilfe
Amana

Specific compatible models include, but are not limited to: 7ewed5550yw0, 7ewed5550yw1, 7mmedx550xw0, 7mmedx550xw1, 7mwed5600bw0, medp475ew0, 36396593200, 36396593400, 11066952690, khev01rss0, gec9858hz0, ygew9200lw0, ygew9200lw2, ycee2760kq0, ycee2760kq1, ycee2760kq2, ycee2790kq1, ycem2760kq0, ycem2760kq1, ycem2760kq2, ycem2760kq3, ycem2760tq0, ycem2760tq1, ycep2760kq0, ycep2760kq1, ycep2760kq2, ygeq9800lw0, ygeq9800lq1, ygeq9800pw0, 11084831300, 11085087400, 11086884100, 11086984800, 11086992800.

If you are unsure about compatibility with your specific dryer model, it is recommended to verify the part number with your appliance's documentation or contact the manufacturer.

List of compatible dryer models for the 3387747 heating element — Figure 5: Partial list of compatible dryer models. This image displays a table of various model numbers from Whirlpool, Maytag, Kenmore, Kitchen-Aid, and Amana that are compatible with this heating element.

9. Garantie und Support

The Beaquicy 3387747 Dryer Heating Element Assembly is supported by a 365-day return and exchange policy. For any quality issues encountered during the warranty period, please contact customer service for assistance. The manufacturer is committed to resolving problems to ensure customer satisfaction.
