1. Einleitung

This manual provides instructions for the ORICO 3559C3-SV 5-Bay USB 3.1 Gen2 Type-C HDD Enclosure. This device is designed to expand your storage capacity with support for up to five 2.5-inch or 3.5-inch hard disk drives (HDDs) or solid-state drives (SSDs). It features high-speed data transfer, efficient cooling, and broad operating system compatibility.

2. Packungsinhalt

Bitte überprüfen Sie, ob alle Komponenten im Paket vorhanden sind:

• ORICO 3559C3-SV 5-Bay HDD Enclosure
• USB-Typ-C-zu-Typ-C-Datenkabel
• Netzteil
• Bedienungsanleitung
• Screws for HDD installation (if applicable)

3. Einrichtung

3.1 HDD/SSD Installation

1. Gently pull out the drive trays from the enclosure.
2. Place your 2.5-inch or 3.5-inch HDD/SSD into a drive tray. Ensure the SATA connectors align correctly.
3. Secure the drive to the tray using the provided screws. While the design aims for ease of use, securing drives with screws is recommended for stability.
4. Schieben Sie den bestückten Laufwerksschacht zurück in das Gehäuse, bis er einrastet.

Image: The ORICO 5-Bay HDD Enclosure with its drive trays extended, showing a hard drive and mounting screws. This illustrates the process of installing drives into the enclosure.

3.2 Verbindung zu Ihrem Computer

1. Connect one end of the USB Type-C data cable to the Type-C port on the enclosure.
2. Connect the other end of the USB Type-C data cable to an available USB 3.1 Gen2 Type-C port on your computer. For optimal performance, use a USB 3.1 Gen2 port.
3. Schließen Sie das Netzteil an den Stromeingang des Gehäuses an und stecken Sie es dann in eine Steckdose.

Bild: Eine detaillierte view of the rear panel of the ORICO 5-Bay HDD Enclosure, highlighting the AC power input, USB 3.1 Gen2 Type-C ports (Main and Hub), and the power switch.

3.3 Einschalten

Flip the power switch on the rear of the enclosure to the "ON" position. The power indicator light should illuminate, and the drives will begin to spin up.

4. Bedienungsanleitung

4.1 Zugriff auf Laufwerke

Once powered on and connected, your operating system should detect the installed drives. You may need to initialize and format new drives through your operating system's disk management utility before they can be used.

4.2 Hochgeschwindigkeits-Datenübertragung

The enclosure supports USB 3.1 Gen2, offering data transfer speeds up to 10Gbps. For maximum performance, ensure your computer's USB port and cable are also USB 3.1 Gen2 compatible. The device is backward compatible with USB 2.0 and USB 1.0, though speeds will be limited by the slower standard.

Image: The ORICO 5-Bay HDD Enclosure connected to a laptop, with a monitor in the background, illustrating its use for high-speed data transfer via USB 3.1 Gen2 Type-C.

4.3 Daisy-Chain-Funktionalität

This enclosure supports a daisy chain function, allowing you to connect up to three identical ORICO 3559C3-SV units. This expands your total storage capacity significantly, potentially up to 240TB (16TB x 15 drives).

Image: A visual representation of the daisy chain function, showing multiple ORICO enclosures connected sequentially to a single computer, enabling expanded storage capacity.

4.4 Betriebssystemkompatibilität

The ORICO 3559C3-SV is compatible with Windows, Mac, and Linux operating systems, providing broad usability across different computing environments.

Image: A graphic depicting the ORICO enclosure's compatibility with various operating systems, including Windows, Mac, and Linux.

4.5 RAID Functionality (Mac OS)

For Mac OS users, RAID functionality (RAID0, RAID1, JBOD) can be configured through the operating system's software RAID features. This enclosure does not feature hardware RAID capabilities.

5. Wartung

5.1 Reinigung

To maintain optimal performance, periodically clean the exterior of the enclosure with a soft, dry cloth. Ensure the device is powered off and disconnected from the computer and power source before cleaning. Avoid using liquid cleaners or solvents.

5.2-Kühlsystem

The enclosure features an aluminum body and an 80mm x 80mm cooling fan to dissipate heat effectively. Ensure the fan vents are not obstructed to maintain proper airflow and prevent overheating, which can impact drive longevity and performance.

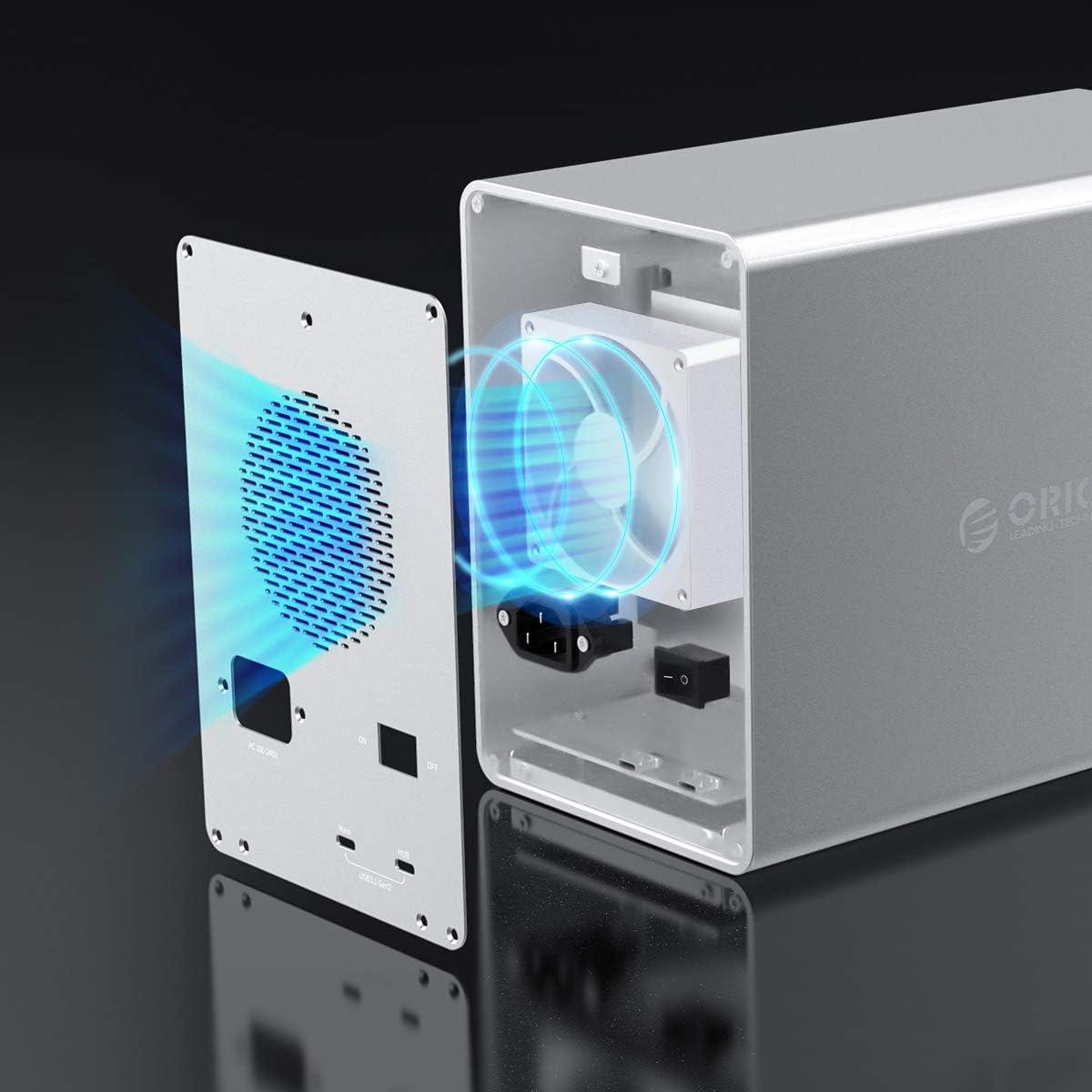

Abbildung: Ein interner view of the ORICO enclosure, highlighting the cooling fan and the airflow path designed for efficient heat dissipation.

5.3 Safe Drive Removal

Always safely eject or unmount drives from your operating system before powering off the enclosure or physically removing any drives to prevent data corruption.

6. Fehlerbehebung

6.1 Drives Not Recognized

• Ensure the enclosure is powered on and the USB cable is securely connected to both the enclosure and your computer.
• Verify that the drives are properly seated in their trays and secured.
• Überprüfen Sie mit der Datenträgerverwaltung (Windows) bzw. dem Festplattendienstprogramm (Mac), ob die Laufwerke erkannt, aber nicht initialisiert oder nicht formatiert sind.
• Try connecting the enclosure to a different USB port or using a different USB cable.
• If only some drives are not recognized, try swapping them to different bays to isolate if the issue is with the drive or a specific bay.

6.2 Langsame Übertragungsgeschwindigkeiten

• Ensure you are using a USB 3.1 Gen2 compatible port on your computer and a high-quality USB 3.1 Gen2 cable.
• Vergewissern Sie sich, dass Ihr Betriebssystem und Ihre Treiber auf dem neuesten Stand sind.
• Performance can be affected by the speed of the installed drives themselves.

6.3 Übermäßige Lüftergeräusche

• Ensure the enclosure is placed on a stable surface and that the fan vents are clear of obstructions.
• High drive activity or high ambient temperatures can cause the fan to run at higher speeds.

7. Spezifikationen

8. Garantie und Support

ORICO provides a 12-month warranty for this product from the date of purchase. Please retain your proof of purchase for warranty claims.

For technical support or further inquiries, please refer to the official ORICO webWebsite oder wenden Sie sich an die Kundendienstabteilung.
