Einführung
Thank you for choosing the AERLANG YK-ZQ Massage Gun. This device is designed to provide deep tissue percussion massage, helping to relieve muscle soreness, stiffness, and improve overall muscle recovery. Please read this manual thoroughly before use to ensure safe and effective operation. Keep this manual for future reference.
Wichtige Sicherheitshinweise
WARNING: To reduce the risk of electric shock, fire, and injury, this product must be used in accordance with the following instructions:
- This device is for adult use only. Do not use on children.
- Nur auf trockenen, sauberen Körperoberflächen über der Kleidung anwenden.
- Do not use above the neck or on bony areas.
- Use the device only on soft tissue areas of the body as desired without producing pain or discomfort.
- Do not use the device for more than 10 minutes continuously. The device features an intelligent anti-failure chip that automatically shuts down after 10 minutes of continuous use to prevent overheating and ensure safety. If you wish to continue, restart the device.
- Do not immerse the device in water. It is not waterproof.
- Keep fingers, hair, or any other body part away from the shaft and back of the applicator to avoid pinching.
- Never operate the device if it has been dropped, damaged, or immersed in water.
- Nehmen Sie keine Änderungen oder Reparaturversuche am Gerät selbst vor. Wenden Sie sich an den Kundendienst.
- Consult your doctor before using this device if you are pregnant, have a pacemaker, suffer from diabetes, phlebitis, thrombosis, or are at increased risk of developing blood clots.
Packungsinhalt
Bitte überprüfen Sie beim Auspacken, ob alle Artikel vorhanden und in gutem Zustand sind:
- AERLANG Massage Gun (YK-ZQ)
- 6 austauschbare Massageköpfe
- Netzteil/Ladekabel
- Tragbare Tragetasche
- Bedienungsanleitung (dieses Dokument)
Image: The AERLANG Massage Gun, six massage heads, charger, and carrying case.
Produkteigenschaften
- 20 einstellbare Geschwindigkeitsstufen: Offers a wide range of intensity from gentle muscle relaxation to deep tissue massage.
- 6 austauschbare Massageköpfe: Designed for various muscle groups and body parts.
- High-Performance Brushless DC Motor: Delivers powerful percussion (1200-3200 RPM) with low noise.
- Leiser Betrieb: Noise reduction technology keeps sound levels between 35-55 dB.
- Langlebige Batterie: Rechargeable 2500 mAh lithium battery provides up to 6 hours of use on a single charge.
- LCD-Touchscreen: Clearly displays speed level and battery power.
- Intelligent AI Chip: Features anti-failure protection and automatic shutdown after 10 minutes of continuous use.
- Tragbares Design: Lightweight (1 kg) and comes with a convenient carrying case.
Image: Feature comparison highlighting the AERLANG Massage Gun's 20 speeds, LCD screen, large battery, brushless motor, 6 heads, and noise reduction.
Ladeanleitung
Before first use, fully charge the massage gun for approximately 3 hours.
- Ensure the massage gun is turned OFF.
- Connect the charging cable to the charging port located at the bottom of the handle.
- Stecken Sie das Netzteil in eine Wandsteckdose.
- The LCD screen will display the battery percentage. It is fully charged when the display shows "99" and stops flashing.
- A full charge provides up to 6 hours of operation, depending on the speed and pressure applied.
Image: Visual representation of the 2500mAh lithium battery, indicating 6 hours of runtime and 3 hours for a full charge.
Bedienungsanleitung
1. Ein-/Ausschalten
- To turn ON: Locate the ON/OFF switch at the bottom of the handle and slide it to the "ON" position. The LCD screen will light up.
- To turn OFF: Slide the ON/OFF switch to the "OFF" position.
2. Einstellen der Geschwindigkeitsstufen
- After powering on, use the "+" and "-" buttons on the LCD touch screen to adjust the percussion speed.
- There are 20 speed levels available. The current speed level will be displayed on the screen.
3. Changing Massage Heads
- Ensure the device is turned OFF before changing massage heads.
- Gently pull the current massage head straight out from the front opening.
- Insert the desired massage head by pushing it firmly into the opening until it is securely in place.
4. Usage Recommendations by Speed Level
| Geschwindigkeitsstufe | Zweck |
|---|---|
| 1-5 | Muskelentspannung |
| 6-10 | Sanfte Massage |
| 11-15 | Faszienentspannung |
| 16-20 | Tiefengewebsmassage |

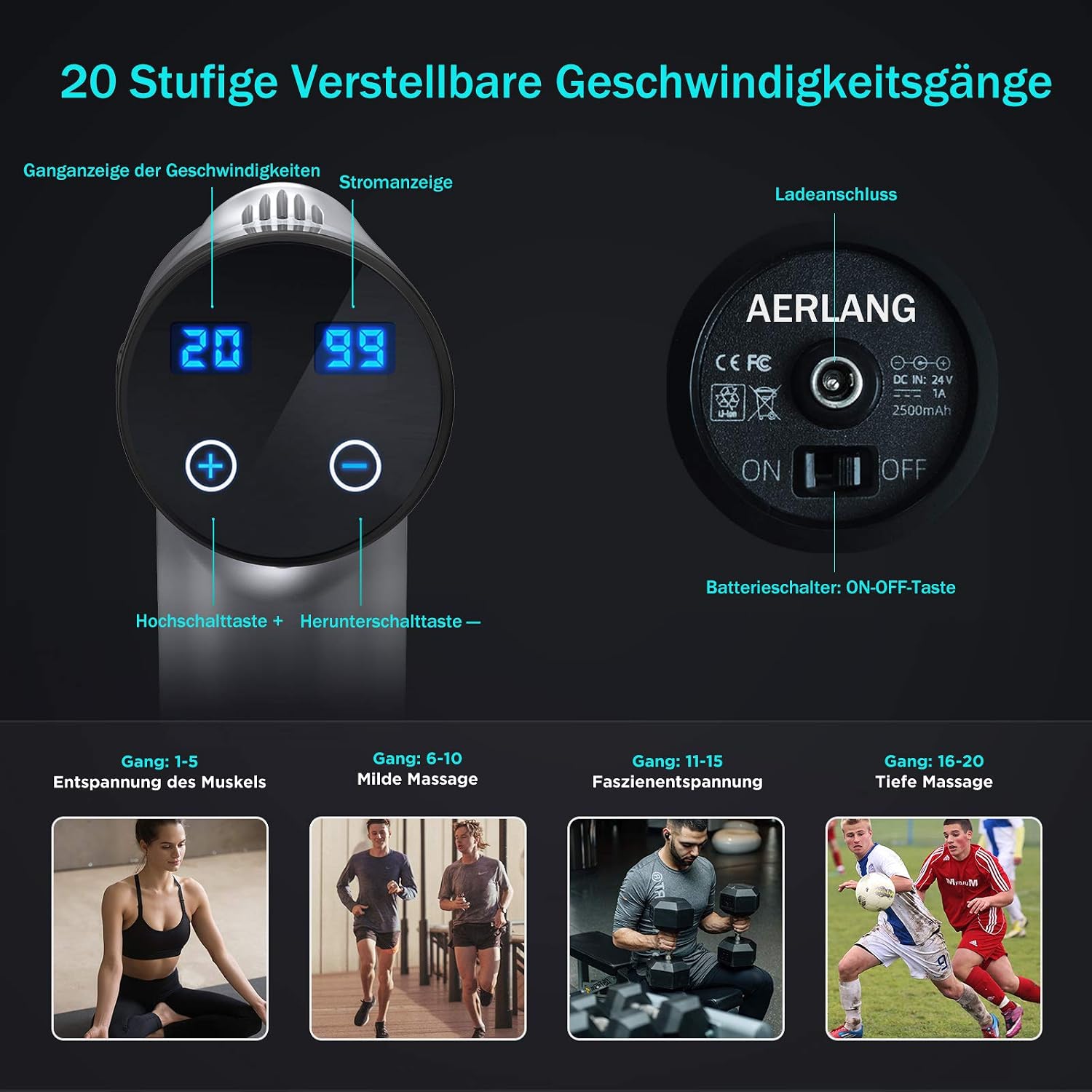

Image: The massage gun's control panel showing speed and power displays, along with a guide for recommended speed levels for different massage needs.
Massagekopf-Anleitung
The AERLANG Massage Gun comes with 6 specialized massage heads to target different muscle groups and provide various massage experiences:
- Kugelkopf: Geeignet für große Muskelgruppen wie Arme, Rücken, Hüften, Oberschenkel und Waden.
- Large Ball Head: Similar to the ball head, for broader application on large muscle groups.
- U-förmiger Kopf: Designed for the neck, spine, and Achilles tendon. Avoid direct contact with bones.
- D-Shape Head: Ideal for deep tissue massage, muscle relaxation, and shaping.
- Zylindrischer Kopf: Best for joints, deep tissue, palms, and soles.
- Flachkopf: Suitable for all body parts, offering a general and comfortable massage.
Bild: Eine Nahaufnahme view of the six distinct massage heads: Ball, Large Ball, U-shape, D-shape, Cylindrical, and Flat.
Image: A diagram illustrating recommended application areas for each massage head on different muscle groups of the body.
Wartung
- Reinigung: Wischen Sie das Gerät mit einem leichten damp Tuch. Verwenden Sie keine scharfen Chemikalien und tauchen Sie das Gerät nicht in Wasser.
- Lagerung: Store the massage gun and its accessories in the provided carrying case in a cool, dry place, away from direct sunlight.
- Batteriepflege: Um die Lebensdauer des Akkus zu verlängern, vermeiden Sie häufiges vollständiges Entladen. Laden Sie ihn regelmäßig auf, auch wenn er längere Zeit nicht benutzt wird.
Fehlerbehebung
| Problem | Mögliche Ursache | Lösung |
|---|---|---|
| Gerät lässt sich nicht einschalten. | Der Akku ist schwach oder leer. Netzschalter ist AUS. | Laden Sie das Gerät vollständig auf. Ensure the ON/OFF switch at the bottom is in the "ON" position. |
| Gerät stoppt während des Gebrauchs. | Automatic 10-minute shutdown activated. Die Batterie ist schwach. | Turn the device OFF and then ON again to resume use. Laden Sie das Gerät auf. |
| Weak percussion force. | Die Batterie ist schwach. Speed level is too low. | Laden Sie das Gerät auf. Increase the speed level using the "+" button. |
| Der Massagekopf ist locker. | Head not inserted correctly. | Ensure the device is OFF. Remove the head and re-insert it firmly until secure. |
Technische Daten
| Modellnummer | YK-ZQ |
| Marke | AERLANG |
| Abmessungen (L x B x H) | 23 x 7 x 24 cm (9.06 x 2.76 x 9.45 Zoll) |
| Artikelgewicht | 1 Kilogramm (2.2 Pfund) |
| Stromquelle | Batteriebetrieben |
| Akku-Typ | Rechargeable Lithium Battery (2500 mAh) |
| Ladezeit | Ca. 3 Stunden |
| Betriebsdauer | Up to 6 hours (depending on speed/pressure) |
| Geschwindigkeitsstufen | 20 einstellbare Geschwindigkeiten |
| Massageköpfe | 6 austauschbare Köpfe |
| Geräuschpegel | 35-55 dB |
| Material | Silikon, Gummi |
| Massagetechnik | Schlagzeug |
| Wasserdicht | NEIN |
Garantie und Support
The AERLANG YK-ZQ Massage Gun comes with a 1 Jahr Garantie Diese Garantie gilt ab Kaufdatum und deckt Herstellungsfehler sowie Funktionsstörungen bei normalem Gebrauch ab.
If you encounter any issues with your product or have questions, please contact AERLANG customer service. Please have your purchase details and model number (YK-ZQ) ready when contacting support.
For customer support, please refer to the contact information provided with your purchase or visit the official AERLANG webWebsite.
