AISITIN 2.5W Solar Bird Bath Fountain Pump Instruction Manual

1. Produktüberschreitungview

The AISITIN 2.5W Solar Bird Bath Fountain Pump is designed to create a water feature in bird baths, small ponds, pools, gardens, fish tanks, and aquariums. It operates using solar power, providing an eco-friendly solution for water circulation and aesthetic enhancement.

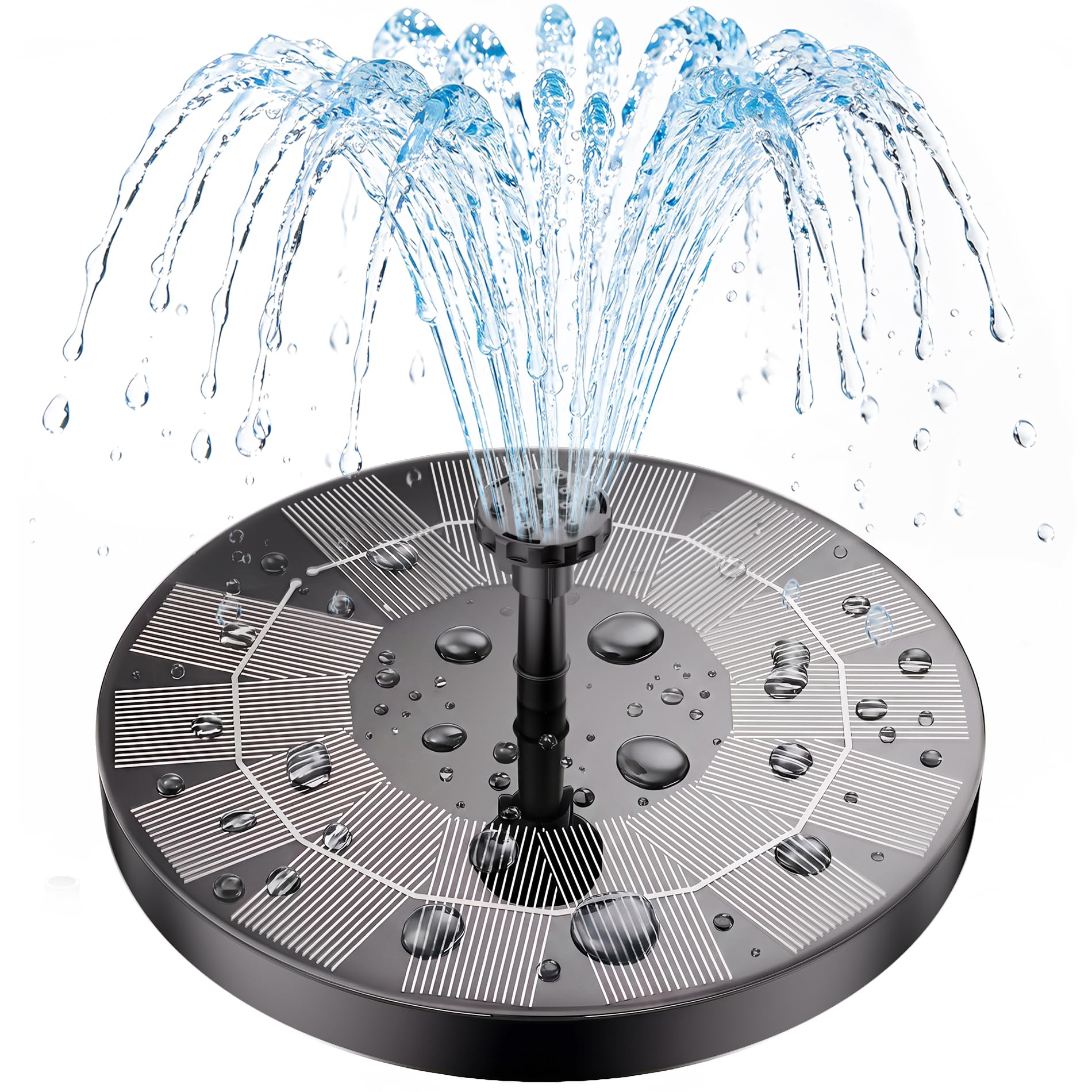

AISITIN 2.5W Solar Bird Bath Fountain Pump in a bird bath with birds and flowers — The AISITIN 2.5W Solar Bird Bath Fountain Pump in operation, creating a water spray in a bird bath.

This pump features an improved monocrystalline silicon solar panel for efficient and stable performance, even in lower sunlight conditions. It includes multiple nozzles to achieve various spray patterns.

2. Einrichtungsanweisungen

Follow these steps to set up your solar fountain pump:

Komponenten auspacken: Carefully remove all items from the packaging. Ensure you have the solar panel with integrated pump, and the various nozzles.
Düse anbringen: Select your desired nozzle. Connect the nozzle to the pump outlet. Ensure it is securely fitted.
Ins Wasser legen: Submerge the solar fountain pump completely in water. Ensure the water level is sufficient to cover the pump.
Ausrichtung zum Sonnenlicht: Place the fountain in an area where the solar panel receives direct sunlight. The pump will start operating automatically once sufficient sunlight is detected.

Diagram showing how to install the nozzles on the solar fountain pump — Visual guide for attaching different nozzles to the pump.

The fountain includes 4 detachable supports to help stabilize it in the center of your bird bath or pond, preventing it from floating to the edges.

Solar fountain with four detachable supports in a bird bath — The solar fountain pump with its detachable supports, designed to keep it centered.

3. Bedienungsanleitung

The solar fountain pump operates automatically when exposed to direct sunlight. There are no manual controls for turning it on or off.

Sunlight Dependence: The pump's performance is directly dependent on the intensity of sunlight. Stronger, direct sunlight will result in a higher and more consistent water spray.
Düsenauswahl: The product comes with 6 different nozzles. You can change the spray pattern by simply detaching the current nozzle and attaching a different one. Experiment with various nozzles to find the desired water effect.

Six different spray patterns created by various nozzles — Examples of the six distinct spray patterns achievable with the included nozzles.

4. Wartung

Regular maintenance ensures optimal performance and extends the lifespan of your solar fountain pump.

Keep Water Level Adequate: Ensure the water level in your bird bath or pond is always sufficient to fully submerge the pump. Low water levels can cause the pump to run dry and reduce its lifespan.
Saubere Solarmodule: Wischen Sie die Oberfläche des Solarmoduls regelmäßig mit einem weichen, fusselfreien Tuch ab.amp cloth to remove dust, dirt, and debris. A clean solar panel ensures maximum sunlight absorption and pump efficiency.
Reinwasserpumpe: The pump is designed with multi-protection features including a front cover and rotors to prevent blockages. However, debris can still accumulate. Regularly remove the pump from the water and clean the intake filter and impeller area to prevent blockages from leaves, dirt, or other particles.

Diagram showing the multi-protection pump components and how debris can affect it — Illustration of the pump's internal components and the importance of keeping it clear of debris.

5. Fehlerbehebung

If your solar fountain pump stops working or performs poorly, consider the following common issues and solutions:

Problem	Mögliche Ursache	Lösung
Brunnen funktioniert nicht mehr	Insufficient sunlight (shade or weak sunlight)	Relocate the fountain to a spot with direct, strong sunlight.
Brunnen funktioniert nicht mehr	Der Wasserstand ist zu niedrig	Add more water to ensure the pump is fully submerged.
Fountain stops working or weak spray	Solar panels are blocked (e.g., by leaves, dirt)	Clean the surface of the solar panels thoroughly.
Fountain stops working or weak spray	Solar water pump blockage (e.g., by debris)	Clean the water pump's intake filter and impeller.

Diagram illustrating common reasons for fountain malfunction and their solutions — Visual guide to common issues and how to resolve them.

6. Spezifikationen

Modellnummer: AISITIN-2.5W-Neutral
Energiequelle: Solarbetrieben
Leistung des Solarmoduls: 2.5W (Monocrystalline Silicon)
Material: Plastik
Farbe: Schwarz
Produktabmessungen: 6.7 Zoll L x 6.7 Zoll B x 1.7 Zoll H
Artikelgewicht: 0.24 Kilogramm
Enthaltene Komponenten: Solar Fountain Pump, 6 Nozzles
Besonderheit: Eco-friendly, Solar Powered

Diagram showing the solar panel and pump dimensions and components — Detaillierte view of the solar panel and pump, highlighting key features.

Comparison of solar panel coverage and spray height — Illustration comparing the solar panel coverage and potential spray height.

7. Garantie und Support

Specific warranty details are not provided in the product information. For any product inquiries, technical support, or warranty claims, please refer to the contact information provided by the retailer or the manufacturer, AISITIN.

You may also visit the official AISITIN store on Amazon for further assistance: AISITIN Store

AISITIN AISITIN-2.5W-Neutral
