COSYLAND 10-inch Rainfall Shower Head with Handheld Combo

Einführung

This manual provides detailed instructions for the installation, operation, and maintenance of your COSYLAND 10-inch Rainfall Shower Head with Handheld Combo. Please read this manual thoroughly before installation and use to ensure proper function and longevity of the product. Keep this manual for future reference.

Sicherheitshinweise

• Ensure all connections are tightened properly to prevent leaks. Use plumber's tape as instructed.
• Do not overtighten connections, especially plastic components, to avoid damage.
• Verify that the water supply is turned off before beginning installation.
• Use caution when handling tools during installation.
• Ensure the shower arm extension is securely fastened to support the weight of the rainfall shower head.

Packliste

Bitte überprüfen Sie den Packungsinhalt anhand der folgenden Liste:

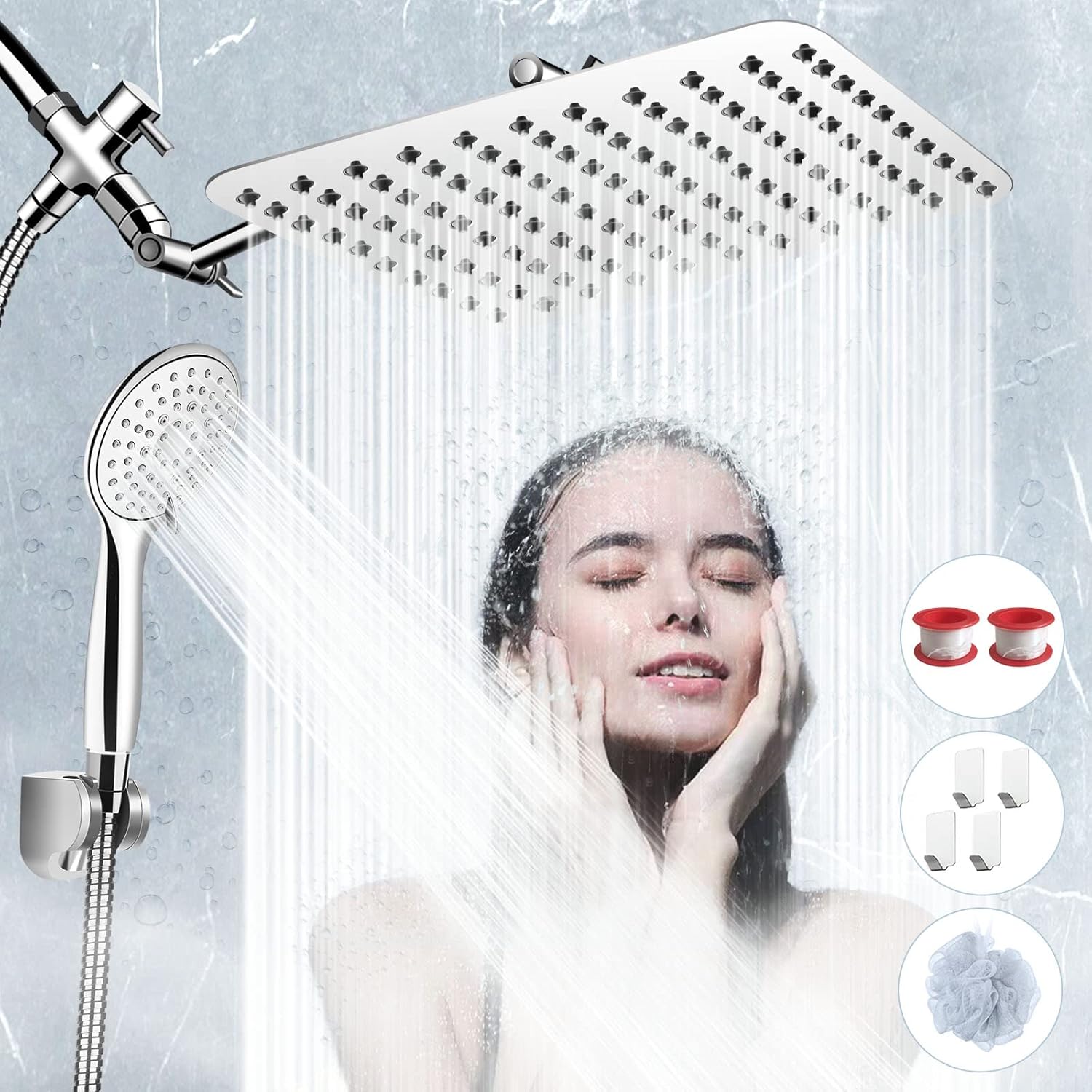

Refer to the image below for a visual representation of the packing list:

Installationsanleitung

This shower head combo is designed for easy installation without the need for professional tools. It works with all standard 1/2'' pipe threads.

1. Bereiten Sie den Duscharm vor: Ensure your existing shower arm is clean and free of debris. Apply plumber's tape (provided) clockwise around the threads of your existing shower arm.
2. Install the 3-Way Water Diverter: Screw the 3-way water diverter onto your existing shower arm. Hand-tighten first, then use a wrench if necessary, but do not overtighten. Ensure a washer is in place for a leak-proof seal.
3. Attach the Extension Arm: Screw the 11-inch extension arm onto the top outlet of the 3-way diverter. Ensure a washer is in place and hand-tighten. The extension arm features locking screws for stability; tighten the larger inner hexagon nut during installation.
4. Connect the Rainfall Shower Head: Attach the 10-inch rainfall shower head to the end of the extension arm. Ensure a filter and washer are in place for a reliable leak-proof connection. Hand-tighten.
5. Connect the Handheld Shower Hose: Attach one end of the 60-inch stainless steel hose to the side outlet of the 3-way diverter. Ensure a washer is in place and hand-tighten.
6. Attach the Handheld Shower Head: Connect the handheld shower head to the other end of the 60-inch hose. Ensure a washer is in place and hand-tighten.
7. Mount the Handheld Shower Head: Clean the wall surface where you intend to mount the adhesive bracket. Remove the protective film from the adhesive bracket and firmly press it onto the clean, dry wall. Allow it to set for 24 hours before placing the handheld shower head in it.
8. Auf Dichtheit prüfen: Slowly turn on the main water supply and check all connections for leaks. If any leaks are detected, tighten the connection slightly until the leak stops.

Installationsvideo-Referenz

Eine visuelle Anleitung finden Sie im offiziellen Installationsvideo:

Bedienungsanleitung

Your COSYLAND shower head combo offers versatile showering options:

• Regenduschkopf: The 10-inch rainfall shower head provides a wide, even spray for a full-body shower experience. It features 360-degree rotation and angle adjustment for optimal positioning.
• Handheld Shower Head: The handheld shower head offers 5 distinct spray modes, allowing you to customize your shower experience. It is ideal for targeted rinsing, bathing children, washing pets, or cleaning the shower area.
• 3-Way Water Diverter: Use the lever on the 3-way water diverter to switch between the rainfall shower head, the handheld shower head, or both simultaneously. Rotate the lever 180 degrees to select your desired spray mode.

Wartung

Regular maintenance ensures optimal performance and extends the life of your shower head combo.

• Düsenreinigung: The shower heads feature self-cleaning silicone jets that prevent lime scale build-up. To clean, simply rub your finger across the nozzles to dislodge any mineral deposits.
• Allgemeine Reinigung: Clean the chrome finish with a soft cloth and mild soap or a non-abrasive bathroom cleaner. Avoid harsh chemicals or abrasive scrubbers, as these can damage the finish.
• Filterwartung: Periodically check the filter and washer at the connections for any debris or wear. Clean or replace as needed to maintain water flow and prevent leaks.

Fehlerbehebung

Technische Daten

• Marke: GEMÜTLICHES LAND
• Modellnummer: CS0001
• Rainfall Shower Head Size: 10 Zoll
• Handheld Shower Head Settings: 5
• Extension Arm Length: 11 Zoll
• Schlauchlänge: 60 Zoll
• Material: Stainless Steel (hose), TPR and ABS (shower heads), Brass core (diverter)
• Zieltyp: Chrome, Polished
• Installationstyp: Wandmontage
• Pipe Thread Standard: 1/2 Zoll

Garantie und Support

For any questions, concerns, or warranty claims regarding your COSYLAND shower head combo, please contact our customer support team. Refer to your purchase documentation for specific warranty details and contact information.

Wir legen Wert auf qualitativ hochwertige Produkte und exzellenten Kundenservice.
