Kyglaring LED Light Kit for Lego 42110 Land Rover Defender - Standard Version Instruction Manual

Model: ky42110 | Brand: Kyglaring

Einführung

This instruction manual provides detailed guidance for installing and operating your Kyglaring LED Light Kit, specifically designed for the Lego 42110 Land Rover Defender building blocks model. This kit enhances your model by adding illumination, transforming it into a vibrant display piece. Please note that the Lego model itself is not included with this light kit.

Sicherheitshinweise

  • Warnung vor Kleinteilen: Dieses Set enthält Kleinteile, die verschluckt werden können. Außerhalb der Reichweite von Kleinkindern aufbewahren.
  • Elektrische Komponenten: Handle all electrical components with care. Do not pull wires too hard during installation to prevent damage.
  • Energiequelle: The light kit is powered by USB. Ensure the power source voltage is less than 5V. Batteries are not included.
  • Installationsumgebung: Perform installation in a well-lit, clean, and stable environment.

Packungsinhalt

Your Kyglaring LED Light Kit package includes:

  • LED light fixtures (various types for different parts of the model)
  • Verbindungskabel
  • USB-Netzkabel
  • Installation accessories (e.g., adhesive squares, small connectors)
  • Numbered light bags for organized installation
Kyglaring LED Light Kit packaging

Image: The Kyglaring LED Light Kit components sealed in their original packaging.

Individual numbered light component bags

Image: Individual light components organized into numbered bags for step-by-step installation.

Setup und Installation

The installation process involves integrating the LED lights into your Lego 42110 Land Rover Defender model. Detailed video and PDF installation instructions are available online. Follow the step-by-step guidance provided with the numbered light bags.

  1. Vorbereitung: Ensure your Lego model is fully assembled before beginning the light kit installation.
  2. Zugangsanweisungen: Refer to the online video or PDF instructions for your specific model. These instructions will guide you through disassembling specific sections of your Lego model to install the light fixtures.
  3. Komponentenidentifikation: Use the numbered light bags to identify the correct components for each step.
  4. Schonende Handhabung: The parts are small. Install light fixtures by carefully disassembling only the necessary bricks. Avoid pulling wires too hard to prevent damage.
  5. Testen: It is recommended to test each light part before fully assembling it into the model to ensure proper functionality.
  6. Kabelmanagement: Route wires carefully to ensure they are nearly invisible and do not interfere with the model's structure or functionality.

Video: Official installation guide for the Kyglaring LED light kit, demonstrating the lighting effects on the Land Rover Defender model.

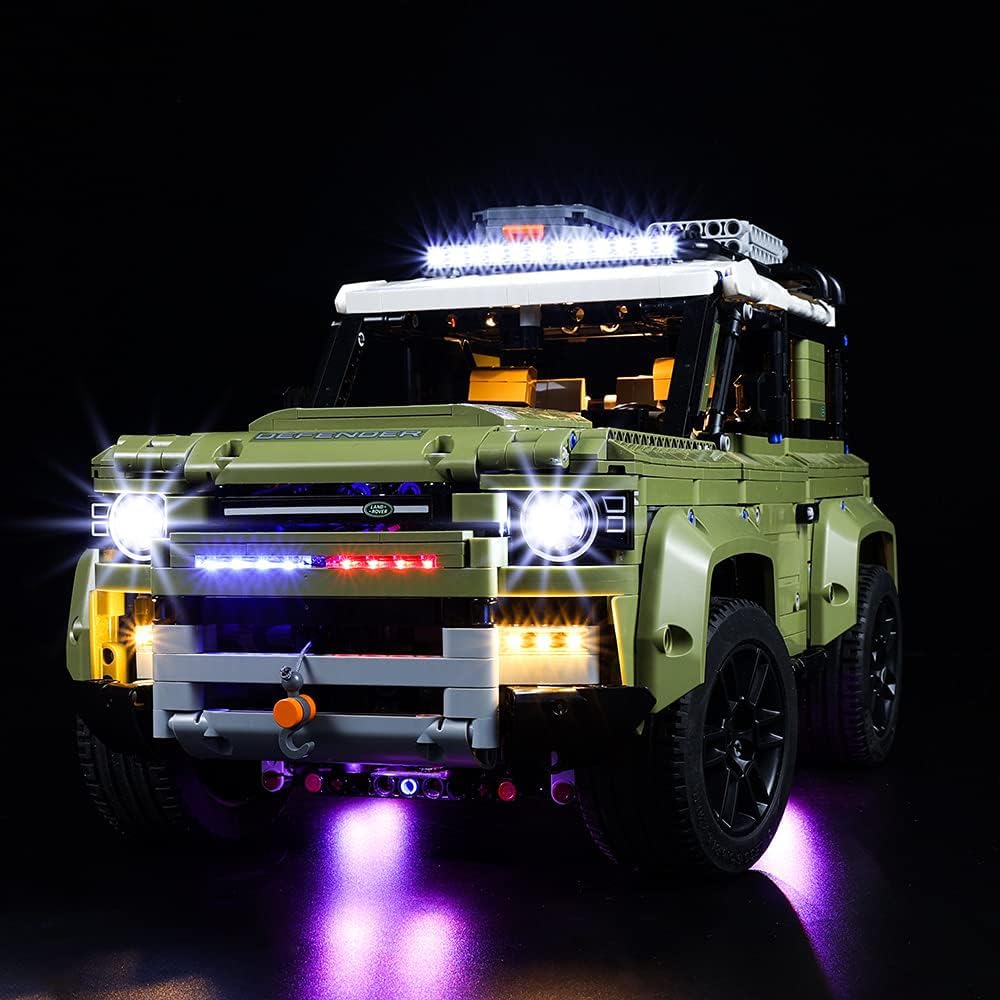

Front view of the lit-up Lego Land Rover Defender model

Bild: Vorderseite view of the Lego Land Rover Defender model with the Kyglaring LED light kit installed, showcasing illuminated headlights and underglow.

Hinteren view of the lit-up Lego Land Rover Defender model

Bild: Rückseite view of the Lego Land Rover Defender model with the Kyglaring LED light kit installed, highlighting illuminated taillights and spare tire.

Bedienungsanleitung

Once the light kit is fully installed, connect the USB power cable to a compatible USB power source (e.g., a USB wall adapter, power bank, or computer USB port). Ensure the voltage is less than 5V. The lights will illuminate upon connection. For optimal brightness, use a stable USB power source.

Wartung

  • Reinigung: Verwenden Sie ein weiches, trockenes Tuch, um Staub vorsichtig von den LED-Leuchten und Kabeln abzuwischen. Vermeiden Sie die Verwendung von Flüssigkeiten oder Scheuermitteln.
  • Lagerung: When not in use, store the model in a clean, dry place away from direct sunlight and extreme temperatures.
  • Drahtintegrität: Periodically inspect wires for any signs of wear or damage. If damage is found, discontinue use and contact support.

Fehlerbehebung

ProblemMögliche UrsacheLösung
Das Licht geht nicht an.
  • No power to USB source.
  • Wackelkontakt.
  • Damaged wire or LED.
  • Prüfen Sie, ob die USB-Stromquelle aktiv ist.
  • Ensure all connectors are securely plugged in.
  • Überprüfen Sie die Kabel und LEDs auf sichtbare Beschädigungen.
Einige Lichter leuchten schwach oder flackern.
  • Ungenügende Energie.
  • Wackelkontakt.
  • Try a different USB power source with adequate output.
  • Check connections for the affected lights.
Wires are visible or interfere with bricks.Improper wire routing.Carefully re-route wires according to the online instructions, ensuring they are hidden and do not obstruct brick connections.

Technische Daten

  • Modellnummer: ky42110
  • Lichtquellentyp: LED
  • Energiequelle: USB (Voltage weniger als 5V)
  • Batterien: Nicht enthalten
  • Material: Plastik
  • Kompatibles Modell: Lego 42110 Land Rover Defender

Garantie und Support

For any questions, technical assistance, or warranty inquiries regarding your Kyglaring LED Light Kit, please contact Kyglaring customer support through the retailer where the product was purchased or visit the official Kyglaring webKontaktinformationen finden Sie auf der Website. Bitte bewahren Sie Ihren Kaufbeleg für Garantieansprüche auf.

© 2023 Kyglaring. All rights reserved. Lego is a trademark of the Lego Group, which does not sponsor, authorize, or endorse this product.
