BrianFay Drahtloses Instrumentensystem – Benutzerhandbuch

Produkt überview

The BrianFay Wireless Instrument System (Model BF1+) provides a high-quality, low-latency wireless connection for electric audio instruments such as guitars, basses, and keyboards. Designed for convenience and performance, this system features a compact design, a long-lasting rechargeable charging case, and stable UHF band transmission to minimize interference.

Figure 1: BrianFay Wireless Instrument System components.

Lieferumfang

• 1 x Sendeeinheit
• 1 x Empfängereinheit
• 1 x wiederaufladbares Ladecase
• 1 x USB-Ladekabel
• 1 x Produkthandbuch (dieses Dokument)

Installationshandbuch

1. Grundgebühr:

   Before first use, ensure both the transmitter and receiver units, as well as the charging case, are fully charged. Place the units into the charging case and connect the USB charging cable to a compatible power source. The indicator lights on the case will show charging status.



   Figure 2: Units placed in the charging case for automatic charging.

2. Anschließen des Empfängers:

   Plug the receiver unit (marked with an amplifier icon) into the input jack of your amplifier or audio interface. Ensure it is securely seated.

   Video 1: Demonstrates plugging the receiver into an amplifier. This video highlights the ease of connection and the system's low latency and stable signal.

3. Anschließen des Senders:

   Plug the transmitter unit (marked with a guitar icon) into the output jack of your electric instrument (guitar, bass, keyboard, etc.).



   Figure 3: Transmitter unit connected to an electric guitar.

4. Einschalten und Pairing:

   Long press the power button on both the transmitter and receiver units to turn them on. They will automatically pair. The indicator lights will show successful connection.

Bedienungsanleitung

Kanalauswahl:

The system operates on 5 independent UHF channels. To switch channels, double-click the power button on either the transmitter or receiver. Both units will automatically synchronize to the new channel. This feature helps avoid interference from other wireless devices.

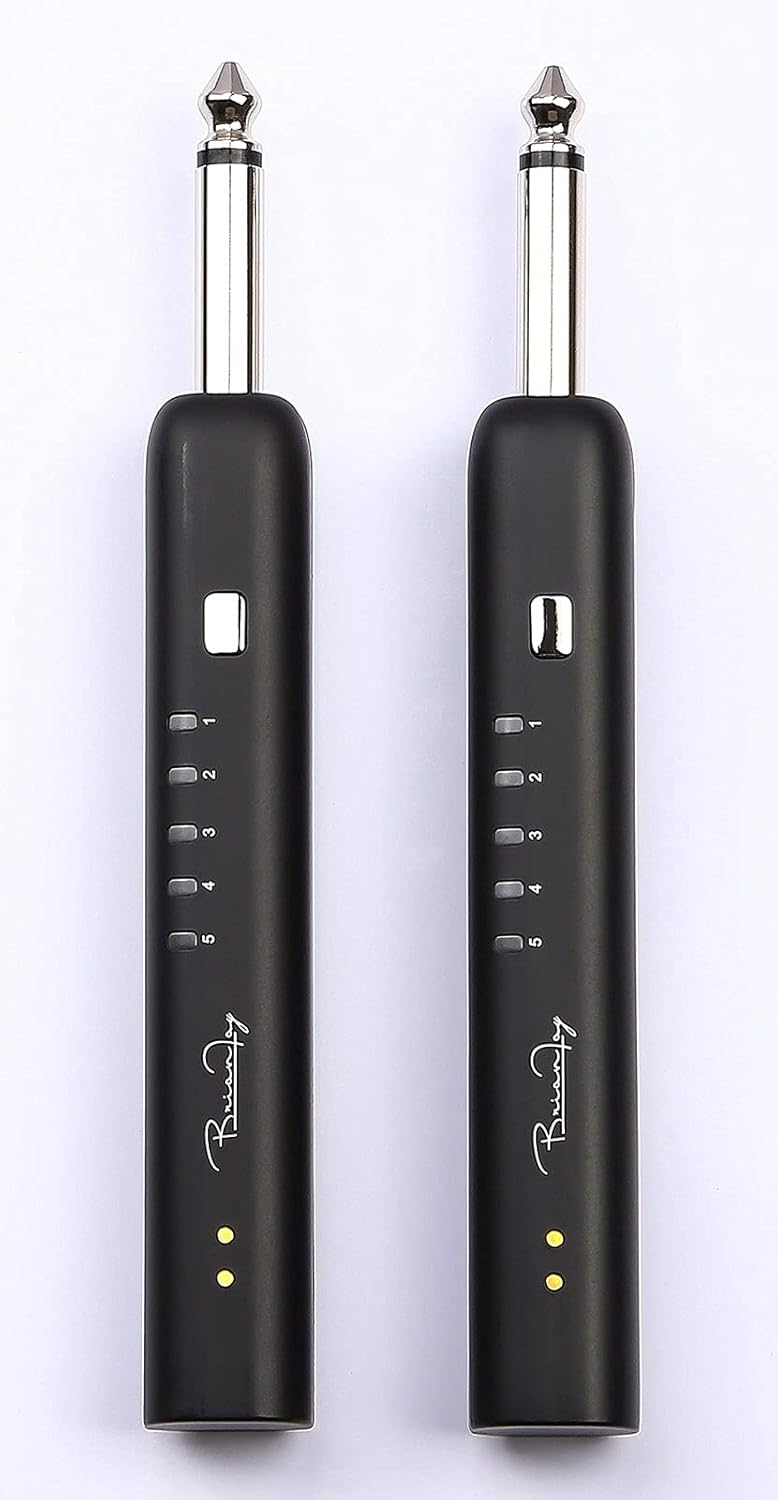

Figure 4: Channel indicator lights on the transmitter and receiver units.

Akkulaufzeit und Aufladen:

The system offers a comprehensive battery life of up to 36 hours with the charging case. Each unit provides approximately 4.8 hours of continuous use on a single charge. When placed back into the charging case, the units automatically shut down and begin charging.

Optimale Platzierung:

For optimal performance and to maximize the 100-foot (30 meters) transmission distance, ensure a clear line of sight between the transmitter and receiver. Avoid placing the units directly behind large metal objects or near other strong wireless signals (e.g., Wi-Fi routers, Bluetooth devices) to prevent interference.

Wartung

• Reinigung: Use a soft, dry cloth to clean the units and charging case. Do not use liquid cleaners or abrasive materials.
• Lagerung: Bewahren Sie das System bei Nichtgebrauch im Ladeetui an einem kühlen, trockenen Ort auf.
• Batteriepflege: Um die Akkulaufzeit zu verlängern, sollten Sie die Geräte nicht häufig vollständig entladen. Laden Sie sie regelmäßig auf, auch wenn sie nicht ständig in Gebrauch sind.
• Vermeiden Sie extreme Bedingungen: Do not expose the system to extreme temperatures, humidity, or direct sunlight. The units are not water resistant.

Fehlerbehebung

Technische Daten

Garantie und Support

For warranty information and technical support, please refer to the contact details provided on the BrianFay official webBesuchen Sie unsere Website oder kontaktieren Sie Ihren Händler. Bewahren Sie Ihren Kaufbeleg für Garantieansprüche auf.

For further assistance, you may visit the BrianFay Store on Amazon: BrianFay Amazon Store.
