Bedienungsanleitung für die wiederaufladbaren blauen Blinklichter von Agrieyes

1. Produktüberschreitungview

The Agrieyes Blue Rechargeable Flashing Lights are designed as wireless warning hazard beacon lights for various vehicles, including trucks, engineering vehicles, and agricultural machinery. These lights feature a strong magnetic base for easy installation and are built with durability and high visibility in mind, ensuring enhanced safety in diverse conditions.

Image 1.1: Agrieyes Blue Rechargeable Flashing Lights, showing the two lights and their carrying case.

2. Produktmerkmale

• Excellent Waterproof Rating: Manufactured with a glue-filling process to protect the PCB board and LEDs, coupled with advanced ultrasonic fusion technology for thorough sealing and superior waterproof effect.
• Hochwertige Konstruktion: Features high brightness output with excellent housing for better heat dissipation, extending the life of the lights to more than 50,000 hours.
• Low Power, Super Brightness: Professional wiring design with efficient photoelectric energy conversion, reducing power consumption by 15% while increasing brightness by 30%.
• Longer-Lasting Power: Once fully charged for 8 hours, the lights provide extended use, suitable for prolonged operation.
• Einfach zu installieren: Equipped with 5 strong magnets, these wireless strobe lights can be installed anywhere on a vehicle, such as on the roof, body, or tail, and are designed to remain secure at speeds up to 60 mph.

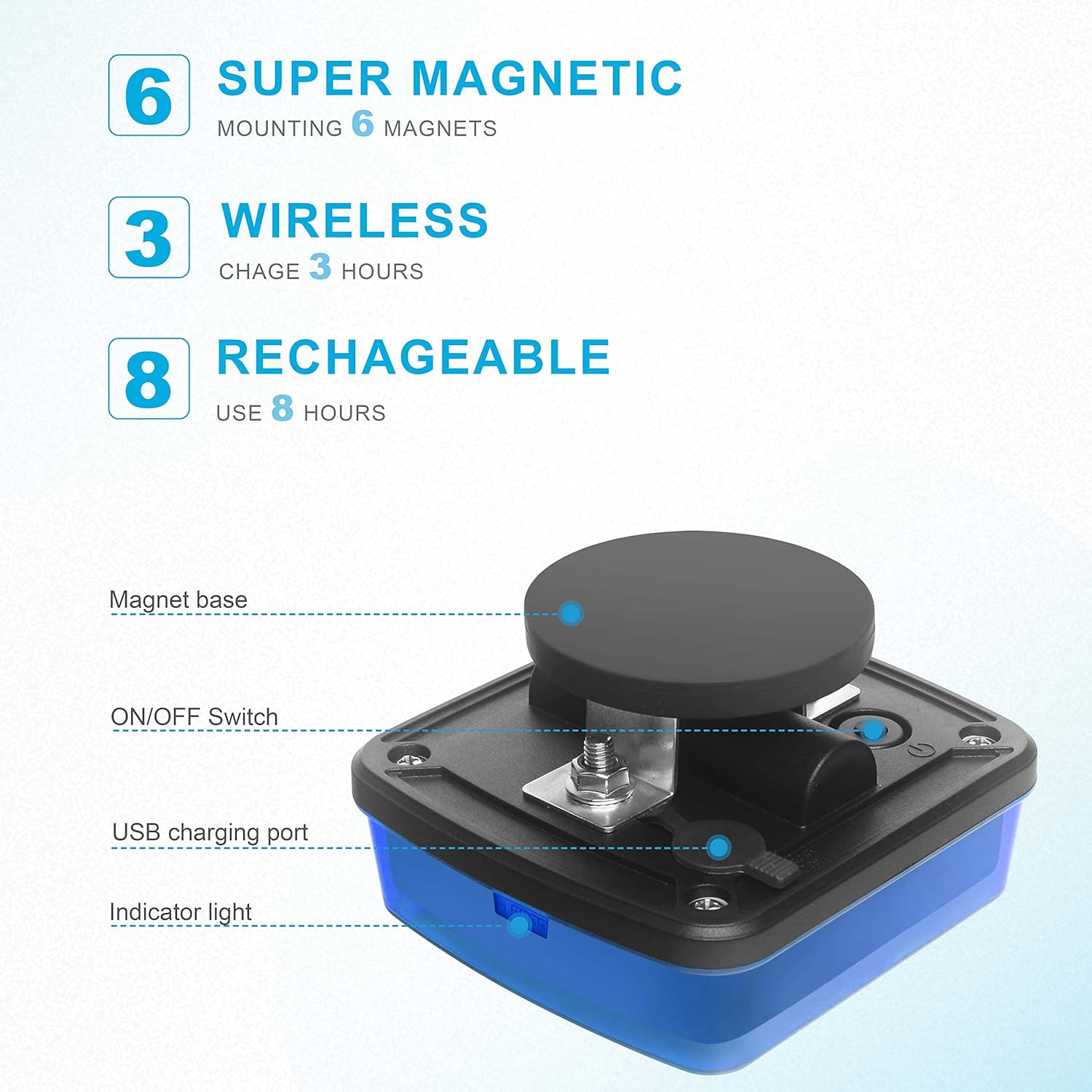

Image 2.1: Key features highlighted, including super magnetic mounting, wireless operation, and rechargeable battery.

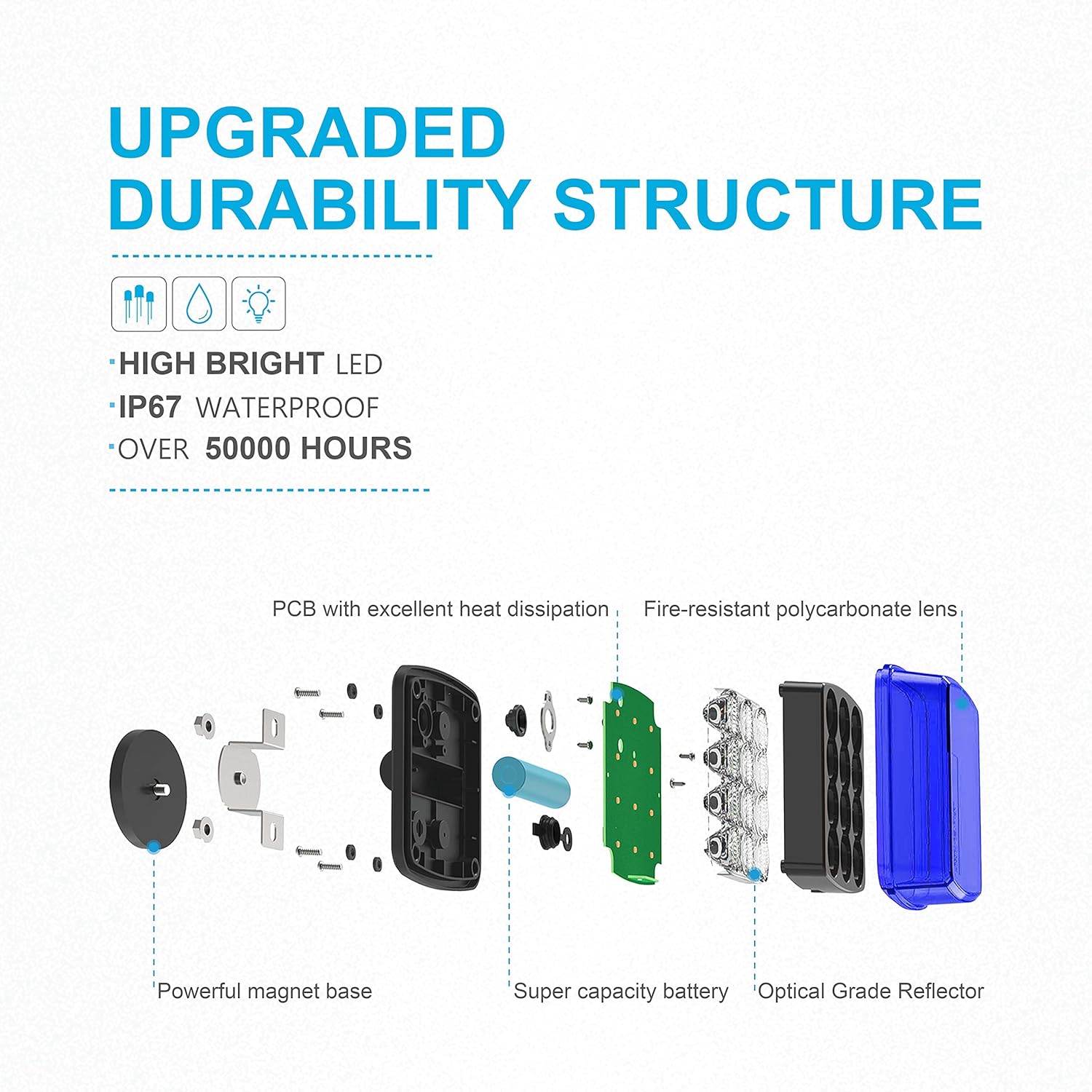

Abbildung 2.2: Explosionszeichnung view illustrating the upgraded durability structure, including the powerful magnet base, super capacity battery, and optical grade reflector.

3. Lieferumfang

The product package for the Agrieyes Blue Rechargeable Flashing Lights typically includes the following items:

• Blue Magnetic Strobe Lights (2 units)
• USB adaptor (1 unit)
• Charging cord (1 unit)

Image 3.1: Contents of the portable packing, showing two lights, a USB adapter, and a charging cord.

4. Spezifikationen

5. Einrichtung und Installation

The Agrieyes Magnetic Strobe Lights are designed for quick and easy installation due to their strong magnetic base.

5.1 Montage der Leuchten

1. Identify a clean, flat metallic surface on your vehicle where the light needs to be placed. Ensure the surface is free of dirt, debris, or rust to maximize magnetic adhesion.
2. Place the light firmly onto the chosen metallic surface. The 5 strong magnets will secure the light in position.
3. Verify that the light is securely attached and does not wobble. While designed to withstand speeds up to 60 mph, it is recommended to periodically check the adhesion, especially after prolonged use or rough terrain.

These lights are suitable for various applications, including emergency vehicles, agricultural machinery, and trucks, as shown in the image below.

Abbildung 5.1: Beispielamples of wider applications for the Agrieyes lights on different types of vehicles.

6. Bedienungsanleitung

The Agrieyes Magnetic Strobe Lights are simple to operate with a single button control.

6.1 Ein-/Ausschalten

• Um die Lichter einzuschalten ON: Press the power button briefly for approximately 1 second. The electricity indicator light will illuminate, and the lamp will double flash, indicating it is turned on and functioning normally. The working indicator light will also light up simultaneously.
• Um die Lichter einzuschalten AUS: Press the power button briefly for approximately 1 second. The electricity indicator light will turn off, and the working indicator light will remain on briefly before turning off, indicating the unit is powered down.

6.2 Changing Flash Modes

The lights feature multiple flashing options to suit various warning needs. To cycle through the different flash modes, press the power button repeatedly after the light is turned on. Each press will switch to the next available mode.

Watch the video below for a demonstration of the operation and charging process:

7. Ladeanweisungen

To ensure optimal performance and longevity of your Agrieyes Flashing Lights, follow these charging guidelines:

1. Locate the micro USB charging port on each light.
2. Connect one end of the provided charging cord (micro USB) to the charging port on each lamp.
3. Connect the other end of the charging cord (standard USB) to a compatible USB power source (e.g., USB wall adapter, vehicle USB port, computer USB port).
4. Allow the lights to charge fully. A full charge typically takes approximately 8 hours and provides extended operational use.
5. The indicator light on the unit will provide feedback on the charging status. Refer to the operating instructions section for details on indicator light behavior during charging.

It is recommended to fully charge the lights before first use to ensure maximum battery life.

8. Wartung

Proper maintenance will help extend the lifespan and ensure the continued performance of your Agrieyes Flashing Lights.

8.1 Reinigung

• Regularly clean the exterior of the lights with a soft, damp Tuch.
• Avoid using abrasive cleaners, solvents, or harsh chemicals, as these can damage the housing or lens.
• Ensure the magnetic base is clean and free of metallic debris to maintain strong adhesion.

8.2 Speicherung

• When not in use for extended periods, store the lights in a cool, dry place, away from direct sunlight and extreme temperatures.
• It is advisable to charge the lights periodically (e.g., every 3-6 months) even when stored, to maintain battery health.

8.3 Batteriepflege

• Vermeiden Sie es, den Akku vor dem Aufladen vollständig zu entladen.
• Den Akku nicht überladen; nach vollständiger Aufladung vom Stromnetz trennen.

9. Fehlerbehebung

If you encounter issues with your Agrieyes Flashing Lights, refer to the following common troubleshooting steps:

If the problem persists after attempting these solutions, please contact Agrieyes customer support for further assistance.

10. Sicherheitshinweise

Bitte lesen und befolgen Sie die folgenden Sicherheitsrichtlinien, um Verletzungen oder Schäden am Produkt zu vermeiden:

• Do not disassemble, modify, or attempt to repair the lights yourself. This may void the warranty and cause damage.
• Keep the lights away from extreme heat sources, open flames, and corrosive materials.
• Ensure the magnetic base is securely attached to a suitable metallic surface before vehicle operation, especially at high speeds.
• Do not look directly into the LED lights when they are active, as the high brightness may cause temporary vision impairment.
• Batterien und elektronische Bauteile sind gemäß den örtlichen Vorschriften zu entsorgen.
• Always check local laws and regulations regarding the use of warning lights on vehicles in your specific area.

11. Garantie und Support

For warranty information, product registration, or technical support, please refer to the official Agrieyes webBesuchen Sie die Website oder kontaktieren Sie den Verkäufer direkt. Bewahren Sie Ihren Kaufbeleg als Kaufnachweis für eventuelle Garantieansprüche auf.
