AIDITIYMI AXD7739 Replacement Remote Control User Manual

Einführung

This manual provides comprehensive instructions for the AIDITIYMI AXD7739 replacement remote control. Designed to function seamlessly with various Pioneer AV Receiver models, this remote requires no complex programming or pairing. Simply install the batteries, and it is ready for immediate use.

Einrichtung: Batterieinstallation

The AIDITIYMI AXD7739 remote control operates on two AAA alkaline batteries. No programming or pairing is required for this replacement remote. Follow these steps to install the batteries:

1. Suchen Sie die Batteriefachabdeckung auf der Rückseite der Fernbedienung.
2. Press down on the tab and slide the cover off to open the compartment.
3. Insert two new 1.5V AAA alkaline batteries, ensuring the positive (+) and negative (-) terminals align correctly with the markings inside the compartment.
4. Schieben Sie den Batteriefachdeckel wieder an seinen Platz, bis er sicher einrastet.

Image: Back of the remote control with the battery compartment open, ready for battery insertion.

Abbildung: Rückseite der Fernbedienung mit sicher verschlossenem Batteriefach nach dem Einlegen der Batterie.

Once batteries are installed, the remote control is ready for immediate use with your compatible Pioneer AV Receiver.

Bedienungsanleitung

The AIDITIYMI AXD7739 remote control is designed to replicate the functionality of your original Pioneer AV Receiver remote. Point the remote directly at your AV receiver and press the desired button to control its functions.

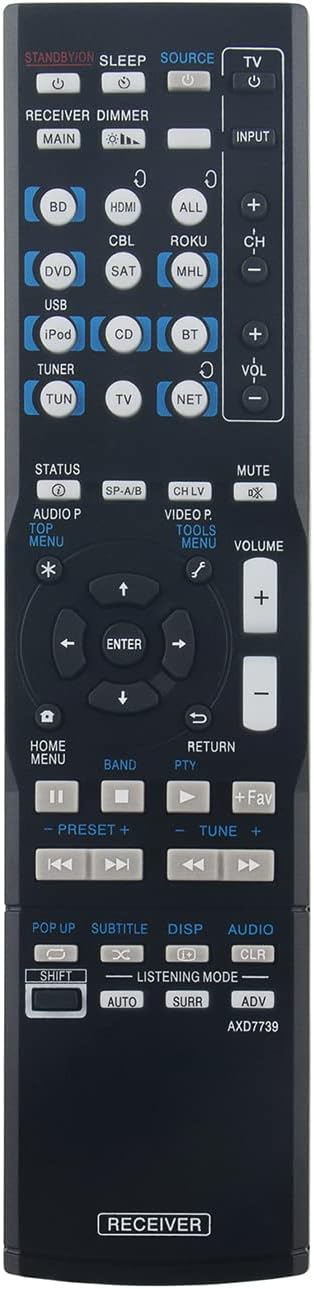

Bild: Vorderseite view der Fernbedienung, auf der alle Funktionstasten angezeigt werden.

Schlüsselfunktionen Überview:

• STANDBY/EIN: Schaltet den AV-Receiver ein oder aus.
• SCHLAFEN: Aktiviert die Sleep-Timer-Funktion.
• SOURCE / INPUT: Selects the input source (e.g., BD, HDMI, CBL, SAT, ROKU, MHL, USB, iPod, CD, BT, TUNER, TV, NET).
• LAUTSTÄRKE +/-: Regelt den Master-Lautstärkepegel.
• STUMM: Toggles sound muting on and off.
• CH +/-: Navigiert durch Kanäle oder Titel.
• Navigation Pad (ENTER, Arrow Keys): Wird zur Menünavigation und -auswahl verwendet.
• HOME MENU: Accesses the main menu of the AV receiver.
• ZURÜCKKEHREN: Kehrt zum vorherigen Bildschirm oder Menü zurück.
• STATUS / AUDIO P / VIDEO P: Accesses various status, audio parameter, or video parameter menus.
• Playback Controls (PLAY, PAUSE, STOP, SKIP, REWIND, FAST FORWARD): Steuert die Medienwiedergabe.
• LISTENING MODE (AUTO, SURR, ADV): Selects different audio listening modes.
• POP UP / SUBTITLE / DISP / AUDIO / CLR / SHIFT: Provides access to additional specific functions depending on the receiver's capabilities.

For detailed information on specific functions, refer to your Pioneer AV Receiver's original user manual.

Kompatibilität

This AIDITIYMI AXD7739 replacement remote control is compatible with the following Pioneer AV Receiver models:

• VSX-830-K
• VSX-45
• VSX-830
• VSX-90
• VSX-95
• VSX-1130-K

Ensure your AV receiver model is listed above for proper functionality.

Fehlerbehebung

If your remote control is not functioning as expected, please refer to the following troubleshooting steps:

• Fernbedienung reagiert nicht:
  • Überprüfen Sie die Batterien. Stellen Sie sicher, dass sie richtig eingelegt sind und die richtige Polarität (+/-) aufweisen.
  • Replace the batteries with new 1.5V AAA alkaline batteries. Weak or dead batteries are a common cause of remote control issues.
  • Ensure there is a clear line of sight between the remote control and the infrared (IR) sensor on your Pioneer AV Receiver. Obstructions can block the signal.
  • Verify that your AV receiver is powered on.
• Bestimmte Funktionen funktionieren nicht:
  • Confirm that your Pioneer AV Receiver model is listed in the compatibility section of this manual. This remote is a replacement for specific models.
  • Some advanced functions may require specific settings on your AV receiver. Consult your receiver's original user manual for detailed operation.

If issues persist after following these steps, contact customer support for further assistance.

Technische Daten

Garantie und Support

This AIDITIYMI AXD7739 replacement remote control comes with a 1 Jahr Garantie vom Hersteller.

For warranty claims, technical assistance, or any questions regarding the operation of your remote control, please refer to the contact information provided by your retailer or the AIDITIYMI official support channels.
