Gevril Chambers Automatic Watch Model 42603 User Manual

1. Einleitung

Thank you for choosing the Gevril Chambers Automatic Watch, Model 42603. This timepiece is expertly crafted with Swiss standards, featuring a robust design suitable for daily wear and water activities. This manual provides essential information to ensure proper use and longevity of your watch.

Abbildung 1: Vorderseite view of the Gevril Chambers Automatic Watch, Model 42603, showcasing the blue dial, gold-toned bezel, and two-toned stainless steel bracelet.

2. Uhrenkomponenten

Familiarize yourself with the main parts of your Gevril Chambers watch:

• Fall: 42mm 316L Stainless Steel.
• Lünette: Blue/Gold Ceramic, rotating for dive timing.
• Wählen: Blue, with luminous markers for visibility in low light.
• Krone: Screw-down type, located on the right side of the case, used for setting time and date, and winding.
• Kristall: Sapphire Crystal, highly scratch-resistant.
• Bewegung: Swiss Sellita SW200 Automatic.
• Gurt: Two-toned Stainless Steel Bracelet with a deployment clasp.

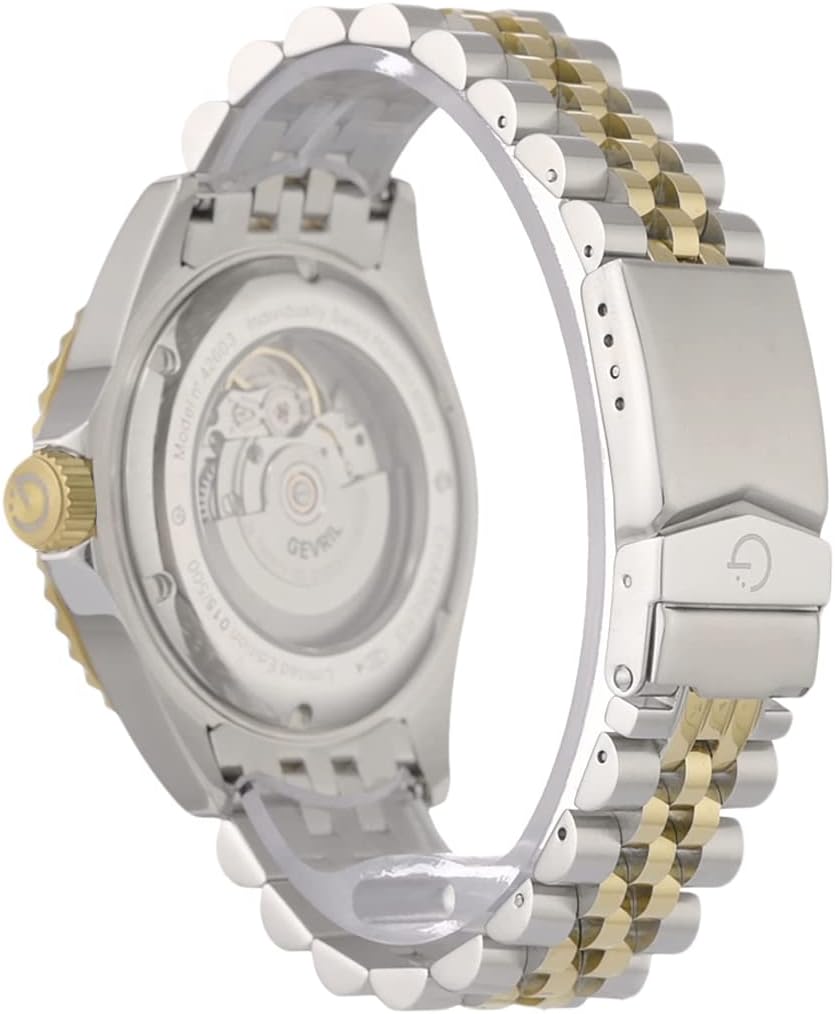

Abbildung 2: Rückseite view of the watch, showing the transparent case back which reveals the automatic movement.

Figure 3: Detail of the deployment clasp on the stainless steel bracelet.

3. Ersteinrichtung

3.1 Auspacken und Inspektion

Upon receiving your watch, carefully remove it from its packaging. Inspect for any visible damage. The watch comes in a protective box.

Figure 4: The Gevril Chambers Automatic Watch presented in its original packaging box.

3.2 Aufziehen der Uhr

Your Gevril Chambers watch is an automatic timepiece, meaning it is powered by the motion of your wrist. If the watch has stopped or is running low on power, it can be manually wound:

1. Unscrew the crown by turning it counter-clockwise until it springs free.
2. In position 1 (crown unscrewed and pushed in), turn the crown clockwise approximately 20-30 times. This will provide enough power reserve to start the watch.
3. Drücken Sie die Krone wieder hinein und schrauben Sie sie im Uhrzeigersinn fest, um die Wasserdichtigkeit zu gewährleisten.

3.3 Einstellen von Uhrzeit und Datum

So stellen Sie Uhrzeit und Datum ein:

1. Unscrew the crown by turning it counter-clockwise.
2. Pull the crown out to position 2 (first click) to set the date. Turn the crown clockwise or counter-clockwise until the correct date is displayed. Stellen Sie das Datum nicht zwischen 21:00 und 3:00 Uhr ein, da dies das Uhrwerk beschädigen kann.
3. Pull the crown out to position 3 (second click) to set the time. Turn the crown to move the hands clockwise until the correct time is displayed. Ensure you differentiate between AM and PM when setting the date.
4. Once the time and date are set, push the crown back into position 1 and screw it down clockwise firmly to maintain water resistance.

4. Bedienung Ihrer Uhr

4.1 Automatikwerk

The Gevril Chambers watch is powered by a Swiss automatic movement (Sellita SW200). This movement is self-winding, meaning it gains power from the natural motion of your wrist. When fully wound, it has a power reserve of approximately 38 hours. If the watch is not worn for an extended period, it will stop and require manual winding as described in Section 3.2.

4.2 Drehlünette

The unidirectional rotating bezel can be used to measure elapsed time, particularly useful for diving or timing events. To use:

1. Align the zero marker on the bezel with the minute hand at the start of the event.
2. Lesen Sie die verstrichene Zeit auf der Lünette ab, während der Minutenzeiger vorrückt.

4.3 Wasserbeständigkeit

This watch is water resistant up to 200 meters (20 ATM / 660 feet). This makes it suitable for swimming, snorkeling, and recreational diving. Ensure the crown is always fully screwed down before exposing the watch to water. Die Krone und die Drücker dürfen nicht betätigt werden, solange die Uhr nass oder unter Wasser ist.

5. Pflege und Wartung

5.1 Reinigung

Um das Aussehen Ihrer Uhr zu erhalten:

• Reinigen Sie Gehäuse und Armband regelmäßig mit einem weichen, trockenen Tuch.
• For stubborn dirt, use a soft brush and mild soapy water, then rinse thoroughly with fresh water (only if the crown is fully screwed down) and dry immediately.
• Vermeiden Sie die Verwendung aggressiver Chemikalien oder Scheuermittel.

5.2 Avoiding Extreme Conditions

To protect your watch:

• Avoid extreme temperatures (above 60°C / 140°F or below 0°C / 32°F).
• Keep the watch away from strong magnetic fields, which can affect the accuracy of the mechanical movement.
• Avoid sudden impacts or shocks.

5.3 Regelmäßige Wartung

Like any precision instrument, your automatic watch benefits from regular servicing every 3-5 years by an authorized watchmaker to ensure optimal performance and water resistance.

6. Fehlerbehebung

7. Spezifikationen

8. Garantieinformationen

Your Gevril Chambers Automatic Watch is covered by a manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms, conditions, and duration. The warranty typically covers manufacturing defects under normal use. Damage resulting from improper handling, accidents, or unauthorized repairs is generally not covered.

9. Kundendienst

For further assistance, service, or warranty claims, please contact Gevril customer support. You can find contact information on the official Gevril website or through your authorized retailer. When contacting support, please have your watch model number (42603) and purchase details readily available.
