Abovsare Digitale Wanduhr – Benutzerhandbuch

1. Einleitung

Thank you for choosing the Abovsare Digital Wall Clock. This versatile clock features a large LED display, remote control, automatic brightness adjustment, and multiple functions including time, date, day of the week, temperature, and alarm. This manual provides detailed instructions for setup, operation, and maintenance to ensure optimal performance.

Figure 1: Abovsare Digital Wall Clock with large orange LED display.

2. Packungsinhalt

• Abovsare Digital Wall Clock
• Fernbedienung
• USB Power Cable (Note: Power adapter not included. Use a 5V/1A or 5V/2A adapter.)
• Bedienungsanleitung
• Mounting Accessories (e.g., pins/screws for wall mounting)

3. Einrichtung

3.1 Einschalten

The clock requires continuous power via the included USB cable. Connect the USB cable to a compatible 5V/1A or 5V/2A USB power adapter (not included) and plug it into a power outlet. The clock is not battery operated for primary function.

Speicherfunktion: The clock has a built-in memory function. Install 2 AAA batteries (not included) into the battery compartment on the back of the clock to retain time settings during a power outage. This ensures that you do not need to reset the time after a power interruption.

Abbildung 2: Rückseite view of the clock, highlighting the battery compartment for memory function.

3.2 Platzierungsoptionen

The Abovsare Digital Wall Clock offers flexible placement options:

• Desktop-Platzierung: The clock can be placed on any flat surface, such as a desk, nightstand, or shelf.
• Wandmontage: Use the provided mounting accessories to securely hang the clock on a wall. Ensure the wall can support the clock's weight and that the power cable can reach an outlet.

Figure 3: The clock is suitable for both desktop and wall mounting.

4. Bedienungsanleitung

4.1 Anzeigefunktionen

The 13-inch large LED display shows the following information:

• Zeit: Large, high-contrast digits for easy readability.
• Datum: Monat und Tag.
• Woche: Day of the week (Mon-Sun).
• Temperatur: Anzeige in Celsius oder Fahrenheit.

Abbildung 4: Ausführlich view of the 13-inch large LED display.

4.2-Fernbedienung

All settings and operations can be easily managed using the included remote control. This eliminates the need to remove the clock from its position for adjustments.

Abbildung 5: Fernbedienung für bequeme Bedienung.

4.3 Helligkeitseinstellung

The clock features 10 levels of adjustable brightness. You can manually adjust the brightness using the remote control. Additionally, a built-in automatic dimming sensor adjusts the display brightness based on ambient light conditions.

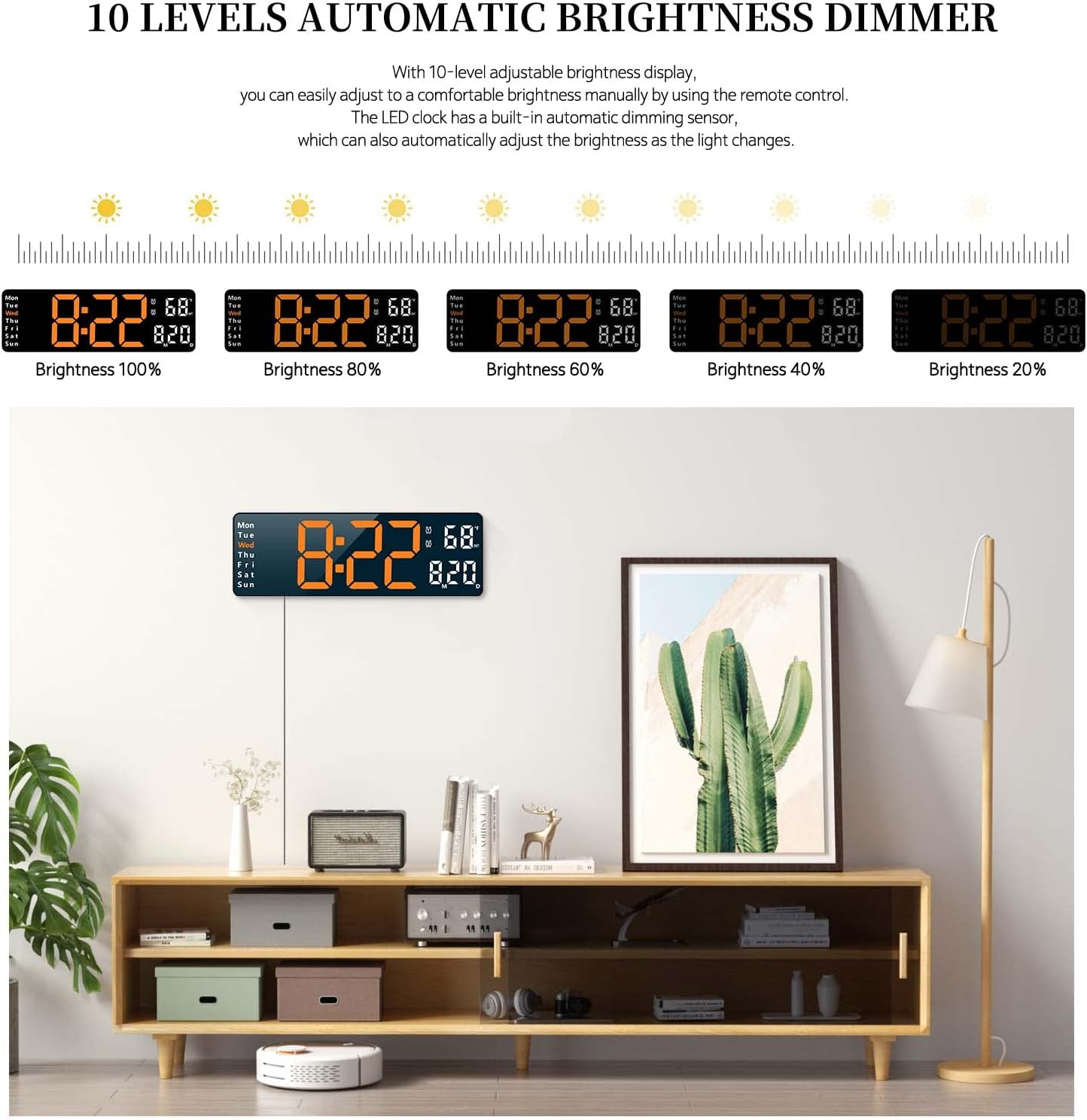

Figure 6: Visual representation of the 10-level automatic brightness dimmer.

4.4 Alarmeinstellungen

You can set two separate alarms to accommodate different schedules. Refer to the remote control's 'AL-1 SET' and 'AL-2 SET' buttons for setting and activating alarms.

4.5 Timer-Funktion

The clock includes a count-up and count-down timer function, supporting up to 99 minutes and 99 seconds. This feature is useful for various activities, such as cooking or exercise.

Figure 7: Count-up and count-down timer display.

5. Wartung

• Reinigen Sie das Display und casinMit einem weichen, trockenen Tuch abwischen. Scheuermittel und Lösungsmittel vermeiden.
• Stellen Sie sicher, dass die Uhr an einem trockenen Ort, fern von direkter Sonneneinstrahlung und extremen Temperaturen, aufgestellt wird.
• Replace the memory backup batteries (AAA) periodically to ensure time retention during power outages.

6. Fehlerbehebung

• Uhr schaltet sich nicht ein: Ensure the USB cable is securely connected to both the clock and a functional 5V/1A or 5V/2A power adapter, and that the adapter is plugged into a live power outlet.
• Time/Date not retained after power loss: Check if the AAA backup batteries are installed correctly and are not depleted. Replace if necessary.
• Fernbedienung funktioniert nicht: Ensure the remote's battery is functional and that there are no obstructions between the remote and the clock's sensor.
• Colon blinking: Some users have noted the colon between hours and minutes blinks. This is a design feature and not an indication of a fault.
• Timer function issues: Ensure you are pressing the 'OK' button within a few seconds after inputting the time for the timer to start. If issues persist, try resetting the clock.

7. Spezifikationen

8. Garantie und Support

For warranty information and customer support, please refer to the product packaging or contact Abovsare customer service directly. Keep your purchase receipt for any warranty claims.
