Devoko DVCH-240052-WGY

Devoko 100 Gallon Waterproof Resin Deck Box with Cushion Instruction Manual

Model: DVCH-240052-WGY

Marke: Devoko

Einführung

Thank you for choosing the Devoko 100 Gallon Waterproof Resin Deck Box with Cushion. This versatile storage solution is designed to provide ample space for your outdoor and indoor items while offering durability and weather resistance. Please read this manual carefully before assembly and use to ensure safe and proper operation.

Devoko 100 Gallon Waterproof Resin Deck Box with Cushion in Light Brown

Image: The Devoko 100 Gallon Waterproof Resin Deck Box in light brown, shown with its cushion and filled with various outdoor items in a garden setting.

Einrichtung und Montage

Assembly of your Devoko Deck Box is designed to be straightforward. Follow the step-by-step instructions below. It is recommended to assemble the unit on a soft surface like grass to prevent scratching.

  1. Komponenten auspacken: Carefully remove all parts from the packaging. Verify that all components are present according to the parts list (not provided in this manual, refer to your product packaging).
  2. Basis zusammenbauen: Connect the base panel (typically labeled 'B') to the side panels (typically labeled 'C'). Ensure the pieces click securely into place.
  3. Frontplatte anbringen: Secure the front panel (typically labeled 'A') to the assembled base and side panels. Listen for clicking sounds to confirm proper engagement.
  4. Rückwand anbringen: Connect the back panel (typically labeled 'D') to complete the main body of the box.
  5. Hydraulische Scharniere einbauen: Attach the hydraulic air rods to the designated points on the lid and the main body of the box. Use a Phillips head screwdriver or a drill (with caution to avoid stripping screws) to secure the screws. Ensure two screws are used at the bottom and two at the top for each hinge.
  6. Deckel anbringen: Carefully align the lid with the main body and attach it to the hydraulic hinges. Test the opening and closing mechanism to ensure smooth operation.

Video: Step-by-step assembly guide for the Devoko 100 Gallon Deck Box, demonstrating how to connect panels and install hydraulic hinges.

Bedienungsanleitung

Öffnen und Schließen des Deckels

The deck box features hydraulic air rods for smooth and safe operation. To open, gently lift the lid. The hydraulic rods will assist in raising and holding the lid open. To close, gently push the lid down until it fully engages with the base. The hydraulic rods will ensure a slow and controlled descent, preventing sudden slams.

Lockable Feature

For added security, the deck box is designed with a lockable mechanism. A padlock (not included) can be inserted through the designated hole on the front of the lid to secure your stored items.

Using as a Bench

The Devoko 100 Gallon Deck Box comes with a waterproof seat cushion, allowing it to double as a comfortable bench. It is designed to support a maximum weight of 500 pounds. Ensure the lid is fully closed and latched before using it as seating.

Close-up of the comfortable padding on the deck box cushion

Bild: Eine Nahaufnahme view highlighting the comfortable, thick, stretchy, replaceable, and waterproof padding of the deck box cushion.

Video: Demonstration of the soft-close hydraulic hinges on the outdoor storage box, showing smooth and controlled lid movement.

Wartung

Um die Langlebigkeit und das Aussehen Ihrer Devoko Deckbox zu gewährleisten, befolgen Sie bitte diese einfachen Pflegehinweise:

  • Reinigung: Wischen Sie das Äußere mit Werbung abamp cloth and mild soap. Avoid abrasive cleaners or harsh chemicals, as these can damage the resin material.
  • Kissenpflege: The cushion is waterproof. For cleaning, wipe with a damp cloth. If the inner sponge needs replacement, the cushion cover is designed to be removable.
  • Wetterschutz: While the deck box is waterproof and UV-resistant, prolonged exposure to extreme weather conditions may affect its appearance over time. Consider placing it in a shaded area or covering it during harsh weather for extended periods.
  • Scharnierprüfung: Periodically check the hydraulic hinges for smooth operation and ensure all screws remain tight.
All-weather features of the deck box, showing waterproofing and anti-UV properties

Image: Visual representation of the deck box's all-weather capabilities, highlighting its waterproof and anti-UV features.

Fehlerbehebung

  • Deckel schließt nicht reibungslos: Check the hydraulic hinges for any obstructions or loose screws. Ensure the box is on a level surface.
  • Wasser in der Box: Verify that the lid is fully closed and properly sealed. Check for any cracks or damage to the resin material. Ensure the box is not placed in an area where water can pool around its base.
  • Schwierigkeiten beim Zusammenbau: Ensure all pieces are correctly oriented and aligned before applying pressure. Listen for the 'click' sound to confirm panels are securely fastened. Refer to the assembly video for visual guidance.

Video: A short demonstration highlighting the waterproof capabilities of the outdoor storage box, showing water beading on the surface.

Technische Daten

MarkeDevoko
ModellnummerDVCH-240052-WGY
FarbeHellbraun
MaterialHarz
Kapazität100 Gallonen (378.54 Liter)
Artikelabmessungen (L x B x H)48" x 21.4" x 25.6"
Maximalgewichtsempfehlung500 Pfund
BesonderheitAbschließbar
WasserbeständigkeitWasserdicht
ÖffnungsmechanismusHinge (Hydraulic Air Rod)

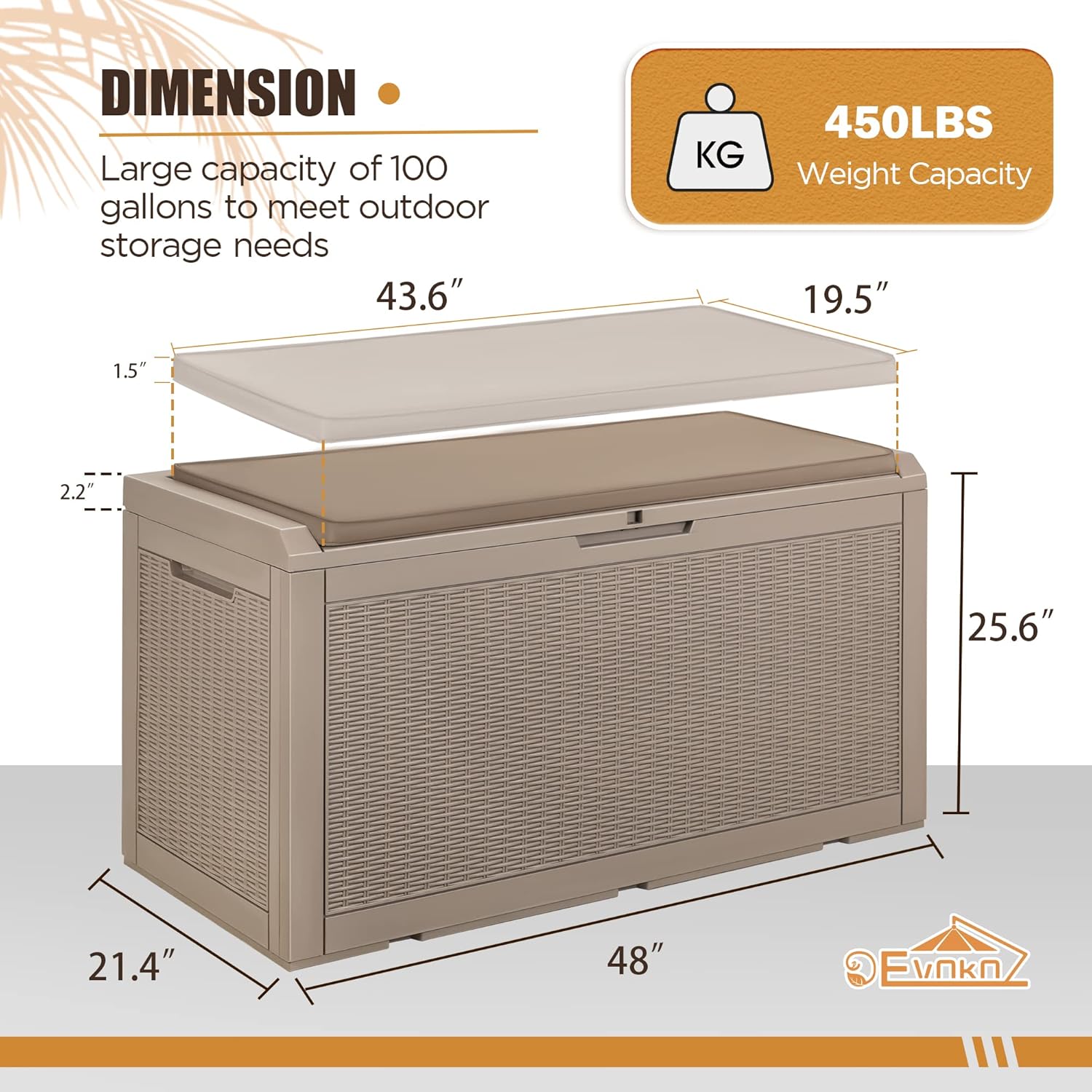

Dimension diagram of the Devoko 100 Gallon Deck Box

Image: A detailed diagram illustrating the dimensions and weight capacity of the 100-gallon deck box.

Product Features (Visuals)

Explore key features of your Devoko Deck Box through these visual demonstrations:

Video: Ein kurzer Überblickview of the indoor/outdoor organizational storage unit, emphasizing its waterproof design.

Video: A quick look at the waterproof storage container, showcasing its capacity and protective qualities.

Video: An informative video highlighting a key aspect of the 100-gallon storage box for users.

Video: Ein Review showcasing the features of the Devoko Deck Box, emphasizing its indoor/outdoor and lockable capabilities.

Video: Ein Review highlighting the large size and waterproof nature of the outdoor storage bin.

Video: Ein ehrlicher Rückblickview of the indoor/outdoor storage bin, detailing its practical uses.

Garantie und Support

For warranty information or customer support, please refer to the contact details provided on your product packaging or visit the official Devoko webBewahren Sie Ihren Kaufbeleg für eventuelle Garantieansprüche auf.
