Vipack Pino Mid-Sleeper Bed - Grey - Instruction Manual

1. Produktüberschreitungview

This manual provides detailed instructions for the assembly, safe use, and maintenance of your Vipack Pino Mid-Sleeper Bed. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

The Vipack Pino Mid-Sleeper Bed is a grey lacquered bed constructed from solid Scandinavian pine wood, designed for a single mattress of 90 x 200 cm. It features a slatted base and a ladder that can be positioned on either the right or left side during assembly.

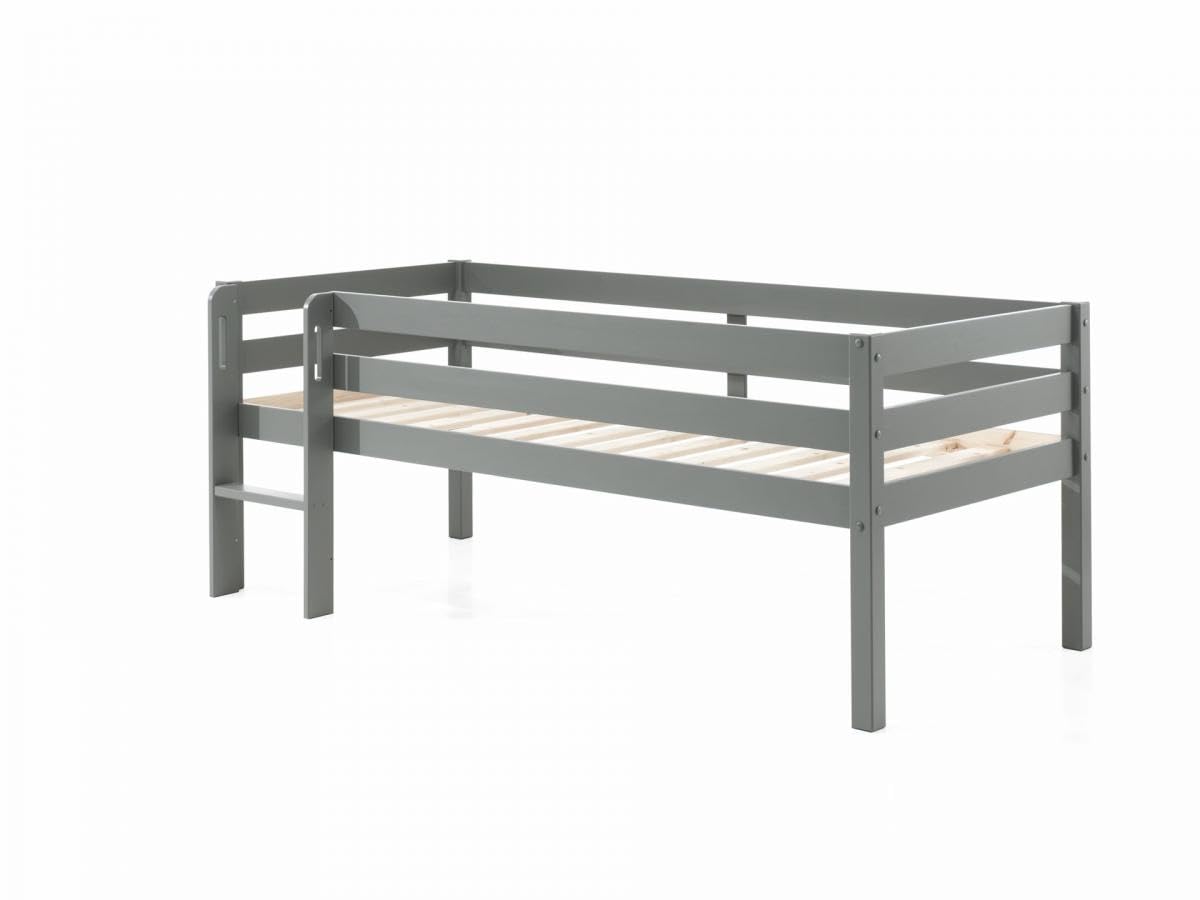

Image 1.1: The Vipack Pino Mid-Sleeper Bed in its assembled state, showcasing its grey finish and mid-height design.

2. Sicherheitshinweise

To ensure safe use of the Vipack Pino Mid-Sleeper Bed, please adhere to the following safety guidelines:

• Maximale Gewichtskapazität: Do not exceed the maximum recommended weight of 75 kg (165 lbs) for this bed.
• Matratzengröße: Use only a mattress that is 90 cm wide and 200 cm long. Ensure the mattress fits snugly to prevent gaps.
• Montage: Always assemble the bed according to the provided instructions. Ensure all fittings are securely tightened before use. Periodically check and re-tighten all bolts and screws.
• Platzierung: Position the bed on a level surface. Avoid placing the bed near windows where cords or blinds could pose a strangulation hazard.
• Leitersicherheit: Always use the ladder for entry and exit. Ensure the ladder is securely attached. Do not allow children to play on or around the ladder unsupervised.
• Kein Springen: Springen Sie nicht auf das Bett.
• Belüftung: Sorgen Sie für ausreichende Belüftung rund um das Bett.
• Wartung: Regularly inspect the bed for any signs of wear, damage, or loose components. Discontinue use if any damage is found and contact customer support.

3. Packungsinhalt

Before beginning assembly, verify that all components listed below are present and undamaged. If any parts are missing or damaged, do not proceed with assembly and contact your retailer.

• Bettgestellkomponenten (Kopfteil, Fußteil, Seitenteile)
• Lattenrost
• Leiterkomponenten
• Hardware-Set (Schrauben, Bolzen, Muttern, Dübel, Inbusschlüssel)
• Montageanleitung

4. Aufbau- und Montageanleitung

Assembly of the Vipack Pino Mid-Sleeper Bed requires two adults. Please follow the step-by-step instructions provided in the separate assembly manual included in your package. Ensure you have sufficient space and the necessary tools (typically an Allen key, which is provided, and a screwdriver, not always included).

Wichtige Montagepunkte:

• Leiteraufstellung: The ladder can be attached to either the right or left side of the bed frame during assembly, depending on your room layout. Refer to the assembly manual for specific steps on how to secure the ladder in your preferred position.
• Secure All Fittings: It is crucial to tighten all bolts and screws firmly. Do not overtighten, but ensure there is no wobble in the frame.
• Montage des Lattenrosts: Install the slatted base evenly across the bed frame, ensuring each slat is properly secured to support the mattress.

For detailed visual guides and specific part identification, refer to the dedicated assembly instruction booklet.

5. Bedienungs- und Gebrauchsanweisung

Once assembled, the Vipack Pino Mid-Sleeper Bed is ready for use. Follow these guidelines for optimal performance and safety:

• Matratze: Place a standard 90 x 200 cm mattress on the slatted base. Ensure the mattress is not too thick, maintaining adequate guardrail height for safety.
• Zugang: Always use the provided ladder to access and exit the bed. Do not climb on the side rails or other parts of the bed.
• Gewichtsbeschränkung: Adhere strictly to the 75 kg (165 lbs) maximum weight recommendation. This includes the weight of the occupant and any items placed on the bed.
• Stauraum unter dem Bett: The height under the bed is approximately 41.5 cm, providing space for storage or play. Ensure this area remains clear of hazards.

6. Wartung und Pflege

Proper maintenance will extend the life and appearance of your Vipack Pino Mid-Sleeper Bed:

• Reinigung: Wipe the lacquered surfaces with a soft, damp Mit einem Tuch abwischen. Vermeiden Sie die Verwendung von Scheuermitteln, aggressiven Chemikalien oder Lösungsmitteln, da diese die Oberfläche beschädigen können.
• Abstauben: Wischen Sie das Bettgestell regelmäßig mit einem trockenen, weichen Tuch ab.
• Hardwareprüfung: Periodically (e.g., every 3-6 months) check all bolts, screws, and fittings to ensure they are tight. Re-tighten as necessary to maintain structural integrity.
• Feuchtigkeit vermeiden: Schützen Sie das Bett vor übermäßiger Feuchtigkeit und direkter Sonneneinstrahlung, da dies zu Verformungen oder Ausbleichen führen kann.
• Das Bett verschieben: When moving the bed, always lift it rather than dragging it to prevent damage to the frame and floor. If disassembling for a move, follow the reverse of the assembly instructions.

7. Fehlerbehebung

If you encounter any issues with your Vipack Pino Mid-Sleeper Bed, consider the following common solutions:

• Wackeln oder Instabilität: This is usually caused by loose fittings. Check and re-tighten all bolts and screws throughout the bed frame and ladder. Ensure the bed is on a level surface.
• Quietschgeräusche: Squeaking can often be resolved by tightening all hardware. If the noise persists, check the slatted base for proper seating and ensure no parts are rubbing against each other. Applying a small amount of furniture wax or silicone spray to contact points (not on the mattress support area) might help.
• Beschädigte Teile: If any part of the bed is damaged, discontinue use immediately to prevent injury. Contact your retailer or Vipack customer support for replacement parts. Do not attempt to repair structural components yourself.
• Fehlende Hardware: If you find you are missing hardware during assembly, refer to the parts list in the assembly manual and contact your retailer for assistance.

8. Spezifikationen

9. Garantie und Support

Vipack products are manufactured to high-quality standards. For information regarding warranty coverage, terms, and conditions, please refer to the documentation provided at the time of purchase or contact your retailer directly.

If you require technical assistance, have questions about assembly, or need to report missing or damaged parts, please contact the retailer from whom you purchased the Vipack Pino Mid-Sleeper Bed. They will be able to provide the most accurate and timely support.
