DWEII 4Ohm 3W
DWEII 4 Ohm 3 Watt Mini Speaker Instruction Manual
Model: 4Ohm 3W
Einführung
This manual provides detailed instructions for the DWEII 4 Ohm 3 Watt Mini Speaker. Designed for small electronic projects, Arduino applications, advertising machines, and LCD TV monitors, this speaker offers clear sound in a compact form factor. Please read this manual thoroughly before use to ensure proper installation and operation.
Sicherheitshinweise
- Stromversorgung: Ensure the power supply matches the speaker's rated power (3W) and impedance (4 Ohms) to prevent damage.
- Verdrahtung: Connect wires correctly to avoid short circuits. Observe polarity if specified by your amplifier or project.
- Platzierung: Avoid placing the speaker in environments with extreme temperatures, high humidity, or direct sunlight.
- Handhabung: Handle the speaker carefully to prevent damage to the diaphragm or magnetic circuit.
- Kinder: Wegen verschluckbarer Kleinteile für Kleinkinder unzugänglich aufbewahren.
Packungsinhalt
Ihr Paket sollte die folgenden Artikel enthalten:

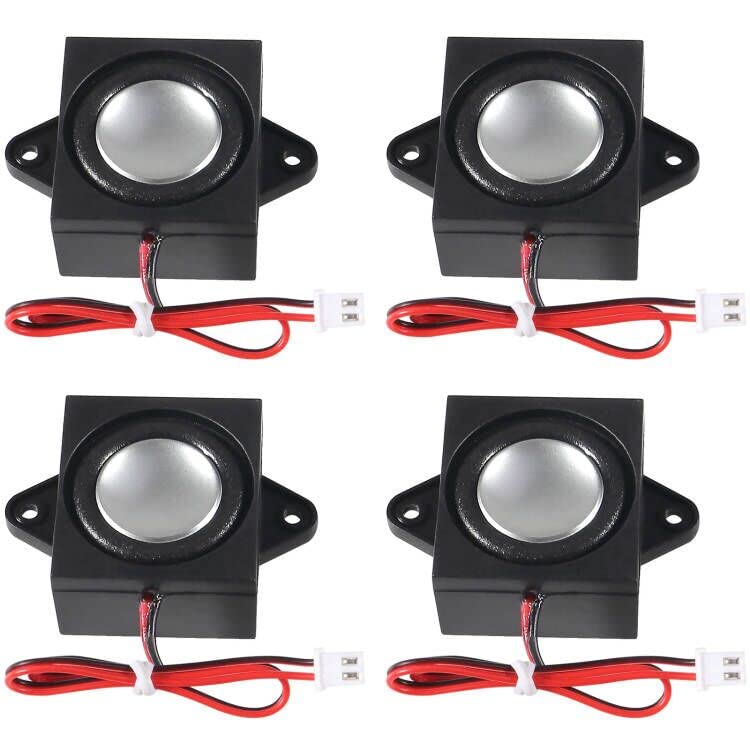

- 4 x DWEII 4 Ohm 3 Watt Mini Speakers
- Each speaker includes an 11mm line length JST-PH2.0mm-2 pin terminal.
Produkt überview
The DWEII 4 Ohm 3 Watt Mini Speaker is a compact, full-range audio component designed for integration into various electronic projects. Its small size and robust construction make it suitable for applications where space is limited but clear audio output is required.
Hauptmerkmale:
- Kompakte Größe: Full frequency cavity, 31 mm long, 28 mm wide, 15 mm thick.
- Langlebige Konstruktion: Rectangular shape with a non-paper diaphragm material and internal magnetic circuit.
- Hochwertiger Klang: Features high-end built-in magnetic speakers for stable performance and clear sound.
- Standardkonnektivität: Equipped with an 11mm line length JST-PH2.0mm-2 pin terminal for easy integration.
- Vielseitige Anwendung: Ideal for Arduino projects, advertising machines, LCD TV monitors, and other small electronic audio needs.
Produktbilder:
Installationsanweisungen
Follow these steps to integrate your DWEII Mini Speaker into your electronic project:
- Verbindungen identifizieren: The speaker comes with a JST-PH2.0mm-2 pin terminal. Identify the positive and negative terminals on your ampVerstärker oder Audioquelle.
- Verkabelung anschließen: Connect the red wire from the speaker's terminal to the positive (+) output of your audio amplifier or circuit. Connect the black wire to the negative (-) output.
- Sichere Montage: Use the integrated mounting holes on the speaker's frame to secure it within your project enclosure. Ensure it is firmly attached to prevent vibrations and improve sound quality.
- Einschalten: Once connections are secure, apply power to your audio circuit or device.
- Audio testen: Play an audio signal to test the speaker's functionality. Adjust volume and settings on your audio source as needed.
Einrichtungsvideo:
This video demonstrates the basic setup and connection of a mini speaker, similar to the DWEII 4 Ohm 3 Watt model, to an audio source. It shows how to connect the speaker wires and test the audio output.
Bedienungsanleitung
The DWEII Mini Speaker operates as a passive audio component. Its function is to convert electrical audio signals into sound waves. Operation is primarily controlled by the audio source or ampden Verstärker, an den es angeschlossen ist.
- Lautstärkeregelung: Adjust the volume directly from your connected device (e.g., Arduino, MP3 player, computer, TV).
- Audioquelle: Ensure your audio source is providing a clean, amplified signal within the speaker's rated power limits (3W).
- Tonqualität: For optimal sound quality, ensure the speaker is securely mounted and not obstructed.
Betriebsvideo:
This video demonstrates the sound output and operation of a 4 Ohm 3W speaker when connected to an audio source, showcasing seine Leistung.
Wartung
The DWEII Mini Speaker requires minimal maintenance to ensure longevity and optimal performance.
- Reinigung: Gently wipe the speaker's exterior with a soft, dry cloth. Do not use liquid cleaners or abrasive materials.
- Inspektion: Periodically check the wiring for any signs of wear or damage. Ensure connections remain secure.
- Lagerung: If storing the speaker for an extended period, keep it in a dry, dust-free environment away from direct sunlight and extreme temperatures.
Fehlerbehebung
| Problem | Mögliche Ursache | Lösung |
|---|---|---|
| Keine Tonausgabe | Incorrect wiring; No power to amplifier/audio source; Faulty audio source; Speaker damage. | Verify all wiring connections (positive to positive, negative to negative). Ensure the audio source or amplifier is powered on and functioning. Test with a different audio source. Inspect the speaker for visible damage. |
| Verzerrter Klang | Overpowering the speaker; Loose connections; Faulty audio signal. | Reduce the volume or power output from the audio source. Check all connections for tightness. Ensure the audio signal is clean and not overdriven. |
| Geringe Lautstärke | Insufficient power; Low volume setting on source; Incorrect impedance matching. | Stellen Sie sicher, dass amplifier provides adequate power. Increase the volume on the audio source. Verify that the amplifier's output impedance matches the speaker's 4 Ohm impedance. |
Technische Daten
| Besonderheit | Detail |
|---|---|
| Marke | DWEII |
| Modellnummer | 4Ohm 3W |
| Maximale Lautsprecherausgangsleistung | 3 Watt |
| Impedanz | 4 Ohm |
| Frequenzgang | 500 Hz - 20 kHz |
| Lautsprechergröße | 2 Inches (31mm Audio Driver Diameter) |
| Abmessungen (L x B x H) | 31 mm x 28 mm x 15 mm (ca. 1.22" x 1.11" x 0.59") |
| Diaphragma Material | Non-paper |
| Magnetic Circuit Form | Internal Magnetic |
| Konnektivitätstechnologie | Auxiliary (JST-PH2.0mm-2 pin terminal) |
| Spezifische Verwendungen | Small electronic projects, Arduino projects, advertising machines, LCD TV monitors |
Garantie und Support
DWEII products are manufactured to high-quality standards. This product comes with a limited warranty against manufacturing defects. For warranty claims, technical support, or any inquiries, please contact your retailer or the manufacturer directly with your purchase details.
Bitte bewahren Sie Ihren Kaufbeleg für Garantiezwecke auf.
