Beaquicy 330031 Range Burner Receptacle Kit Instruction Manual

1. Einleitung

This manual provides instructions for the installation and use of the Beaquicy 330031 Range Burner Receptacle Kit. This kit is designed to replace faulty burner receptacles in various electric ranges and cooktops, restoring proper heating function to your appliance. The kit includes components necessary for replacing up to four burner receptacles.

Bild 1.1: Überview of the Beaquicy 330031 Range Burner Receptacle 4-Pack Kit.

2. Produktkomponenten

Each 330031 Range Burner Receptacle Kit includes the following components:

• 4 x Plastic Receptacle Blocks
• 8 x High-Temperature Wire Leads
• 8 x Ceramic Wire Nuts
• 8 x Heat Shrink Insulators
• 8 x Metal Brackets (two different types are provided to match existing configurations)

Abbildung 2.1: Detailansicht view of the components included in one 330031 kit.

3. Kompatibilität

The 330031 Range Burner Surface Element Receptacle is compatible with various range models from brands such as Admiral, Frigidaire, GE, Kenmore, Maytag, Roper, Tappan, and Whirlpool. It replaces part numbers including 3374, AP3075808, PS340571, EAP340571, PD00002360, and 814399.

Before ordering or installing, verify compatibility with your appliance's model number and the existing part. Refer to the images below for a list of compatible models.

Image 3.1: Compatible models for Whirlpool, Roper, and Tappan ranges.

Image 3.2: Compatible models for Maytag, Kenmore, GE, and Admiral ranges.

4. Installationsanweisungen

Safety Warning: Always disconnect power to your range or cooktop by unplugging it or turning off the circuit breaker before attempting any repairs or installation.

Tools required for installation typically include a wire stripper, a flat-head screwdriver, and a Phillips-head screwdriver. A heat gun or lighter may be used for the heat shrink insulators.

Vorbereitung:

1. Ensure the appliance is completely disconnected from power.
2. Carefully remove the surface burner element from the cooktop.
3. Inspect the old terminal block and element for any signs of corrosion, arcing, or discoloration.
4. Clean the stove area around the burner opening to prevent future issues.

Schritt-für-Schritt-Installation:

Abbildung 4.1: Beispielample of removing an old knob, often a preliminary step for accessing burner components.

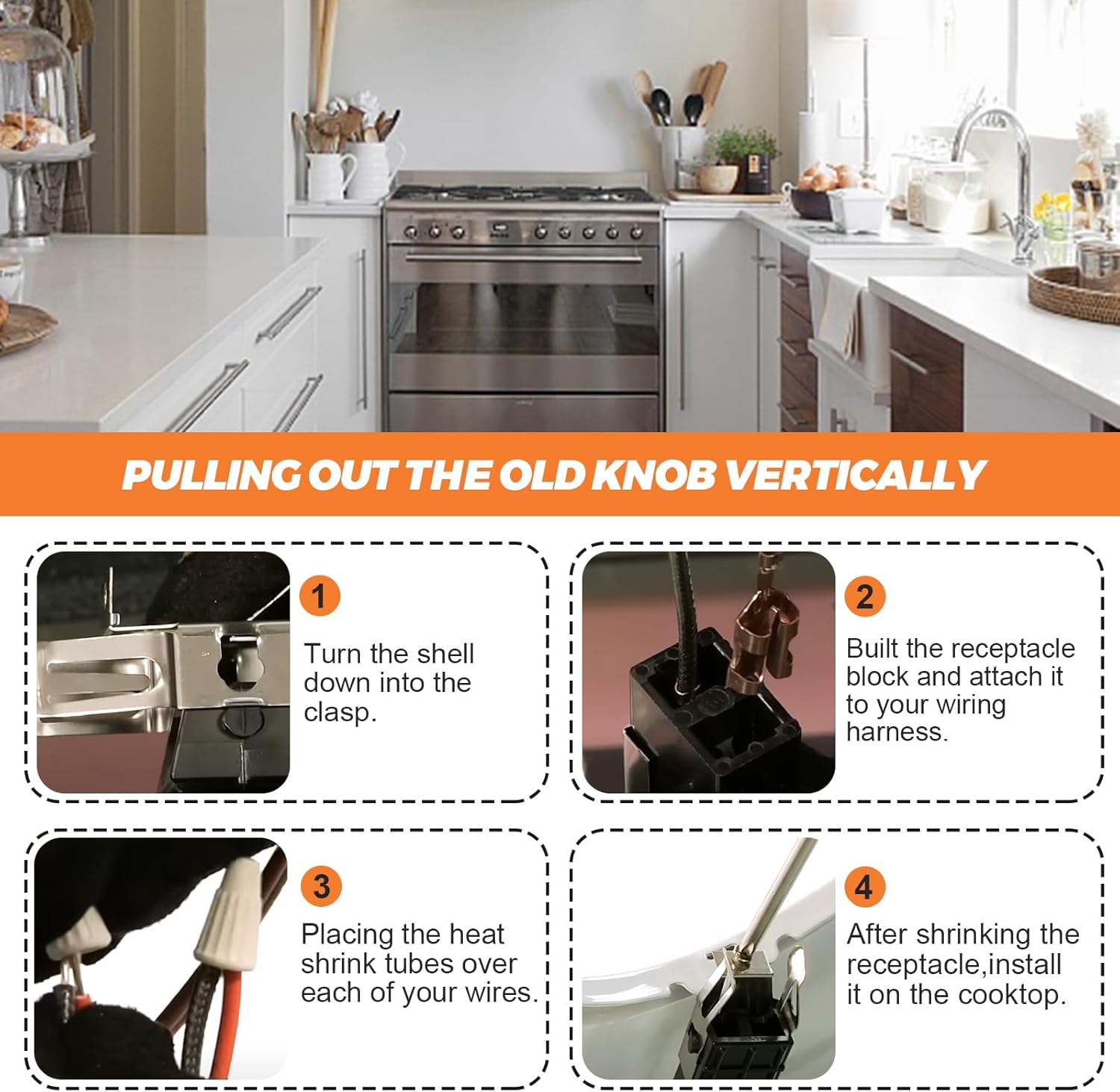

Image 4.2: Visual guide for the four main installation steps.

1. Step 1: Remove Old Receptacle. Turn the shell of the old receptacle down into its clasp to detach it from the cooktop. Disconnect the old wires.
2. Step 2: Connect New Receptacle. Attach the new receptacle block to your wiring harness using the provided high-temperature wire leads and ceramic wire nuts. Ensure connections are secure.
3. Step 3: Apply Heat Shrink. Place the heat shrink tubes over each of your wire connections. Apply heat with a heat gun or lighter until the tubes shrink tightly around the connections, providing insulation.
4. Step 4: Install Receptacle. After securing and insulating the wiring, install the new receptacle onto the cooktop using the appropriate metal bracket. Ensure it is firmly seated.

After installation, carefully re-install the burner element and restore power to the appliance. Test the burner for proper function.

5. Fehlerbehebung

If your range burner is not heating at all, or not heating properly, it is likely an issue with the terminal block (receptacle). The 330031 kit is designed to address these common symptoms:

• No heat from the burner element.
• Uneven heating across the burner element.
• Lack of sufficient heat output.
• Corroded or arcing end connections on the old receptacle.

If you experience these issues, replacing the burner receptacle with the 330031 kit is a common solution.

Image 5.1: Visual representation of symptoms indicating a faulty burner receptacle.

6. Spezifikationen

Image 6.1: Detailed dimensions of the kit components.

7. Garantie und Support

The Beaquicy 330031 Range Burner Receptacle Kit includes a 365-day return and exchange policy. For any quality issues encountered during the warranty period, please contact customer service for assistance. Customer satisfaction is a priority.
