Generic UT501A 1000V Insulation Resistance Tester User Manual

1. Einleitung

The Generic UT501A Insulation Resistance Tester is a digital megger designed for measuring insulation resistance in various electrical equipment and household appliances. This device is part of the UT500 series, capable of measuring insulation resistance, AC voltage, low resistance, Polarization Index (PI), and Dielectric Absorption Ratio (DAR). It is an essential tool for ensuring the safe and accurate operation of transformers, generators, high-voltage motors, power capacitors, power cables, arresters, and other electrical systems.

Key features include a 2000-count LCD display, an overload indicator, AC voltage measurement with backlight, automatic power-off, continuous measurement mode, a red warning light, and a buzzer function for enhanced safety and usability.

2. Sicherheitshinweise

WARNUNG: To avoid electric shock or personal injury, please read all safety information before using this product. Use the product only as specified in this manual, or the protection provided by the product may be impaired.

• Always inspect the tester, test leads, and accessories for damage before each use. Do not use if damaged.
• Nicht mehr als die angegebene Menge auftragen.tage, wie auf dem Prüfgerät angegeben, zwischen den Anschlüssen oder zwischen einem beliebigen Anschluss und Masse.
• Seien Sie vorsichtig mit voltagSpannungen über 30 V AC RMS, 42 V Spitze oder 60 V DC. Solche SpannungentagEs besteht die Gefahr eines Stromschlags.
• Disconnect the test leads from the circuit under test before changing functions or ranges.
• Vor dem Betrieb sicherstellen, dass das Batteriefach fest verschlossen ist.
• Do not operate the tester in explosive gas, vapor, or dusty environments.
• Always discharge the circuit under test after insulation resistance measurements. The UT501A features automatic discharge.
• Halten Sie sich an lokale und nationale Sicherheitsvorschriften.

3. Packungsinhalt

Verify that all items listed below are present and in good condition. If any item is missing or damaged, contact your supplier.

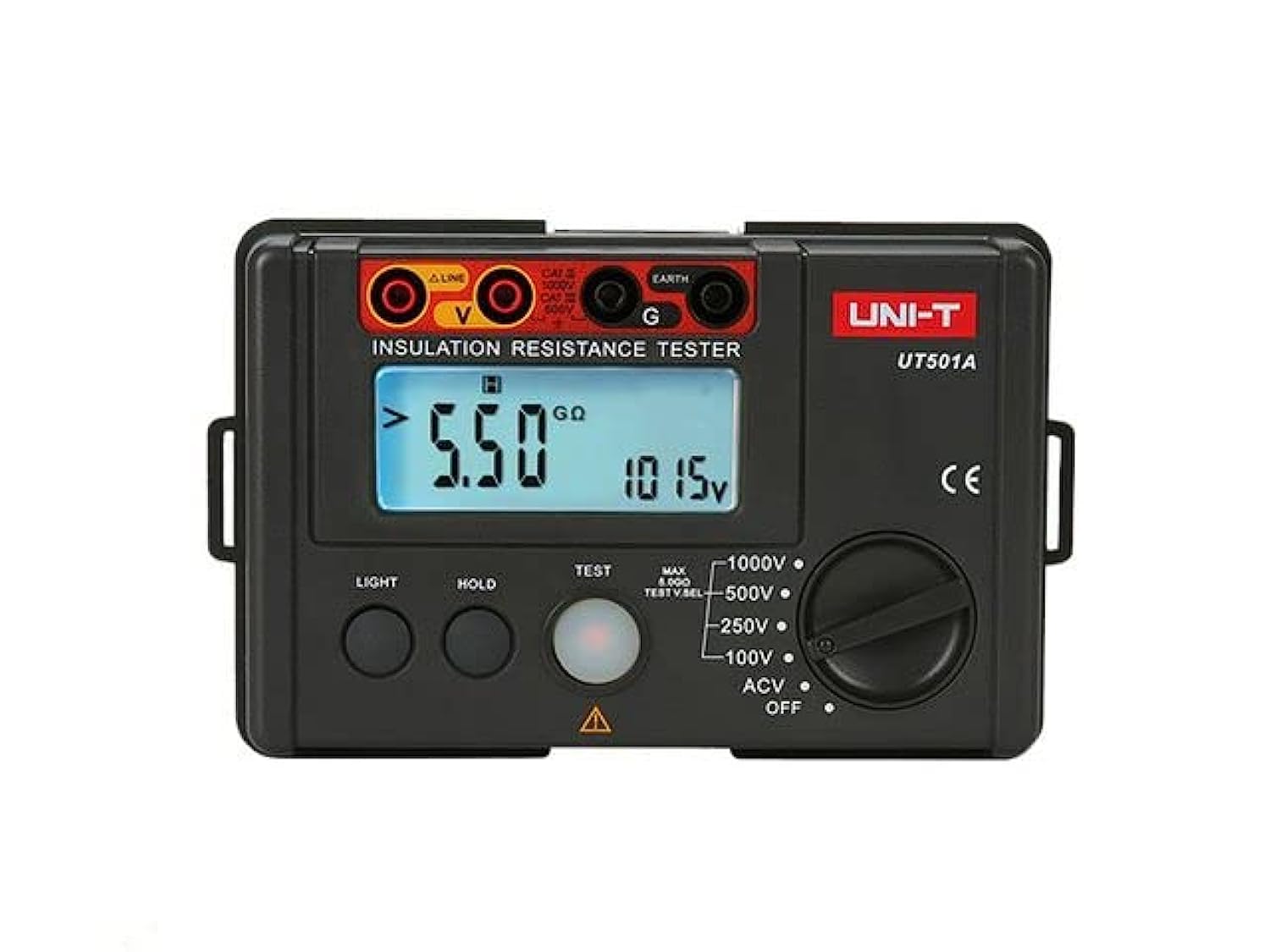

Image: The Generic UT501A Insulation Resistance Tester, including the main unit, test leads, carrying case, and user manual.

• UT501A Insulation Resistance Tester Unit
• Messleitungen (rot und schwarz)
• Krokodilklemmen
• Tragetasche
• Bedienungsanleitung
• Schulterriemen

4. Produktüberschreitungview

The UT501A features a robust design suitable for field use. Its intuitive interface allows for easy selection of measurement functions and clear display of results.

4.1 Frontplatte

• LCD Anzeige: 2000-count display with backlight for clear readings in various lighting conditions.
• Funktionsdrehschalter: Used to select measurement modes (Insulation Resistance, AC Voltage, Low Resistance, etc.).
• Testknöpfe: Initiate and stop measurements.
• Eingangsklemmen: Connect test leads for various measurements.
• Überlastanzeige: Visual alert for measurement range exceeding limits.
• Warnlicht: Red light indicates high voltage output during insulation tests.

5. Einrichtung

5.1 Einlegen der Batterie

The UT501A is powered by batteries (type and quantity typically specified in the full manual, assume standard AA or AAA for general instruction). To install or replace batteries:

1. Ensure the tester is powered off and disconnect all test leads.
2. Suchen Sie die Abdeckung des Batteriefachs auf der Rückseite des Geräts.
3. Die Abdeckung abschrauben oder entriegeln und abnehmen.
4. Neue Batterien unter Beachtung der richtigen Polarität (+ und -) einlegen.
5. Setzen Sie den Batteriefachdeckel wieder auf und befestigen Sie ihn.

5.2 Anschließen der Testleitungen

Connect the test leads to the appropriate input terminals on the tester. For insulation resistance measurements, typically the red lead connects to the 'LINE' or 'VΩ' terminal and the black lead to the 'EARTH' or 'COM' terminal. Refer to the markings on the device for specific connections for different functions.

6. Bedienungsanleitung

Before any measurement, ensure the circuit under test is de-energized and safely isolated, unless performing AC voltage Messungen.

6.1 Isolationswiderstandsmessung

1. Turn the rotary switch to the desired insulation resistance test voltage (z. B. 100 V, 250 V, 500 V, 1000 V).
2. Connect the test leads to the circuit or component to be tested. Ensure proper contact.
3. Press and hold the 'TEST' button. The red warning light will illuminate, indicating high voltage Ausgabe.
4. Lesen Sie den Isolationswiderstandswert auf dem LCD-Display ab.
5. Release the 'TEST' button to stop the measurement. The circuit will automatically discharge.

6.2 AC-Voltage Messung

1. Turn the rotary switch to the 'ACV' position.
2. Connect the test leads to the points where AC voltage soll gemessen werden.
3. Die AC-Voltage value will be displayed on the LCD.

6.3 Messung niedriger Widerstände

1. Turn the rotary switch to the 'Ω' (Ohms) position.
2. Connect the test leads to the component or circuit for low resistance measurement.
3. Lesen Sie den Widerstandswert auf dem LCD-Display ab.

6.4 Polarisationsindex (PI) und dielektrisches Absorptionsverhältnis (DAR)

The UT501A can calculate PI and DAR, which are important indicators of insulation quality. These measurements typically involve taking insulation resistance readings at specific time intervals (e.g., 1 minute and 10 minutes for PI, 30 seconds and 60 seconds for DAR) and the meter automatically calculates the ratio. Refer to the detailed instructions in the full manual for specific steps on activating and interpreting these functions.

7. Wartung

7.1 Reinigung

Löschen Sie den Fall mit Anzeigeamp Mit einem Tuch und mildem Reinigungsmittel reinigen. Keine Scheuermittel oder Lösungsmittel verwenden. Das Gerät vor Gebrauch vollständig trocknen.

7.2 Speicherung

When not in use for extended periods, remove the batteries to prevent leakage. Store the tester and accessories in the provided carrying case in a cool, dry place, away from direct sunlight and extreme temperatures.

8. Fehlerbehebung

• Kein Display/Stromanschluss: Überprüfen Sie den Einbau und den Ladezustand der Batterien. Tauschen Sie die Batterien gegebenenfalls aus.
• Ungenaue Messwerte: Ensure test leads are properly connected and not damaged. Verify the correct function and range are selected. Clean test points.
• Überlastanzeige: The measured value exceeds the selected range. Select a higher range or verify the circuit conditions.
• Buzzer/Warning Light Active: Dies deutet auf ein hohes Volumen hintage output during insulation tests. This is normal during a test. If it persists after releasing the TEST button, ensure the circuit has discharged.

9. Spezifikationen

10. Gewährleistung

This product is sold without a manufacturer's warranty. Please refer to your retailer's return policy for any issues upon purchase.

11. Unterstützung

For further assistance or inquiries regarding the Generic UT501A Insulation Resistance Tester, please contact your point of purchase or the manufacturer's customer support channels if available. Always refer to the complete user manual provided with your device for the most detailed and up-to-date information.
