Devoko Elektrischer Steh-Sitz-Schreibtisch 160x80cm Benutzerhandbuch

Einführung

This manual provides comprehensive instructions for the assembly, operation, and maintenance of your Devoko Electric Sit-Stand Desk, Model 0077. Designed for ergonomic use, this adjustable height desk offers a versatile workspace for various activities.

Image: Devoko Electric Sit-Stand Desk in white, 160x80cm.

Hauptmerkmale

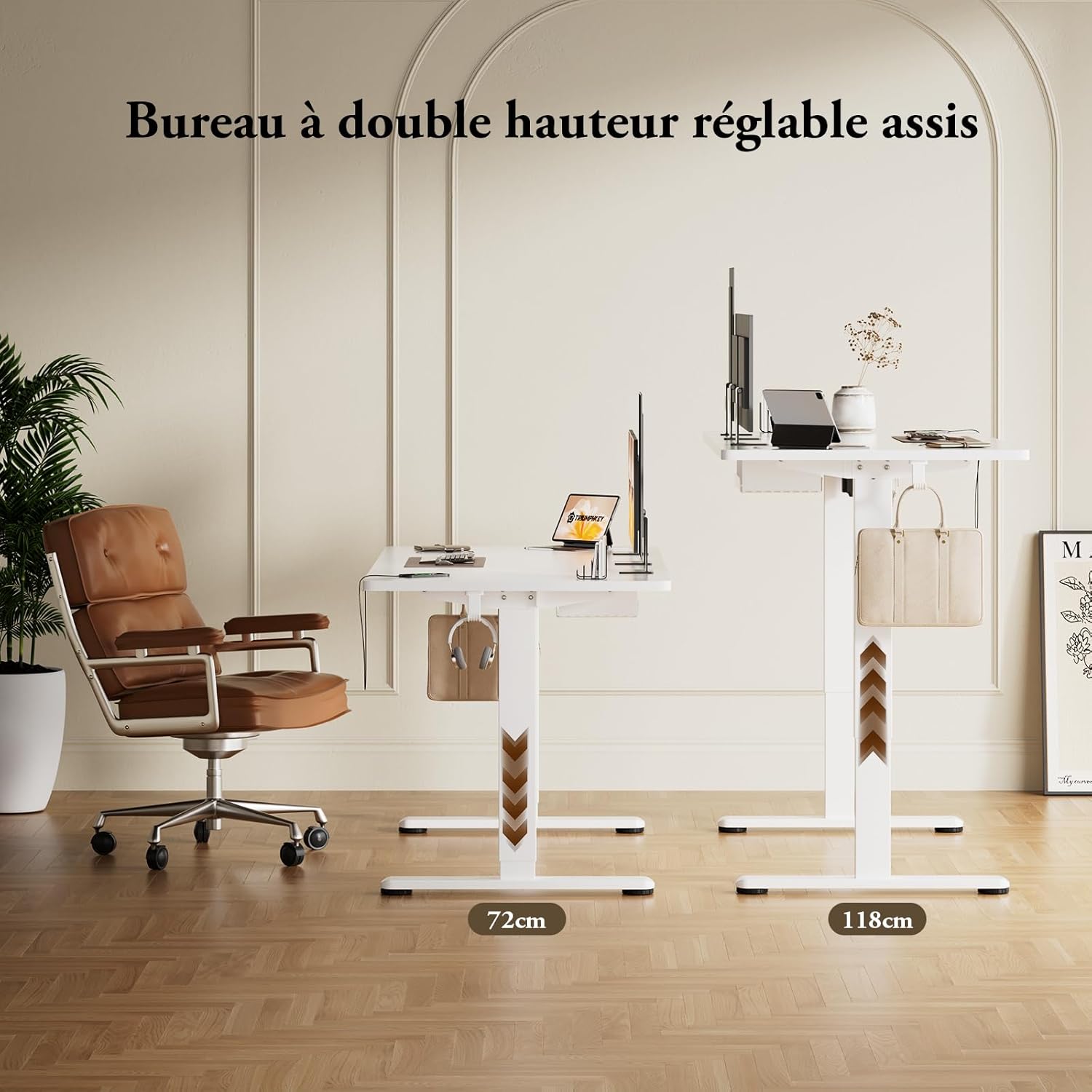

• Einstellbare Höhe: Seamlessly switch between sitting and standing positions with a height range of 72 cm to 118 cm.
• Intelligentes Bedienfeld: Features an LED display, 3 programmable memory presets for preferred heights, and up/down adjustment buttons.
• Integrated Type-C Charger: Laden Sie Ihre Geräte bequem direkt am Schreibtisch auf.
• Kabelmanagementsystem: Includes a cable storage box and two hooks to keep your workspace tidy and organized.
• Robuste Stabilität: T-shaped legs support up to 70 kg, ensuring a stable and durable work surface.
• Sicherheitsmerkmale: Equipped with anti-collision technology and overheating protection for secure operation.
• Leiser Betrieb: Motor operates at less than 50dB, allowing for a focused work environment.

Sicherheitshinweise

Please read and understand all safety instructions before operating the desk to prevent injury or damage.

• Use the desk responsibly and do not exceed the maximum load capacity of 70 kg.
• Stellen Sie sicher, dass der Schreibtisch auf einer stabilen und ebenen Fläche steht.
• Halten Sie Kinder und Haustiere während der Höhenverstellung vom Schreibtisch fern.
• Halten Sie während des Betriebs Ihre Hände und Gegenstände von beweglichen Teilen fern.
• In case of malfunction or unusual noise, immediately unplug the desk and contact customer support.
• The anti-collision feature is designed to prevent damage, but always exercise caution.

Packungsinhalt

Verify that all components are present before beginning assembly. If any parts are missing or damaged, please contact Devoko customer support.

Image: Illustration of desk components for assembly.

Komponentenliste:

• Rechtes Tischbein (x1)
• Linkes Tischbein (x1)
• Beinbasis (x2)
• Bedienfeld (x1)
• Seitenplatte (x2)
• Linke Querstange (x1)
• Rechte Querstange (x1)
• Übertragungsstange (x1)
• Anschluss (x1)
• Tabletop Sections (x4)
• Kabelmanagementwanne (x1)
• Kopfhöreraufhänger (x1)
• Cable Hole Covers (x2)
• Tabletop Connectors (J & M types)
• Wood Tips (for tabletop alignment)
• Various Screws (M6x11mm, M6x35mm, M8x12mm, M5x15mm)

Note: All mounting tools are not included. Please prepare a screwdriver for assembly.

Montageanleitung

Follow these steps carefully to assemble your Devoko Electric Sit-Stand Desk. It is recommended to have a second person assist with certain steps.

Schritt-für-Schritt-Anleitung:

1. Attach Right Crossbar: Secure the Right Crossbar (9) to the Right Table Leg (1) using M6x11mm screws (A).
2. Install Side Plate (Right): Attach one Side Plate (7) to the assembled right leg and crossbar using M8x12mm screws (C).
3. Attach Left Crossbar: Secure the Left Crossbar (8) to the Left Table Leg (2) using M6x11mm screws (A).
4. Install Side Plate (Left): Attach the second Side Plate (7) to the assembled left leg and crossbar using M8x12mm screws (C).
5. Connect Legs: Use the Connector (10) to join the two leg assemblies, securing it with M6x11mm screws (A).
6. Tischplatte zusammenbauen: Join the tabletop sections (11, 12, 13, 14) using the provided Wood Tips (F) for alignment.
7. Secure Tabletop Connectors: Attach the J and M Tabletop Connectors to the underside of the assembled tabletop using M5x15mm screws (E).
8. Beine an der Tischplatte befestigen: Carefully place the assembled leg frame onto the underside of the tabletop. Secure the legs to the tabletop using M5x15mm screws (E). Ensure the motor and control panel wiring are accessible.
9. Antriebsstange einbauen: Insert the Transmission Rod (4) to connect the motor mechanism between the two legs.
10. Mount Cable Management Tray: Attach the Cable Management Tray (15) to the underside of the desk using M5x12mm screws (D).
11. Beinfüße anbringen: Secure the Leg Bases (3) to the bottom of each table leg using M6x35mm screws (B).
12. Systemsteuerung installieren: Mount the Control Panel (5) to the front edge of the desk, typically on the right side, using M5x15mm screws (E). Connect the necessary cables from the motor and power supply.
13. Attach Headphone Hanger: Install the Headphone Hanger (K) to the desired location on the underside of the desk using M5x15mm screws (E).

Image: Cable management tray, headphone hooks, and adjustable feet.

Bedienungsanleitung

Your Devoko Electric Sit-Stand Desk is designed for intuitive operation. Familiarize yourself with the control panel functions.

Image: Control panel with height display, memory buttons, and USB-C port.

Höhenverstellung:

• Auf/Ab-Tasten: Press and hold the up (▲) or down (▼) arrow buttons on the control panel to adjust the desk height. Release the button when the desired height is reached. The current height will be displayed on the LED screen.

Speichervoreinstellungen:

• Festlegen einer Speicherposition: Adjust the desk to your desired height. Press the 'S' button, then press one of the numbered memory buttons (1, 2, or 3) within 3 seconds. The height is now saved to that preset.
• Abrufen einer Memory-Position: Press the corresponding numbered memory button (1, 2, or 3) to automatically move the desk to the saved height.

USB-C-Aufladung:

• Plug your compatible device into the Type-C port on the control panel to charge it.

Antikollisionssystem:

• The desk is equipped with an anti-collision system. If the desk encounters an obstacle during adjustment, it will automatically stop and reverse slightly to prevent damage.

Wartung

Regelmäßige Wartung gewährleistet die Langlebigkeit und optimale Leistung Ihres Schreibtisches.

• Reinigung: Wischen Sie die Schreibtischoberfläche und den Rahmen mit einem weichen, fusselfreien Tuch ab.amp Tuch. Vermeiden Sie Scheuermittel oder aggressive Chemikalien.
• Inspektion: Überprüfen Sie regelmäßig alle Schrauben und Verbindungen auf festen Sitz. Ziehen Sie sie gegebenenfalls nach.
• Kabelmanagement: Ensure cables are neatly organized within the cable management tray to prevent snagging or damage during height adjustments.
• Motorpflege: The motor is designed for durability. Avoid overloading the desk beyond its 70 kg capacity.

Fehlerbehebung

If you encounter any issues with your Devoko Electric Sit-Stand Desk, refer to the following common problems and solutions.

Sollte das Problem nach dem Ausprobieren dieser Lösungsansätze weiterhin bestehen, wenden Sie sich bitte an den Devoko-Kundendienst, um weitere Unterstützung zu erhalten.

Technische Daten

Garantie und Support

Your Devoko Electric Sit-Stand Desk comes with a lifetime warranty, ensuring peace of mind regarding its quality and durability. For any questions, technical support, or warranty claims, please contact Devoko customer service.

• Rückgaberecht: 30-day returns.
• Garantieart: Lebensdauer.
• Kundendienst: Refer to your purchase documentation or the Devoko brand store on Amazon for contact information.
