Binardat PoE Extender Passthrough Switch 100M 30W User Manual

Einführung

This manual provides detailed instructions for the Binardat PoE Extender Passthrough Switch, Model 100M 30W. This device is designed to extend Power over Ethernet (PoE) connections, allowing for flexible network deployment without the need for additional power outlets. It supports IEEE 802.3af/at standards and offers 10/100Mbps Ethernet connectivity.

Produkt überview

The Binardat PoE Extender is a versatile device that simplifies network installations by extending PoE signals. It features a robust metal casing and a plug-and-play design for ease of use.

Hauptmerkmale:

• PoE-Passthrough: 1 PoE In, 2 PoE Out ports with 10/100Mbps auto-adaptation.
• IEEE 802.3af/at Compliance: Supports standard PoE, with input/output up to 30W. PoE voltage 44-57 Vdc.
• Unmanaged Plug & Play: Automatic device detection, no configuration required.
• Drei-in-Eins-Funktionalität: Operates as a PoE Extender (PoE powered), Network Extender (DC 12V 0.5A input), or PoE Switch/Injector (DC 37-57V 0.5A input).
• Langlebiges Design: Metal case, LED indicators, fanless operation, and wall-mountable.

Packungsinhalt:

• 1 x Binardat PoE Extender Passthrough Switch (Model 100M 30W)
• Note: Power adapter for Network Extender or PoE Injector modes is not included.

Bild: Überview of the Binardat 3-Port 100M PoE Extender, highlighting its 1 PoE In and 2 PoE Out ports, IEEE802.3af/at support, 3-in-1 functionality, long distance PoE, plug and play, and daisy-chainable features.

Image: Diagram illustrating PoE+ IEEE802.3af/at support, showing how the extender powers PoE devices (IP Camera, Wireless AP, IP Phone) and connects to non-PoE devices (Router, Computer, NVR). It also shows the 30W per PoE out port and 48V port output voltage.

Aufstellen

The Binardat PoE Extender is designed for simple plug-and-play installation. Follow these steps to set up your device:

Verbindungsmodi:

1. PoE Extender Mode (Default):

   Connect a PoE switch or PoE injector to the "PoE In" port of the extender using an Ethernet cable. Then, connect your PoE-powered devices (e.g., IP cameras) to the "PoE Out1" and "PoE Out2" ports. No external power adapter is needed in this mode as the extender is powered by the incoming PoE signal.

2. Network Extender Mode:

   If you need to extend a network connection to a non-PoE device and do not require PoE output, you can use an optional DC 9-57V 0.5A power adapter (not included) connected to the "DC-In" port. Connect a non-PoE switch to the "PoE In" port, and your non-PoE device to an "EXT" port. This mode extends the network signal.
3. PoE Injector Mode:

   To provide PoE to devices from a non-PoE switch, connect an optional DC 37-57V 0.5A power adapter (not included) to the "DC-In" port. Connect your non-PoE switch to the "PoE In" port, and your PoE-powered devices to the "PoE Out1" and "PoE Out2" ports. The extender will inject power into the Ethernet lines.

Image: Detailed diagram showing the three operational modes: 1) PoE Extender (without adapter), 2) Network Extender (with optional DC 9-57V adapter), and 3) PoE Injector (with optional DC 37-57V adapter). Each mode illustrates the connections between PoE switches, non-PoE switches, the extender, and cameras, indicating maximum distances.

Wandmontage: The extender features mount ears for easy wall installation. Secure the device to a suitable surface using appropriate screws (not included).

Image: Illustrates the "Well Designed" aspects of the extender, including 3KV lighting protection, metal housing for good heat dissipation, plug-and-play functionality, and wall-mountable design.

Bedienungsanleitung

Once connected, the Binardat PoE Extender operates automatically. Here's how to understand its status:

LED-Anzeigen:

• PoE LED (Left, Orange):
  • Orange: Indicates Power over Ethernet (PoE) is supplied to Powered Devices (PDs).
  • AUS: No PoE is supplied to PDs.
• Link LED (Right, Green):
  • Grün: Indicates a normal network signal connection.
  • AUS: Keine Netzwerkverbindung erkannt.

The device supports 8-pin simultaneous PoE input, utilizing pins 1/2/4/5 for positive power and 3/6/7/8 for negative power, ensuring stable power delivery.

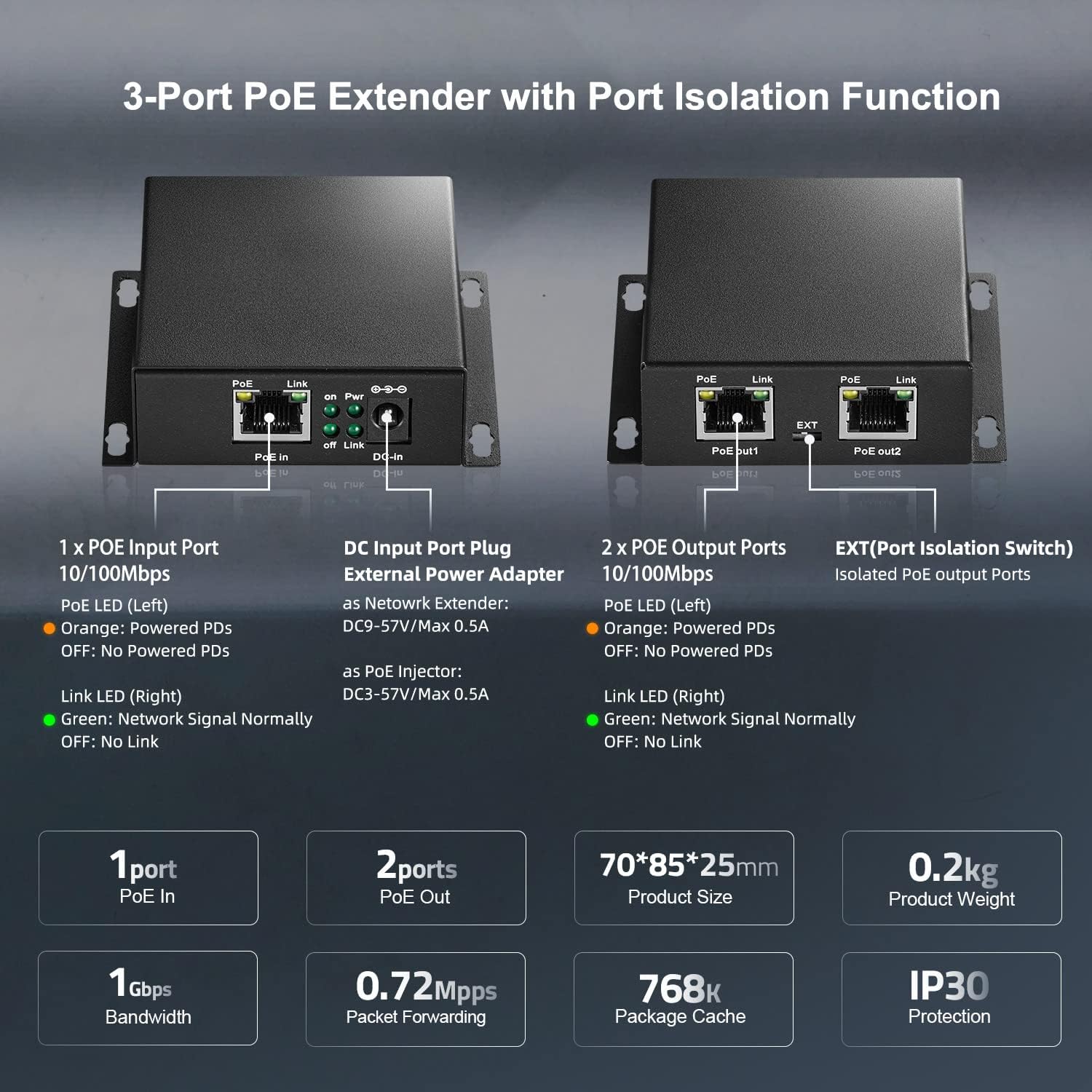

Bild: Detailliert view of the 3-Port PoE Extender with Port Isolation Function. It labels the 1 x PoE Input Port, DC Input Port, and 2 x PoE Output Ports, along with their respective LED indicators (PoE LED and Link LED). Also displays product size (70*85*25mm), weight (0.2kg), IP30 protection, 1Gbps bandwidth, 0.72Mpps packet forwarding, and 768K package cache.

Image: Diagram illustrating the 8-pin simultaneous PoE input, showing pin assignments for positive (1/2/4/5) and negative (3/6/7/8) power supply, and signal lines on pins 1/2/3/6.

Wartung

To ensure optimal performance and longevity of your Binardat PoE Extender, follow these maintenance guidelines:

• Reinigung: Reinigen Sie die Außenseite des Geräts mit einem weichen, trockenen Tuch. Verwenden Sie keine flüssigen oder Aerosol-Reinigungsmittel.
• Umfeld: Operate the device in a well-ventilated area. The metal casing is designed for good heat dissipation, but avoid obstructing ventilation.
• Kabelmanagement: Ensure all Ethernet cables are securely connected and not under excessive strain.
• Stromversorgung: If using an external power adapter for Network Extender or PoE Injector modes, ensure it meets the specified voltage und aktuelle Anforderungen.
• Schutz: The device features 3KV lighting protection, but it is still recommended to disconnect the device during electrical storms.

Fehlerbehebung

If you encounter issues with your Binardat PoE Extender, refer to the following troubleshooting steps:

• Kein Strom/LEDs aus:
  • Ensure the incoming PoE source (PoE switch/injector) is active and providing power.
  • Check the Ethernet cable connecting the PoE source to the "PoE In" port for damage or improper connection.
  • If using an external DC adapter (for Network Extender or PoE Injector modes), verify it is correctly connected and providing the specified voltage.
• No Network Link (Link LED Off):
  • Verify that the Ethernet cables connected to the "PoE In" and "PoE Out" ports are functional and properly seated.
  • Ensure the connected network devices (e.g., cameras, switches) are powered on and operating correctly.
  • Testen Sie es mit verschiedenen Ethernet-Kabeln, um Kabelprobleme auszuschließen.
• PoE Device Not Receiving Power (PoE LED Off):
  • Confirm that the incoming PoE source is providing sufficient power (up to 30W).
  • Ensure the connected device is a standard IEEE 802.3af/at PoE-powered device. This extender does nicht support passive 24V PoE.
  • Check the power requirements of your PoE device; if it exceeds 30W, it may not function correctly.
• Langsame Netzwerkgeschwindigkeit:
  • Ensure all connected devices and cables support 10/100Mbps speeds.
  • Check for excessive network traffic or other bottlenecks in your network.

Technische Daten

Garantie und Support

Garantie: The Binardat PoE Extender Passthrough Switch comes with a 1 Jahr Garantie ab Kaufdatum. Diese Garantie deckt Material- und Verarbeitungsfehler bei normalem Gebrauch ab.

Unterstützung: For technical assistance, troubleshooting, or warranty claims, please contact Binardat customer support through the retailer's platform or the official Binardat webBitte halten Sie Ihre Produktmodellnummer und die Kaufinformationen bereit, wenn Sie den Support kontaktieren.
