GOOZEEZOO MRA-821 Portable Shortwave Radio Loop Antenna User Manual

1. Einleitung

The GOOZEEZOO MRA-821 is a portable shortwave radio loop antenna designed to enhance reception for shortwave (SW) and FM bands. It features a built-in signal amplification circuit and noise suppression capabilities to improve listening quality. This manual provides instructions for the proper setup, operation, and maintenance of your MRA-821 antenna.

2. Sicherheitshinweise

  • Außenaufstellung: If installing outdoors, ensure proper waterproofing for all connections and components to prevent water damage.
  • Blitzschutz: For outdoor installations, implement appropriate lightning protection measures to safeguard the antenna and connected equipment.
  • Energiequelle: Use only the specified power source for the antenna's ampifizierungsschaltung.
  • Handhabung: Handle the antenna components with care to avoid damage.

3. Packungsinhalt

Bitte überprüfen Sie, ob alle Komponenten in Ihrem Paket vorhanden sind:

  • MRA-821 Main Antenna Unit (with tuning box)
  • Loop Element
  • Coaxial Cable (for connecting to radio)
  • Power Cable/Adapter (if applicable, for amplifizierer)

4. Einrichtungsanweisungen

Follow these steps to set up your MRA-821 antenna:

  1. Den Kreislauf zusammensetzen: Connect the loop element to the main antenna unit's designated connectors. Ensure a secure connection.
  2. Positionieren Sie die Antenne: For optimal reception, it is recommended to install the antenna outdoors. Choose a location free from obstructions and away from sources of electrical interference. If outdoor installation is not feasible, position it near a window.
MRA-821 Portable Shortwave Radio Loop Antenna assembled and mounted
Figure 4.1: Assembled MRA-821 antenna mounted on a stand. The loop element is connected to the main unit, which is then connected to a coaxial cable.
  1. Verbindung zum Radio herstellen: Connect one end of the coaxial cable to the main antenna unit's coaxial connector (typically an SO-239 or BNC type).
Seite view of MRA-821 main unit showing coaxial connector
Abbildung 4.2: Seite view of the MRA-821 main unit, highlighting the coaxial connector for radio connection.
  1. Connect the other end of the coaxial cable to the antenna input of your shortwave radio receiver.
  2. Einschalten: If your antenna unit requires external power for its amplifier, connect the power cable/adapter and turn it on.

5. Bedienungsanleitung

To achieve the best reception with your MRA-821 antenna:

  1. Tune Your Radio: Select the desired frequency band on your shortwave radio receiver.
  2. Tune the Antenna: The MRA-821 features a tuning knob on the main unit. Slowly rotate this knob to fine-tune the antenna to the specific frequency you are listening to. You will notice an improvement in signal strength and clarity as you approach the optimal tuning point.
Front view of MRA-821 main unit with tuning knob
Abbildung 5.1: Vorderseite view of the MRA-821 main unit, showing the tuning knob used to adjust the antenna for optimal reception.

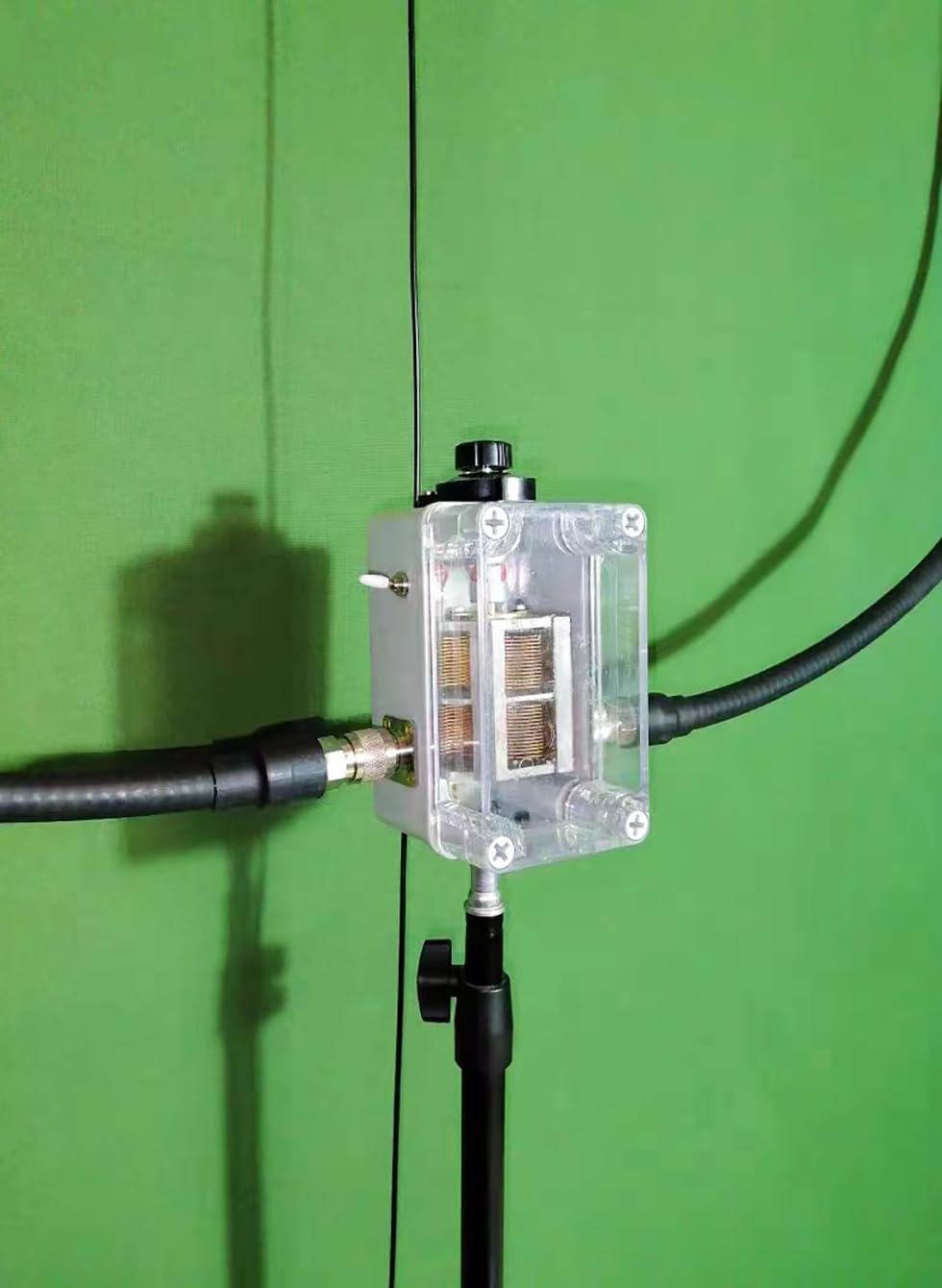

Seite view of MRA-821 main unit with clear cover showing internal components and tuning knob
Abbildung 5.2: Seite view of the MRA-821 main unit, showing the clear cover over internal components and the tuning knob on top.
  1. Optimize Orientation: For loop antennas, rotating the antenna horizontally can sometimes help reduce noise or improve signal directionality. Experiment with the antenna's orientation for best results.
  2. Rauschunterdrückung: The built-in noise suppression circuit works automatically to reduce interference. Proper tuning and placement will further enhance its effectiveness.

6. Spezifikationen

ModellMRA-821
Frequenzbereich (SW)3.5 - 22 MHz (operates on 7, 10, 14, 21 meter bands)
Frequenzbereich (FM)76 - 108 MHz
AntennentypPortable Shortwave Radio Loop Antenna
MerkmaleEingebautes Signal amplification, noise suppression circuit
Technische Daten5"L x 5"B x 2"H (Haupteinheit)

7. Wartung

  • Reinigung: Wipe the antenna unit with a soft, dry cloth. Do not use harsh chemicals or abrasive cleaners.
  • Verbindungen: Periodically check all cable connections to ensure they are secure and free from corrosion, especially for outdoor installations.
  • Lagerung: When not in use for extended periods, store the antenna in a dry, cool place, protected from direct sunlight and extreme temperatures.

8. Fehlerbehebung

  • Schlechter Empfang:
    • Ensure the antenna is properly tuned to the desired frequency using the tuning knob.
    • Check all cable connections between the antenna and the radio.
    • Relocate the antenna to a higher position or away from potential interference sources (e.g., computers, fluorescent lights).
    • If installed indoors, try moving it closer to a window or outdoors.
  • Übermäßiger Lärm:
    • Adjust the antenna's tuning knob carefully.
    • Try rotating the antenna to find an orientation that minimizes noise.
    • Identify and eliminate local sources of electrical noise.
  • Kein Signal:
    • Verify that the antenna's amplifier (if applicable) is powered on.
    • Confirm that the coaxial cable is securely connected to both the antenna and the radio.
    • Test with a different coaxial cable if available.

9. Garantie und Support

The GOOZEEZOO MRA-821 antenna comes with a 1 Jahr Herstellergarantie. For warranty claims or technical support, please contact GOOZEEZOO customer service through the retailer where the product was purchased or visit the official GOOZEEZOO webWebsite für Kontaktinformationen.
