MOKPR CA001 Wireless Auto-Clamping Car Charger Mount

Einführung

The MOKPR CA001 Wireless Auto-Clamping Car Charger Mount is designed to provide convenient and efficient wireless charging for your smartphone while driving. It features intelligent auto-clamping arms, precise alignment for optimal charging, and a secure air vent mounting system. This manual provides detailed instructions for setup, operation, and maintenance to ensure proper use of your device.

Packungsinhalt

• 1 x MOKPR Wireless Car Charger Mount
• 1 x Entlüftungsclip
• 1 x USB-C Charging Cable (for power supply to the mount)
• 1 x Benutzerhandbuch

Installationsanweisungen

Follow these steps to properly install your MOKPR Wireless Car Charger Mount:

1. Montieren Sie die Halterung:
   Unscrew the nut from the air vent clip. Pass the nut through the ball head of the charger mount. Push the ball head into the joint on the back of the charger mount. Tighten the nut clockwise to secure the ball head.
2. An der Entlüftungsöffnung befestigen:
   Hook the air vent clip onto one of your car's air outlet blades. Ensure the clip is firmly attached. Flip the grip release knob down to lock the mount securely in place. The clip features a 3-level adjustable grip for various vent thicknesses.
3. Strom anschließen:
   Plug the provided USB-C charging cable into the port at the bottom of the charger mount. Connect the other end of the USB-C cable to a QC 3.0 car charger adapter (not included) plugged into your car's cigarette lighter port or a compatible USB port in your vehicle.

Figure 1: Assembly and Air Vent Attachment Steps

Abbildung 2: Stromanschlussdiagramm

Bedienungsanleitung

Once the charger mount is installed and powered on, it is ready for use:

1. Platzierung Ihres Telefons:
   The charger's arms and foot will auto-open after connecting to power. Simply place your phone into the mount. The built-in advanced sensor will intelligently identify your device, adjust your phone to the best charging area, and auto-clamp fest.
2. Releasing Your Phone:
   To release your phone, press one of the release buttons located on either side of the charger mount. The arms will automatically open, allowing you to remove your phone. The mechanism retains some power to allow release even after the car engine is turned off.
3. Anpassen Viewing-Winkel:
   The mount features a 360° rotating sphere, allowing you to adjust your phone to the most comfortable and safest GPS navigation and viewing-Winkel.

Figure 3: Phone in Mount and Charging

Figure 4: Auto-ClampMechanismus

Merkmale

• Auto-Precise Alignment Charging: Built-in advanced sensor adjusts the phone to the optimal charging area for improved efficiency.
• Upgraded Intelligent Auto-Clamping: Arms and foot automatically open upon power connection and firmly clamp the phone when placed, eliminating manual adjustment.
• 360° Drehung: Allows for flexible adjustment to achieve the most comfortable and safest viewing angle for GPS navigation.
• Secure & Stable Mount: Features a strong vent clip and innovative hollow silicone rubber to hold your phone securely, even on bumpy roads, without interfering with phone buttons.
• FOD Function & Case Friendly: Wireless charging technology and a large coil maximize charging output. Supports charging through phone cases up to 4mm thick. FOD (Foreign Object Detection) prevents abnormal charging; remove metal/magnetic objects, credit cards, or pop holders before charging.

Figure 5: Auto-Precise Alignment and Charging Efficiency

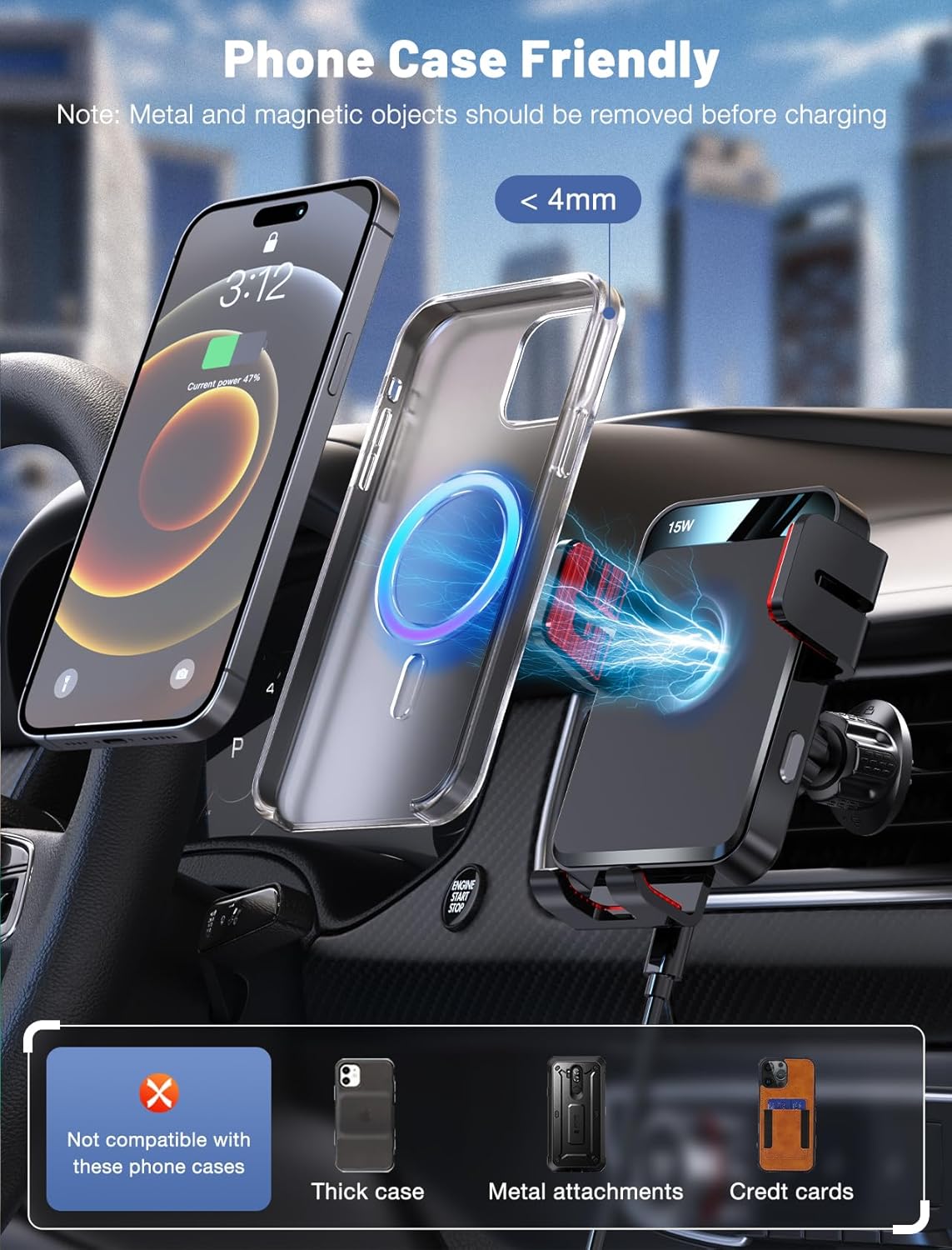

Figure 6: Phone Case Compatibility and FOD Warning

Kompatibilität

The MOKPR CA001 Wireless Car Charger Mount supports various fast charging outputs:

• 15-W-Schnellladung kabellos: For LG V50/V40/V30/G8/G7.
• 10-W-Schnellladung kabellos: For Samsung Galaxy S23 Ultra/S23+/S23/S22 Ultra/S22/S21/S20/Note 20/Note 10+/Note 10.
• 7.5-W-Schnellladung kabellos: For iPhone 17/16/15/14/14 Plus/14 Pro/14 Pro Max/13/13 Pro/12 Pro Max/12 Pro/12/11/11 Pro/11 Pro Max/SE/XS/X/XR/8 Plus/8.
• 5W Standard-Wireless-Laden: For other wireless charging compatible phones (requires a 5V/2A adapter).

Notiz: 15W/10W/7.5W Fast Charging requires a QC 3.0 car charger (NOT INCLUDED).

Wartung

To ensure the longevity and optimal performance of your MOKPR Wireless Car Charger Mount, follow these maintenance guidelines:

• Reinigung: Use a soft, dry cloth to wipe the surface of the charger mount. Avoid using abrasive cleaners or solvents that may damage the finish.
• Vent Clip Care: Periodically check the air vent clip for any debris or looseness. Ensure it remains securely attached to the air vent.
• Kabelmanagement: Keep the charging cable neatly organized to prevent tangling or damage. Avoid sharp bends or excessive pulling on the cable.
• Lagerung: If not in use for an extended period, store the charger mount in a cool, dry place away from direct sunlight and extreme temperatures.

Fehlerbehebung

If you encounter any issues with your MOKPR Wireless Car Charger Mount, refer to the following common troubleshooting tips:

• Ladegerät schaltet sich nicht ein:
  Ensure the USB-C cable is securely connected to both the charger mount and the car charger adapter. Verify that the car charger adapter is properly plugged into the car's power outlet and that the car's ignition is on.
• Telefon wird nicht aufgeladen:
  Check if your phone is wirelessly charging compatible. Ensure there are no metal objects, magnetic attachments, credit cards, or pop holders between your phone and the charger, as these can interfere with wireless charging (FOD function). Make sure your phone is centered on the charging area.
• Langsamer Ladevorgang:
  Ensure you are using a QC 3.0 car charger adapter (not included) for fast charging. Standard USB ports or adapters may provide slower charging speeds.
• Auto-ClampFunktioniert nicht:
  Verify the charger mount is powered on. Ensure no obstructions are blocking the sensor or the clamparme Arme.
• Mount is Loose:
  Re-tighten the nut on the ball head and ensure the air vent clip's grip release knob is fully engaged and locked onto the air vent blade.

Technische Daten

Garantie und Support

For warranty information or technical support, please refer to the contact details provided in the product packaging or on the official MOKPR webWebsite. Bewahren Sie Ihren Kaufbeleg für Garantieansprüche auf.
