Pipishell Full Motion TV Wall Mount with Extension Bracket Instruction Manual

1. Wichtige Sicherheitshinweise

Please read these instructions carefully before installation. If you do not understand these instructions or have doubts about the safety of the installation, please contact a qualified installer. The manufacturer is not responsible for damage or injury caused by incorrect mounting or operation.

• Gewichtskapazität: This TV wall mount is designed for TVs weighing up to 110 kgDieses Gewichtslimit darf nicht überschritten werden.
• Kompatibilität der TV-Größe: Kompatibel mit den meisten 40-82 Zoll flat or curved TVs.
• VESA-Kompatibilität: Supports VESA mounting patterns from 200 x 100 mm bis 600 x 400 mm. Verify your TV's VESA pattern before installation.
• Wandtyp: Diese Halterung ist für die Montage an folgenden Gegenständen vorgesehen: Holzstollen or massive Beton-/Ziegelwände. NICHT ausschließlich auf Trockenbauwänden installieren.
• UL-gelistet: This product is UL Listed, indicating it meets specific safety standards.

Image 1.1: Reinforced stability of the mount, highlighting heavy-duty steel arms and UL certification for safety and durability.

2. Packungsinhalt

Please check to ensure all components are present and undamaged before beginning installation. If any parts are missing or defective, contact Pipishell customer service.

2.1 Benötigtes Werkzeug (nicht im Lieferumfang enthalten)

• Bleistift
• Bolzenfinder
• Drill with appropriate drill bits (e.g., 5/32" (4mm) for wood studs, 3/8" (10mm) for concrete)
• Ebene
• Bandmaß
• Steckschlüssel oder verstellbarer Schraubenschlüssel
• Kreuzschlitzschraubendreher

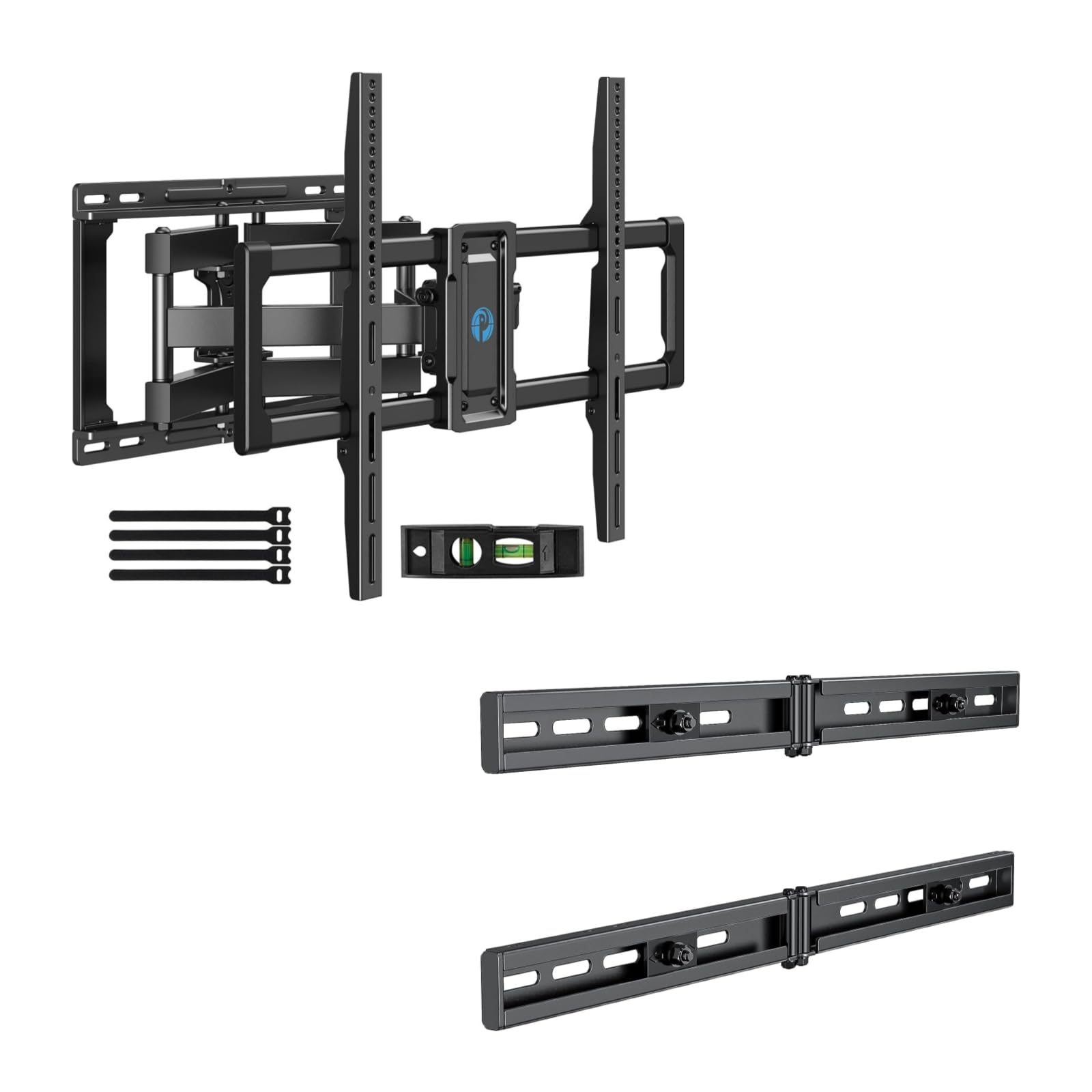

2.2 Hardware and Components (Included)

• Wandplattenbaugruppe
• TV-Halterungen (2)
• Extension Brackets (2)
• Various TV Screws, Washers, and Spacers (M4, M6, M8)
• Lag Bolts and Concrete Anchors
• Wasserwaage
• Kabelbinder

3. Einrichtung und Installation

3.1 Prüfungen vor der Installation

1. Verify your TV's weight, size, and VESA pattern are within the mount's specifications.
2. Bestimmen Sie die gewünschten viewing height for your TV.
3. Locate the wall studs using a stud finder. Mark the center of the studs.

3.2 Anbringen der Wandplatte

The extension bracket feature allows for installation on wood studs with spacing between 16 and 24 inches.

1. Position the wall plate assembly on the wall at your desired height, ensuring it is level. Mark the drill holes.
2. For wood stud installation, drill pilot holes (e.g., 5/32" or 4mm) into the center of the studs. For concrete/brick, drill pilot holes (e.g., 3/8" or 10mm) and insert concrete anchors.
3. Attach the wall plate to the wall using the provided lag bolts. Tighten securely.

Image 3.1: The extended wall plate design provides a flexible solution for mounting on walls with stud spacing between 16 and 24 inches.

Image 3.2: This feature helps center your TV for optimal viewing, even when wall studs are not perfectly centered.

3.3 Anbringen der TV-Halterungen am Fernseher

1. Legen Sie Ihren Fernseher vorsichtig mit dem Bildschirm nach unten auf eine weiche, saubere Oberfläche.
2. Select the appropriate screws, washers, and spacers for your TV's VESA mounting holes.
3. Attach the two TV brackets to the back of your TV. Ensure they are securely fastened and evenly spaced.

3.4 Montage des Fernsehers an der Wandplatte

1. With assistance, carefully lift the TV and hook the TV brackets onto the wall plate.
2. Stellen Sie sicher, dass der Fernseher fest auf der Wandhalterung sitzt.
3. Tighten the safety screws or locking mechanisms on the TV brackets to prevent accidental dislodgement.

4. Bedienung der TV-Halterung

This full motion mount allows for flexible adjustment to achieve the best viewing-Winkel.

4.1 Schwenkverstellung

The mount allows for a swivel range of +/-45°. Gently push or pull the TV to the desired left or right angle.

Image 4.1: The mount offers a smooth swivel motion of up to 45 degrees in either direction for flexible viewing.

4.2 Neigungseinstellung

Adjust the tilt angle from +5° bis -15° to reduce glare and optimize viewing. This adjustment is tool-free.

Image 4.2: Easily adjust the TV's vertical angle from +5° to -15° without tools to minimize glare and improve comfort.

4.3 Verlängerung und Einzug

The mount allows the TV to extend from the wall by 2.89 Zoll bis 16.3 Zoll. Gently pull the TV forward or push it back towards the wall to adjust the distance.

Image 4.3: Adjust the TV's distance from the wall, extending up to 16.3 inches or retracting to 2.89 inches for optimal viewRaum.

5. Wartung

• Regelmäßige Kontrollen: Überprüfen Sie regelmäßig alle Schrauben und Verbindungen, um sicherzustellen, dass sie fest und sicher sind.
• Reinigung: Reinigen Sie die Halterung mit einem weichen, trockenen Tuch. Vermeiden Sie scheuernde Reiniger oder Lösungsmittel.
• Schmierung: The moving parts are designed for smooth operation. No lubrication is typically required. If movement becomes stiff, check for debris or loose components.

6. Fehlerbehebung

• Der Fernseher ist nicht waagerecht: Check the level of the wall plate during installation. Most mounts have a post-installation leveling adjustment. Refer to the specific mechanism on your mount.
• Difficulty adjusting swivel/tilt/extension: Ensure no cables are snagged or obstructing movement. Check if any adjustment knobs or screws are overtightened. The mount features improved torque accuracy for smoother movement.
• Die Halterung sitzt locker an der Wand: Immediately remove the TV from the mount. Re-check all wall plate fasteners and ensure they are securely anchored into the studs or concrete. If issues persist, consult a professional installer.
• TV brackets do not fit TV: Verify your TV's VESA pattern matches the mount's compatibility (200x100mm to 600x400mm). Ensure you are using the correct screws and spacers for your TV model.

7. Spezifikationen

8. Garantie und Kundendienst

Pipishell products are designed for durability and performance. For warranty information or technical assistance, please contact Pipishell customer support through their official webWebsite oder den Händler, bei dem das Produkt gekauft wurde.

Bitte halten Sie bei Kontaktaufnahme mit dem Support Ihr Produktmodell und das Kaufdatum bereit.
