KEN BROWN 24 Inch Shutter Exhaust Fan with Speed Controller User Manual

1. Produktüberschreitungview

The KEN BROWN 24 Inch Shutter Exhaust Fan is engineered to provide effective ventilation for a variety of spaces. It efficiently removes heat, moisture, dust, and odors, contributing to a cleaner and more comfortable environment. This fan is suitable for residential, commercial, industrial, and agricultural applications, including attics, workshops, factories, warehouses, barns, and greenhouses.

Constructed with high-grade aluminum shutters and blades, the fan is designed for durability and resistance to corrosion, making it ideal for demanding conditions. Its automatic gravity shutters open and close with fan operation, enhancing efficiency. The included variable speed controller allows for precise airflow adjustment from 65% to 100% speed, ensuring optimal ventilation tailored to your specific needs.

Figure 1: KEN BROWN 24 Inch Shutter Exhaust Fan with Speed Controller.

2. Wichtige Sicherheitshinweise

Please read and understand all safety instructions before installing, operating, or maintaining this product. Failure to follow these instructions may result in electric shock, fire, property damage, or personal injury.

• Elektrische Sicherheit: Ensure the power supply matches the fan's requirements (120V/60Hz). Always unplug the fan from the power source before performing any service or maintenance. Do not operate the fan with a damaged cord or plug.
• Installation: Installation should be performed by a qualified electrician or a knowledgeable individual in accordance with all local and national electrical codes. Securely mount the fan to a stable structure to prevent it from falling.
• Betrieb: Keep hands, hair, clothing, and loose objects away from moving parts during operation. Do not insert fingers or foreign objects into the fan grille.
• Umfeld: Do not use this fan in areas where flammable liquids or gases are stored or present. Ensure adequate clearance around the fan for proper airflow and to prevent obstruction.
• Kinder und Haustiere: Keep children and pets away from the fan during operation and ensure it is installed out of their reach.

3. Produktkomponenten

The KEN BROWN 24 Inch Shutter Exhaust Fan package includes the following main components:

• 24 Inch Shutter Exhaust Fan Unit
• Regler mit variabler Geschwindigkeit
• Pre-installed 1.65m (5.4ft) Power Cord
• Aluminum Shutters (automatic gravity type)
• Aluminum Alloy Blades
• Rahmen aus verzinktem Stahl

Abbildung 2: Explosionsdarstellung view illustrating the main components of the exhaust fan, including the motor, blades, frame, and shutters.

4. Technische Daten

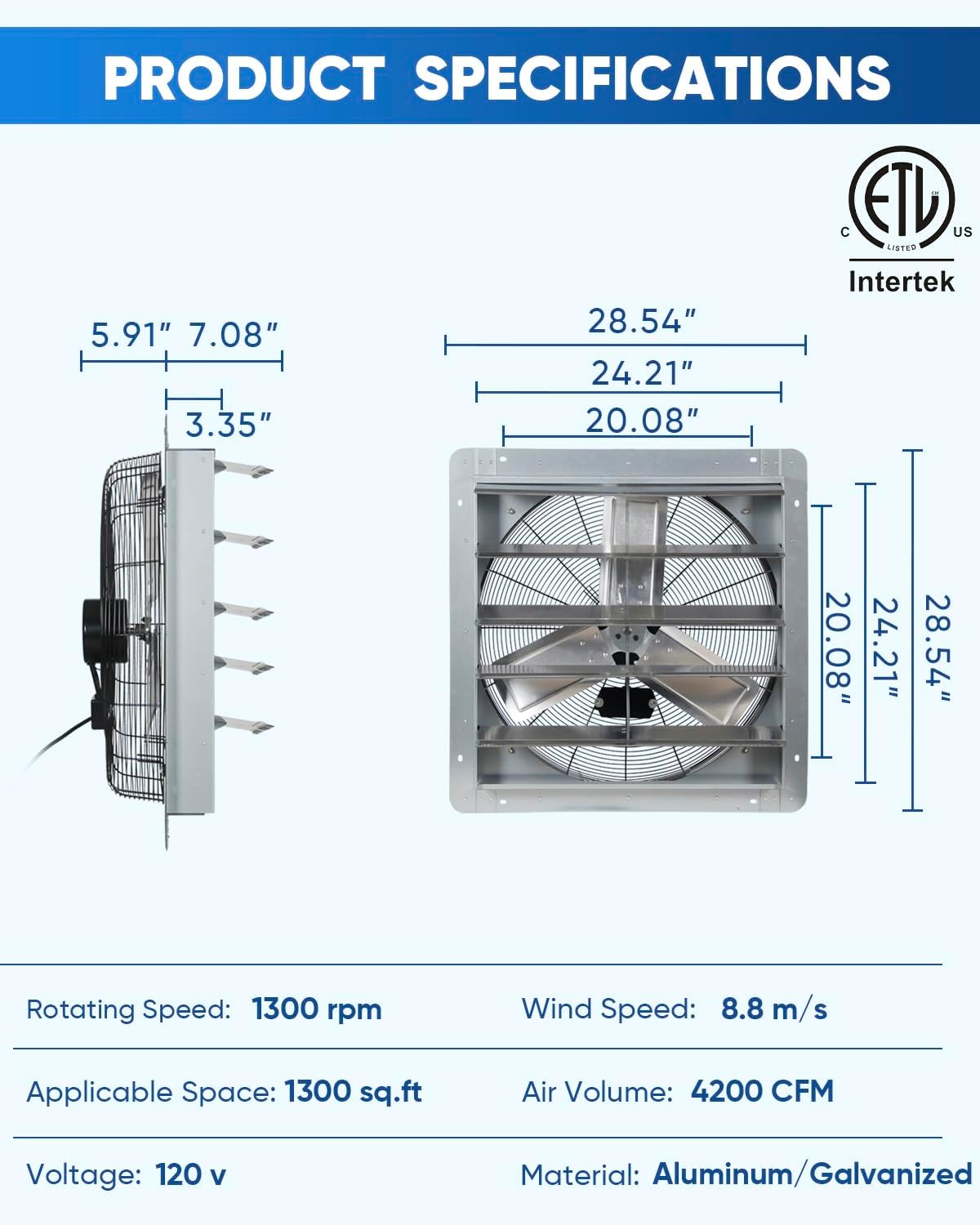

Abbildung 3: Detaillierte Produktabmessungen und wichtige Spezifikationen.

5. Installationsanleitung

The KEN BROWN 24 Inch Shutter Exhaust Fan is designed for straightforward installation with its pre-installed power cord, eliminating the need for complex wiring or assembly. Follow these steps for a quick setup:

1. Auspacken: Carefully remove the fan and all components from the packaging. Inspect for any damage.
2. Ort auswählen: Choose a suitable wall or opening for mounting. Ensure the location allows for proper airflow and is structurally sound to support the fan's weight. Consider areas like attics, garages, greenhouses, or workshops.
3. Position und Markierung: Hold the fan unit against the desired mounting surface. Use the pre-drilled holes on the fan frame as a template to mark the drilling locations on the wall.
4. Sichere Montage: Drill pilot holes at the marked locations. Securely fasten the fan to the wall using appropriate mounting hardware (not included, as wall types vary). Ensure the fan is level and firmly attached.
5. Strom anschließen: The fan comes with a pre-installed 1.65m (5.4ft) power cord. Simply plug the cord into a standard 120V/60Hz electrical outlet. No additional wiring is required.
6. Speed Controller Placement: Position the variable speed controller in an easily accessible location. The controller also has a 5.4ft cord, providing flexibility for placement.

Figure 4: Visual representation of the "Plug and Play" installation process.

Abbildung 5: Installation Bspamples in a greenhouse and on an exterior wall, demonstrating versatility.

6. Bedienungsanleitung

The KEN BROWN exhaust fan features an intuitive speed controller for easy operation. The automatic gravity shutters will open when the fan is active and close when it is off, preventing backdraft.

Using the Speed Controller:

• Stromschalter: The controller has a main switch with three positions:
  • "I" (Full Speed): Activates the fan at 100% speed.
  • "O" (Aus): Schaltet den Ventilator aus.
  • "II" (Variable Speed): Engages the variable speed function, allowing adjustment via the rotary knob.
• Rotary Knob (Variable Speed Mode): When the main switch is set to "II", rotate the knob to adjust the fan speed from 65% (Low, "L") to 100% (High, "H"). This allows for customized airflow based on your ventilation needs.
• Mit Sicherung geschützt: The speed controller is fuse-protected for enhanced safety.

Figure 6: Close-up of the variable speed controller, showing the power switch and rotary knob.

Figure 7: Illustration of the fan's function in removing dust, heat, odor, and humidity from an enclosed space.

Abbildung 8: Bspamples of common installation locations within a home, such as the attic, rooms, and garage.

7. Wartung

Regular maintenance ensures the longevity and optimal performance of your KEN BROWN exhaust fan. Always disconnect power before cleaning or servicing.

• Cleaning Blades and Shutters: Periodically clean the fan blades and automatic shutters to prevent dust and debris buildup, which can reduce efficiency and cause imbalance. Use a soft cloth and mild detergent.
• Motor: The fan features a fully sealed ball bearing motor that is permanently lubricated, requiring no additional lubrication.
• Inspektion: Regularly inspect the power cord for any signs of damage. Check mounting hardware to ensure the fan remains securely attached.
• Korrosionsbeständigkeit: The aluminum shutters and blades, along with the galvanized steel frame, are designed to be corrosion-resistant. However, regular cleaning in high-moisture environments is recommended.

Figure 9: Illustration of the fan's durable construction, highlighting the automatic gravity shutters and sealing sponge.

8. Anleitung zur Fehlerbehebung

If you encounter issues with your KEN BROWN exhaust fan, refer to the following common problems and solutions:

9. Garantie und Kundendienst

KEN BROWN stands behind the quality of its products. This exhaust fan is backed by a 5 Jahr Garantie, ensuring your satisfaction and peace of mind.

For any questions, technical assistance, or warranty claims, please contact KEN BROWN customer service. Our dedicated team is available to provide support and ensure your complete satisfaction.

Please refer to your purchase documentation or the official KEN BROWN webDie aktuellsten Kontaktinformationen finden Sie auf dieser Webseite.
