Benutzerhandbuch: LogiLink Wildkamera WC0065

Einführung

Welcome to the user manual for your LogiLink Trail Camera. This camera is designed for capturing high-quality photos and videos of wildlife, monitoring your property, or for general outdoor surveillance. Its robust design and advanced features make it suitable for various outdoor environments.

The LogiLink Trail Camera WC0065 features a durable camouflage casing, designed to blend seamlessly into outdoor environments for discreet monitoring.

Hauptmerkmale

• Full HD 1080p Videoauflösung
• Up to 16 Megapixel Photo Resolution
• 90° Wide-Angle Infrared (IR) Detection Zone
• 0.8 Second Fast Trigger Speed
• Night Vision with 15m Range
• Motion and Heat Detection (PIR Sensor)
• Wasserdichtigkeit nach IP66
• Integrated 2" Color LCD Screen
• Unterstützt microSD/microSDHC-Karten bis zu 32 GB

This diagram highlights the camera's core features, including IR LEDs for night vision, high-quality 16MP images and 1080p videos, and a 90-degree PIR sensor with a range of up to 15 meters.

Packungsinhalt

Bitte überprüfen Sie das Paket, um sicherzustellen, dass alle Artikel vorhanden sind:

• 1 x LogiLink Trail Camera (WC0065)
• 1 x Fastening Strap
• 1 x USB-Kabel
• 1 x Benutzerhandbuch

Kamera überview

Familiarize yourself with the different parts of your trail camera.

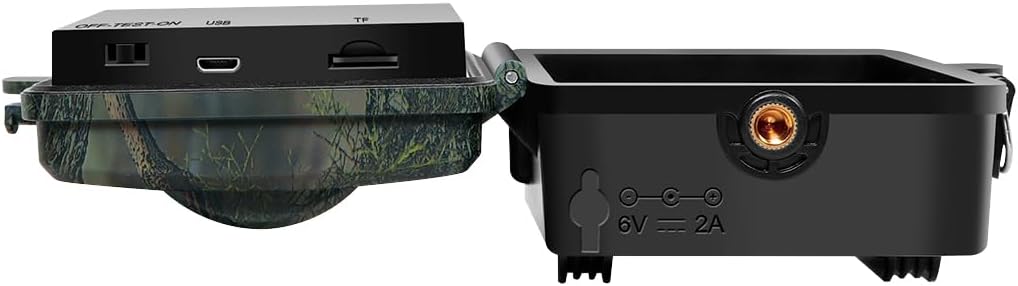

This image illustrates the various ports and components on the camera's bottom section, including the Micro USB port, microSD card slot, DC power port (6V/2A), and the 1/4" screw hole for mounting.

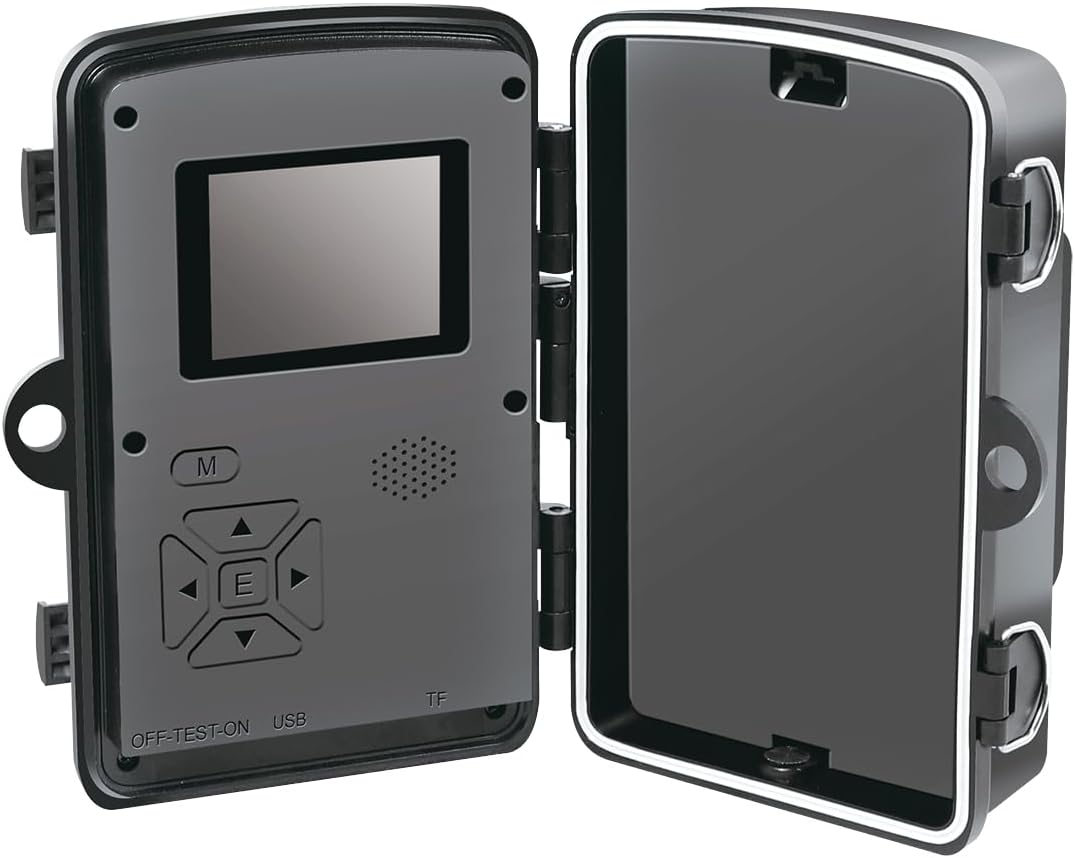

Das interne view of the camera reveals the 2-inch color LCD screen and the control buttons for navigation and settings adjustment.

Aufstellen

1. Batterien einlegen: The camera requires batteries (not included). Open the battery compartment and insert the required number of AA batteries, ensuring correct polarity.
2. MicroSD-Karte einlegen: Open the camera housing. Locate the microSD card slot and insert a microSD or microSDHC card (up to 32GB) with the contacts facing down.
3. Einschalten: Slide the power switch to the "ON" position. The LCD screen will light up.
4. Anfangseinstellungen:
   • Set Date and Time: Navigate through the menu using the control buttons to set the correct date and time.
   • Format SD Card: It is recommended to format the microSD card before first use to ensure compatibility and optimal performance.
5. Montage: Use the included fastening strap to secure the camera to a tree or pole. Ensure the camera is stable and pointed towards the desired monitoring area. The 1/4" screw hole allows for tripod or other mounting options.

The camera is designed for outdoor use and is IP66 waterproof, making it suitable for various weather conditions. It can be securely mounted to a tree using the provided strap.

Bedienungsanleitung

1. Modusauswahl: The camera typically has different modes: Photo, Video, and Photo+Video. Select your desired mode via the menu.
2. PIR-Sensor: The Passive Infrared (PIR) sensor detects motion and heat within its 90° wide-angle detection zone, triggering the camera to record.
3. Nachtsicht: The camera automatically switches to night vision mode in low-light conditions, utilizing infrared LEDs to capture clear images and videos up to 15 meters.
4. ReviewFootage: Um zu review captured photos and videos, switch the camera to "TEST" mode or connect it to a computer using the USB cable.
5. Anschließen an den PC: Connect the camera to your computer via the USB cable. The camera will appear as a removable disk, allowing you to access and transfer files.

This image highlights the camera's capabilities, including HD 1080p video recording with sound, automatic day and night mode switching, photo burst functionality, and the effective 90-degree PIR sensor.

The camera boasts a fast 0.8-second trigger speed, ensuring that quick movements, like those of a deer, are captured effectively.

Wartung

• Reinigung: Reinigen Sie Objektiv und Gehäuse der Kamera mit einem weichen, trockenen Tuch. Verwenden Sie keine Scheuermittel oder Lösungsmittel.
• Batteriewechsel: Replace batteries when the low battery indicator appears on the screen. Always use fresh batteries of the same type.
• SD-Kartenverwaltung: Regelmäßig übertragen files from the microSD card to your computer and format the card to maintain optimal performance and prevent data corruption.
• Lagerung: Bei längerer Nichtbenutzung die Batterien entfernen und die Kamera an einem kühlen, trockenen Ort aufbewahren.

Fehlerbehebung

Kamera lässt sich nicht einschalten

• Überprüfen Sie die Polarität der Batterie.
• Stellen Sie sicher, dass die Batterien vollständig aufgeladen sind, oder ersetzen Sie sie.
• Vergewissern Sie sich, dass sich der Netzschalter in der Position „EIN“ befindet.

Schlechte Bild-/Videoqualität

• Reinigen Sie das Kameraobjektiv.
• Ensure the camera is within the effective range of the subject.
• Check lighting conditions; night vision performance depends on ambient IR.

Kamera erkennt keine Bewegung

• Stellen Sie sicher, dass der PIR-Sensor nicht verdeckt ist.
• Adjust camera placement to optimize detection angle.
• Check sensitivity settings in the camera menu.

SD-Kartenfehler

• Reformat the SD card using the camera's menu.
• Try a different, compatible microSD card.
• Stellen Sie sicher, dass die Karte richtig eingelegt ist.

Technische Spezifikationen

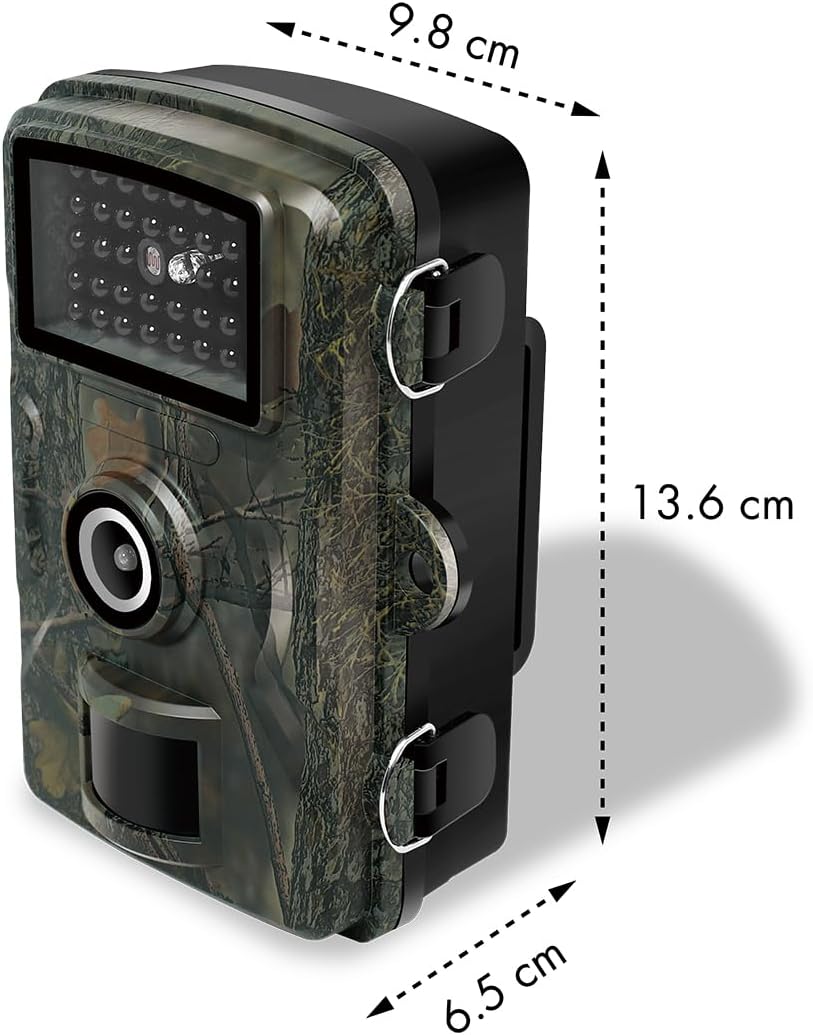

The physical dimensions of the camera are 13.6 cm in length, 9.8 cm in width, and 6.5 cm in height, making it a compact device for outdoor deployment.

Garantie und Support

This product comes with a 1-year availability of spare parts. For technical support or warranty claims, please contact your retailer or the manufacturer, 2direct GmbH.

For further assistance, please visit the official LogiLink webBesuchen Sie die Website oder konsultieren Sie die mit Ihrem Kauf gelieferten Kontaktinformationen.
