s-idee® E594-003 Kompaktlader – Benutzerhandbuch

1. Einleitung

Vielen Dank für Ihren Einkauf.asing the s-idee® E594-003 Compact Loader. This 1:14 scale remote-controlled construction vehicle is designed for realistic operation and is suitable for both indoor and outdoor use due to its optimized weight and robust chassis. This manual provides essential information for setting up, operating, and maintaining your compact loader to ensure a safe and enjoyable experience.

Figure 1: The s-idee® E594-003 Compact Loader with its bucket in a raised position, showcasing its realistic design and robust build.

Wichtige Sicherheitshinweise:

• This product is intended for use only under adult supervision.
• Halten Sie Kleinteile von Kindern fern, um Erstickungsgefahr vorzubeugen.
• Do not operate the vehicle near water, heat sources, or in hazardous environments.
• Vor dem Betrieb sicherstellen, dass alle Batterien korrekt eingesetzt und geladen sind.
• Avoid direct impact or collisions to prevent damage to the vehicle or injury.

2. Packungsinhalt

Please check the package carefully to ensure all items listed below are included:

• s-idee® E594-003 Compact Loader
• Fernbedienung (2.4 GHz)
• Rechargeable Lithium-Ion Polymer Battery (for vehicle)
• USB-Ladekabel
• Benutzerhandbuch (dieses Dokument)
• 2 x AA-Batterien (für die Fernbedienung)

Figure 2: All components included in the s-idee® E594-003 Compact Loader package, including the vehicle, remote control, battery, and charging cable.

3. Einrichtung

3.1 Einlegen der Batterie

Fahrzeugbatterie:

1. Locate the battery compartment on the compact loader, typically at the rear or underside.
2. Öffnen Sie die Abdeckung des Batteriefachs.
3. Connect the rechargeable Lithium-Ion Polymer battery (3.7V) to the vehicle's power connector (SM2P plug).
4. Legen Sie die Batterie vorsichtig in das Batteriefach ein und schließen Sie den Deckel fest.

Batterien der Fernbedienung:

1. Suchen Sie das Batteriefach auf der Rückseite der Fernbedienung.
2. Öffnen Sie die Abdeckung des Batteriefachs.
3. Legen Sie 2 AA-Batterien ein und achten Sie dabei auf die richtige Polarität (+/-).
4. Schließen Sie den Batteriefachdeckel fest.

3.2 Laden der Fahrzeugbatterie

Use the provided USB charging cable to charge the vehicle's Lithium-Ion Polymer battery.

1. Verbinden Sie den Akku mit dem Ladekabel.
2. Stecken Sie das USB-Ende des Kabels in ein Standard-USB-Netzteil (z. B. USB-Anschluss am Computer, Wandladegerät).
3. The charging indicator light on the cable will typically show red during charging and turn off or change color when fully charged.
4. Die Ladezeit kann variieren. Laden Sie den Akku nicht über.

3.3 Koppeln der Fernbedienung

To establish a connection between the remote control and the compact loader:

1. Ensure both the vehicle and remote control have fresh or fully charged batteries.
2. Schalten Sie zuerst die Fernbedienung ein.
3. Then, turn on the compact loader.
4. The remote control and vehicle should automatically pair. A sound signal may indicate successful pairing.
5. Falls die Kopplung fehlschlägt, schalten Sie beide Geräte aus und wiederholen Sie den Vorgang.

4. Bedienungsanleitung

4.1 Fernbedienungsfunktionen

The 2.4 GHz remote control provides full proportional control for realistic operation. Familiarize yourself with the controls before operating the vehicle.

• Linker Joystick: Controls forward/backward movement and steering (left/right).
• Rechter Joystick: Controls the loader arm (up/down) and bucket tilt (dump/scoop).
• Tontaste: Activates/deactivates realistic engine and operation sounds.
• Lichttaste: Turns the vehicle's lights on/off.
• Geschwindigkeitstaste: Toggles between different speed modes (if available).

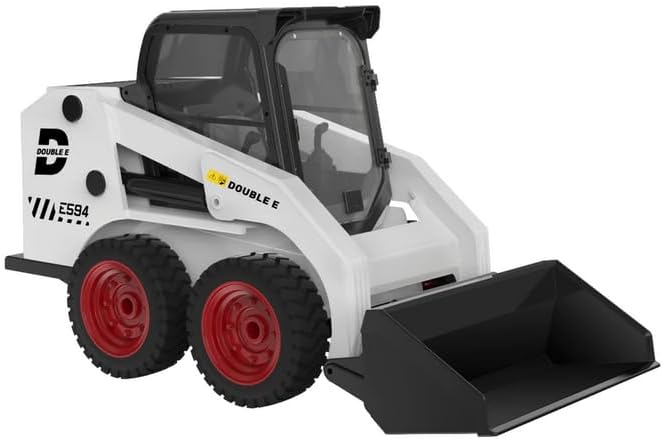

Figure 3: The s-idee® E594-003 Compact Loader with its bucket in the lowered position, ready for scooping material.

4.2 Driving the Compact Loader

1. Gently push the left joystick forward to move the loader forward. Pull it backward to reverse.
2. Move the left joystick left or right to steer the loader. The compact loader uses skid steering, meaning wheels on one side move differently from the other to turn.
3. Practice smooth and controlled movements, especially when operating in confined spaces.

4.3 Operating the Loader Arm and Bucket

1. Push the right joystick forward to raise the loader arm. Pull it backward to lower the arm.
2. Move the right joystick left to tilt the bucket downwards (dumping action). Move it right to tilt the bucket upwards (scooping action).
3. For optimal performance, avoid overloading the bucket. While the model is robust, excessive weight can strain the mechanisms.

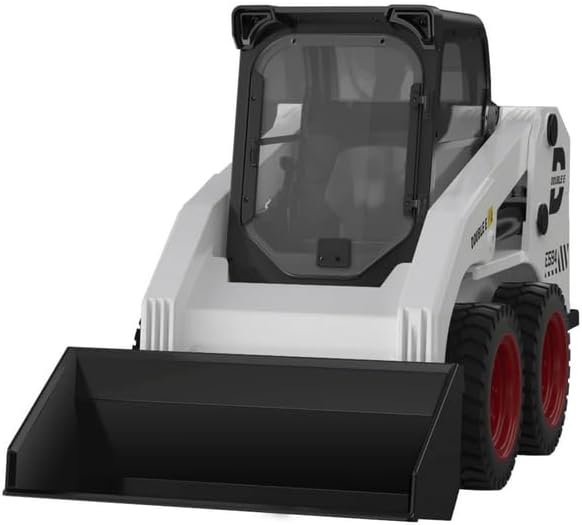

Abbildung 4: Vorderseite view of the compact loader, highlighting the detailed bucket and arm assembly.

5. Wartung

• Reinigung: Nach Gebrauch, insbesondere im Freien, sollte das Fahrzeug vorsichtig mit einem trockenen oder leicht feuchten Tuch abgewischt werden.amp cloth to remove dirt and dust. Do not use harsh chemicals or immerse the vehicle in water.
• Lagerung: When not in use for extended periods, remove all batteries from both the vehicle and the remote control. Store the compact loader and its accessories in a cool, dry place, away from direct sunlight and extreme temperatures.
• Batteriepflege: Always fully charge the vehicle battery before storage and periodically recharge it if stored for a long time to maintain battery health.

6. Fehlerbehebung

7. Spezifikationen

8. Garantie und Support

While specific warranty details are not provided in this manual, s-idee® is committed to customer satisfaction. If you encounter any issues with your E594-003 Compact Loader or require technical assistance, please contact s-idee® customer support through their official channels or the retailer where you purchased the product.

For more information or to explore other s-idee® products, please visit the official s-idee® store on Amazon: s-idee® Store.
