YONISEE AMY-01 Lift Recliner Chair User Manual

Einführung

This manual provides essential instructions for the safe assembly, operation, and maintenance of your YONISEE AMY-01 Lift Recliner Chair. Please read this manual thoroughly before using the product and retain it for future reference.

Image: The YONISEE Lift Recliner Chair in a relaxed position, demonstrating its comfort and design.

Sicherheitshinweise

• Stellen Sie vor der Verwendung sicher, dass alle Komponenten sicher zusammengebaut sind.
• Keep hands and feet clear of the chair's moving parts during operation.
• Do not allow children or pets to play on or around the chair, especially during movement.
• Stellen Sie den Stuhl auf eine ebene, stabile Fläche.
• Die maximale Tragfähigkeit von 150 kg (330 lbs) darf nicht überschritten werden.
• Only use the provided power adapter and remote control.
• Vor der Reinigung oder Wartung die Stromzufuhr unterbrechen.
• USB ports are for low-power devices only (e.g., phones, headsets). Do not attempt to charge high-power devices.

Packungsinhalt

Verify that all parts are present before beginning assembly. The chair typically arrives in multiple boxes.

• Stuhlbasis
• Rückenlehne
• Armlehnen (links und rechts)
• Netzteil
• Fernbedienung
• Arm Pads (Included Components)
• Cushion (Included Components)

Montageanleitung

Assembly typically requires two people due to the weight of some components. No tools are generally needed.

1. Komponenten auspacken: Entnehmen Sie vorsichtig alle Teile aus der Verpackung.
2. Armlehnen anbringen: Slide the armrests onto the sides of the chair base until they click securely into place. Ensure they are fully seated but not pushed too far, which could impede movement.
3. Rückenlehne montieren: Align the backrest with the slots on the chair base and push down firmly until it locks into position.
4. Kabel anschließen: Connect the power cable from the chair to the power adapter, and then plug the adapter into a wall outlet. Connect the remote control cable to the designated port on the chair.
5. Endkontrolle: Ensure all connections are secure and the chair is stable before initial use.

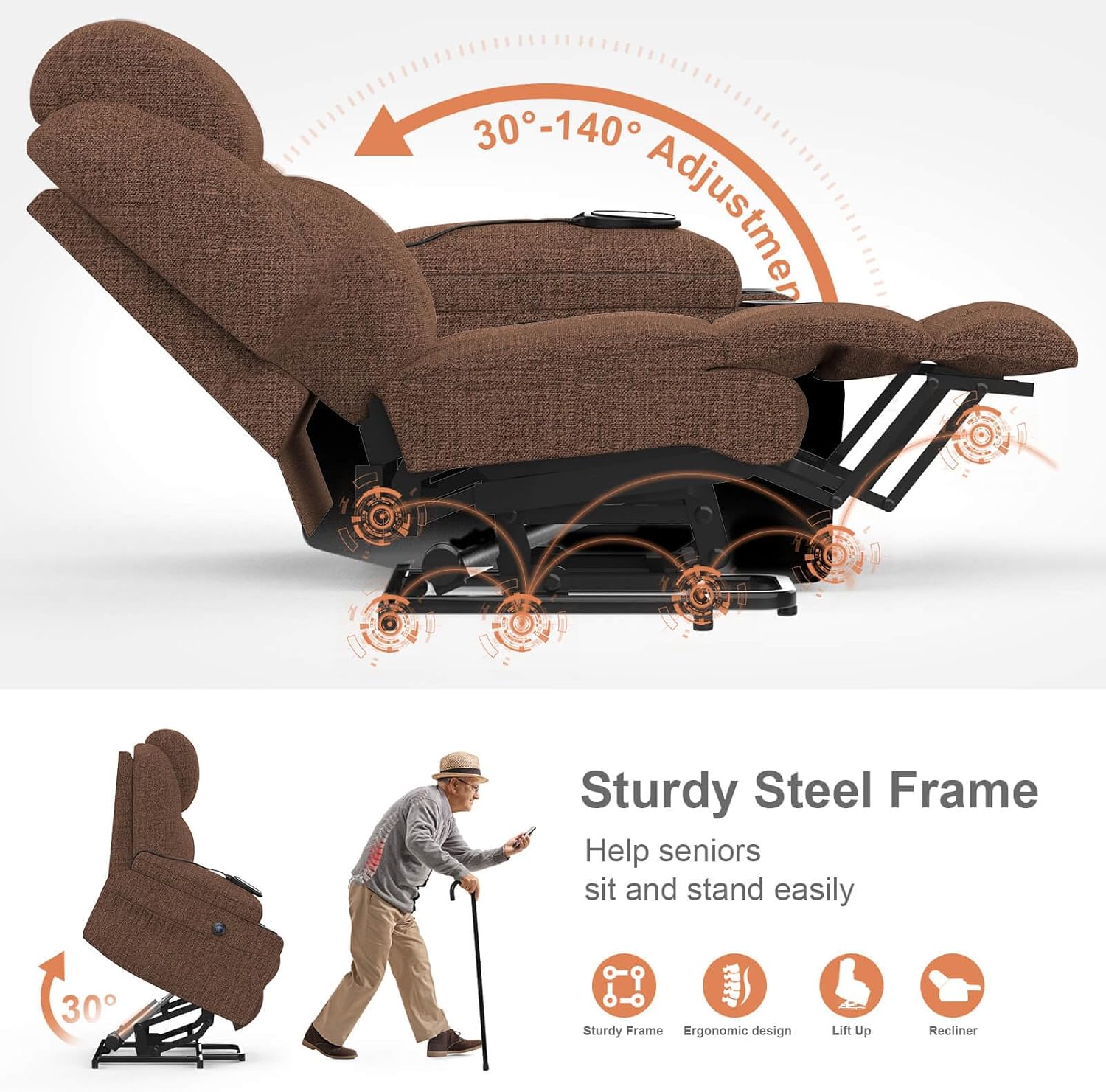

Image: Illustration of the chair's sturdy steel frame and the adjustable recline mechanism, highlighting its robust construction.

Bedienungsanleitung

Lift and Recline Functions

The chair features a heavy-duty motor for smooth lift and recline operations. Use the remote control to adjust the chair's position.

• Hubfunktion: Press the 'Lift' button on the remote to gently raise the chair, assisting users in standing up without strain on knees or back. The chair can tilt forward by approximately 30 degrees for easy exit.
• Liegefunktion: Press the 'Recline' button to move the chair into various reclining positions, up to 140 degrees. This allows for comfortable reading, watching TV, or napping.
• Einstellbare Positionen: The chair offers three main positions: upright (for easy entry/exit), working/reading (standard seated), and reclined (for relaxation).

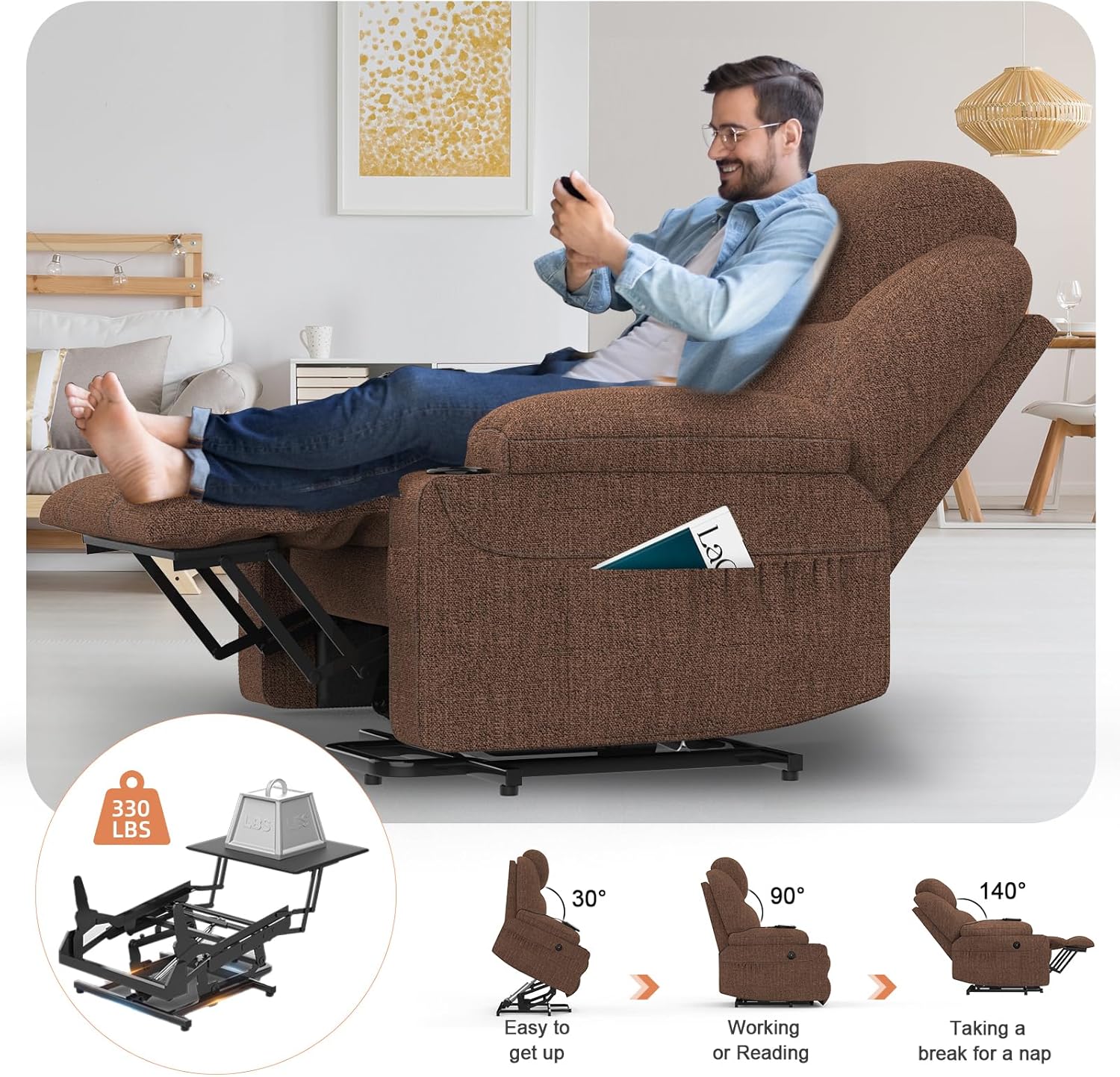

Image: Visual representation of the chair's three primary positions: assisting with standing, standard seating, and full recline for rest.

Massage- und Wärmefunktionen

The integrated massage and heat functions are controlled via the remote.

• Massagepunkte: The chair features 8 vibration massage points targeting the neck, back, thighs, and lumbar regions.
• Lendenwirbelheizung: A lumbar heating function provides warmth to the lower back area.
• Fernbedienung: Use the dedicated buttons on the remote to activate, adjust intensity, and select massage modes and heat settings.

Image: The remote control and a diagram illustrating the massage points and heat function within the chair.

Komfort-Features

The chair includes several features for user convenience.

• USB-Anschluss: An integrated USB outlet allows for charging low-power devices such as smartphones or headsets.
• Getränkehalter: Two cup holders are built into the armrests for beverages.
• Seitentaschen: Two side pockets provide storage for remotes, magazines, or other small items.

Image: The chair's convenience features, including cup holders, USB ports, and side storage pockets.

Wartung

• Reinigung: For general cleaning, wipe the fabric surface with a damp cloth. For tougher stains, use a mild upholstery cleaner according to its instructions. Do not use harsh chemicals or abrasive cleaners.
• Stromabschaltung: Always unplug the chair from the power outlet before cleaning or moving it.
• Inspektion: Periodically check all connections and moving parts for wear or damage. If any issues are found, discontinue use and contact customer support.

Fehlerbehebung

Technische Daten

Image: Comprehensive dimensions and specifications of the YONISEE Lift Recliner Chair.

Garantieinformationen

Specific warranty details are not provided in the available product information. Please refer to your purchase documentation or contact the retailer for warranty terms and conditions.

Kundenservice

For further assistance, technical support, or inquiries regarding your YONISEE Lift Recliner Chair, please contact the retailer or manufacturer directly. Contact information may be available on your purchase receipt or the product packaging.
