AirWire 12x20 FT Metal Carport User Manual

1. Produktüberschreitungview

The AirWire 12x20 FT Metal Carport is designed to provide robust and versatile outdoor shelter. Constructed with high-quality square steel tubing and reinforced at 11 key locations, it offers superior structural integrity and resilience against diverse weather conditions. This carport serves as a protective cover for vehicles, boats, and various equipment, and can also be utilized as an outdoor activity space or secure storage area.

Image: The AirWire 12x20 FT Metal Carport providing shelter for a white pickup truck on a paved driveway.

2. Sicherheitshinweise

Bitte lesen und verstehen Sie alle Sicherheitshinweise vor der Montage und Verwendung. Die Nichtbeachtung dieser Hinweise kann zu Verletzungen oder Schäden am Produkt führen.

• Schweres Gewicht: Components of this carport are heavy. Exercise caution during handling, assembly, and disassembly to prevent injury. It is recommended to have at least three people for assembly.
• Ebene Oberfläche: Always install the carport on a stable and level surface to ensure structural integrity and prevent collapse.
• Wetterbedingungen: While designed for resilience, avoid assembly or disassembly during strong winds, heavy rain, or snow. Ensure the structure is clear of excessive snow accumulation to prevent roof damage.
• Scharfe Kanten: Be aware of potential sharp edges on metal components. Wear appropriate protective gear, such as gloves, during assembly.
• Sichere Verankerung: Proper anchoring of the carport to the ground is critical for stability, especially in windy conditions. Utilize the provided ground pegs and consider additional earth anchors for enhanced security.
• Wasserdichte Versiegelung: The roof panels require proper sealing to ensure water resistance. Apply waterproof sealing tape along the roof seams as instructed.
• Elektrische Sicherheit: Do not install the carport near overhead power lines or electrical equipment.

3. Komponentenliste

Before beginning assembly, verify that all components are present and undamaged. Each part is typically labeled for easy identification.

Image: Key structural components of the AirWire carport, highlighting thickened steel tubes, ground pegs, side bars, and crossbars.

Image: A close-up showing the thickened square steel tubes, emphasizing the robust material used for the carport's frame.

4. Aufbau- und Montageanleitung

Assembly of the AirWire carport requires careful attention to detail and the assistance of at least three individuals due to the size and weight of the components. Ensure you have a level surface for installation.

1. Bereiten Sie die Site vor: Select a flat, level area for installation. Clear any debris or obstacles.
2. Auspacken und Organisieren: Unpack all boxes and lay out components. Verify all parts are present using the components list. Each part is typically labeled with a corresponding letter for easy identification.
3. Montieren Sie den Rahmen: Follow the included diagrams to connect the square steel tubing sections to form the main frame. Ensure all connections are secure.
4. Install Side Bars and Crossbars: Attach the reinforced side bars and crossbars to the main frame, providing additional stability and roof support.
5. Dachpaneele anbringen: Carefully place and secure the metal roof panels. When using self-tapping screws, use a regular drill instead of an impact driver to prevent stripping the screws. The plastic film on each metal roof panel should be removed prior to installation.
6. Seal Roof Seams: Apply the waterproof sealing tape along all roof panel seams to prevent leaks. For enhanced waterproofing, consider using a high-quality butyl tape.
7. Sichern Sie die Basis: Utilize the heavy-duty ground pegs to anchor the carport's base to the ground. For maximum stability, especially in areas prone to high winds, consider installing additional earth anchors (not included).
8. Install Base Covers and Rubber Edges: Attach the elegantly crafted base covers and the gentle, durable rubber edge protectors to minimize injury risk and enhance aesthetic appeal.

Image: Visual guide illustrating the straightforward assembly process of the carport, emphasizing the need for a level surface.

Image: Detailed product dimensions, including overall length, width, and height, along with package contents (gloves and cartons).

5. Betrieb und Nutzung

The AirWire Metal Carport is designed for multipurpose protection and can be used to shelter a variety of items:

• Fahrzeugunterstand: Ideal for protecting cars, pickup trucks, and boats from sun, rain, snow, and other elements.
• Gerätelagerung: Provides secure and covered storage for tractors, lawnmowers, ATVs, and other outdoor equipment.
• Outdoor Activity Space: Can be used as a shaded area for outdoor gatherings, workshops, or temporary event space.

Its UV-resistant and waterproof design ensures reliable coverage in all seasons.

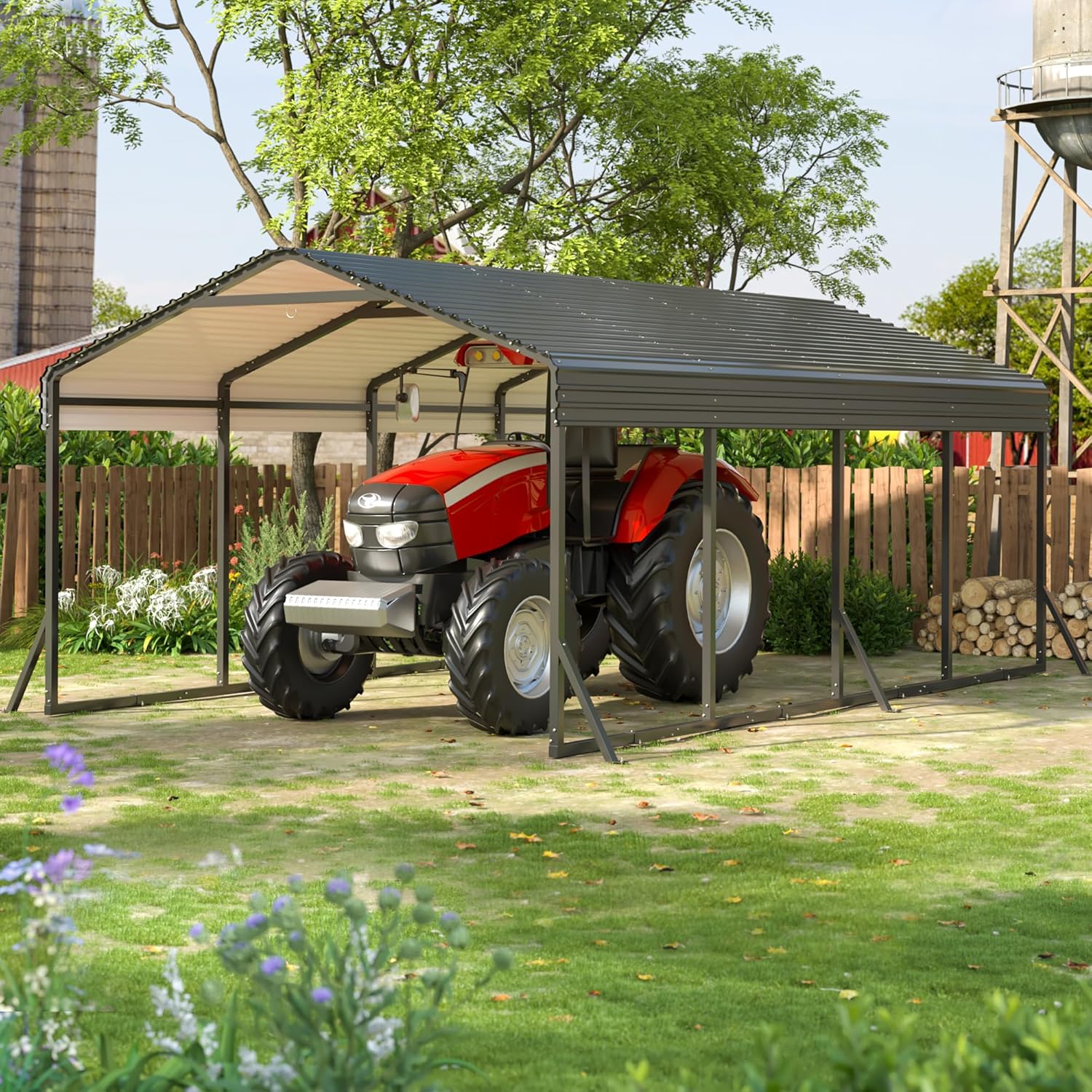

Image: The carport providing shelter for a tractor, demonstrating its utility for large equipment.

6. Wartung

Regular maintenance will extend the lifespan and ensure the continued performance of your AirWire carport.

• Regelmäßige Inspektion: Periodically inspect all bolts, screws, and connections to ensure they remain tight and secure. Tighten any loose fasteners.
• Roof Panel Check: Examine roof panels for any signs of damage, corrosion, or loose connections. Ensure all seams remain properly sealed. Reapply or replace sealing tape if necessary, especially if leaks are observed.
• Reinigung: Clean the roof and frame periodically to remove dirt, leaves, and other debris. Use a mild soap solution and water. Avoid abrasive cleaners or tools that could scratch the finish.
• Schneeräumung: In areas with heavy snowfall, regularly remove accumulated snow from the roof to prevent excessive load and potential structural damage.
• Basisstabilität: Check the ground pegs and any additional anchors regularly to ensure they are firmly in place and the carport remains stable.

Image: The carport standing strong under a layer of snow, highlighting its all-weather durability.

7. Fehlerbehebung

In diesem Abschnitt werden häufige Probleme behandelt, die bei Ihrem Carport auftreten können.

8. Produktspezifikationen

• Marke: AirWire
• Modellnummer: MCY
• Material: Legierter Stahl
• Farbe: Schwarz
• Produktabmessungen (L x B x H): 234.6" x 140.5" x 101.5"
• Schutz vor ultraviolettem Licht: Ja
• Rahmenmaterial: Legierter Stahl
• Wasserbeständigkeit: Wasserdicht
• Materialtyp der Stange: Legierter Stahl, Metall
• Wohnfläche: 230.89 Quadratfuß
• Montage erforderlich: Ja
• Hersteller: Airwire

9. Kundendienst und Garantie

AIRWIRE is committed to providing a smooth and satisfying ownership experience. Our team of engineering and customer service experts is available to assist with any inquiries or issues you may encounter.

For support, please refer to the contact information provided with your purchase documentation or visit the official AirWire webWebsite.

Garantieinformationen: Please refer to the warranty card included with your product for specific terms and conditions regarding coverage and duration.
