FM225 Facial Recognition Module User Manual

1. Einleitung

The JMT FM225 Facial Recognition Module is an advanced 3D facial recognition camera designed for intelligent offline applications. Utilizing deep learning infrared facial recognition algorithms, this module provides highly accurate and reliable live detection capabilities, making it suitable for integration into smart homes, security monitoring systems, smart door locks, mobile vending machines, and various other fields requiring robust biometric authentication.

This manual provides comprehensive instructions for the setup, operation, maintenance, and troubleshooting of your FM225 module.

2. Sicherheitshinweise

• Ensure the power supply meets the specified requirements (DC5.5V~9V@1A) to prevent damage to the module.
• Do not expose the module to extreme temperatures outside the working range (-20°C to +60°C) or storage range (-30°C to +70°C).
• Avoid environments with high humidity (above 93% without condensation) to prevent electrical short circuits.
• Behandeln Sie das Modul vorsichtig, um Beschädigungen zu vermeiden. Vermeiden Sie es, es fallen zu lassen oder starken Stößen auszusetzen.
• Do not attempt to disassemble or modify the module, as this will void the warranty and may cause malfunction.
• Halten Sie das Modul von Wasser und anderen Flüssigkeiten fern.

3. Package Contents (Kit A)

Überprüfen Sie nach dem Öffnen der Verpackung, ob alle folgenden Komponenten vorhanden sind:

Image: Contents of the FM225 Facial Recognition Module Kit A, including the module, a USB cable, and a set of connection wires.

• 1x FM225 Facial Recognition Module
• 1x USB Communication Cable
• 1x Set of Connection Wires (for UART/power)

4. Produktüberschreitungview

The FM225 module is a compact and powerful facial recognition solution. It features dual infrared cameras for 3D depth sensing and a central infrared illuminator for reliable performance in various lighting conditions. The module supports both UART and USB communication interfaces for flexible integration.

Bild: Detaillierte Draufsicht view of the FM225 module, highlighting the two camera lenses and the central infrared illuminator.

Hauptmerkmale:

• Deep Learning Infrared Facial Recognition: Advanced algorithms for high accuracy.
• Live-Erkennung: Prevents spoofing attempts.
• Offline-Betrieb: Capable of performing recognition without an internet connection.
• High Recognition Accuracy: 98.85% accuracy rate.
• Large Face Capacity: Stores up to 100 facial features.
• Flexible Kommunikation: UART and USB interfaces.

5. Einrichtung

This section details the physical connection and initial setup of the FM225 module.

5.1 Pinbelegungsdiagramm

Refer to the diagram below for the pin assignments for both UART and USB interfaces.

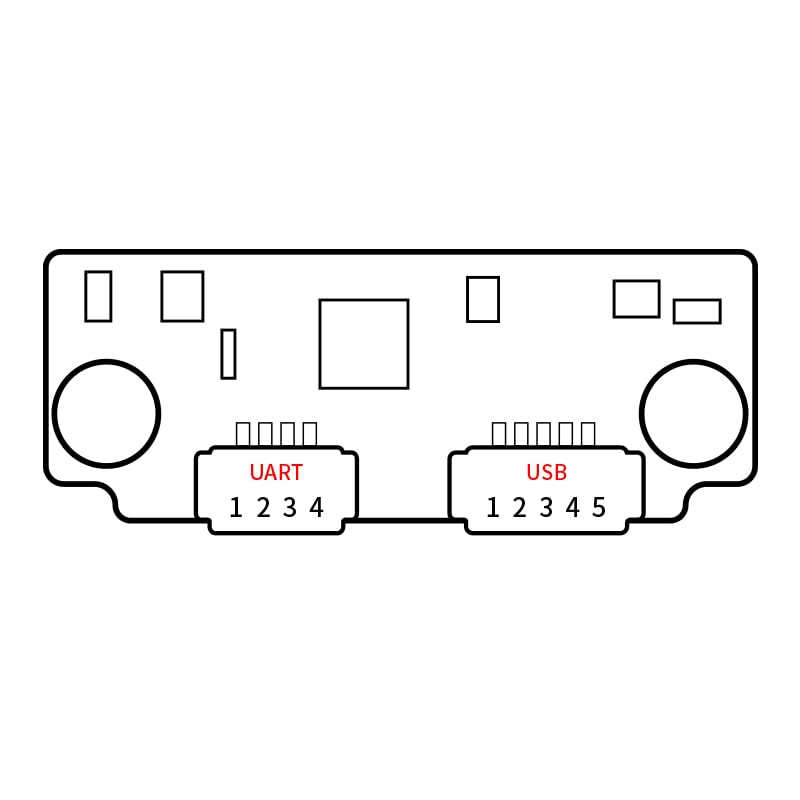

Image: Schematic diagram illustrating the UART (1-4) and USB (1-5) pin connections on the FM225 module's circuit board.

5.2 Anschließen des Moduls

1. Stromanschluss: Connect the module to a stable DC power supply within the range of 5.5V to 9V at 1A. Ensure correct polarity.
2. Kommunikationsschnittstelle:
   • UART: Use the provided connection wires to interface with your host system via UART. Refer to the pinout diagram for TX/RX and GND connections.
   • USB: Connect the module to your host system using the provided USB cable. This interface is typically used for data transfer and configuration.
3. Montage: Securely mount the module in its intended location, ensuring the camera lenses have a clear, unobstructed view of the area where facial recognition will occur. Consider the optimal recognition distance (0.3m to 1.1m) and height (1.35m to 2.20m).

6. Bedienungsanleitung

The FM225 module operates primarily through commands sent via its communication interfaces. Specific software or SDKs provided by the manufacturer are typically required for full functionality, including face enrollment and recognition.

6.1 Face Enrollment

To enroll a new face into the module's memory:

1. Ensure the module is powered on and connected to your host system.
2. Use the manufacturer's provided software or send the appropriate UART/USB commands to initiate the enrollment process.
3. Position the subject's face within the recognition distance (0.3m to 1.1m) and within the recognition angle (supports multi-angle input).
4. Follow the on-screen prompts or command responses to complete the enrollment. The module can store up to 100 facial features.

6.2 Gesichtserkennung

Once faces are enrolled, the module can perform recognition:

1. The module continuously scans for faces within its field of view.
2. When a face is detected, the module compares it against its stored facial features.
3. If a match is found with sufficient accuracy (98.85%), the module will output a recognition result via the chosen communication interface.
4. The module's live detection feature helps prevent recognition from photos or videos.

7. Wartung

The FM225 module requires minimal maintenance to ensure optimal performance.

• Reinigung: Gently wipe the camera lenses with a soft, lint-free cloth. Do not use abrasive cleaners or solvents.
• Umfeld: Stellen Sie sicher, dass die Betriebsumgebung innerhalb der vorgegebenen Temperatur- und Feuchtigkeitsbereiche bleibt.
• Firmware-Updates: Überprüfen Sie regelmäßig die Herstellerangaben. webWebsite für alle verfügbaren Firmware-Updates zur Leistungsverbesserung oder zum Hinzufügen neuer Funktionen.

8. Fehlerbehebung

This section addresses common issues you might encounter with the FM225 module.

9. Spezifikationen

Detailed technical specifications for the FM225 Facial Recognition Module:

10. Garantie und Support

For warranty information, technical support, or further inquiries, please contact the manufacturer or your point of purchase. Keep your purchase receipt as proof of purchase for warranty claims.

Manufacturer: HI-LINK

Brand: JMT

For the latest documentation and software, please visit the official JMT store or HI-LINK support page.
