Devoko Cantilever Umbrella with LED Lighting User Manual

1. Einleitung

Thank you for choosing the Devoko Cantilever Umbrella. This manual provides essential information for the safe and efficient assembly, operation, and maintenance of your new umbrella. Please read this manual thoroughly before use and retain it for future reference.

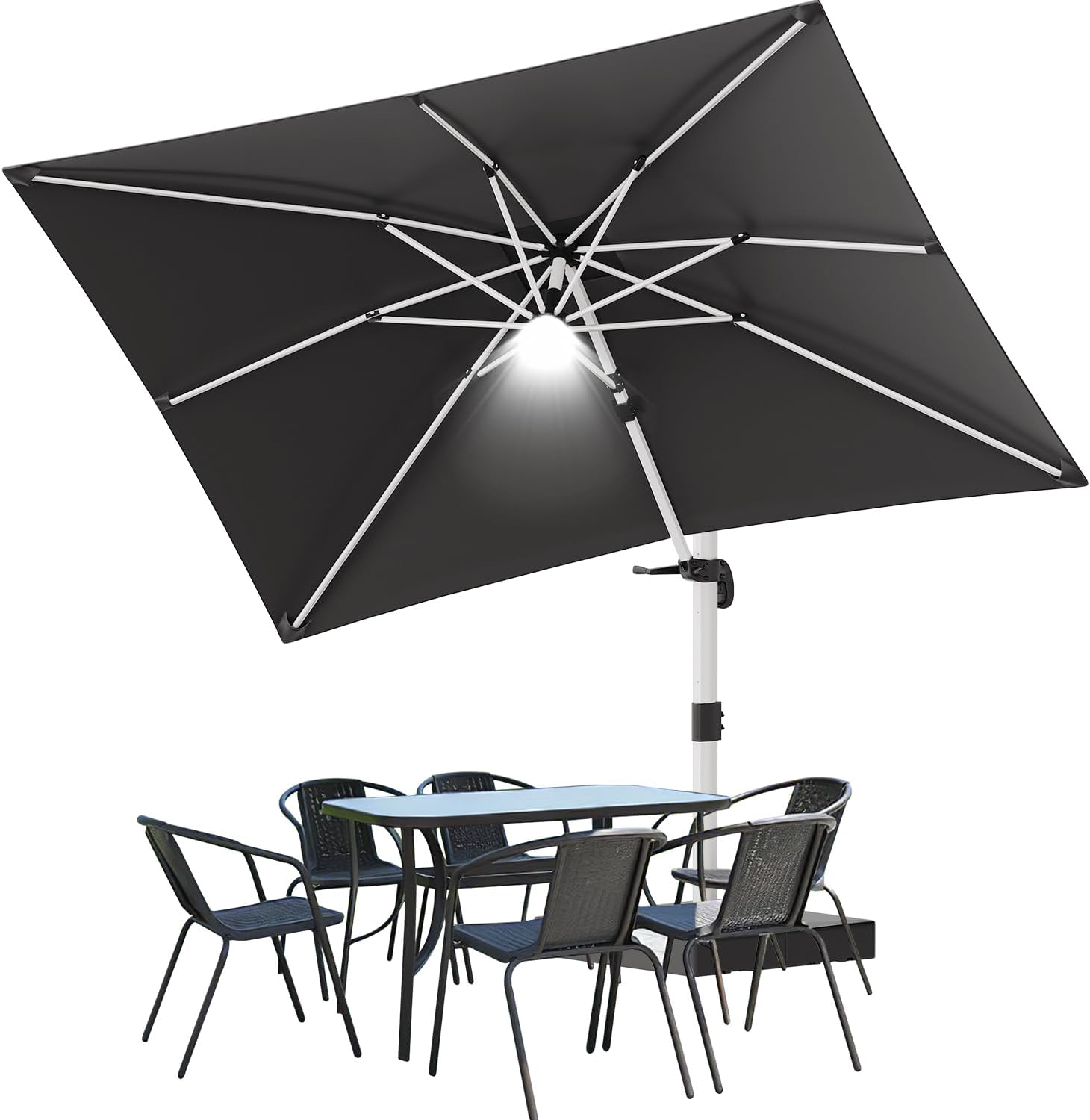

Image 1.1: The Devoko Cantilever Umbrella providing shade over a patio table and chairs.

2. Sicherheitshinweise

Um einen sicheren Betrieb zu gewährleisten und Schäden zu vermeiden, beachten Sie bitte die folgenden Sicherheitsrichtlinien:

• Always close the umbrella during strong winds, heavy rain, or snow to prevent damage to the umbrella and potential injury.
• Ensure the base is properly weighted and stable before opening the umbrella. Use appropriate base weights (not included).
• Do not attempt to open or close the umbrella forcefully if it encounters resistance. Check for obstructions.
• Halten Sie Kinder und Haustiere während des Betriebs vom Regenschirm fern.
• Do not hang objects from the umbrella frame or canopy.
• Überprüfen Sie regelmäßig alle Bauteile auf Verschleiß, Beschädigungen oder lose Verbindungen. Beschädigte Bauteile nicht verwenden.
• Stellen Sie den Regenschirm nicht in die Nähe von offenen Flammen oder Wärmequellen.
• The LED lighting is designed for outdoor use but should be protected from extreme moisture when not in use.

3. Packungsinhalt

Please check that all components are present and undamaged before assembly. If any parts are missing or damaged, contact customer support.

• Cantilever Umbrella Canopy with Frame
• Hauptmastbaugruppe
• Kreuzbasis
• Removable LED Light Unit
• Remote Control for LED Light
• Protective Cover (300D Oxford fabric)
• Montagezubehör (Schrauben, Muttern, Unterlegscheiben, Werkzeuge, falls mitgeliefert)
• Bedienungsanleitung (dieses Dokument)

Bild 3.1: Überview of the umbrella components, including the canopy, main pole, base, LED light, and protective cover.

4. Aufbau und Montage

Befolgen Sie diese Schritte für eine ordnungsgemäße Montage:

1. Bereiten Sie die Basis vor: Place the cross base on a flat, stable surface. Securely attach appropriate base weights (e.g., sandbags, water-filled bases, concrete slabs) to the cross base. Base weights are crucial for stability and are typically sold separately.
2. Hauptmast anbringen: Insert the main pole assembly into the designated slot on the cross base. Secure it using the provided hardware (bolts, washers, nuts). Ensure it is tightened firmly.
3. Montieren Sie das Schirmdach: Carefully lift the umbrella canopy assembly and attach it to the main pole. Follow the specific instructions in the included hardware kit for securing the canopy to the cantilever arm.
4. LED-Licht installieren: The LED light unit is designed to be removable. Locate the central attachment point under the canopy. Securely twist or clip the LED light into place. Ensure it is fully charged before first use (charge for 3 hours for up to 18 hours of illumination).

Image 4.1: The umbrella's cross base requires additional weights for stability, as shown in this overhead view.

Image 4.2: Detail of the removable LED light unit, which can be easily attached or detached from the umbrella's central hub.

5. Bedienungsanleitung

Your Devoko umbrella offers versatile adjustments for optimal shade and lighting.

5.1 Öffnen und Schließen des Regenschirms

• Öffnen: Locate the crank mechanism on the main pole. Rotate the crank handle clockwise until the canopy is fully extended and taut. Do not over-crank.
• Schließen: Rotate the crank handle counter-clockwise until the canopy is fully retracted. Secure the closed canopy with the integrated strap or protective cover.

5.2 Adjusting Height, Angle, and Rotation

• Höhenverstellung: Use the locking lever or pin on the main pole to adjust the height of the umbrella. Release the lock, slide the canopy assembly to the desired height, and re-engage the lock securely.
• Winkelverstellung (Neigung): Use the tilt mechanism (often a handle or button) on the cantilever arm to adjust the canopy's angle up to 45 degrees. Lock it in place once the desired angle is achieved.
• 360° Drehung: To rotate the entire umbrella, locate the foot pedal at the base of the main pole. Press the pedal to unlock the rotation mechanism, turn the umbrella to the desired direction, and release the pedal to lock it in place.

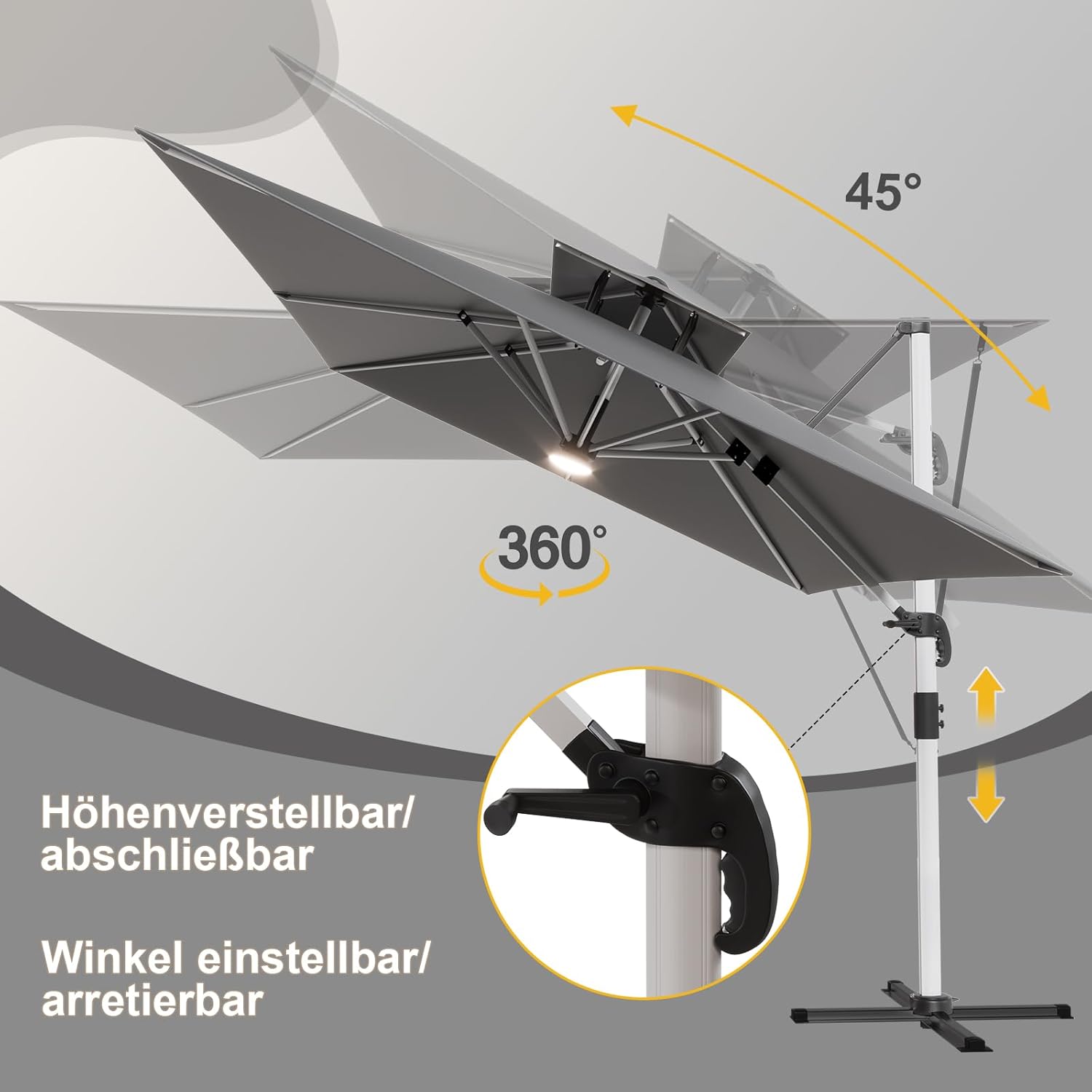

Image 5.1: Visual guide to the umbrella's adjustable features: 45° tilt, 360° rotation, and height adjustment with locking mechanism.

5.3 Verwendung der LED-Beleuchtung

• Ensure the LED light unit is charged.
• Use the provided remote control to turn the light on/off and adjust brightness levels.
• The LED light provides up to 18 hours of illumination on a 3-hour charge.

Image 5.2: The integrated LED lighting creates a comfortable ambiance for evening use.

6. Wartung

Durch die richtige Pflege verlängern Sie die Lebensdauer Ihres Regenschirms.

• Reinigung des Baldachins: The canopy is made of 210G polyester fabric with a polyurethane coating, which is water-resistant and easy to clean. Spot clean with mild soap and water. Do not use harsh chemicals or abrasive cleaners. While the fabric is durable, machine washing the entire canopy is not recommended as it may affect the coating and structure.
• Rahmen reinigen: Den Aluminiumrahmen mit einem Tuch abwischenamp cloth and mild detergent. Dry thoroughly to prevent water spots. The frame features an anti-oxidative design to resist rust.
• Lagerung: When not in use for extended periods or during inclement weather, close the umbrella and cover it with the provided 300D Oxford fabric protective cover. Store in a dry, sheltered location during winter months.
• Pflege von LED-Licht: Keep the LED light unit dry. If it becomes dirty, wipe it with a soft, dry cloth.

Image 6.1: The umbrella canopy is designed with PA coating for UV protection (UPF 50+) and is made from waterproof polyester fabric for easy cleaning.

7. Fehlerbehebung

8. Spezifikationen

9. Garantie und Support

For warranty information or technical support, please contact Devoko customer service through the retailer where you purchased the product or visit the official Devoko website. Please have your model number (0387D9) and purchase receipt ready when contacting support.
