Huhomco Cordless High Pressure Washer Instruction Manual

1. Wichtige Sicherheitshinweise

Bitte lesen und verstehen Sie alle Sicherheitshinweise und Anweisungen, bevor Sie dieses Produkt in Betrieb nehmen. Die Nichtbeachtung der Hinweise und Anweisungen kann zu Stromschlag, Brand und/oder schweren Verletzungen führen.

• Beim Betrieb des Hochdruckreinigers ist stets geeignete persönliche Schutzausrüstung, einschließlich Augenschutz, zu tragen.
• Do not direct the water stream at people, pets, or electrical devices. The high pressure can cause injury.
• Vor Inbetriebnahme sicherstellen, dass alle Verbindungen fest sitzen, um Leckagen zu vermeiden und den Druck aufrechtzuerhalten.
• Keep the work area clear of obstructions and ensure stable footing.
• Betreiben Sie den Hochdruckreiniger nicht in explosionsgefährdeten Bereichen, wie z. B. in Gegenwart von brennbaren Flüssigkeiten, Gasen oder Stäuben.
• Store the pressure washer in a dry, secure location, out of reach of children.
• This device is compatible with Makita batteries. Ensure you use compatible batteries and chargers. (Note: Battery not included with purchase).

2. Produktüberschreitungview

The Huhomco Cordless High Pressure Washer is designed for portable and efficient cleaning tasks. It features a powerful brushless motor, adjustable pressure settings, and a versatile nozzle for various applications.

2.1 Komponenten

• Hochdruckreiniger-Einheit
• 6-in-1 Multifunktionsdüse
• Water Inlet Hose with Filter Basket
• Foam Pot (Soap Dispenser)
• Schnellverbinder
• Charger (if included with specific package)
• Tragetasche

Bild: Überview of the Huhomco Cordless High Pressure Washer and its included accessories, such as the main unit, batteries, charger, hose, foam pot, and carrying case.

2.2 Hauptmerkmale

• Starke Leistung: Max 2900 PSI / 200 Bar pressure for effective cleaning.
• Bürstenlosen Motor: Upgraded 3820 brushless motor for enhanced power and durability.
• 3-Gear Speed Adjustment: Allows precise control over water flow and pressure (0-100 BAR, 100-150 BAR, 150-200 BAR).
• 6-in-1 Düse: Offers multiple spray patterns for various cleaning tasks.
• Schnurloses Design: Portable and compatible with Makita batteries (battery not included).
• Tragbarer Speicher: Comes with a carrying case for convenient transport and organization.

Image: Illustration highlighting the powerful copper brushless motor and its capability to deliver 2900 PSI pressure.

3. Einrichtungsanweisungen

Befolgen Sie diese Schritte, um Ihren Hochdruckreiniger zusammenzubauen und für den Gebrauch vorzubereiten.

1. Wasserfilter installieren: Attach the water filter to the end of the water pipe. This prevents debris from entering the pump.
2. Connect Converter Head: Securely install the converter head onto the water pipe.
3. Batterie einlegen: Slide a compatible Makita battery into the battery slot on the pressure washer unit until it clicks into place. Ensure it is fully seated.
4. Wasserschlauch anschließen: Attach the water hose with the quick connector to the water inlet on the pressure washer unit. Ensure a tight and secure fit.
5. Attach Sprinkler/Nozzle: Connect the 6-in-1 multi-function nozzle to the spray wand. Rotate to lock it in position.
6. Tauchfilter: Place the water filter end of the hose into a water source (e.g., bucket, pool, or stream). Ensure the filter is fully submerged.

Image: A visual guide demonstrating the six steps for assembling the pressure washer, from attaching the water filter to completing the installation.

Image: Close-up of the water pipe featuring a high-quality filter basket designed to prevent debris from entering the system, suitable for various water sources.

4. Bedienungsanleitung

Once assembled, follow these steps to operate your pressure washer.

4.1 Powering On and Priming

1. Ensure the water filter is submerged in your water source.
2. Press and hold the trigger on the pressure washer handle. The unit will start to draw water.
3. Allow the unit to run for a few seconds until a steady stream of water emerges from the nozzle, indicating it is primed.

4.2 Adjusting Pressure (3 Gears)

The pressure washer features three adjustable speed/pressure gears. Use the control panel on the unit to select the desired setting:

• Gang 1: 0-100 BAR (Lower pressure for delicate surfaces or light rinsing).
• Gang 2: 100-150 BAR (Medium pressure for general cleaning).
• Gang 3: 150-200 BAR (Highest pressure for stubborn dirt and heavy-duty cleaning).

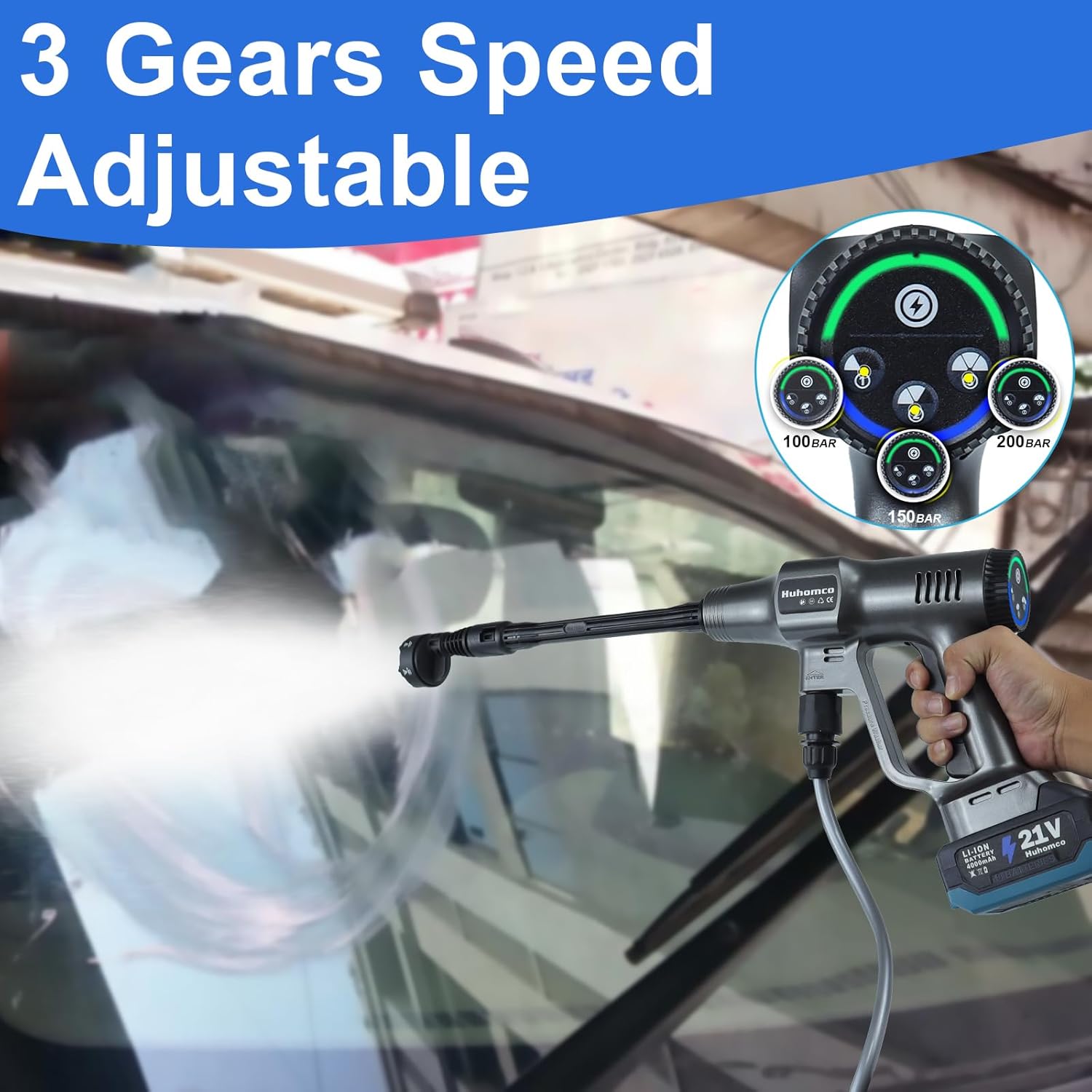

Image: The pressure washer in use, demonstrating the 3-gear speed adjustment feature on the control panel, allowing users to select between 100 BAR, 150 BAR, and 200 BAR settings.

4.3 Verwendung der 6-in-1-Düse

The multi-function nozzle allows you to quickly switch between different spray patterns by rotating the nozzle head.

• 0°-Jet: Konzentrierter, hochwirksamer Wasserstrahl für schwer zugängliche Stellen.
• 15° Lüfter: Narrow fan spray for focused cleaning.
• 25° Lüfter: Mittlerer Sprühstrahl für allgemeine Reinigungsarbeiten.
• 40° Lüfter: Wide fan spray for rinsing and delicate surfaces.
• Schaum: For applying soap or detergent using the foam pot.
• Dusche: Sanfter Sprühnebel zum Bewässern von Pflanzen oder zum leichten Abspülen.

Image: Visual representation of the 6-in-1 nozzle, illustrating how rotating the head allows selection of different spray patterns including 0°, 15°, 25°, 40° jets, foam, and shower modes.

4.4 Anwendungen

This pressure washer is suitable for a variety of cleaning and watering tasks:

• Car washing and detailing.
• Cleaning patios, decks, and outdoor furniture.
• Washing garden tools and equipment.
• Watering plants and gardens (using the shower mode).
• Light household cleaning tasks.

Image: A collage showing the pressure washer being used for diverse tasks such as washing a car, cleaning vegetables, spraying a patio, bathing a dog, watering a garden, and cleaning a swimming pool.

5. Wartung

Regelmäßige Wartung gewährleistet optimale Leistung und verlängert die Lebensdauer Ihres Hochdruckreinigers.

5.1 Wasserfilter reinigen

Periodically inspect and clean the water filter basket to remove any accumulated debris. A clogged filter can reduce water flow and pressure.

• Disconnect the water hose from the unit.
• Remove the filter basket from the end of the hose.
• Spülen Sie den Filter gründlich unter fließendem Wasser aus.
• Reattach the clean filter securely before next use.

5.2 Batteriepflege

Proper battery care is essential for performance and longevity.

• Laden: Charge batteries fully before first use and after each use. Charging time is approximately 2-3 hours for a 4000mAh battery.
• Arbeitszeit: A fully charged 4000mAh battery provides approximately 45 minutes of working time, depending on pressure setting and usage.
• Lagerung: Lagern Sie Batterien an einem kühlen, trockenen Ort, geschützt vor direkter Sonneneinstrahlung und extremen Temperaturen.
• Kompatibilität: This unit is compatible with Makita batteries. Ensure you use genuine or compatible batteries and chargers.

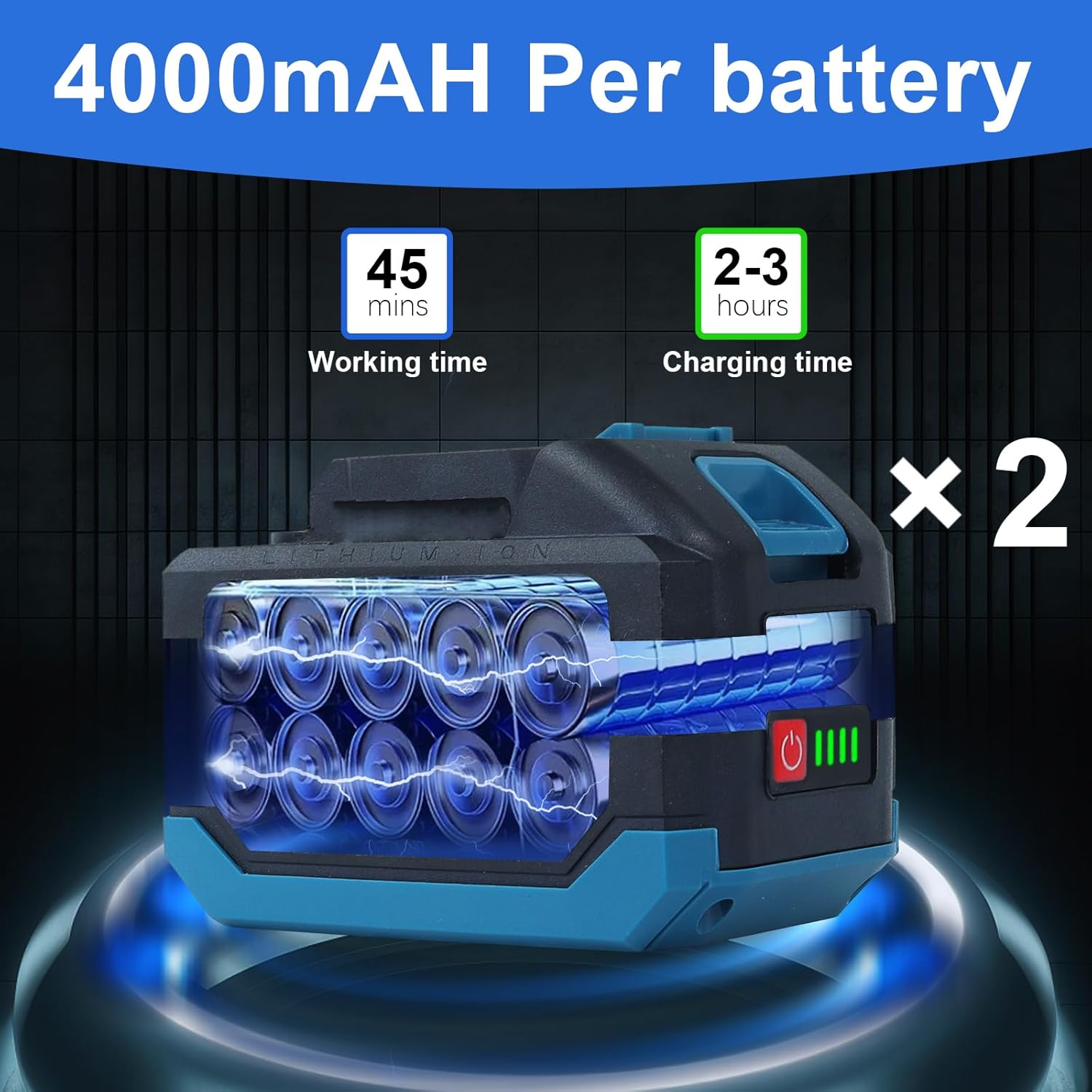

Image: An illustration detailing the specifications of a 4000mAh battery, indicating a working time of 45 minutes and a charging time of 2-3 hours.

5.3 Speicherung

After use, disconnect all components, drain any remaining water, and store the unit in its carrying case in a dry, protected area.

Image: The pressure washer and its accessories neatly packed into a portable carrying case, demonstrating efficient and organized storage.

6. Fehlerbehebung

In diesem Abschnitt finden Sie häufig auftretende Probleme und deren Lösungen.

7. Spezifikationen

8. Garantie und Support

For warranty information or technical support, please refer to the documentation provided with your purchase or contact Huhomco customer service. Keep your purchase receipt as proof of purchase.
