Scheppach PCS26 Petrol Pruning Saw Instruction Manual

1. Einleitung

This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Scheppach PCS26 Petrol Pruning Saw. Please read this manual thoroughly before operating the saw to ensure your safety and the longevity of the product. This pruning saw is designed for tree care, branch trimming, and tree crown removal tasks.

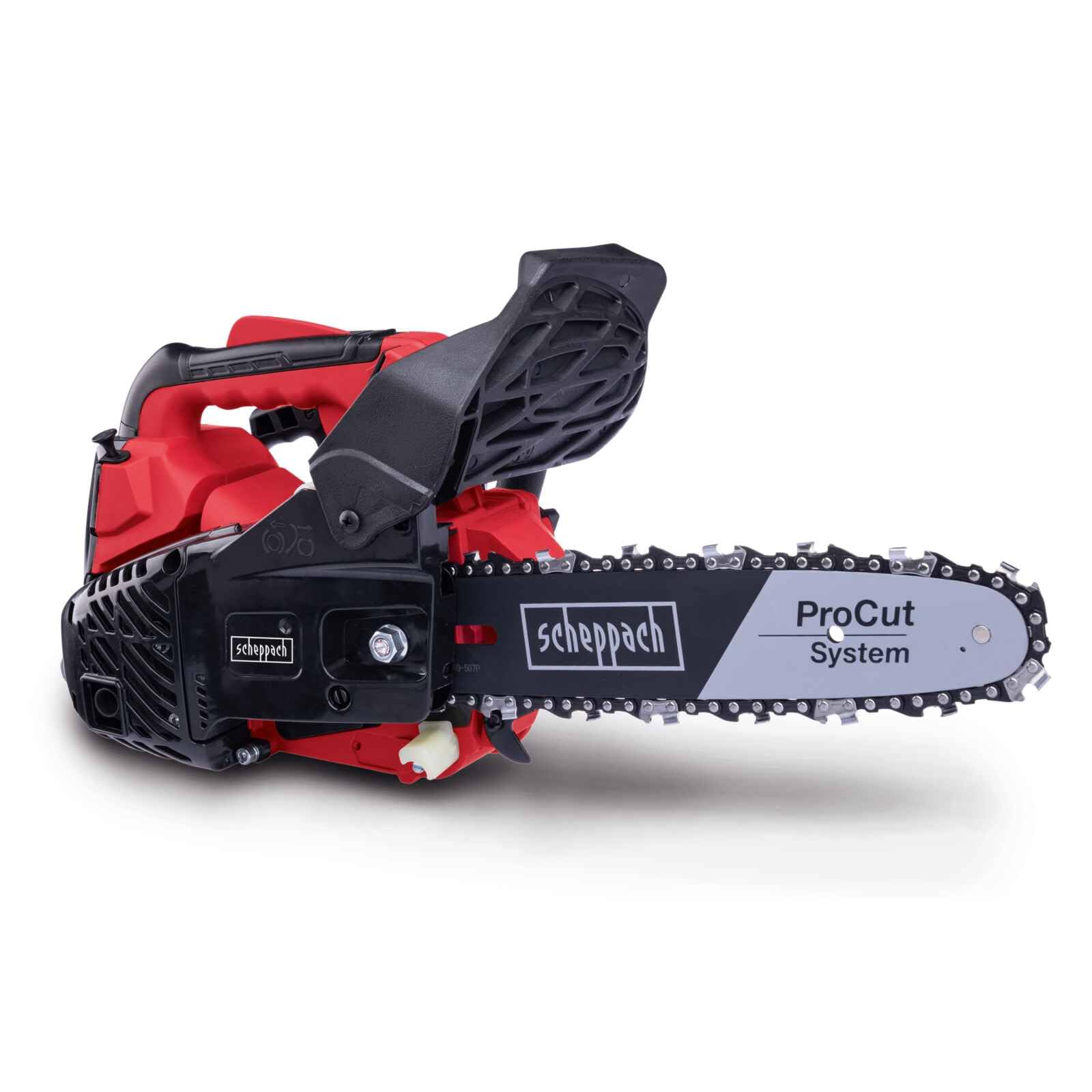

Bild 1.1: Überview of the Scheppach PCS26 Petrol Pruning Saw, highlighting its ProCut System and key technical data such as engine displacement, RPM, power, cutting length, oil tank capacity, and weight.

2. Sicherheitshinweise

WARNING: This chainsaw is only intended for users trained in tree care. Use without proper training can lead to serious injuries. Always follow the operating instructions provided in this manual.

Always wear appropriate personal protective equipment (PPE) including safety glasses, hearing protection, gloves, safety helmet, and protective clothing when operating the saw. Ensure your work area is clear of bystanders and obstacles. Never operate the saw when fatigued or under the influence of alcohol or medication.

• Kettenbremse: The anti-kickback chain brake stops the saw chain within milliseconds in case of kickback, significantly reducing the risk of injury.
• Handschutz: The integrated hand guard provides additional protection for the operator's hand.
• Sicherer Halt: Always maintain a firm grip on both handles of the saw during operation.

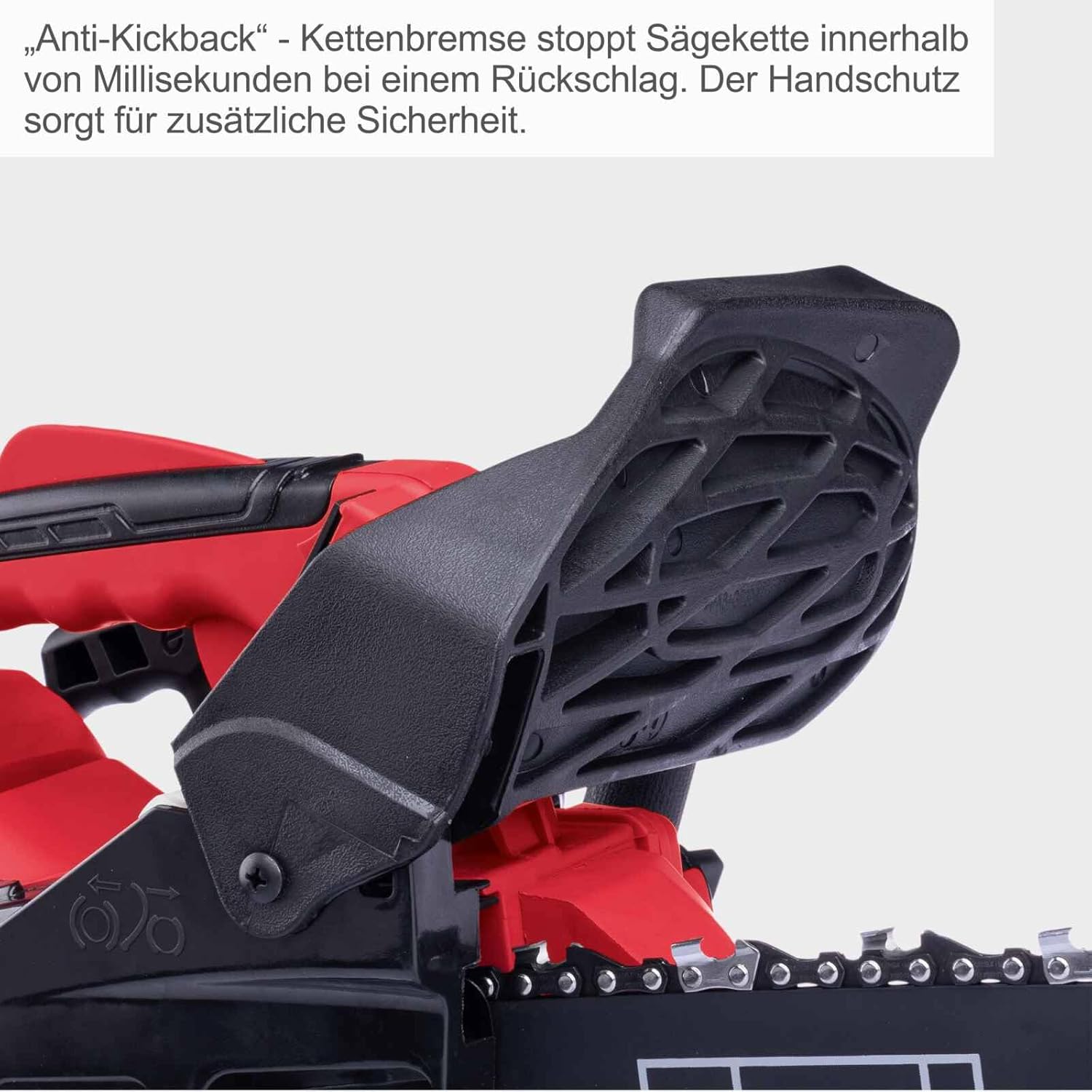

Image 2.1: The Scheppach PCS26 showing the hand guard and automatic chain lubrication system, along with a critical safety warning regarding user training.

3. Produktmerkmale

The Scheppach PCS26 Petrol Pruning Saw is engineered for efficient and safe tree maintenance with the following key features:

• High-Performance Engine: Equipped with a powerful 0.95 HP (0.7 kW) 2-stroke petrol engine with 25.4 cc displacement.
• ProCut Blade: Features a premium 10-inch (25.4 cm) ProCut blade, offering a cutting speed of 21 m/s and an effective cutting diameter of 20 cm.
• Easy Start System: A pull starter with an easy-start feature ensures effortless engine ignition.
• Automatische Kettenschmierung: Ensures continuous and optimal lubrication of the chain during operation, reducing wear and extending chain life.
• Antivibrationssystem: Designed to minimize vibrations, providing a more comfortable and less fatiguing user experience during extended operation.
• Ergonomisches Design: Compact and lightweight (3.5 kg) with an ergonomic, all-around handle for versatile and comfortable use in various positions.
• Robust Claw Stop: A sturdy metal claw stop prevents the material being cut from slipping, enhancing control and safety.
• Practical Attachment Loop: Includes a convenient loop for attaching the saw to a rope or belt, useful for working at height.

Image 3.1: Illustration of the all-around handle for improved maneuverability and the automatic chain lubrication system.

4. Einrichtung

4.1 Kraftstoffgemisch

The Scheppach PCS26 operates on a 2-stroke petrol engine. It requires a specific fuel mixture ratio of 40:1 (petrol to 2-stroke engine oil). Use high-quality unleaded petrol and a suitable 2-stroke engine oil. Mix the fuel in a separate, approved container before pouring it into the saw's fuel tank.

4.2 Kettenöl

Fill the chain oil tank with appropriate chainsaw chain lubricant. The automatic chain lubrication system requires a constant supply of oil for proper operation and to prevent premature wear of the chain and bar.

4.3 Kettenspannungseinstellung

Before each use, check the chain tension. The chain should be snug against the guide bar but still able to be pulled around by hand. Adjust the tension as needed according to the instructions in the full user manual.

5. Bedienungsanleitung

5.1 Motor starten

1. Place the saw on a firm, level surface.
2. Aktivieren Sie die Kettenbremse.
3. Set the choke (if applicable) and prime the carburetor (if applicable).
4. Pull the starter cord firmly until the engine starts. The easy-start feature assists in this process.
5. Once started, disengage the choke and allow the engine to warm up for a few moments.

5.2 Schneidtechniken und Anwendungen

The Scheppach PCS26 is suitable for:

• Tree Care: General maintenance and shaping of trees.
• Branch Trimming and Delimbing: Removing unwanted branches from trees.
• Tree Crown Removal: Reducing the size of tree crowns.

Always use the robust claw stop to brace the saw against the wood for stable and controlled cutting. Ensure the chain is fully engaged with the material before applying full power.

Image 5.1: Visual representation of the primary applications for the Scheppach PCS26 Petrol Pruning Saw.

6. Wartung

Regular maintenance is crucial for the performance and safety of your pruning saw.

• Kettenschärfen: Keep the saw chain sharp for efficient and safe cutting. Refer to the full manual for detailed sharpening instructions.
• Chain and Bar Cleaning: Regularly clean sawdust and debris from the guide bar groove and around the sprocket.
• Luftfilter: Inspect and clean the air filter periodically to ensure proper engine performance.
• Zündkerze: Check the spark plug for wear and proper gap. Replace if necessary.
• Allgemeine Reinigung: After each use, clean the exterior of the saw, removing any sap, oil, or debris.

7. Fehlerbehebung

Dieser Abschnitt behandelt häufig auftretende Probleme:

• Motor startet nicht: Check fuel level, fuel mixture, spark plug condition, and ensure the chain brake is disengaged after starting.
• Schlechte Schneidleistung: Inspect the chain for sharpness and proper tension. Ensure the chain oil tank is filled.
• Übermäßige Vibration: Check for loose components or a damaged chain/bar. The anti-vibration system should minimize normal operating vibrations.

For more detailed troubleshooting, consult the comprehensive user manual or contact customer support.

8. Technische Daten

Image 8.1: Visual summary of key technical specifications for the Scheppach PCS26.

9. Garantie und Support

For warranty information, please refer to the documentation included with your product at the time of purchase or contact your retailer. For technical support or spare parts, please contact Scheppach customer service or visit their official website. Always provide the model number (PCS26) and part number (5910126903) when seeking support.

For additional product information and support, you may visit the official Scheppach website or contact your local dealer. The product barcode for identification is 4046664221616.

Image 9.1: Product packaging showing the model number PCS26 and the article number 5910126903, along with the barcode for identification.
