1. Produktüberschreitungview
This manual provides instructions for the installation and use of the SDYYDS 68064995AA Coolant Temperature Sensor Connector. This connector is designed as a replacement wiring harness for various Chrysler and Dodge vehicles, ensuring proper connection to the coolant temperature sensor.
1.1. Lieferumfang
- 1 Pc Connector - Coolant Temp Sensor wiring harness
- 2 Pcs Terminals
Image 1.1: The SDYYDS 68064995AA Coolant Temperature Sensor Connector, including the wiring harness and two terminals.
2. Spezifikationen
| Teilenummer | 68064995AA, PT2427, 1P2227, S2442 |
| Modellnummer | SD55-505 |
| Gurtlänge | 7.87 Zoll (ca. 20 cm) |
| Steckergröße | ca. 3.6 x 2.0 x 2.0 cm |
| Material | Silicon, Copper, Plastic (Tinned Copper Wires) |
| Obere Temperaturbewertung | 125 Grad Celsius |
| Messgenauigkeit | ±1.5°C (for sensor, not connector itself) |
Image 2.1: Visual representation of the connector's wire length and overall dimensions.
Image 2.2: Detail of the tinned copper wiring, highlighting resistance to humidity and high temperatures.
3. Kompatibilität
This connector is compatible with the following vehicle models. Please verify your vehicle's specific requirements and existing part numbers before installation.
3.1. Chrysler Models
- Chrysler 200 (2011-2017)
- Chrysler 300 (2008-2023)
- Chrysler Aspen
- Chrysler Grand Caravan
- Chrysler Pacifica
- Chrysler Sebring
- Chrysler Town & Country
3.2. Dodge Models
- Dodge Avenger
- Dodge Challenger (2008-2023)
- Dodge Charger (2008-2023)
- Dakota ausweichen
- Dodge Dart
- Dodge Durango
- Dodge Charger 2.0 TDCI
- Dodge Journey (2009-2019)
- Dodge Nitro
- Dodge Ram 1500, 2500, 3500
3.3. Jeep and Ram Models
- Jeep Cherokee
- Jeep Commander
- Jeep Kompass
- Jeep Grand Cherokee L
- Jeep Grand Wagoneer
- Jeep Liberty
- Jeep Renegade
- Jeep Wagoneer
- Jeep Wrangler
- Ram 1500, 1500 Classic, 2500, 3500, 4500, 5500
- Ram C/V
- Ram Dakota
- Ram ProMaster 1500, 2500, 3500
4. Einrichtung und Installation
Sicherheitswarnung:
Always disconnect the vehicle's battery before performing any electrical work. Ensure the engine is cool to avoid burns from hot coolant or engine components. If you are unsure about any step, consult a qualified automotive technician.
4.1. Erforderliches Werkzeug
- Abisolierzangen/Crimpzangen
- Heat gun (for heat shrink terminals, if used)
- Multimeter (zum Testen, optional, aber empfohlen)
- Basic hand tools (e.g., screwdriver, wrench, depending on sensor access)
4.2. Installationsschritte
- Suchen Sie den Sensor: Identify the coolant temperature sensor on your vehicle. Its location can vary by make and model, often found near the thermostat housing or on the engine block.
- Batterie abklemmen: Um Kurzschlüsse zu vermeiden, trennen Sie den Minuspol der Fahrzeugbatterie.
- Access Old Connector: Carefully disconnect the old coolant temperature sensor connector. Inspect the existing wiring for any damage.
- Drähte vorbereiten: If replacing the connector, cut the old connector off, leaving enough wire length to work with. Strip approximately 1/4 to 1/2 inch of insulation from the ends of the vehicle's wires and the new connector's wires.
- Neuen Kabelbaum anschließen:
- Match the wire colors of the new connector to the vehicle's existing wiring. While standard colors exist, always verify with a wiring diagram for your specific vehicle if available.
- Use the provided terminals (or appropriate connectors) to securely join the wires. Crimp the terminals firmly onto the stripped wire ends.
- For a robust connection, consider soldering the wires and then using heat-shrink tubing over the connections to protect them from moisture and corrosion.
- Sichere Verbindungen: Ensure all connections are tight and insulated. Avoid any exposed wire.
- Connect to Sensor: Plug the new connector securely onto the coolant temperature sensor.
- Batterie wieder anschließen: Schließen Sie den Minuspol der Fahrzeugbatterie wieder an.
- Testsystem: Start the vehicle and monitor the coolant temperature gauge or diagnostic system to ensure the sensor is functioning correctly and no warning lights appear.
Bild 4.1: Hinten view of the connector, illustrating the secure entry points for the blue and yellow wires.

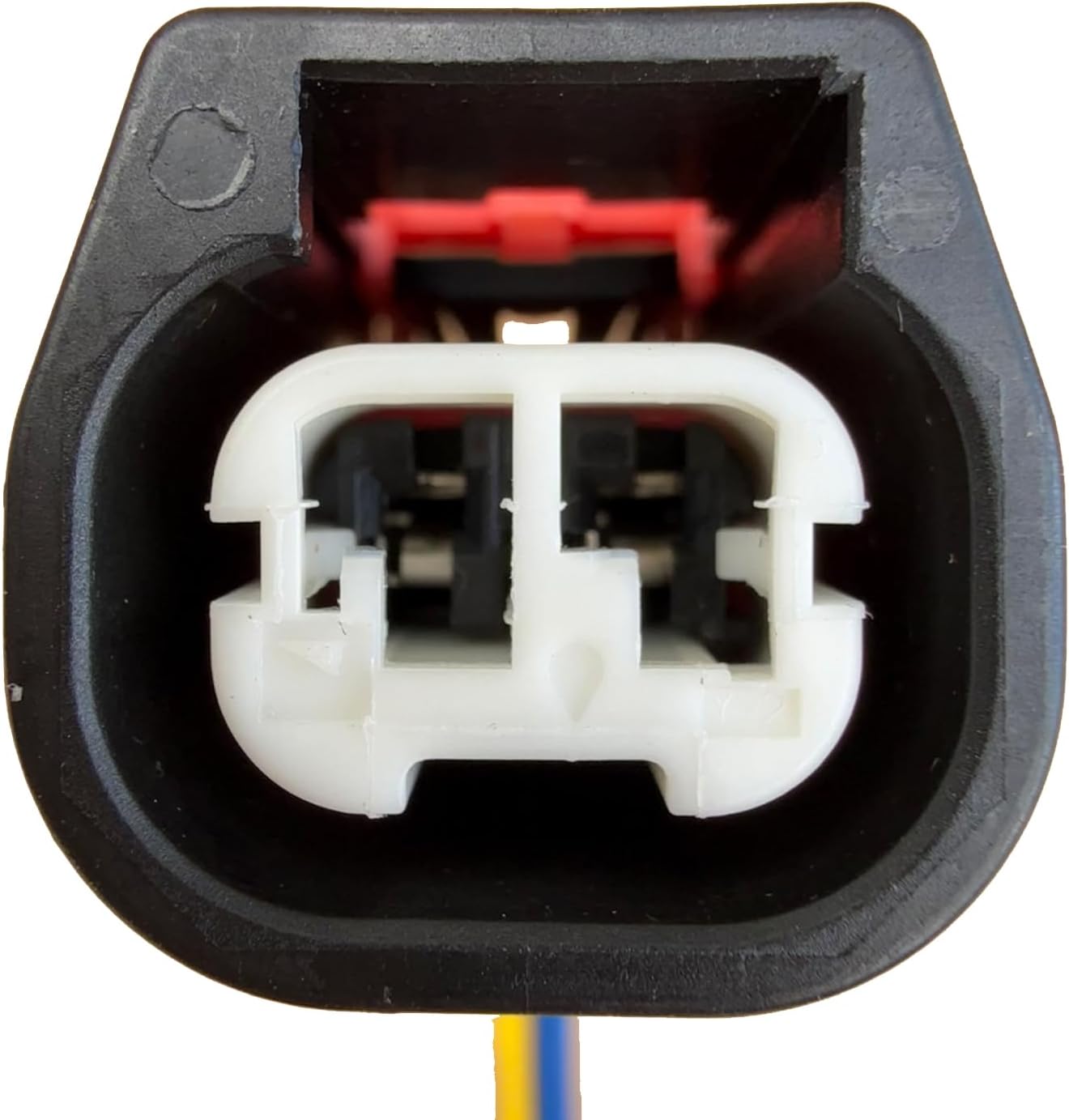

Bild 4.2: Vorderseite view of the connector, showing the internal terminal slots designed for a secure fit with the sensor.
5. Betrieb (Prüfung nach der Installation)
Once the connector is installed, its "operation" is passive, facilitating the electrical signal from the coolant temperature sensor to the vehicle's engine control unit (ECU). Proper function is indicated by accurate temperature readings and the absence of diagnostic trouble codes (DTCs) related to the coolant temperature sensor.
5.1. Verification Steps
- Motorstart: After installation, start the vehicle's engine.
- Temperaturanzeige: Observe the vehicle's coolant temperature gauge on the dashboard. It should rise steadily as the engine warms up.
- Diagnostic Scan (Recommended): Use an OBD-II scanner to check for any pending or active DTCs. A properly functioning sensor and connector will not trigger codes like P0117 (Engine Coolant Temperature Sensor Circuit Low Input) or P0118 (Engine Coolant Temperature Sensor Circuit High Input).
- Dichtheitsprüfung: Visually inspect the area around the coolant temperature sensor for any coolant leaks, especially if the sensor itself was removed or disturbed during the process.
6. Wartung
The SDYYDS coolant temperature sensor connector is designed for durability and requires minimal maintenance once properly installed. However, periodic inspection can help ensure its longevity and reliable performance.
6.1. Inspektionsrichtlinien
- Sichtprüfung: During routine vehicle maintenance (e.g., oil changes), visually inspect the connector and its wiring for any signs of wear, fraying, cracks, or corrosion.
- Verbindungssicherheit: Gently check if the connector is still firmly seated on the sensor.
- Umweltbelastung: Ensure the wiring and connector are not exposed to excessive heat, sharp edges, or areas where they could be damaged by moving engine components.
- Sauberkeit: Keep the connector free from excessive dirt, oil, or coolant residue. A clean, dry cloth can be used for cleaning.
7. Fehlerbehebung
If you experience issues after installing the coolant temperature sensor connector, consider the following troubleshooting steps:
7.1. Häufige Probleme und Lösungen
- Incorrect Temperature Readings or No Reading:
- Verbindungen prüfen: Ensure the connector is fully seated on the sensor and all wire connections are secure and properly crimped/soldered.
- Drahtpolarität: Verify that the wires are connected with the correct polarity (if applicable, consult vehicle wiring diagram).
- Sensorfehler: The issue might be with the coolant temperature sensor itself, not the connector. Test the sensor if possible.
- ECU/Wiring Harness Issue: Inspect the vehicle's main wiring harness for damage further upstream.
- Check Engine Light (CEL) or Diagnostic Trouble Codes (DTCs):
- Nach Codes scannen: Use an OBD-II scanner to retrieve specific DTCs. Common codes related to the coolant temperature sensor include P0117, P0118, P0116 (Engine Coolant Temperature Circuit Range/Performance).
- Verkabelung überprüfen: Ensure there are no shorts or open circuits in the new connector's wiring or its connection to the vehicle's harness.
- Codes löschen: After addressing any issues, clear the DTCs and re-test the vehicle.
- Loose or Intermittent Connection:
- Re-crimp/Re-solder: If connections feel loose, re-crimp or re-solder them to ensure a solid electrical contact.
- Inspect Terminals: Check the terminals inside the connector for bending or corrosion.
Always refer to your vehicle's service manual for specific diagnostic procedures and wiring diagrams.
8. Garantie und Support
For warranty information or technical support regarding your SDYYDS 68064995AA Coolant Temperature Sensor Connector, please contact the manufacturer directly. Details can typically be found on the product packaging or the official SDYYDS webWebsite.
When contacting support, please have your product model number (SD55-505) and purchase information readily available.
