Einführung
Thank you for choosing the SHALL 2-in-1 Cordless Electric Hedge Trimmer and Grass Shear. This versatile tool is designed for efficient and precise trimming of hedges, bushes, and grass edges in your garden. This manual provides essential information for safe operation, proper setup, maintenance, and troubleshooting to ensure optimal performance and longevity of your device.
Wichtige Sicherheitshinweise
Lesen und verstehen Sie vor der Inbetriebnahme dieses Werkzeugs stets alle Sicherheitshinweise und Anweisungen. Die Nichtbeachtung dieser Anweisungen kann zu Stromschlag, Brand und/oder schweren Verletzungen führen.
- Persönliche Sicherheit: Always wear appropriate personal protective equipment, including safety glasses, gloves, and sturdy footwear. Keep children and bystanders away while operating the tool.
- Dual Safety Design: This tool features a two-way safety lock. To start the device, the safety key on the rear strap must be inserted, and the side lock must be engaged simultaneously. This design prevents accidental activation.
- Arbeitsbereich: Ensure the work area is clear of obstacles, debris, and other people. Do not operate in wet conditions or near flammable liquids or gases.
- Batteriepflege: Use only the specified charger and battery. Do not expose the battery to extreme temperatures or direct sunlight.
- Handhabung der Klinge: Blades are sharp. Handle with extreme care. Always disconnect the battery before changing or cleaning blades.
- Wartung: Regularly inspect the tool for damage. Do not use if any part is damaged. Keep blades clean and sharp for best performance and safety.
Produkt überview

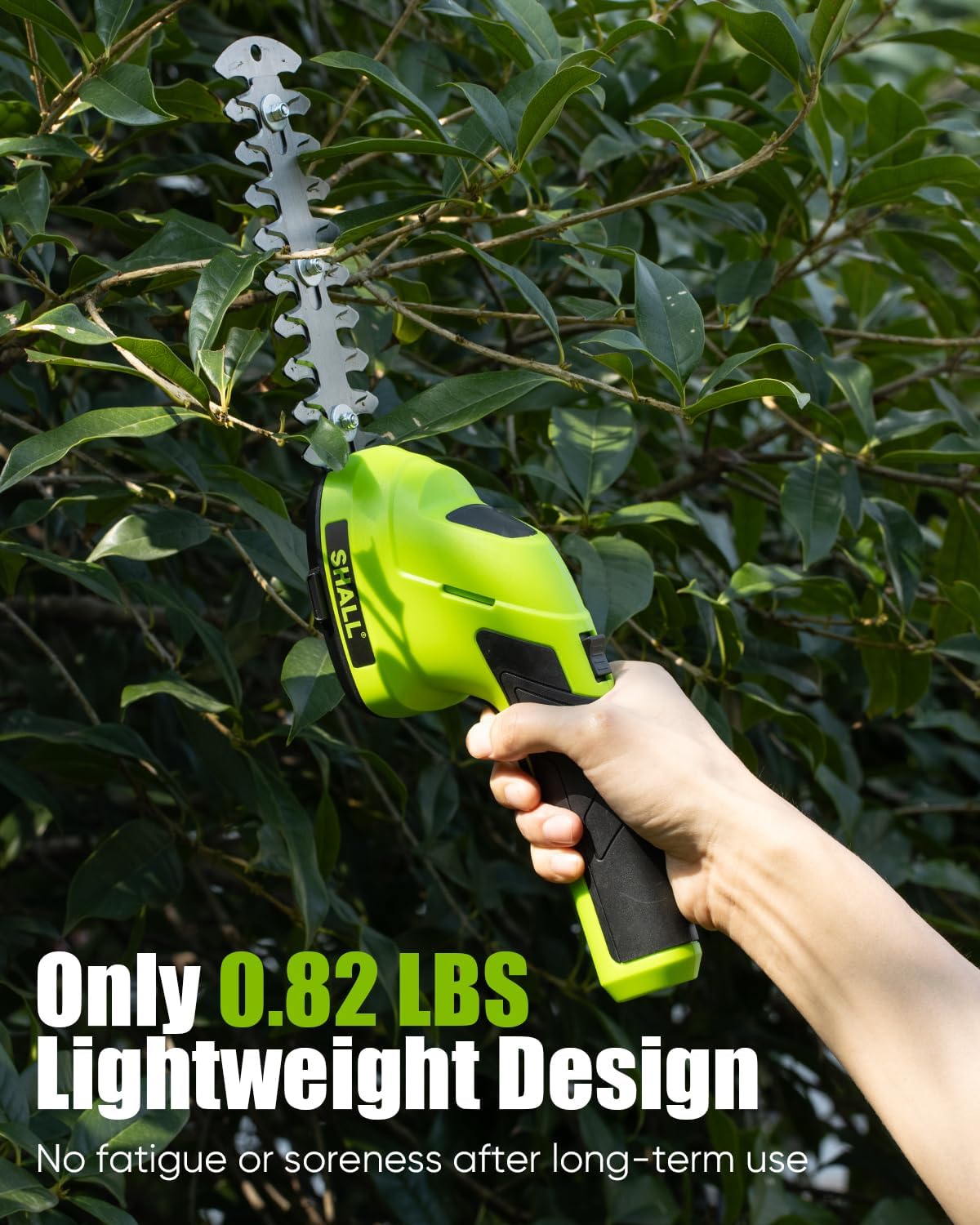

The SHALL 2-in-1 Cordless Electric Hedge Trimmer and Grass Shear is a compact and powerful tool designed for various garden tasks. It features interchangeable blades for grass shearing and hedge trimming, powered by a 7.2V Li-ion battery.
Hauptmerkmale:
- 2-in-1-Funktionalität: Easily switch between grass shearing and hedge trimming.
- Starke Leistung: Equipped with a 2000 mAh Li-ion battery and a motor providing 1100 RPM no-load speed for efficient cutting.
- Schnelles Laden: Fully charges in approximately one hour using the included Type-C cable.
- Ergonomisches Design: Lightweight (approximately 1.5 lbs / 0.68 kg) with an anti-slip rubber grip for comfortable extended use.
- Drehbarer Kopf: The trimmer head can be rotated 180 degrees for precise cutting angles.
- Langlebige Klingen: High-quality alloy steel blades ensure sharpness and durability.
Aufstellen
1. Laden des Akkus
Before first use, fully charge the battery. The battery is integrated into the tool.
- Connect the Type-C cable to the charging socket on the tool.
- Stecken Sie das Ladegerät in eine normale Steckdose.
- The LED indicator will show the charging status. A full charge typically takes about one hour.
- Sobald das Gerät vollständig aufgeladen ist, trennen Sie es vom Ladegerät.
2. Anbringen/Wechseln der Klingen
Das Gerät wird mit zwei austauschbaren Klingen geliefert: einer Grasscherenklinge und einer Heckenscherenklinge.
- Ensure the tool is OFF and the safety key is removed.
- Locate the blade quick-release button on the side of the tool.
- Press and hold the quick-release button.
- Carefully remove the currently attached blade by sliding it off.
- Align the desired blade (grass shear or hedge trimmer) with the slot on the tool.
- Slide the new blade into place until it clicks securely. Release the quick-release button.
- Gently pull on the blade to ensure it is firmly attached before use.
Bedienungsanleitung
Always ensure the battery is sufficiently charged and the correct blade is installed for your task.
1. Activating the Tool (Dual Safety)
- Insert the safety key into its slot on the rear strap of the tool.
- Press and hold the side safety lock button.
- While holding the safety lock, press the ON/OFF trigger button to start the tool.
- Release the safety lock button once the tool is running. The tool will continue to operate as long as the ON/OFF trigger is pressed.
2. Verwendung der Grasschere
The grass shear blade is ideal for trimming grass edges and small areas of lawn.
- Halten Sie das Werkzeug nach Möglichkeit mit beiden Händen fest, oder, falls dies bequem und sicher ist, mit einer Hand.
- Position the grass shear blade parallel to the ground or desired cutting line.
- Move the tool steadily along the grass, allowing the blades to cut cleanly.
- Avoid forcing the tool through thick patches of grass to prevent stalling or damage.
3. Verwendung der Heckenscherenklinge
The hedge trimmer blade is suitable for shaping small hedges and bushes.
- Halten Sie das Werkzeug sicher fest.
- For optimal results, use a sweeping motion, cutting small amounts of material at a time.
- The trimmer head can be rotated 180 degrees to adjust the cutting angle for different hedge shapes and accessibility. To rotate, ensure the tool is off, then gently twist the blade assembly.
- Do not attempt to cut branches thicker than the maximum cutting thickness (approximately 7.95mm).
Wartung
Regular maintenance ensures the longevity and safe operation of your SHALL 2-in-1 tool.
- Klingen reinigen: After each use, ensure the tool is OFF and the battery is disconnected. Carefully clean the blades with a brush to remove sap, grass, and debris. A damp cloth can be used for the tool body.
- Schmierung: Apply a light machine oil or blade lubricant to the blades periodically to reduce friction and prevent rust.
- Lagerung: Store the tool in a dry, secure place, out of reach of children. Ensure the blades are clean and dry before storage.
- Batteriespeicher: If storing for extended periods, charge the battery to approximately 50% and store in a cool, dry place. Recharge every 3-6 months to maintain battery health.
Fehlerbehebung
Sollten Sie Probleme mit Ihrem Tool haben, beachten Sie bitte die folgenden häufig auftretenden Probleme und Lösungen:
| Problem | Mögliche Ursache | Lösung |
|---|---|---|
| Werkzeug startet nicht | Akku wird nicht geladen Sicherheitsschlüssel nicht eingesteckt Sicherheitsverriegelung nicht korrekt eingerastet | Laden Sie den Akku auf Insert the safety key fully Ensure both safety lock and trigger are pressed simultaneously |
| Die Klingen schneiden nicht effektiv | Die Klingen sind stumpf oder verschmutzt Material being cut is too thick | Clean and lubricate blades; consider sharpening or replacing if very dull Do not attempt to cut material exceeding maximum thickness |
| Das Werkzeug stoppt während des Betriebs. | Batterie schwach Überlastschutz aktiviert | Laden Sie den Akku auf Reduce the load on the blades; clear any jammed material |
Sollte das Problem nach Anwendung dieser Lösungsansätze weiterhin bestehen, wenden Sie sich bitte an den Kundendienst.
Technische Daten
| Besonderheit | Spezifikation |
|---|---|
| Marke | Soll |
| Modell | SH112015EU |
| Stromquelle | Batteriebetrieben |
| Akku-Typ | 7.2V 2000 mAh Li-Ion |
| Leerlaufdrehzahl | 1100 U/min |
| Schnittbreite der Grasschere | 82 mm (3.2 Zoll) |
| Hedge Trimmer Cutting Area | 140 x 60 mm (5.5 x 2.4 Zoll) |
| Max Hedge Trimmer Cutting Thickness | 42 mm (1.65 inches) / 7.95 mm (0.31 inches) for branches |
| Klingenmaterial | Legierter Stahl |
| Produktabmessungen (L x B x H) | 28L x 12B x 9H cm (11L x 4.7B x 3.5H Zoll) |
| Artikelgewicht | Approx. 0.68 kg (1.5 lbs) - tool only |
| Ladezeit | Ca. 1 Stunde |
| Runtime (full charge) | Ca. 100 Minuten |
Garantie und Support
SHALL products are manufactured to high-quality standards. For warranty information, please refer to the warranty card included with your purchase or visit the official SHALL website. If you have any questions, require technical assistance, or need to report a defect, please contact SHALL customer support through the retailer where you purchased the product or directly via the manufacturer's contact channels.
Bitte bewahren Sie Ihren Kaufbeleg für Garantieansprüche auf.
