Generic 5T Heat Press Machine CR2042 User Manual

1. Einleitung

This user manual provides comprehensive instructions for the safe and efficient operation of your Generic 5T Heat Press Machine, Model CR2042. Please read this manual thoroughly before using the machine to ensure proper setup, operation, and maintenance. Retain this manual for future reference.

The Generic 5T Heat Press Machine is designed for various applications, including extracting oils from botanicals, printing on fabrics, and crafting with resins. It features a 5-ton manual hydraulic jack, dual heating plates measuring 2.3 x 4.7 inches, and an intuitive LCD screen for precise control over temperature and time.

2. Sicherheitshinweise

WARNUNG: Failure to follow these safety instructions may result in electric shock, fire, serious injury, or property damage.

• Stellen Sie stets sicher, dass die Maschine auf einer stabilen, hitzebeständigen Oberfläche steht.
• Schließen Sie das Gerät an eine geerdete Steckdose mit der richtigen Spannung an.tage (110 V).
• DANGER: HIGH TEMPERATURE. DO NOT TOUCH HEATING PLATES DURING OPERATION. Use heat-resistant gloves if contact is unavoidable.
• Keep hands and loose clothing away from moving parts and heating elements.
• Do not operate the machine if the power cord is damaged or if the machine is malfunctioning.
• Unplug the machine from the power source before cleaning or performing any maintenance.
• Tauchen Sie die Maschine nicht in Wasser oder andere Flüssigkeiten.
• Halten Sie Kinder und Haustiere während des Betriebs von der Maschine fern.
• Sorgen Sie für ausreichende Belüftung im Arbeitsbereich.
• Do not exceed the recommended pressure or temperature settings for your materials.

3. Produktüberschreitungview

The Generic 5T Heat Press Machine is constructed with a durable steel body and features dual aluminum heating plates. Key components include:

• Dual Heating Plates: Provide even heat distribution for consistent results.
• LCD Control Screen: Digital display for setting and monitoring temperature and time.
• Manual Hydraulic Jack: Applies up to 5 tons of pressure.
• Pressure Relief Knob: Allows for safe release of pressure.
• Stromschalter: Hauptstromregler für das Gerät.
• Kühllöcher: Entwickelt für effiziente Wärmeableitung.
• Silikonfüße: Sorgen Sie für Stabilität und verhindern Sie ein Ausrutschen.

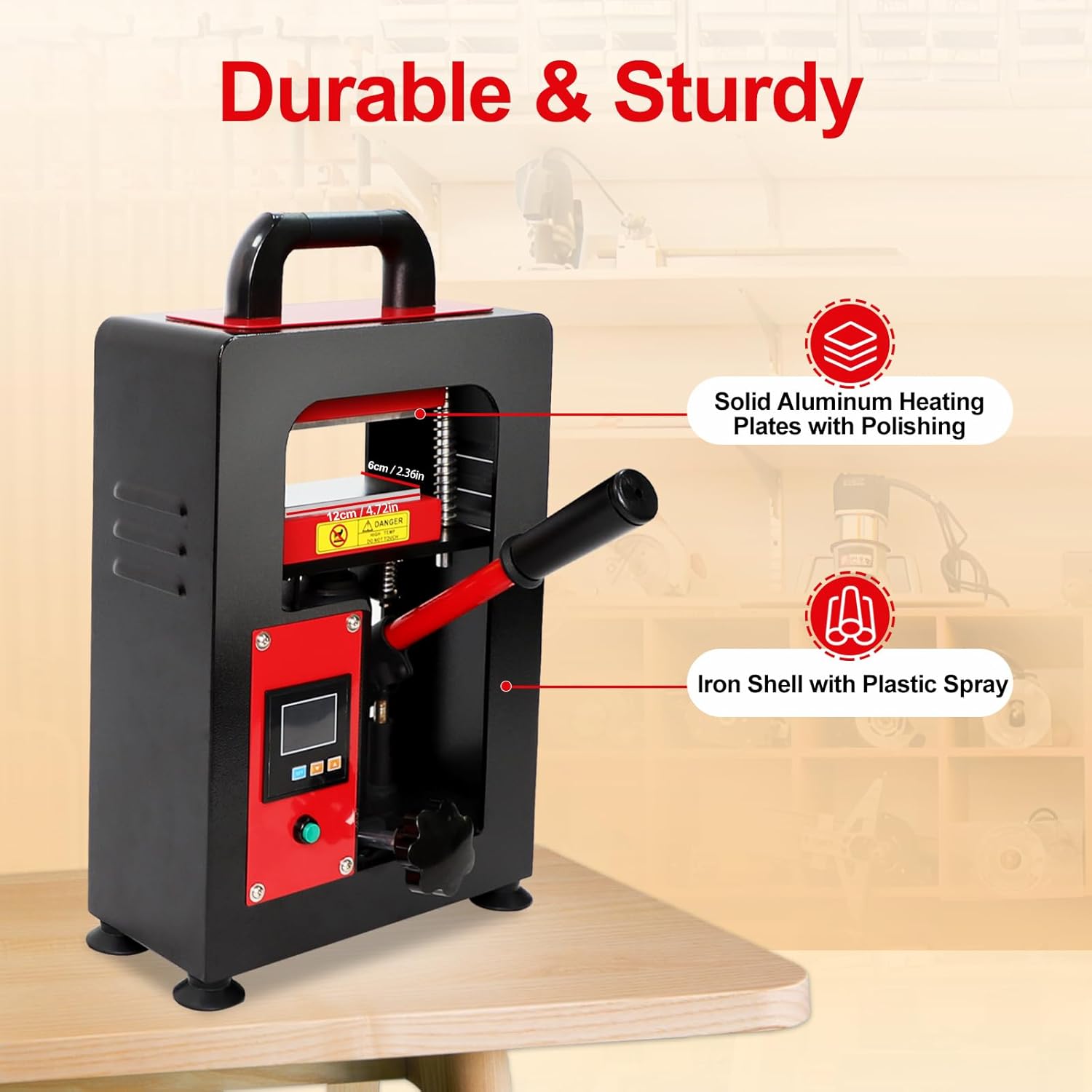

Abbildung 1: Vorderseite view of the 5T Heat Press Machine, showing the handle, control panel, and heating plates.

Abbildung 2: Ausführlich view of machine features including cooling holes, power switch, pressure relief knob, and silicone feet.

Figure 3: Close-up of the dual heating plates, emphasizing rapid heating technology.

4. Spezifikationen

5. Einrichtung

The Generic 5T Heat Press Machine requires no assembly and is ready for use with 110V outlets.

1. Auspacken: Carefully remove the heat press machine from its packaging. Inspect for any damage during transit.
2. Platzierung: Place the machine on a sturdy, level, and heat-resistant surface. Ensure there is adequate space around the machine for ventilation and safe operation.
3. Stromanschluss: Connect the power cable to the machine's power inlet and then to a grounded 110V power outlet.
4. Erstes Einschalten: Flip the main power switch to the "ON" position. The LCD screen should illuminate.

6. Bedienungsanleitung

Follow these steps for safe and effective operation of your heat press machine.

6.1 Temperatur und Zeit einstellen

1. Einschalten: Stellen Sie sicher, dass die Maschine eingeschaltet ist.
2. Temperatur einstellen: Press the "SET" button on the LCD control panel. Use the up and down arrow buttons to adjust the desired temperature (0-400°F). Press "SET" again to confirm.
3. Zeit einstellen: After setting the temperature, the timer setting will become active. Use the up and down arrow buttons to adjust the desired pressing time (0-999 seconds). Press "SET" again to confirm.
4. Vorwärmen: Allow the machine to preheat until it reaches the set temperature. The display will show the current temperature.

Figure 4: LCD control panel for precise temperature and timer settings.

6.2 Druck ausüben

1. Material vorbereiten: Place your material (e.g., botanicals, fabric with transfer) between two pieces of parchment paper on the lower heating plate.
2. Position Jack: Ensure the hydraulic jack is in the lowest position.
3. Pumpengriff: Insert the pump handle into the hydraulic jack. Pump the handle repeatedly to raise the lower plate and apply pressure to your material. Monitor the pressure gauge if available (0-5700 PSI).
4. Timer starten: Once the desired pressure is reached, press the green timing button to start the countdown.
5. Ablassdruck: After the timer completes and an alarm sounds, slowly turn the pressure relief knob counter-clockwise to release the pressure. The lower plate will descend.
6. Material entfernen: Carefully remove your pressed material using heat-resistant tools.

Figure 5: Illustration of the hydraulic jack and pressure application.

6.3 Anwendungen

This heat press machine is versatile for various uses:

• Botanical Oil Extraction: Ideal for extracting oils from plant materials.
• Fabric Printing: Suitable for heat transfer vinyl (HTV) and sublimation on T-shirts, bags, and other textiles.
• Resin Crafting: Can be used for various resin-based projects requiring heat and pressure.

Abbildung 6: Bspamples of applications for the heat press machine.

7. Wartung

Regelmäßige Wartung gewährleistet die Langlebigkeit und optimale Leistung Ihrer Transferpresse.

• Reinigung: After each use, ensure the machine is cool and unplugged. Wipe down the heating plates and exterior surfaces with a soft, damp Tuch. Keine Scheuer- oder Lösungsmittel verwenden.
• Lagerung: Bewahren Sie die Maschine bei Nichtgebrauch in einer trockenen, staubfreien Umgebung auf.
• Inspektion: Periodically inspect the power cord for any signs of damage. Check the hydraulic jack for leaks or malfunctions.

8. Fehlerbehebung

If you encounter issues with your heat press machine, refer to the following common problems and solutions:

Sollten hier nicht aufgeführte Probleme auftreten oder die beschriebenen Lösungen das Problem nicht beheben, wenden Sie sich bitte an den Kundendienst.

9. Garantie und Support

For warranty information, technical support, or service inquiries, please contact the seller or manufacturer directly. Keep your purchase receipt and model number (CR2042) handy when contacting support.

Hersteller: Generisch
