AGPTEK External Blu-ray Drive (Model G01R13) User Manual

1. Einleitung

Vielen Dank für Ihren Einkauf.asing the AGPTEK External Blu-ray Drive, Model G01R13. This portable optical drive offers versatile read and write capabilities for Blu-ray, DVD, and CD formats, featuring high-speed USB 3.0 and Type-C connectivity. Its compact design and multi-port functionality make it an ideal solution for various computing needs across Windows, macOS, and Linux operating systems. This manual provides essential information for proper setup, operation, maintenance, and troubleshooting to ensure optimal performance and longevity of your device.

Figure 1: AGPTEK External Blu-ray Drive, Model G01R13

2. Produktüberschreitungview

2.1 Packungsinhalt

• AGPTEK External Blu-ray Drive (Model G01R13) x 1

2.2 Device Features and Components

The AGPTEK External Blu-ray Drive is designed for convenience and functionality. It features an integrated cable for easy storage and dual USB 3.0 and Type-C connectivity. Additionally, it includes multiple ports, allowing it to function as a USB hub.

Figure 2: Key features of the AGPTEK External Blu-ray Drive

The drive incorporates a silent design to minimize noise during operation, making it suitable for quiet environments. Its lightweight and slim profile (approximately 350g) enhance portability.

3. Einrichtung

3.1 Verbindung zu Ihrem Computer

The drive supports both USB 3.0 (Type-A) and Type-C connections. Use the appropriate cable to connect the drive to an available USB port on your computer.

• For USB Type-A: Connect the USB 3.0 Type-A connector to your computer's USB-A port.
• For USB Type-C: Connect the USB Type-C connector to your computer's USB-C port.

Figure 3: Connecting the drive to a laptop

3.2 Netzteil

The drive is primarily powered via USB bus power. In most cases, a single USB connection will provide sufficient power for operation. However, if you experience unstable operation or power-intensive tasks (e.g., Blu-ray playback or burning), an auxiliary power source can be used.

• Hilfsstrom: Connect a Micro USB cable (not always included, may require separate purchase) from the drive's auxiliary power port to a USB power adapter or another USB port on your computer. This ensures stable power delivery, especially during extended use or when playing Blu-ray discs.

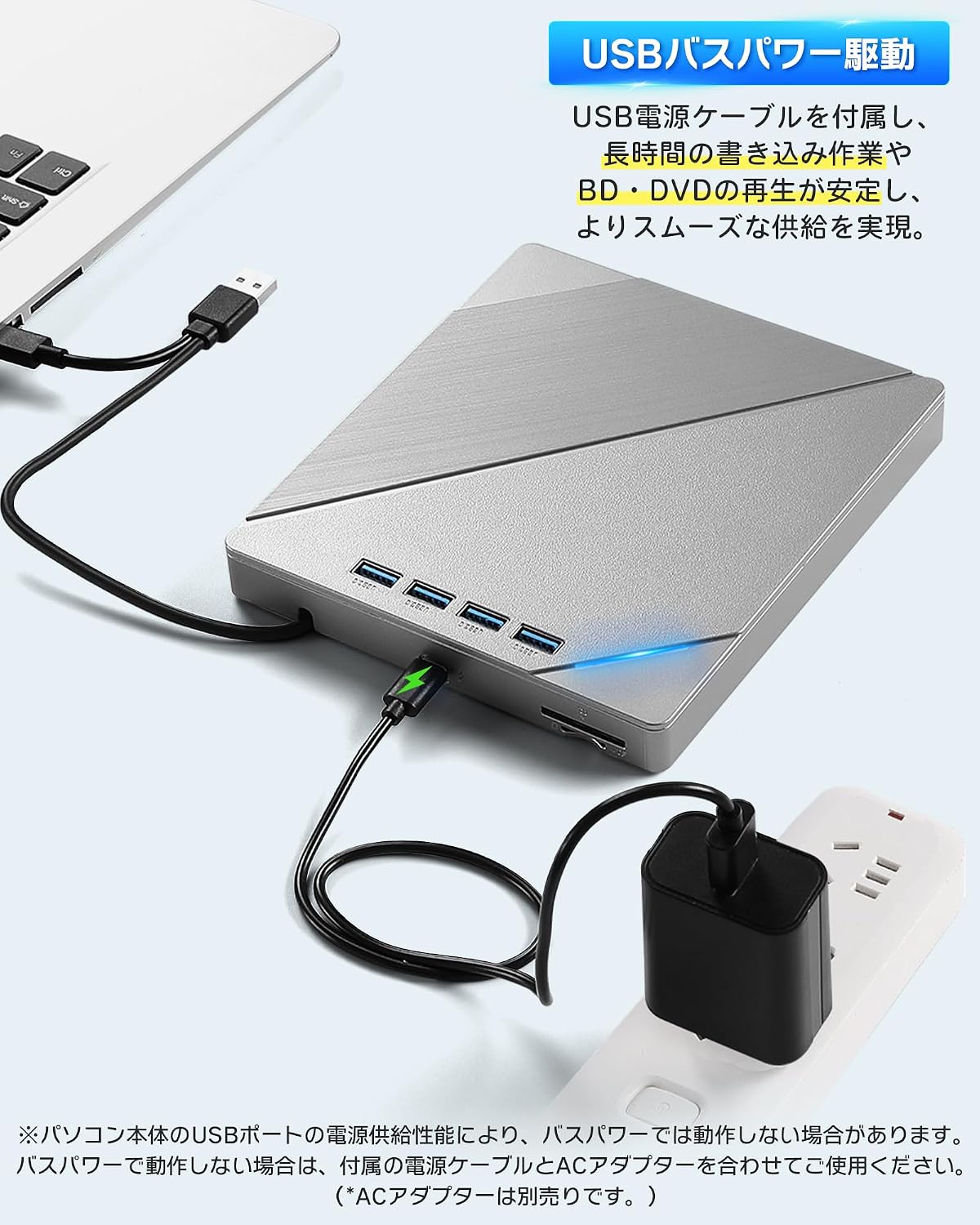

Figure 4: Connecting auxiliary power to the drive

3.3 Betriebssystemkompatibilität

The AGPTEK External Blu-ray Drive is compatible with a wide range of operating systems, including:

• Windows (Windows 7, 8, 10, 11, XP)
• macOS
• Linux

No additional drivers are typically required for basic plug-and-play functionality.

4. Bedienungsanleitung

4.1 Einlegen und Auswerfen von Discs

• Einführen: Gently press the eject button on the front of the drive to open the disc tray. Place the disc label-side up onto the tray, ensuring it is centered on the spindle. Gently push the tray back into the drive until it clicks into place.
• Zum Auswerfen: Press the eject button on the front of the drive. Alternatively, you can eject the disc through your computer's operating system (e.g., right-click the drive icon and select 'Eject').

Figure 5: Inserting a disc

4.2 Abspielen von Discs

After inserting a disc, your computer's operating system should recognize it. You may need compatible software to play Blu-ray movies, DVDs, or audio CDs. This drive does not include playback software.

• For Blu-ray/DVD Movies: Install a third-party Blu-ray/DVD playback software (e.g., Leawo Blu-ray Player, VLC Media Player, CyberLink PowerDVD).
• Für Audio-CDs: Most operating systems have built-in media players that can play audio CDs.
• For Data Discs: The disc contents should appear in your file explorer/finder.

4.3 Brennen von Discs

To burn data to a blank Blu-ray, DVD, or CD, you will need compatible burning software. This drive does not include burning software.

• Insert a blank recordable disc (BD-R, DVD-R, CD-R, etc.) into the drive.
• Open your preferred burning software and follow its instructions to select files and initiate the burning process.

4.4 Using the Integrated USB Hub and Card Readers

The drive features multiple ports, allowing it to function as a USB hub. You can connect various peripherals simultaneously:

• USB-Anschlüsse: Connect USB memory sticks, external hard drives, mice, keyboards, or other USB devices.
• SD/TF-Kartensteckplätze: Insert SD or TF (MicroSD with adapter) cards to access their contents.

Note that while the drive offers expandability, simultaneous heavy usage of all ports and the optical drive might require auxiliary power for stable operation.

5. Wartung

5.1 Cleaning the Drive

• Halten Sie das Laufwerk sauber und staubfrei. Wischen Sie die Außenseite mit einem weichen, trockenen Tuch ab.
• Verwenden Sie keine flüssigen Reinigungsmittel oder Scheuermittel.
• Avoid opening the drive casing, as this may void the warranty and expose sensitive components.

5.2 Handling Discs

• Always handle discs by their edges to avoid fingerprints and scratches on the data surface.
• Store discs in their cases when not in use to protect them from dust and damage.
• Reinigen Sie verschmutzte Discs mit einem weichen, fusselfreien Tuch, indem Sie von der Mitte nach außen wischen.

5.3 Speicherung

When not in use, store the drive in a cool, dry place away from direct sunlight and extreme temperatures. Ensure the integrated cable is neatly stored in its compartment.

6. Fehlerbehebung

6.1 Laufwerk wird vom Computer nicht erkannt

• Stellen Sie sicher, dass das USB-Kabel sowohl mit dem Laufwerk als auch mit dem Computer fest verbunden ist.
• Versuchen Sie, eine Verbindung zu einem anderen USB-Anschluss an Ihrem Computer herzustellen.
• If using a desktop PC, try connecting to a USB port on the back of the computer, which typically provides more stable power.
• Connect the auxiliary power cable if the drive is not receiving sufficient power from a single USB port.
• Starten Sie Ihren Computer neu.

6.2 Disc Read/Write Errors

• Stellen Sie sicher, dass die Disc sauber und frei von Kratzern oder Flecken ist.
• Verify that the disc type is compatible with the drive (refer to Specifications).
• Ensure you are using appropriate playback or burning software.
• Connect the auxiliary power cable to ensure stable power delivery, especially for Blu-ray discs or during burning.
• Um eine defekte Disc auszuschließen, versuchen Sie es mit einer anderen Disc.

6.3 Langsame Leistung

• Ensure the drive is connected to a USB 3.0 or Type-C port on your computer for optimal speed. Connecting to a USB 2.0 port will result in slower transfer rates.
• Avoid running multiple demanding applications simultaneously.
• If using the integrated USB hub, disconnect other peripherals if you need maximum speed for disc operations.

7. Spezifikationen

8. Garantie und Support

8.1 Garantieinformationen

This AGPTEK External Blu-ray Drive (Model G01R13) comes with a 180-day warranty from the date of purchase. This warranty covers manufacturing defects under normal use. Please retain your proof of purchase for warranty claims.

Von der Garantie ausgeschlossen sind Schäden, die verursacht werden durch:

• Unfall, Missbrauch, Fehlgebrauch oder unsachgemäße Installation.
• Unbefugte Reparaturen oder Änderungen.
• Stromspitzen oder externe elektrische Störungen.
• Use with incompatible accessories.

8.2 Kundendienst

For technical assistance, warranty claims, or product inquiries, please contact AGPTEK customer support through the retailer's platform where you purchased the product or visit the official AGPTEK webWebsite für Kontaktinformationen.
